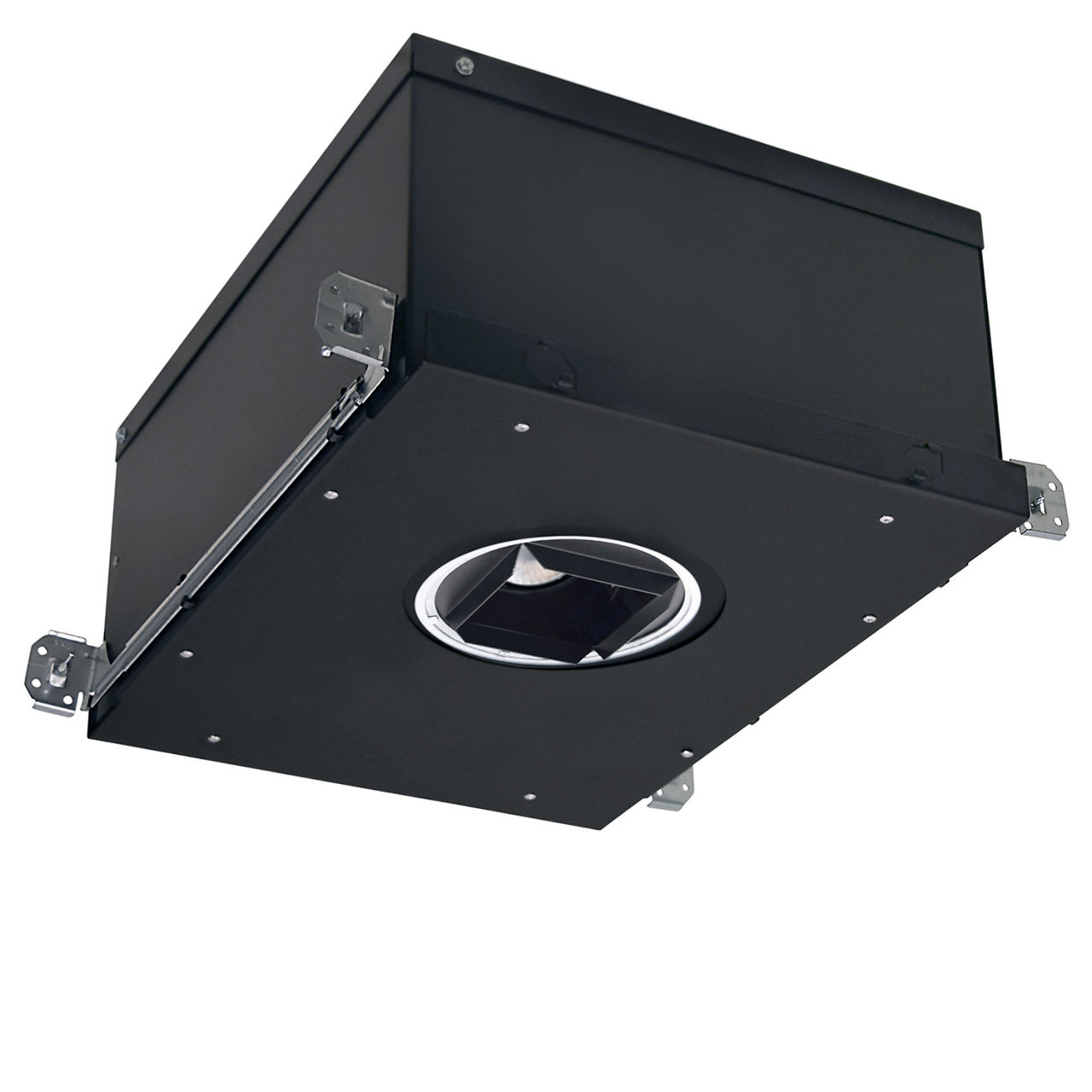

Square Adjustable Insulated Ceiling/StopAire™ Housing
R4ASQIC
- Specification Grade 4-inch Square 16 Gauge Galvanized Steel New Construction Insulated Ceiling (IC) Air Tight Housing with Die-Cast Aluminum Heat Sink for use in applications with direct contact with insulation materials
- Can be used in slope ceiling applications
- Housing aperture can be adjusted 1/4- inch in each direction, as well as 11° of angular adjustment (5.5° per side) post installation to ease fixture alignment
- Quick-connect Module design enables easy installation and removal; Drivers are fully accessible from below the ceiling and can be easily removed
- Housing has a removable cover when Module and Driver access from above the ceiling is required
- Adjustment Mechanism is constructed of 16 Gauge Sheet Metal and Die-Cast Aluminum; it allows 45° of tilt with white graduation marks every 15° for consistent aiming plus 360° for rotational adjustment
- Output over-voltage, over-current and short circuit protection
- Approved for Through Circuit Wiring: max. eight (8) 12 AWG (4in/4out)
- Select from four (4) wattage/lumen packages: 12W/900lm, 15W/1200lm, 21W/1700lm, and 29W/2400lm
- Available in 2700K, 3000K, 3500K and 4000K Color Temperatures with a CRI of 80 min., 83 typical; high CRI of 90+ available
- 19° Spot, 35° Medium and 51° Flood beam distributions; optics are interchangeable and can be field replaced
- FA-57 Black Accessory Holder Clips can support up to two (2) media
- All R4ASQ Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
- Specification Grade Flanged Trims in several different styles and finishes available. NOTE: R4ASQ and R4SQ Series Trims are NOT compatible with each other.
- UL8750 and Class 2 Compliant; RoHS Compliant
- cCSAus Certified to UL924 Standard for Emergency Lighting when specified with the Emergency Battery Backup option
- Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)
Product Information
Product Features
Product Category : 4-In Adjustable Downlight
Product Type : Adjustable
Product Shape : Square
Housing : New Construction
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Light Distribution Detail : Spot,Medium,Flood
Compliance : Certified to UL924 Standard for Emergency Lighting,WSEC ASTM E283
Lumen Output : 500-1000,1001-1500,1501-2000,2001-2500
Environment : Non-IC/StopAire™ ASTM E283,Damp Location
Wattage : 0 - 10W,11W - 20W,21W - 30W
Voltage : 120V,277V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,DALI
Battery : Factory Installed 7W/200mA Remote Test Switch
Trim Type : Self Flanged

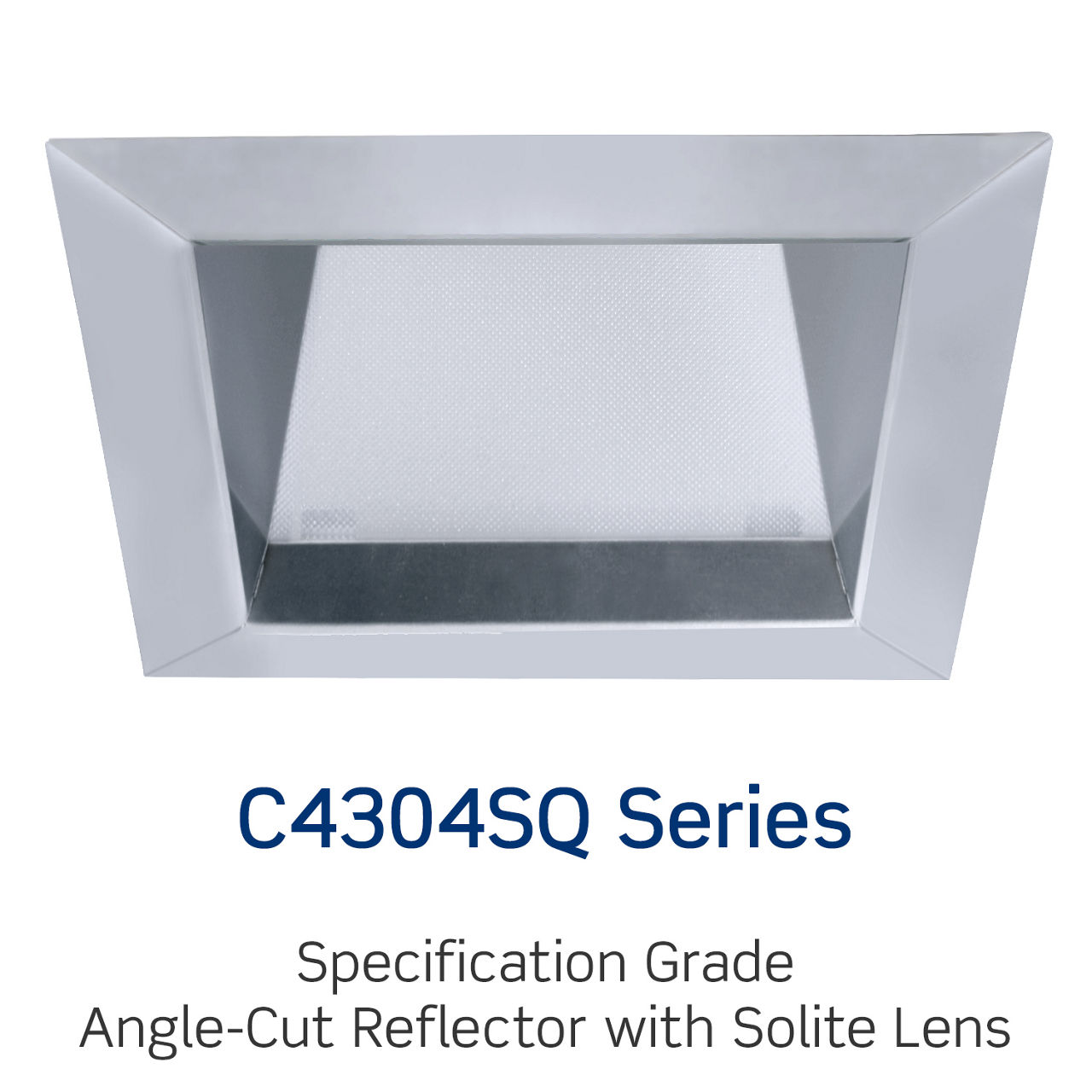

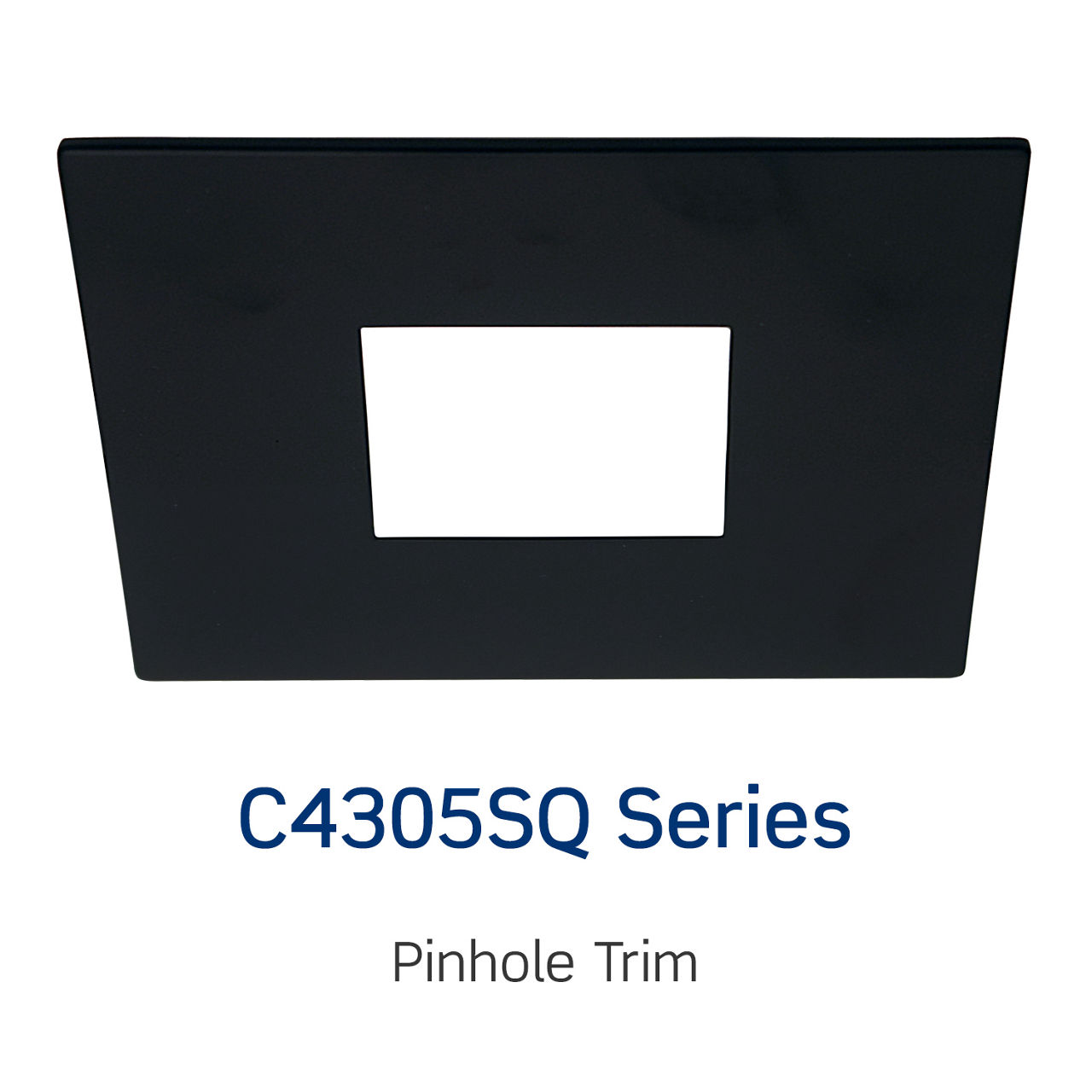

Use With : C4304SQ Series,C4305SQ Series
