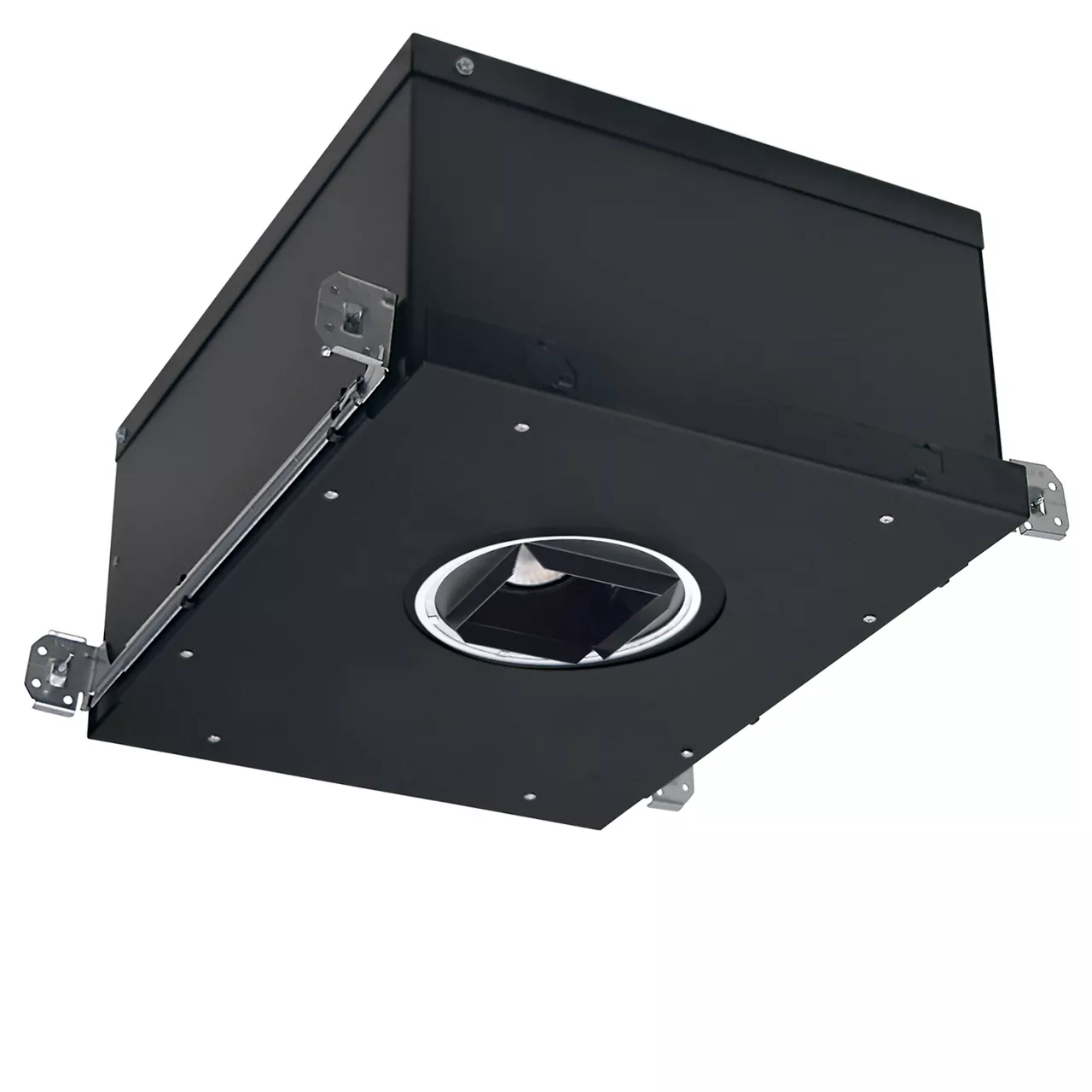

Non-IC/StopAire™ Adjustable Square Housing

R4ASQNC

  • Specification Grade 4-inch square 16 gauge Galvanized Steel New Construction Housing with Die-Cast Aluminum Heat Sink; can be used in slope ceiling applications
  • Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
  • Housing is painted matte black inside and out; aperture can be adjusted 1/4−inch in each direction, as well as 11° of angular adjustment (5.5° per side), post installation to ease fixture alignment
  • Quick-connect Module design enables easy installation and removal; Drivers are fully accessible from below the ceiling and can be easily removed. Removable cover when Module and Driver access from above the ceiling is required.
  • Adjustment Mechanism is painted matte black, allows 45° of tilt, 360° rotational adjustment, and is fully lockable; white Graduation Marks are painted every 15° for consistent aiming
  • Available in 2700K, 3000K, 3500K and 4000K Color Temperatures with a CRI of 80 min., 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency with a 3-step MacAdam Ellipse tolerance
  • 19° Spot, 35° Medium and 51° Flood beam distributions; optics are interchangeable and can be field replaced

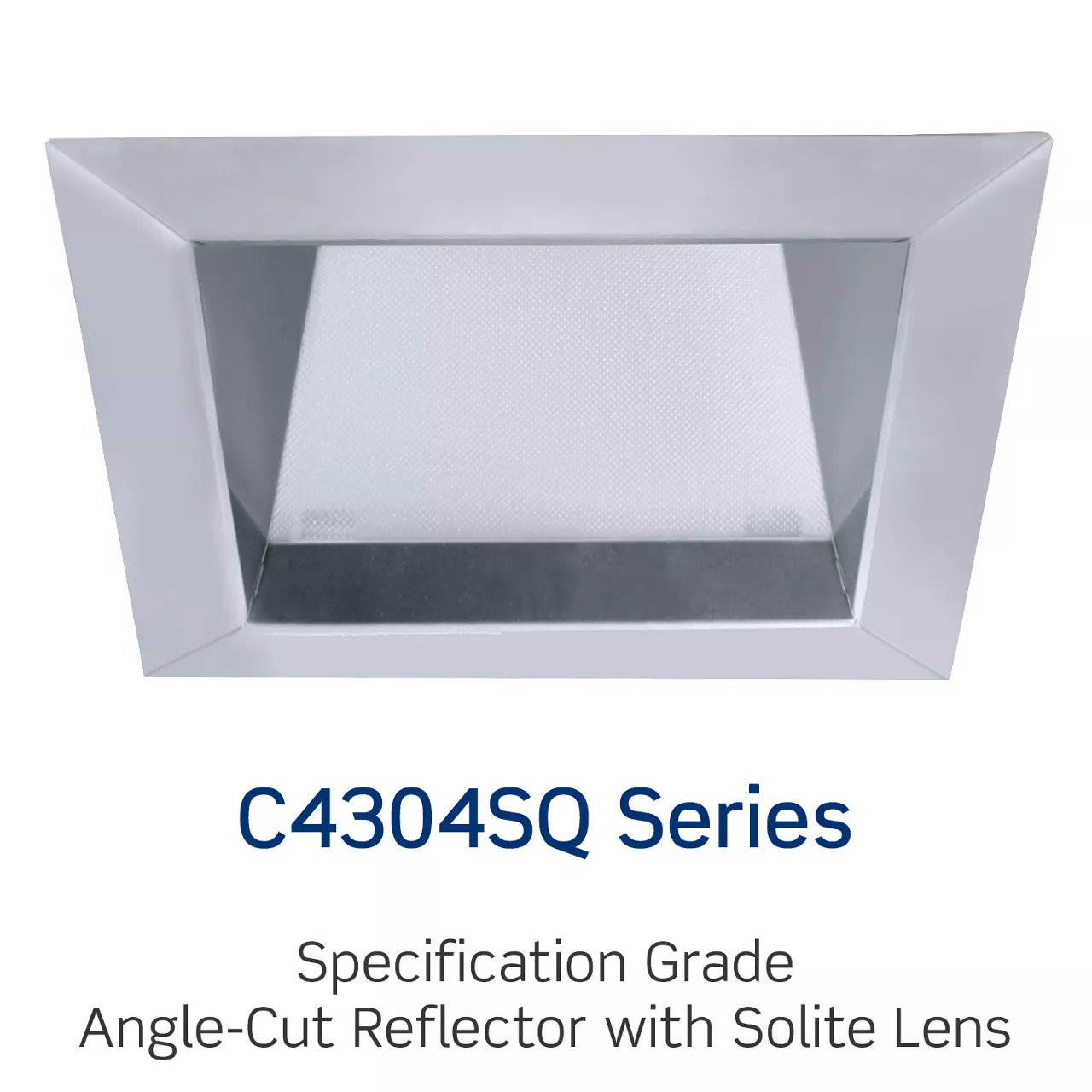

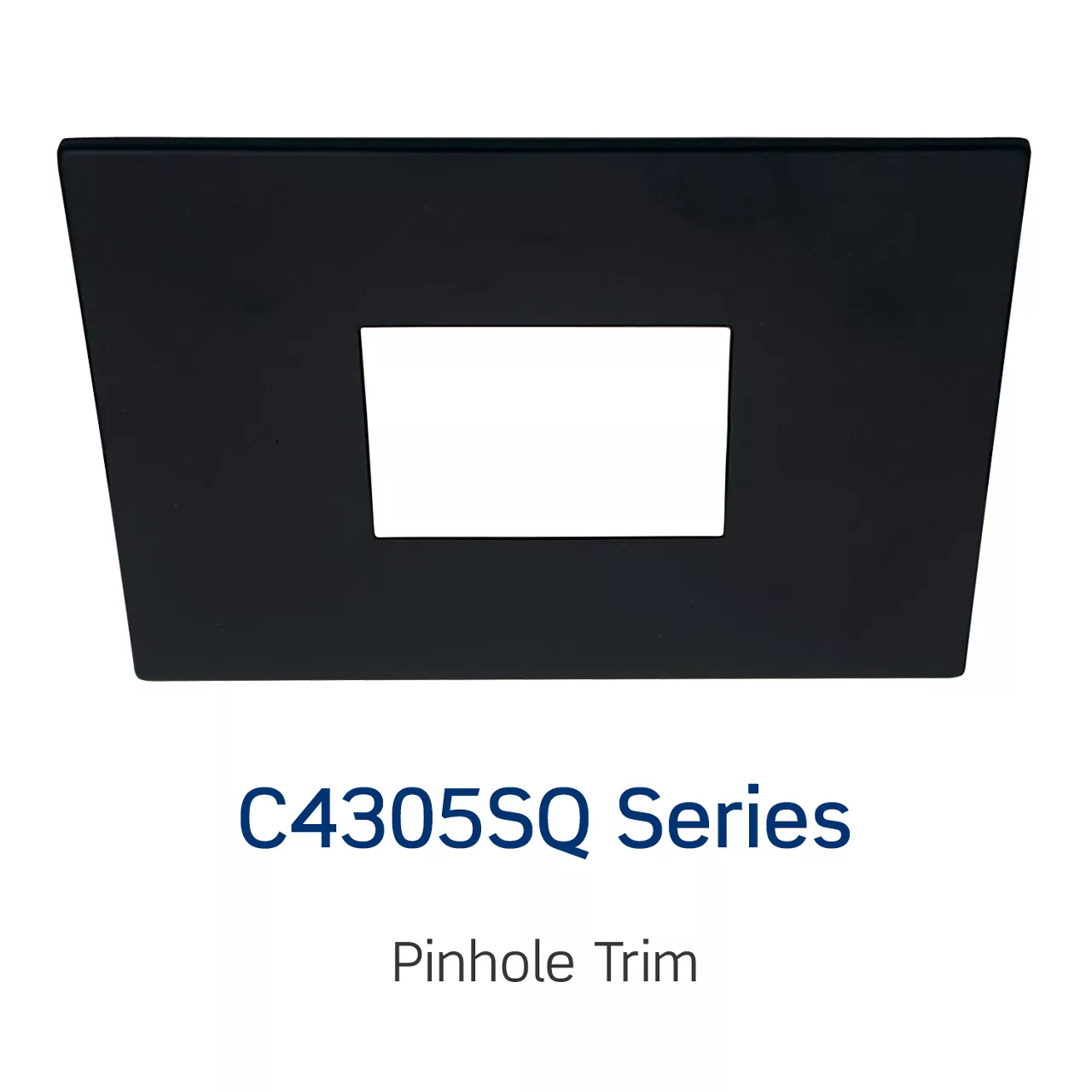

  • Specification Grade Flanged Trims available in several different styles and finishes
  • NOTE: R4ASQ and R4SQ Series Trims are NOT compatible with each other
  • Available for dimming and non-dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet

Product Information

  • Product Features

    Product Category : 4-Inch Downlight

    Product Type : Adjustable

    Product Shape : Square

    Housing : New Construction

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Light Distribution Detail : Spot,Medium,Flood

    Compliance : UL924 Emergency,CCEA Listed,WSEC ASTM E283

    Lumen Output : 2001-3000,3001-4000

    Environment : Non-IC/StopAire™ ASTM E283,Damp Location

    Wattage : 31W - 40W,41W - 50W

    Voltage : 120V,277V

    Dimming Technology : Forward Phase,Reverse Phase,0-10V,DALI

    Emergency Battery Back-up : Remote Test Switch

    Trim Type : Self Flanged

    Aperture Size : 4-Inch
