Remodel Downlight
R4RM

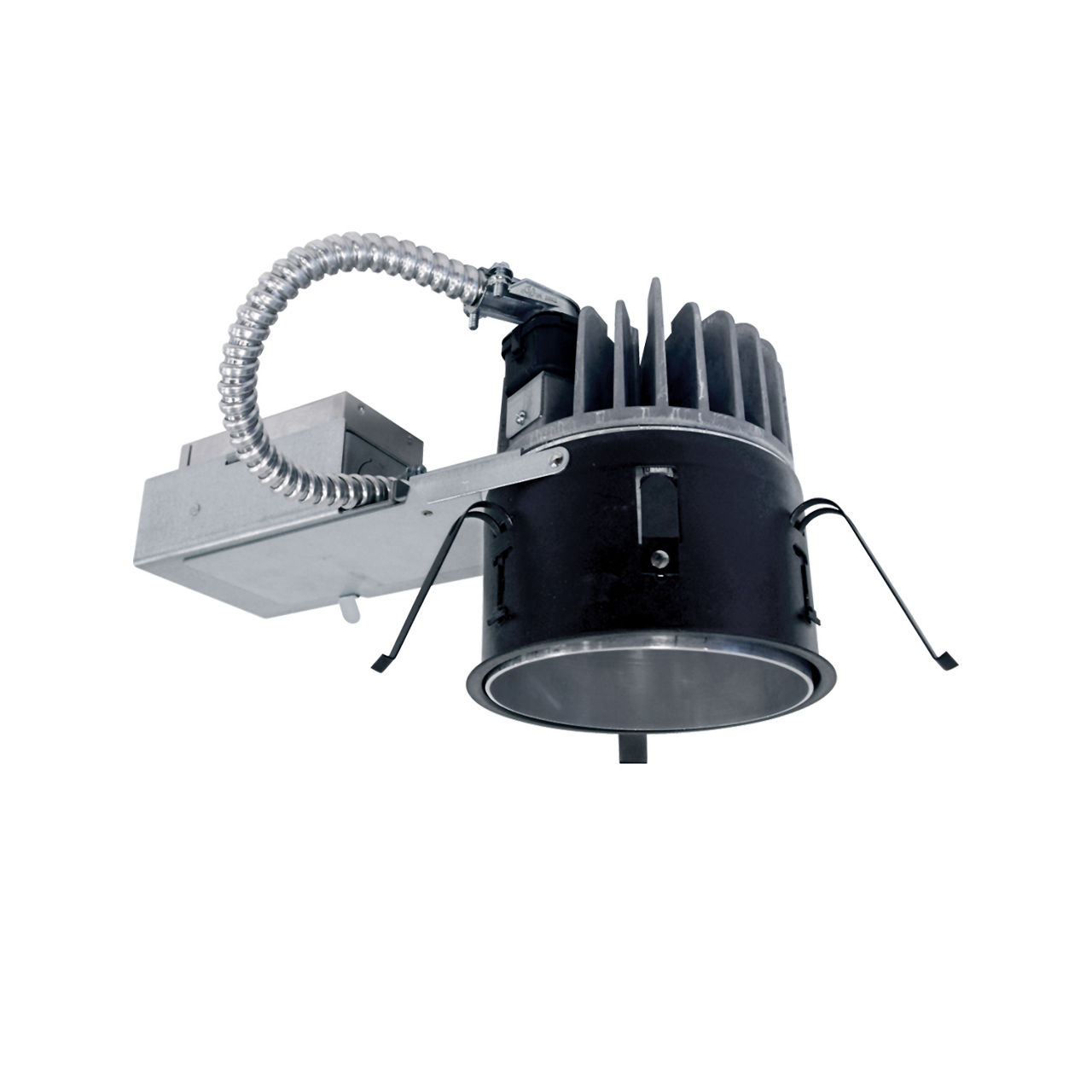

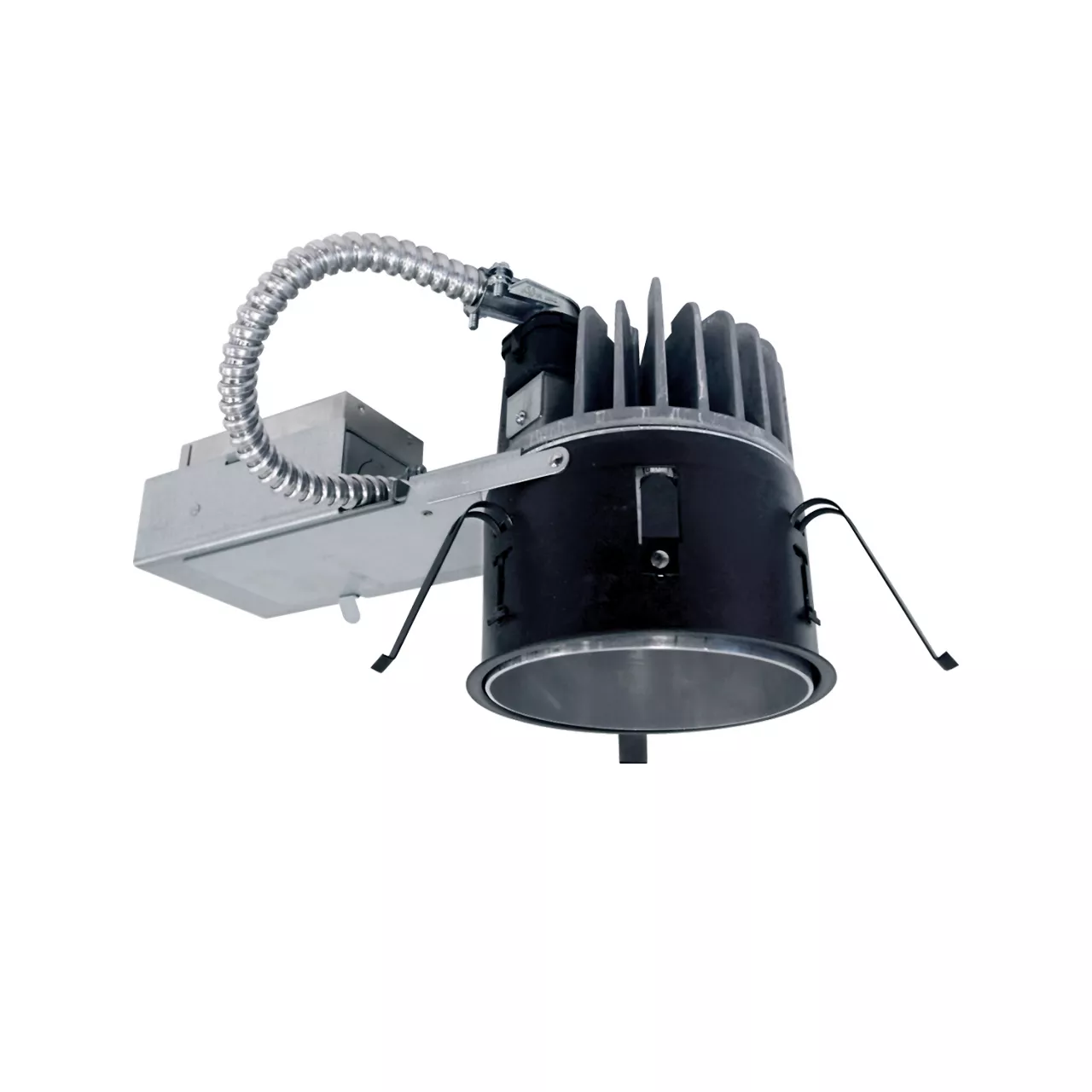

- Specification Grade 4-inch round Remodel Housing with Die-Cast Aluminum Heat Sink
- Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Heavy Duty Steel Plaster Ring is secured to ceiling by three (3) Spring Clamps
- Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
- Available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
- Excellent fixture-to-fixture color consistency with a 3-step MacAdam Ellipse tolerance
- Specification Grade Flanged Trims available in several different styles and finishes
- Trimless options cannot be used on Remodel Style Housings
- Available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
Product Information
Updated
Updated
Updated
IES
Product Features
Product Category : 4-Inch Downlight
Product Type : Downlight
Product Shape : Round
Housing : Remodel/Direct Mount
Environment : Damp Location
Compliance : ENERGY STAR® Certified
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Voltage : 120V,277V,347V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Lutron,DALI,DMX
Trim Type : Self Flanged,Trimless,Dead Front
Aperture Size : 4-Inch
