Insulated Ceiling (IC)/StopAire™ Shallow Downlight
R4SIC

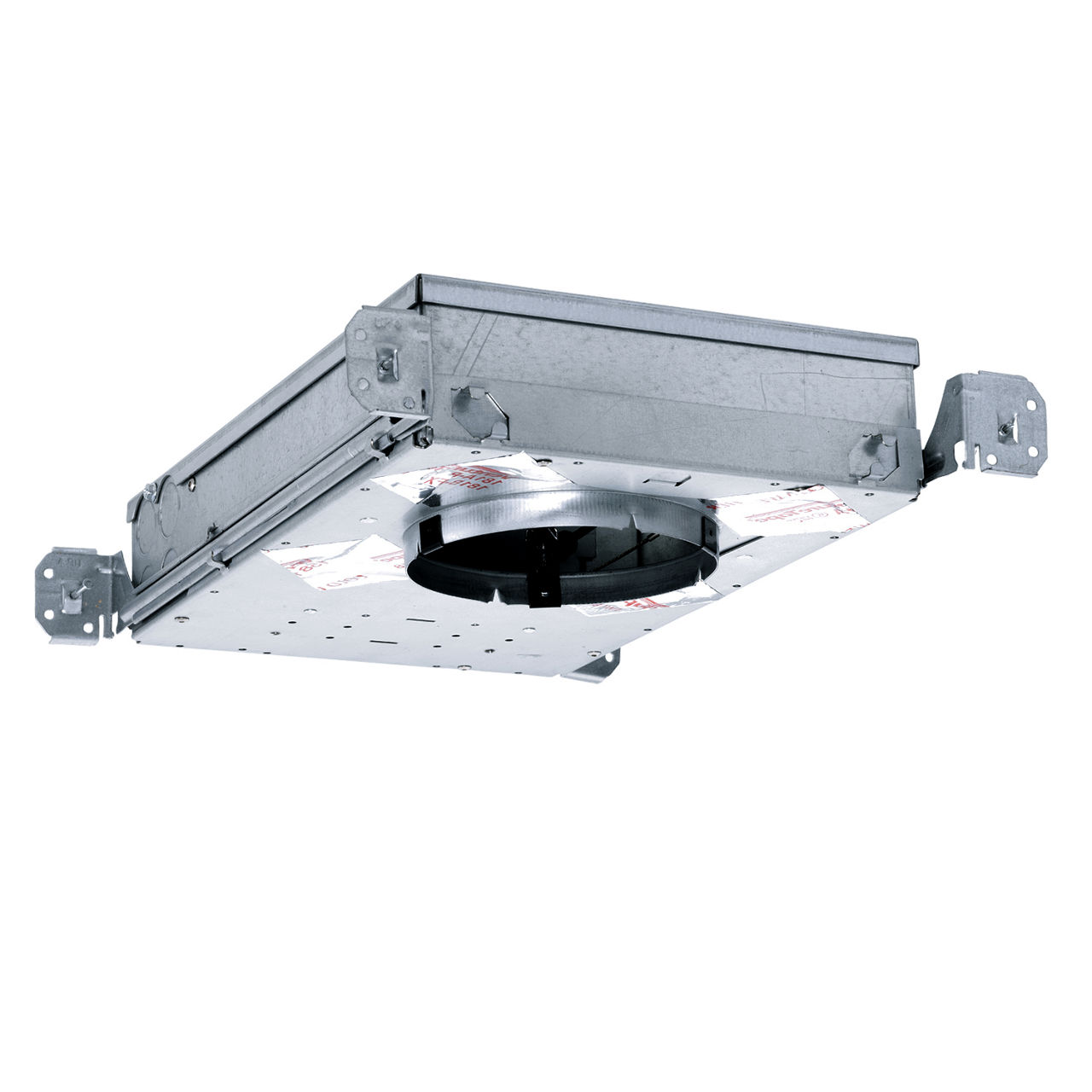

- Specification Grade 4−inch Round 16 Gauge Galvanized Steel Shallow Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink for use in applications with direct contact with insulation materials
- Fits into a 2-1/2−inch plenum space
- Quick-connect Light Engine for easy installation and removal; Drivers are fully accessible from below the ceiling; can be easily removed
- Mulit-volt 120-277V standard; output over-voltage, over-current and short circuit protection
- Approved for Through Circuit Wiring: max. four (4) 12 AWG (2in/2out); wiring rated to 90ºC
- Select from three (3) Wattage/Lumen packages: 9W/1100Lm, 13W/1600Lm, and 19W/2200Lm
- Available in 2700K, 3000K, 3500K, and 4000K Color Temperatures with a CRI of 80 min., 83 typical; high CRI of 90+ available
- Precision Optics produce 27° Medium, 45° Flood and 61° Wide Flood beam distributions; optics are interchangeable and can be field replaced
- All R4S Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet

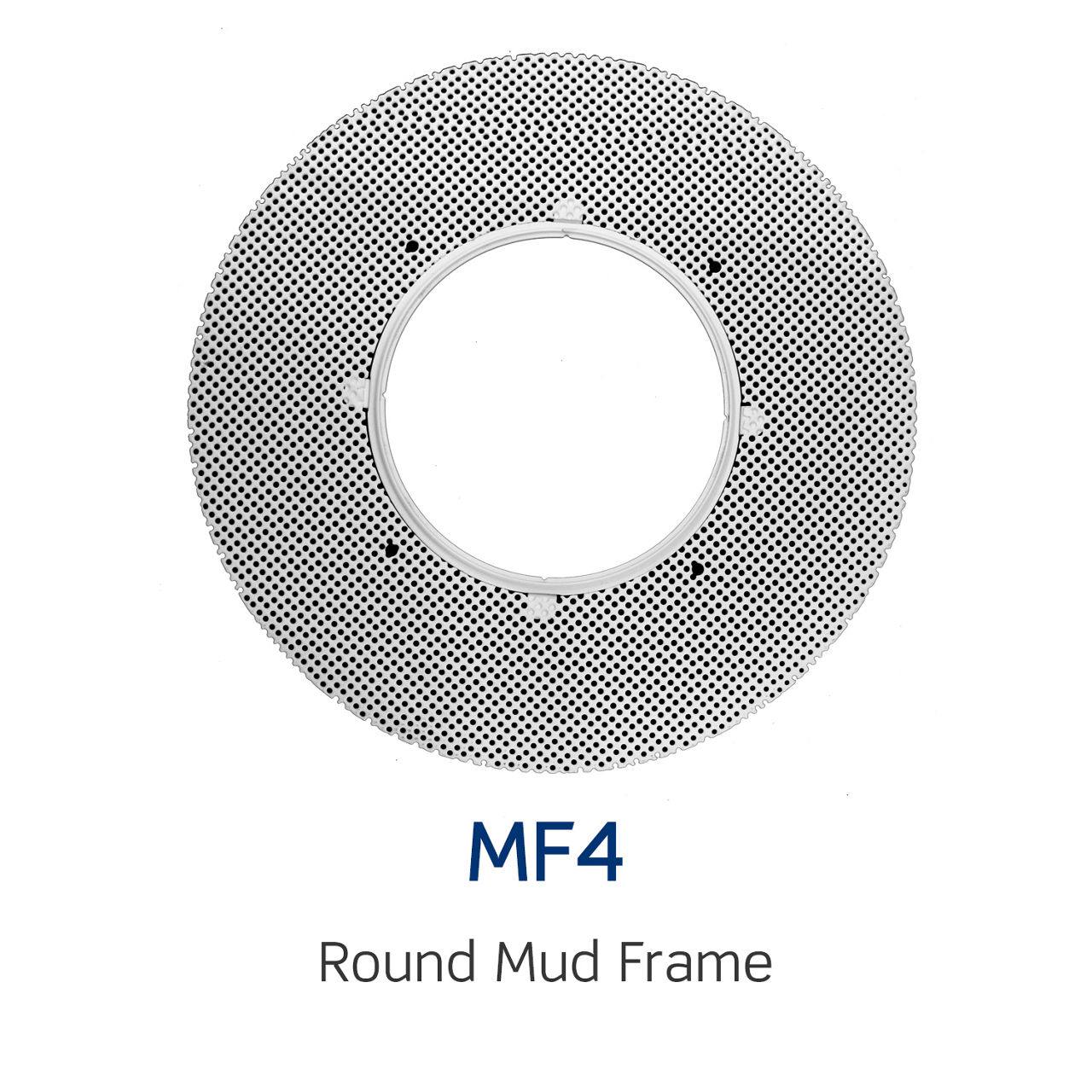

- Flanged or Trimless Specification Grade Trims available; Trimless options require use of a Mud Frame (MF4, ordered separately)
- ENERGY STAR® Certified; Lutron and eldoLED Dimming Options are not ENERGY STAR® Certified
- Can be used to comply with the 2016 Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
- Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)
- City of Chicago Environmental Air (CCEA) Rated; not for use in Insulated Ceilings (IC)
Product Information
Updated
Updated
Product Features
Product Type : Downlight
Product Shape : Round
Housing : Shallow Insulated Ceiling (IC)/StopAire™
Environment : Damp Location
Compliance : ENERGY STAR® Certified,Title 24 Part 6 JA8 Compliant,WSEC ASTM E283,CCEA Chicago Plenum Rated
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Lumen Output : 1001-1500,1501-2000,2001-3000
Wattage : 0 - 10W,11W - 20W
Voltage : 120-277V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,DALI,DMX
Light Distribution Detail : Medium,Flood,Wide Flood
Trim Type : Self Flanged,Trimless

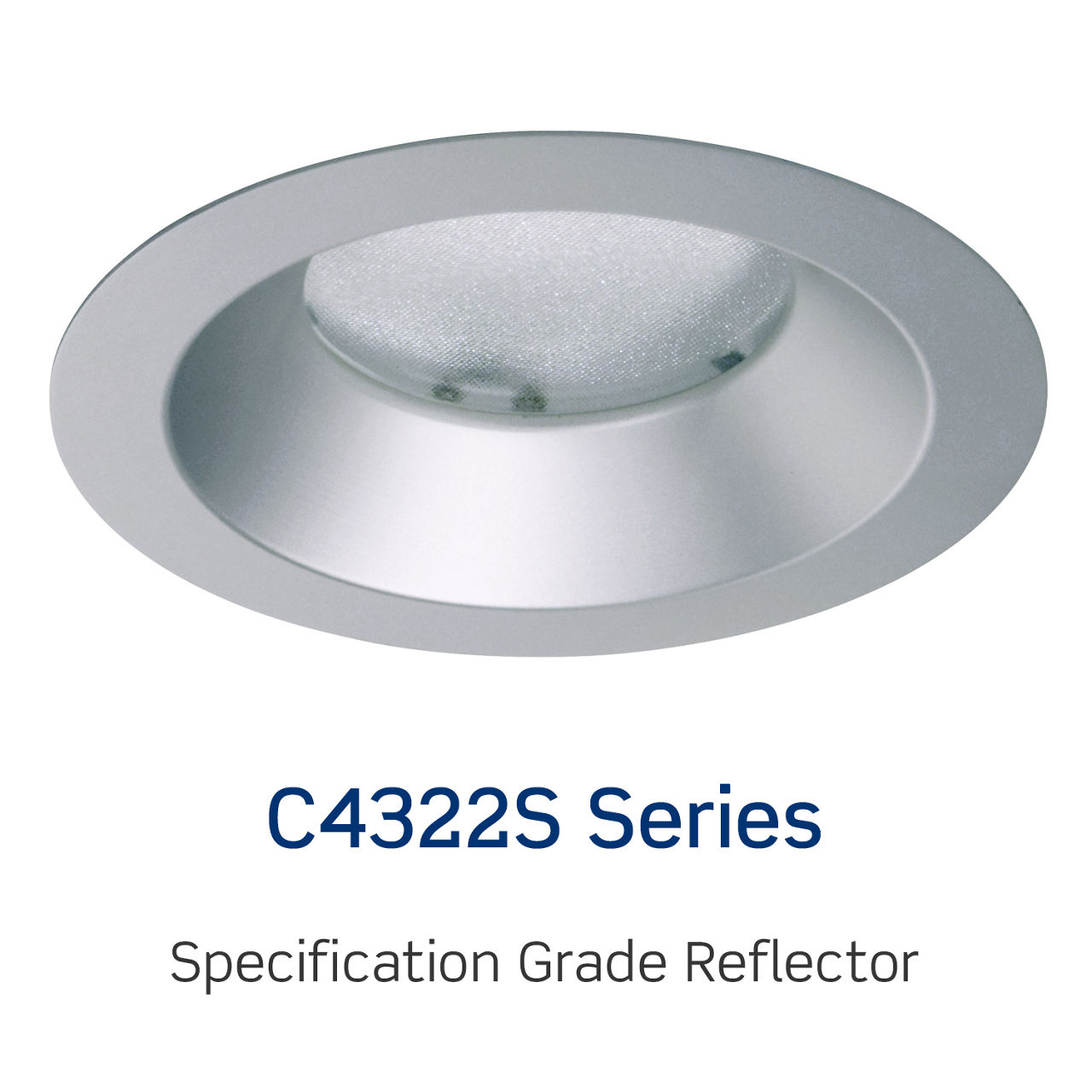

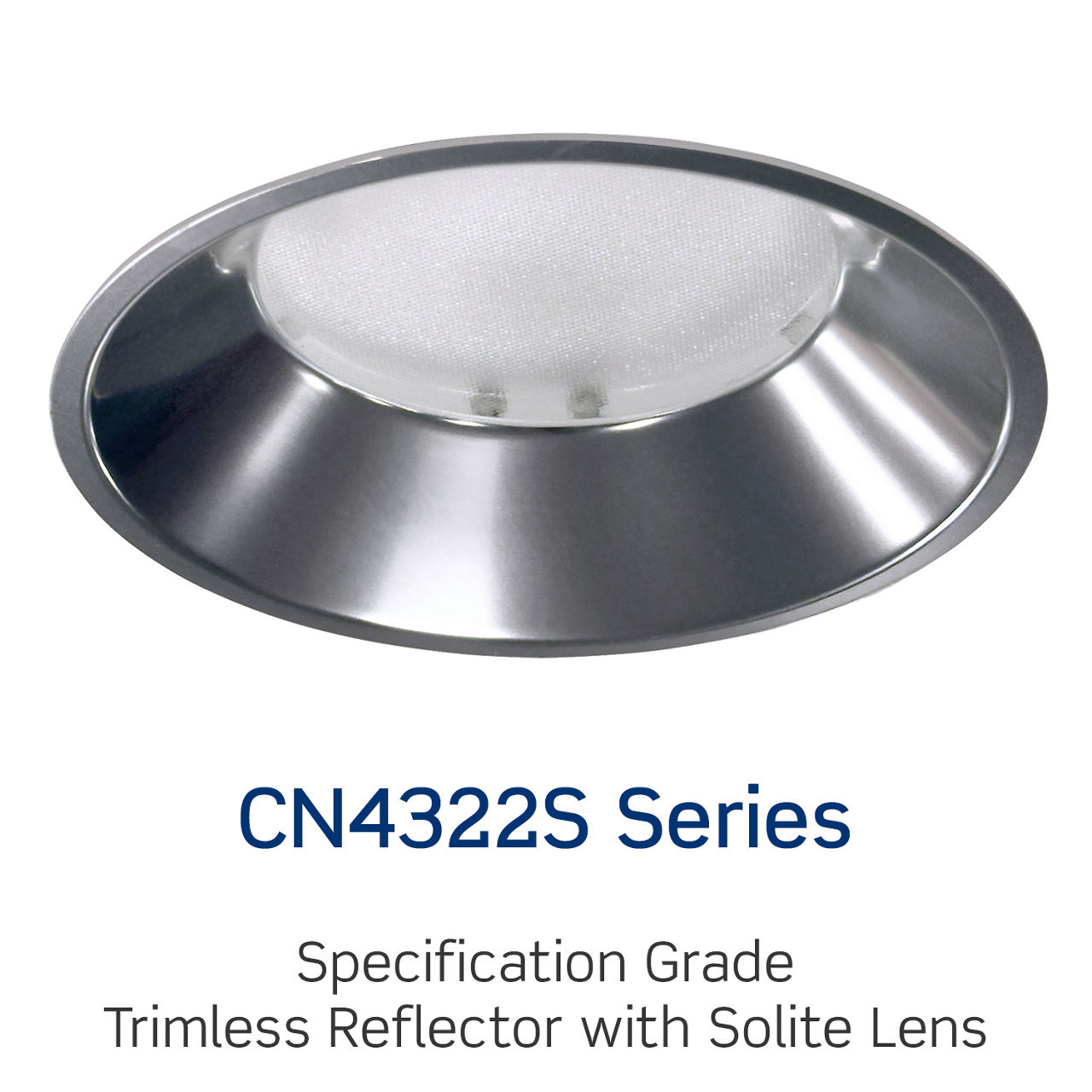

Use With : C4322S Series,CN4322S Series,MF4 Mud Frame
