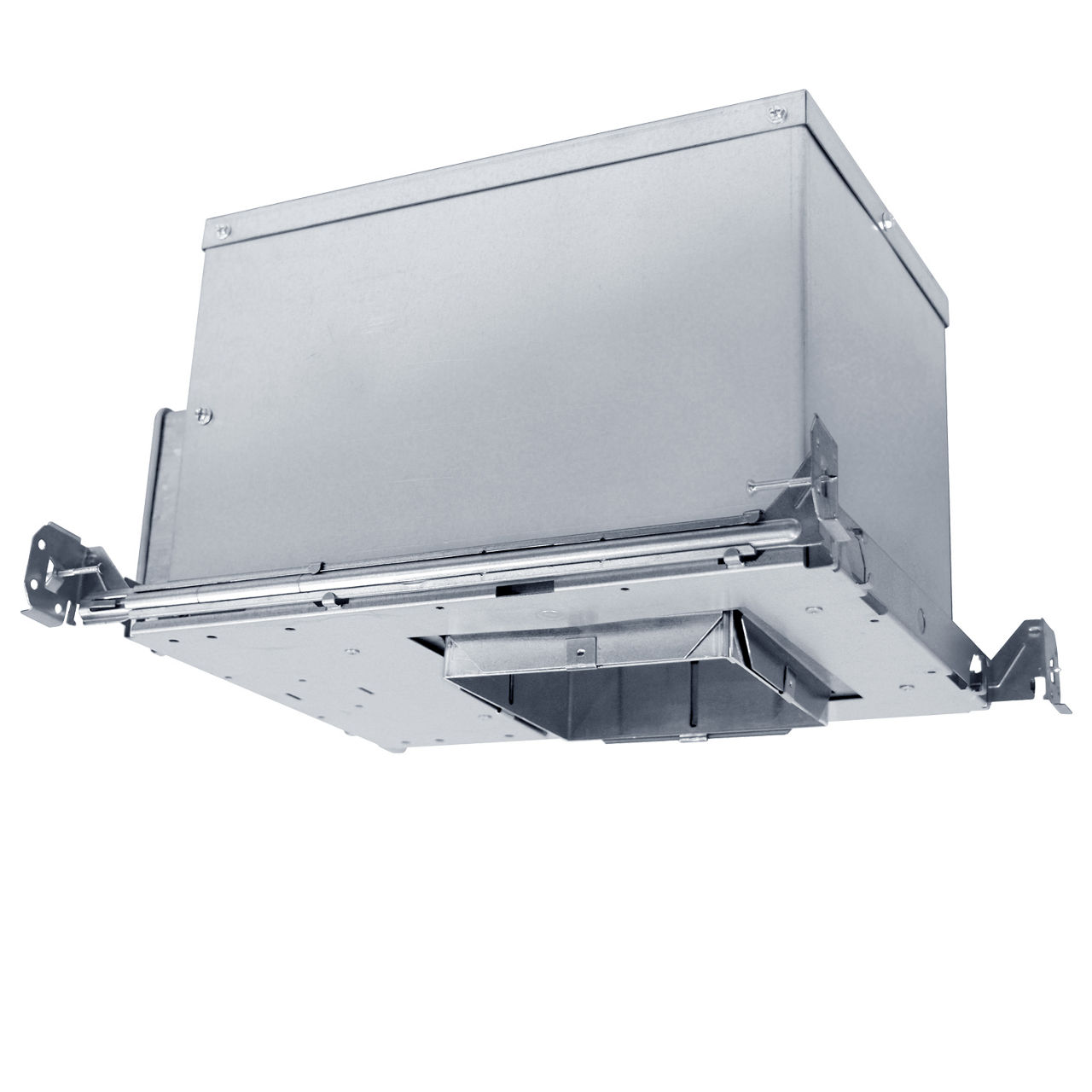

Insulated Ceiling(IC)/StopAire™ Square Downlight

R4SQIC

  • Specification Grade, 4-inch Square, 16 Gauge Galvanized Steel, Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink for use in applications with direct contact with insulation materials
  • Mounting Frame features a Post Installation Mechanism that allows 1/4- inch adjustment in all directions, as well as 5° of rotation adjustment to ensure proper alignment
  • Quick-connect Light Engine; Drivers are fully accessible from below the ceiling
  • Approved for Through Circuit Wiring: max. six (6) 12 AWG (3in/3out), wiring rated to 90ºC
  • Output over-voltage, over-current and short circuit protection
  • Select from four (4) Wattage/Lumen packages: 12W/1100Lm, 15W/1600Lm, 21W/2200Lm, and 30W/3000Lm
  • Available in 2700K, 3000K, 3500K, and 4000K Color Temperatures with a CRI of 80 min., 83 typical; high CRI of 90+ available
  • Glass TIR Optics provide smooth, uniform beams in 33° Narrow, 38° Medium, and 62° Wide; Optics are interchangeable and can be field replaced
  • A high efficiency, soft-focus, field removable film is installed for even greater softening of the beam
  • The Wall Wash distribution provides a smooth, wide beam with excellent uniformity; well suited for any wall lighting application
  • All R4SQ Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
  • Flanged or Trimless Specification Grade Trims in several different styles and finishes available
  • Trimless options require use of a Mud Frame (MF4SQ, ordered separately) and cannot be used on Remodel Style Housings (R4SQRM)
  • Select models are ENERGY STAR® Certified, see specification sheet for details
  • Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)

Product Information

  • Product Features

    Product Type : Downlight

    Product Shape : Square

    Housing : New Construction

    Environment : Insulated Ceiling (IC)/StopAire™,Damp Location,Wet Location

    Compliance : ENERGY STAR® Certified,WSEC ASTM E283

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Color Rendering Index : 80-89,90-100

    Light Distribution Detail : Narrow,Medium,Wide,Wall Wash

    Lumen Output : 1001-1500,1501-2000,2001-3000

    Voltage : 120V,277V,347V

    Wattage : 0-10W,11W-20W,21W-30W

    Dimming Technology : Forward Phase,Reverse Phase,0-10V,HiLume,DALI

    Trim Type : Self Flanged,Trimless,Die Cast

    Use With : C4322SQ Series,C4322SQDC Series,C4323SQ Series,C4323SQDC Series,CN4322SQDC Series,MF4SQ Mud Frame

    Product Family : 4-Inch Square Downlight
