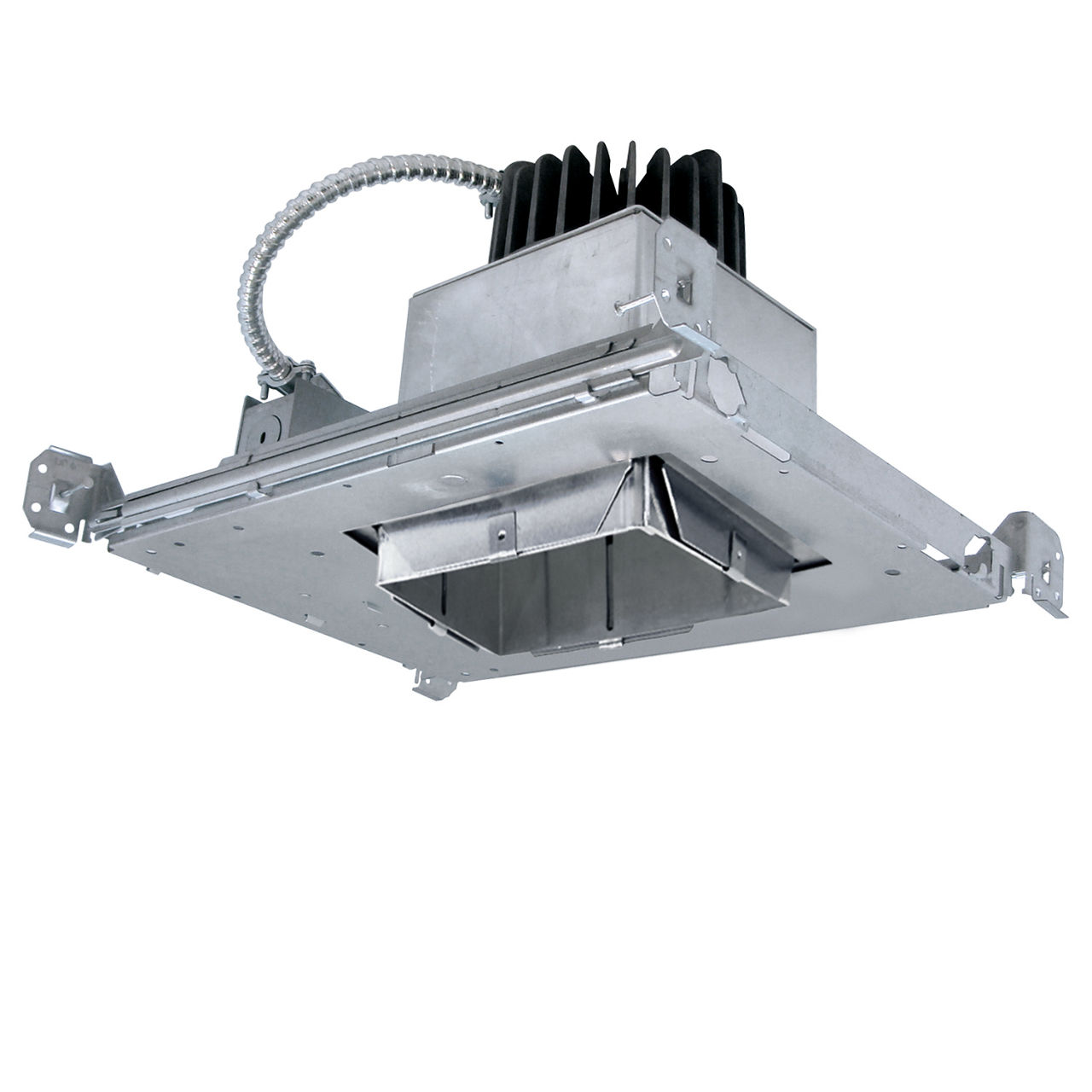

Universal New Construction Square Downlight
R4SQNC
- Specification Grade, 4-inch Square, 16 Gauge Galvanized Steel, Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink
- Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Mounting Frame features a Post Installation Mechanism that allows 1/4- inch adjustment in all directions, as well as 5° of rotation adjustment to ensure proper alignment
- Quick-connect Light Engine; Drivers are fully accessible from below the ceiling
- Approved for Through Circuit Wiring: max. six (6) 12 AWG (3in/3out), wiring rated to 90ºC
- Output over-voltage, over-current and short circuit protection
- Select from six (6) Wattage/Lumen packages: 12W/1100Lm, 15W/1600Lm, 21W/2200Lm, 30W/3000Lm, 8W/3700Lm, and 45W/4100Lm
- Available in 2700K, 3000K, 3500K and 4000K Color Temperatures with a CRI of 80 min., 83 typical; high CRI of 90+ available
- Glass TIR Optics provide smooth, uniform beams in 33° Narrow, 38° Medium, and 62° Wide; Optics are interchangeable and can be field replaced
- A high efficiency, soft-focus, field removable film is installed for even greater softening of the beam
- Wall Wash distribution provides a smooth, wide beam with excellent uniformity; well suited for any wall lighting application
- All R4SQ Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
- Flanged or Trimless Specification Grade Trims in several different styles and finishes available

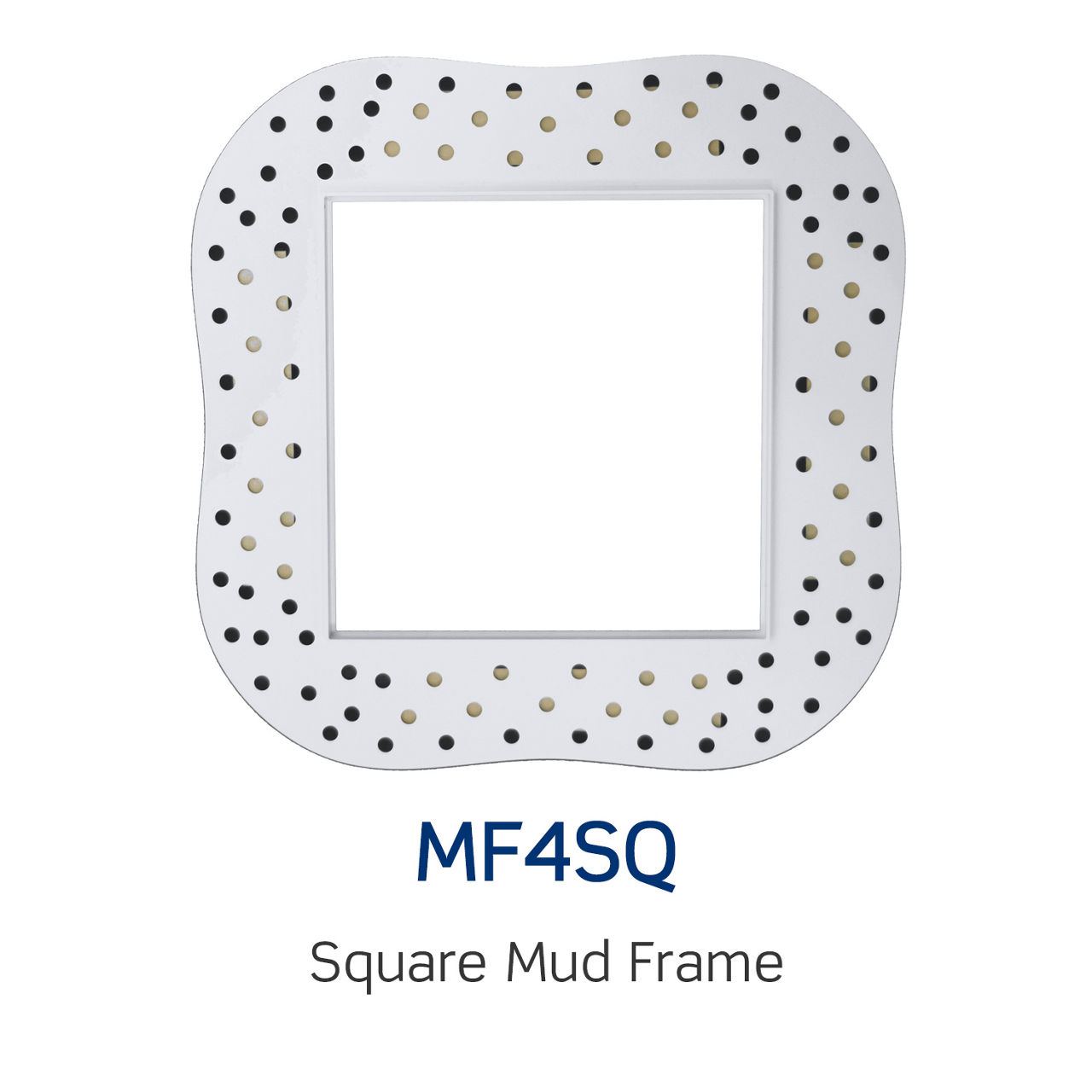

- Trimless options require use of a Mud Frame (MF4SQ, ordered separately) and cannot be used on Remodel Style Housings (R4SQRM)
- Select models are ENERGY STAR® Certified, see specification sheet for details
- cCSAus Certified to UL924 Standard for Emergency Lighting when specified with the Emergency Battery Backup option
Product Information
Updated
Product Features
Product Type : Downlight
Product Shape : Square
Housing : New Construction
Environment : StopAire™,Damp Location,Wet Location
Compliance : ENERGY STAR® Certified,WSEC ASTM E283,Chicago Plenum CCEA Rated
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Narrow,Medium,Wide,Wall Wash
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Voltage : 120V,277V,347V
Wattage : 11W-20W,21W-30W,31W-40W,41W-50W
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI
Trim Type : Self Flanged,Trimless,Die Cast

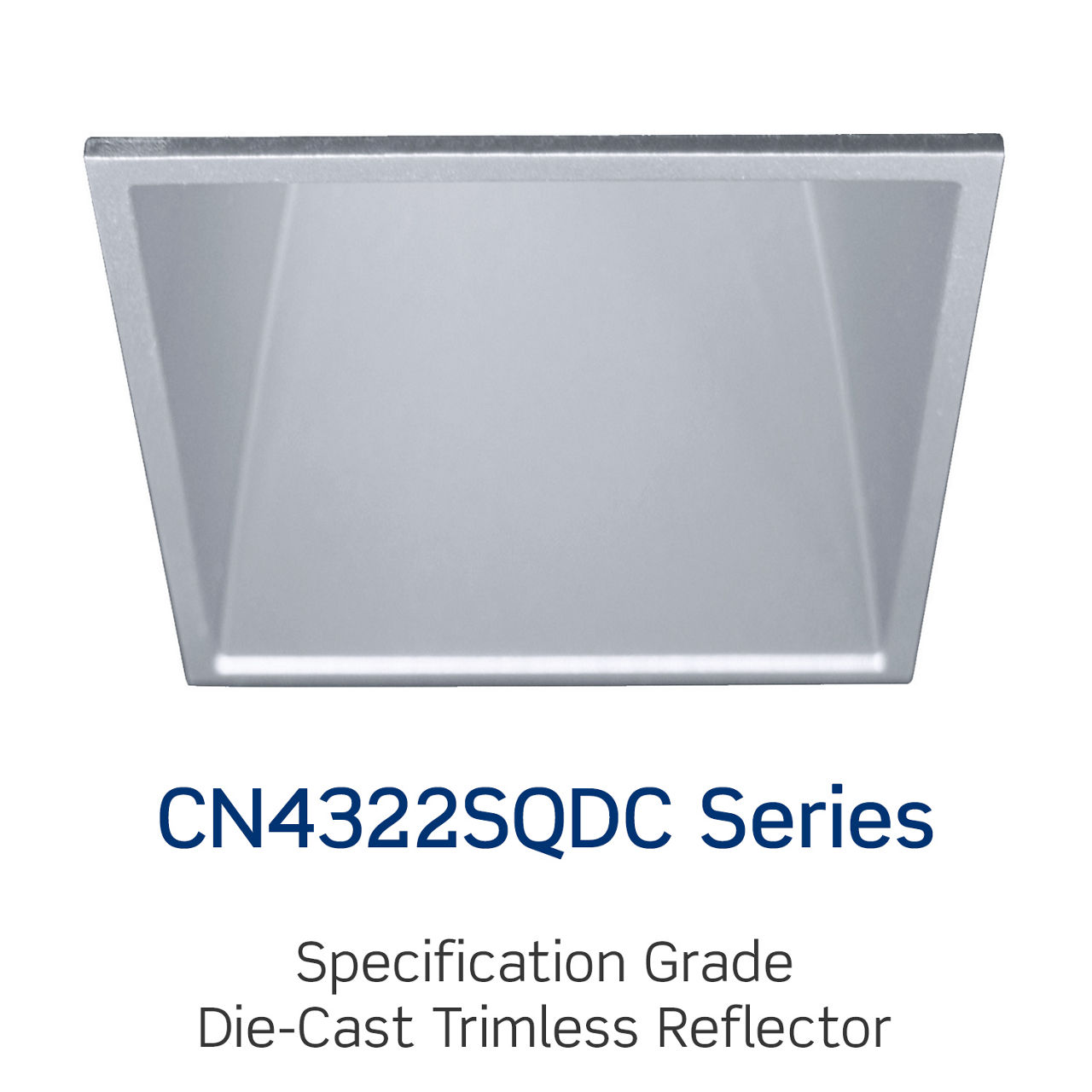

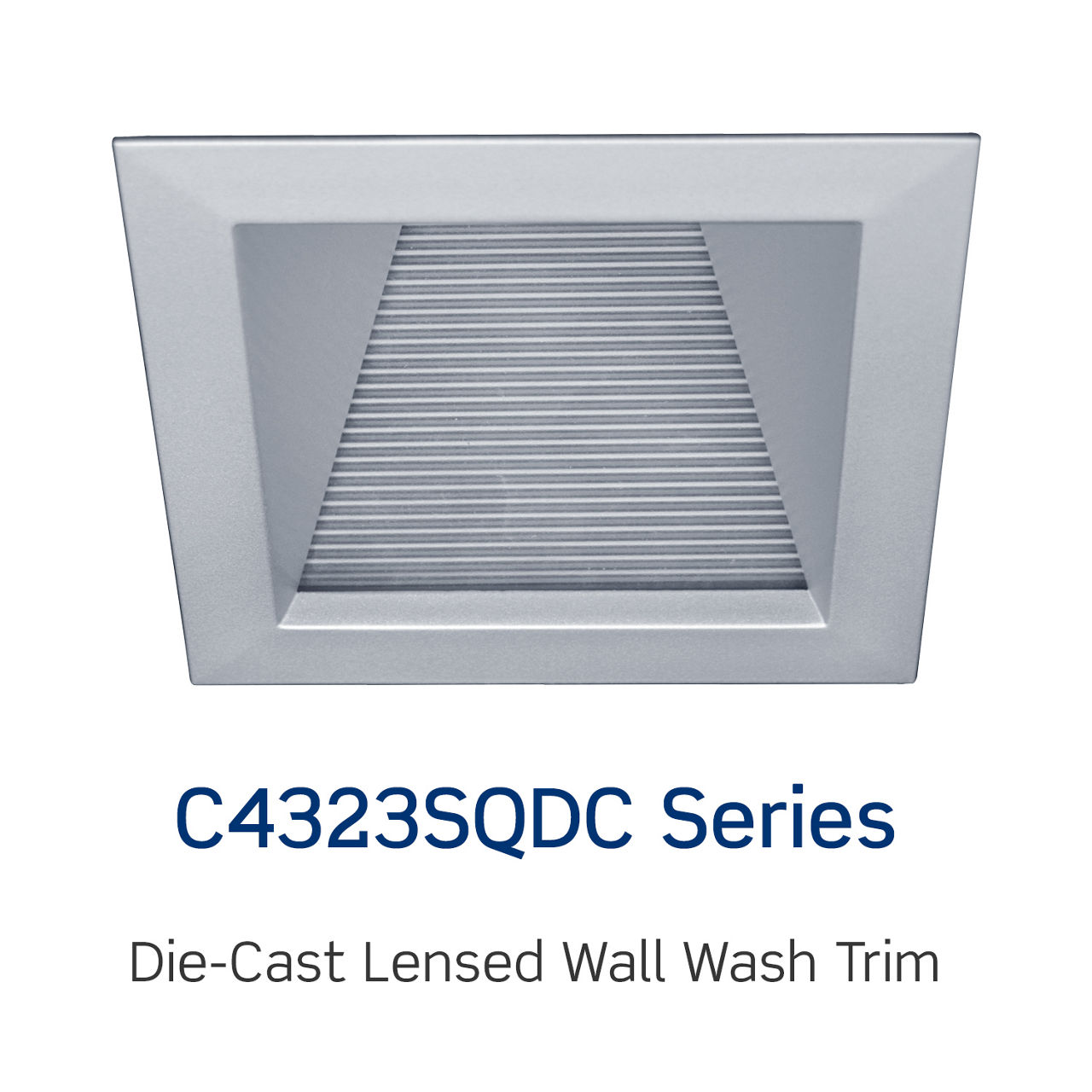

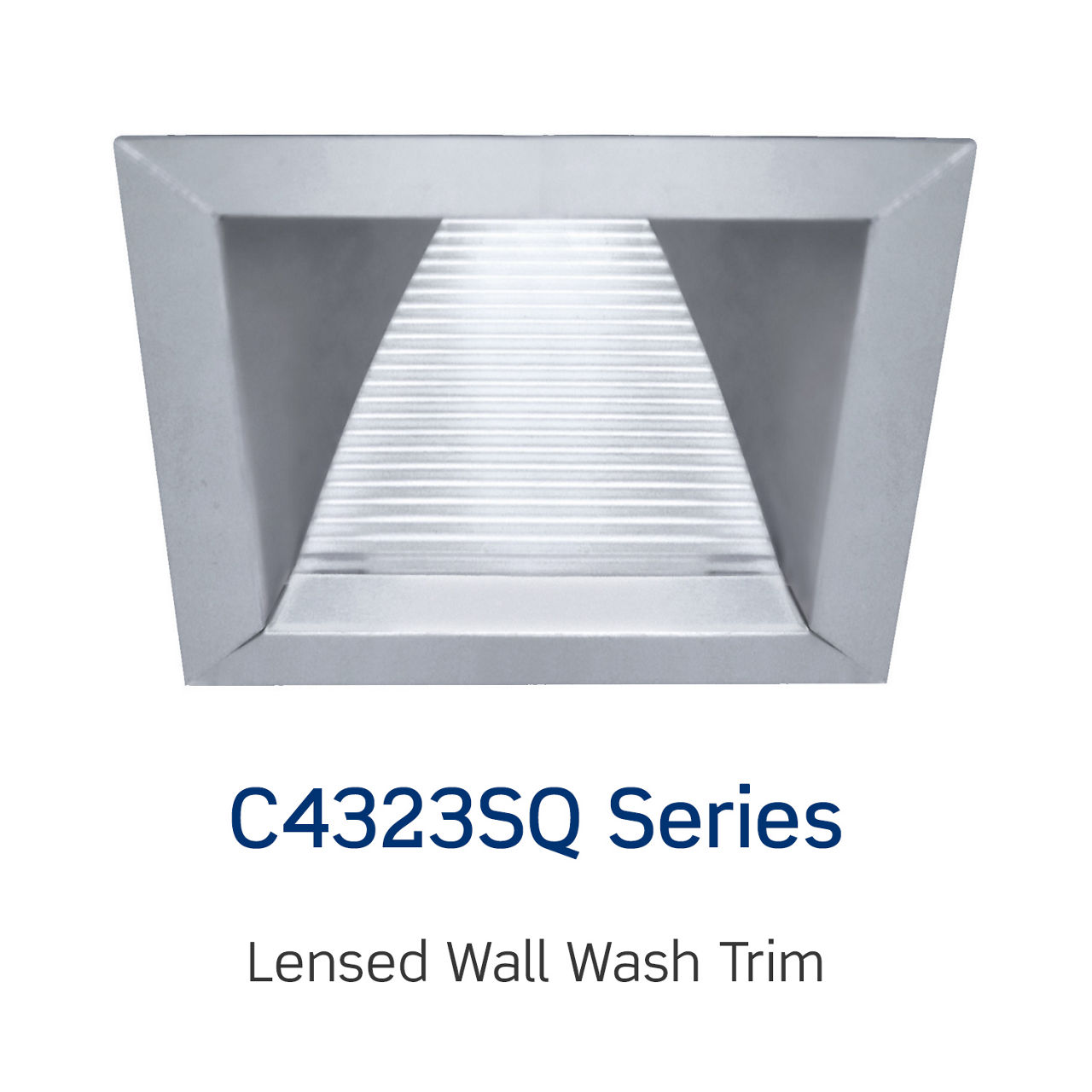

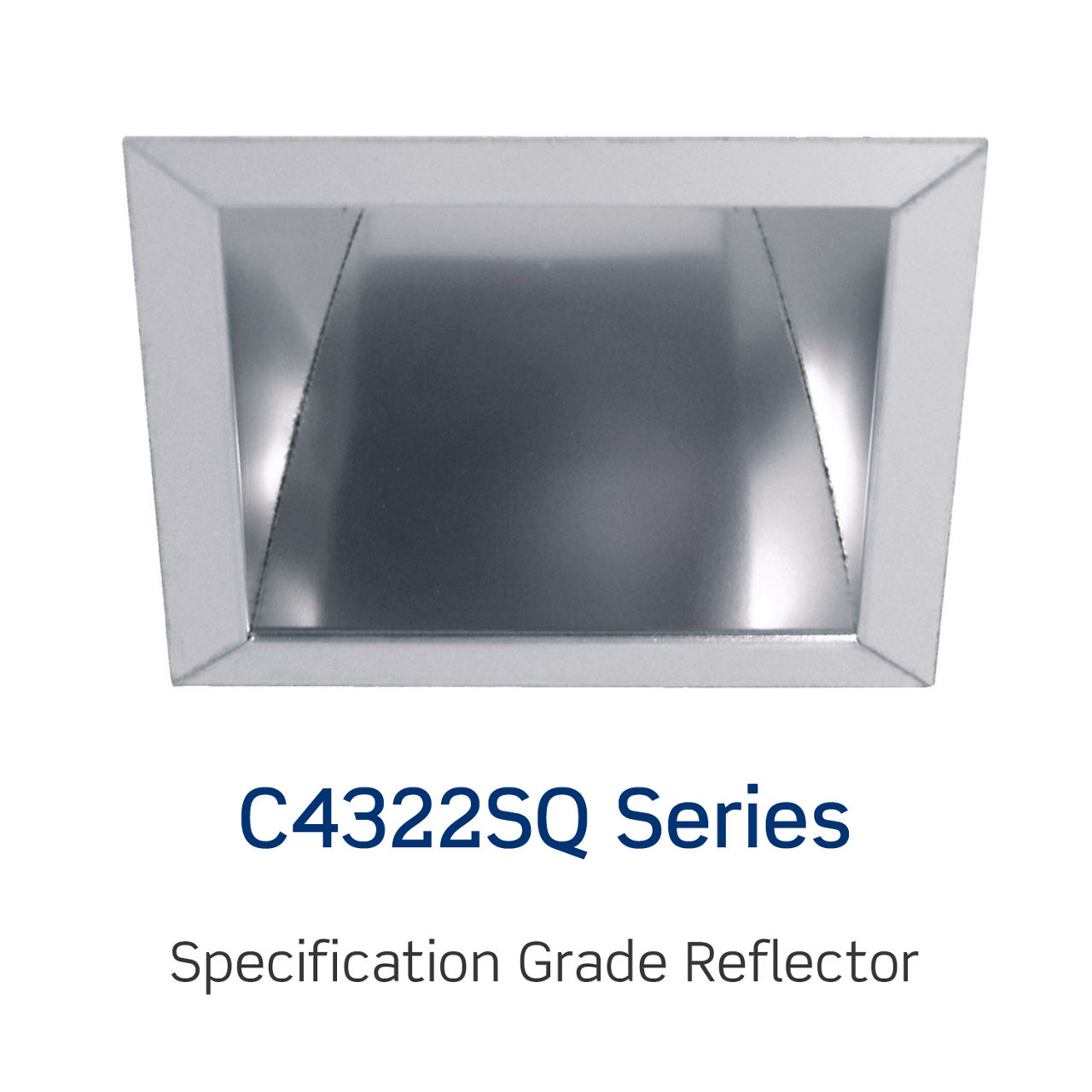

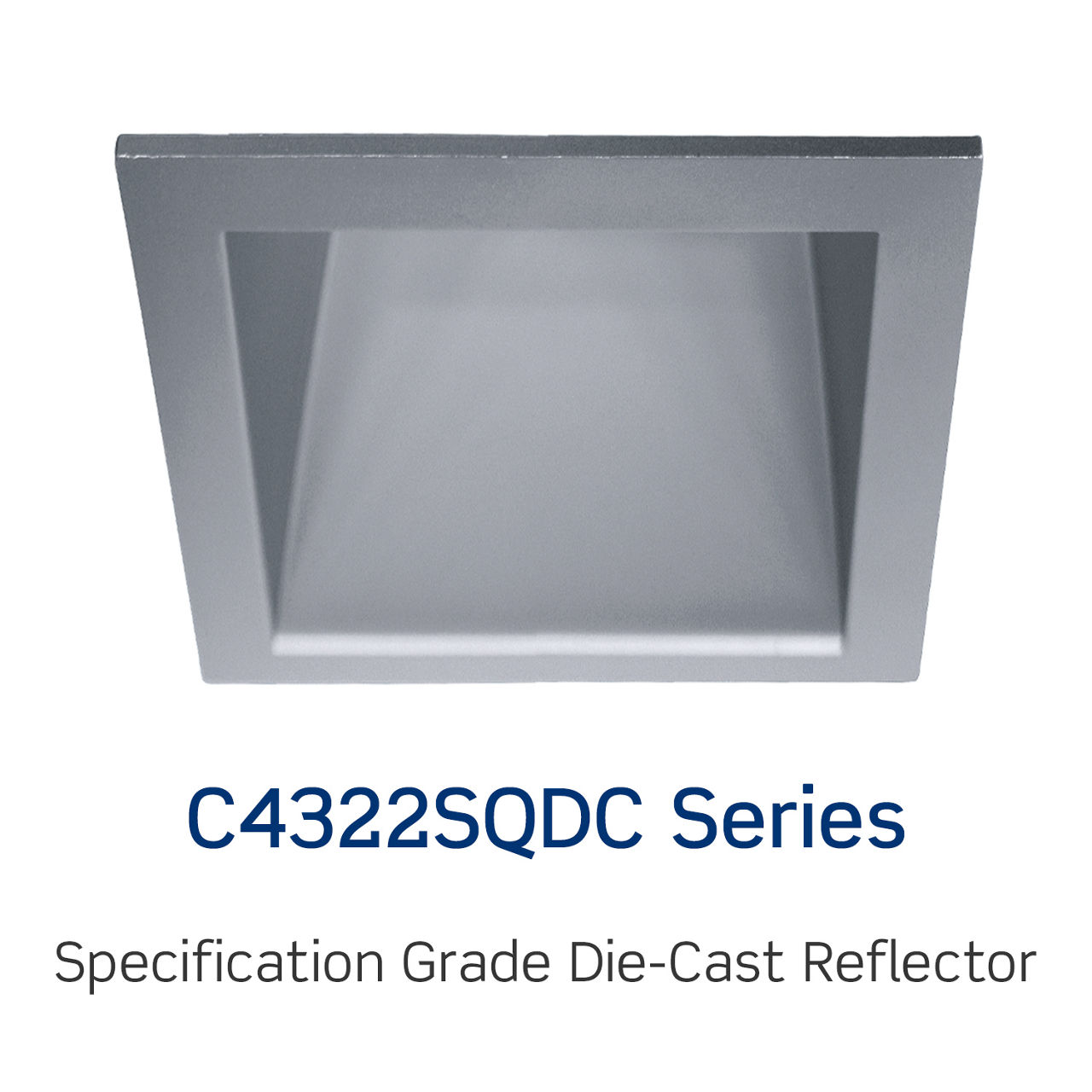

Use With : C4322SQ Series,C4322SQDC Series,C4323SQ Series,C4323SQDC Series,CN4322SQDC Series,MF4SQ Mud Frame
Product Category : 4-Inch Square Downlight
