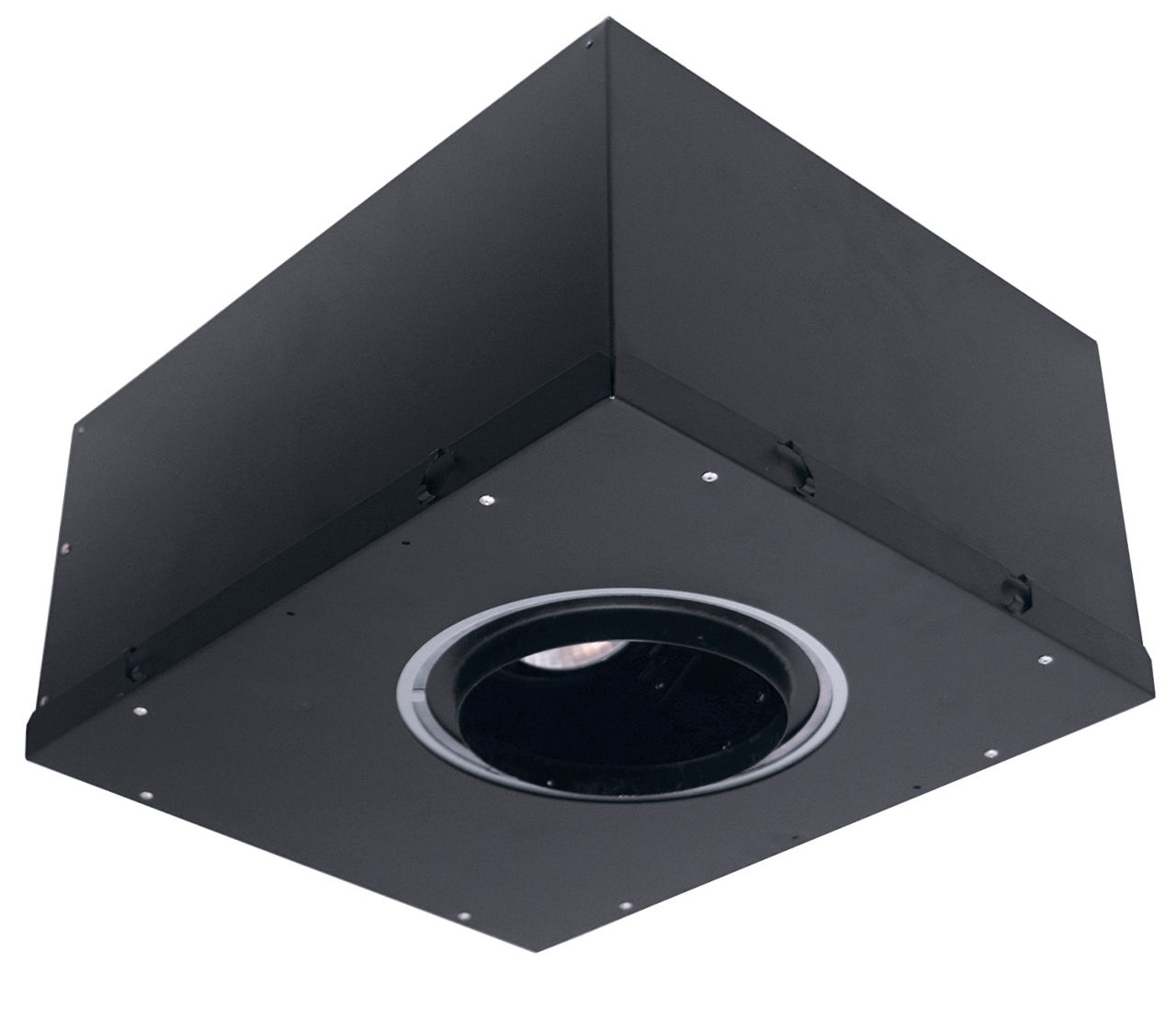

Non-IC/StopAire™ Adjustable Downlight
R6ANC
- Specification Grade, 6-inch round, 16-gauge Galvanized Steel, New Construction Air-Tight Housing with Die-Cast Aluminum Heat Sink
- Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Optional Emergency Battery Back-up with Remote Test Switch is available
- Housing is painted matte black inside and out; can be used in sloped ceiling applications
- Housing aperture can be adjusted 1/4-inch in each direction post installation to ease fixture alignment
- Quick-connect LED Module design for easy installation and removal; can be accessed from above or below the ceiling
- Module consists of a die-cast aluminum heat-sink with formed aluminum housing and two spring steel supports; engineering grade thermoplastic housing with a spring steel clip supports the precision glass Optic
- Available in 2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; a high CRI of 90+ available
- Excellent fixture-to-fixture color consistency with a 3-step MacAdam Ellipse tolerance
- Select from 18° Spot, 35° Medium, and 48° Flood beam distributions; Optics are interchangeable and can be field replaced
- Adjustment Mechanism is constructed of 16-gauge sheet metal and Die-Cast Aluminum, painted matte black
- Fully lockable, the Adjustment Mechanism allows 45° of tilt with white graduation marks every 15° for consistent aiming, plus 360° rotational adjustment
- Class 2 Output Drivers are fully accessible from below the ceiling and can be easily removed; a removable cover allows Module and Driver access from above the ceiling if needed
- Dual Nailer Hanger Bars are included; adjustable for 16- and 24-inch center joists, may be extended to rest on T-Bar ceilings; optional clip-on T-Bar Hangers available
- Pre-wired Junction Box with seven (7) 1/2- inch Knockouts and four (4) 3/4- inch Knockouts; approved for Through Circuit Wiring
- Output over-voltage, over-current and short circuit protection
- All R6A Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet

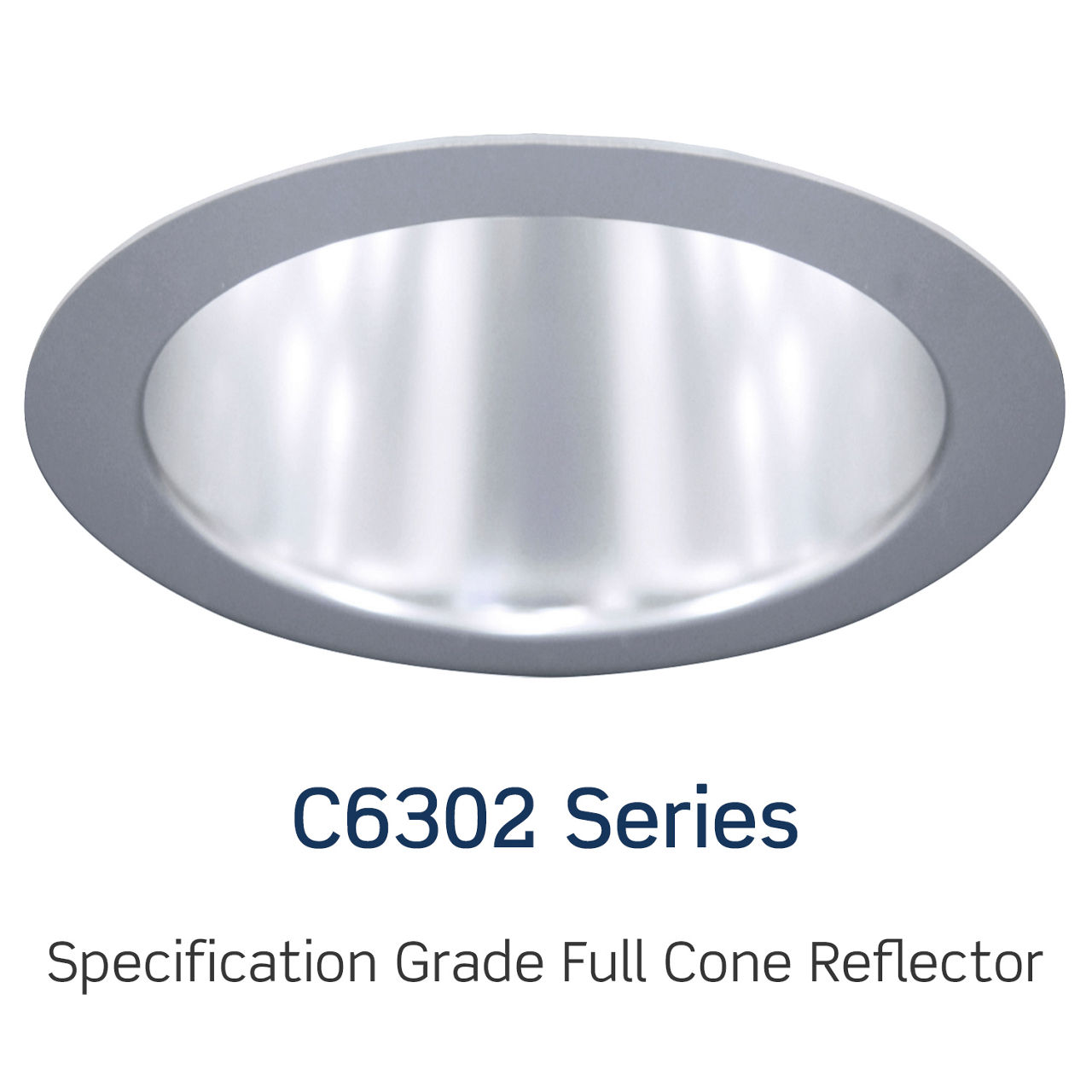

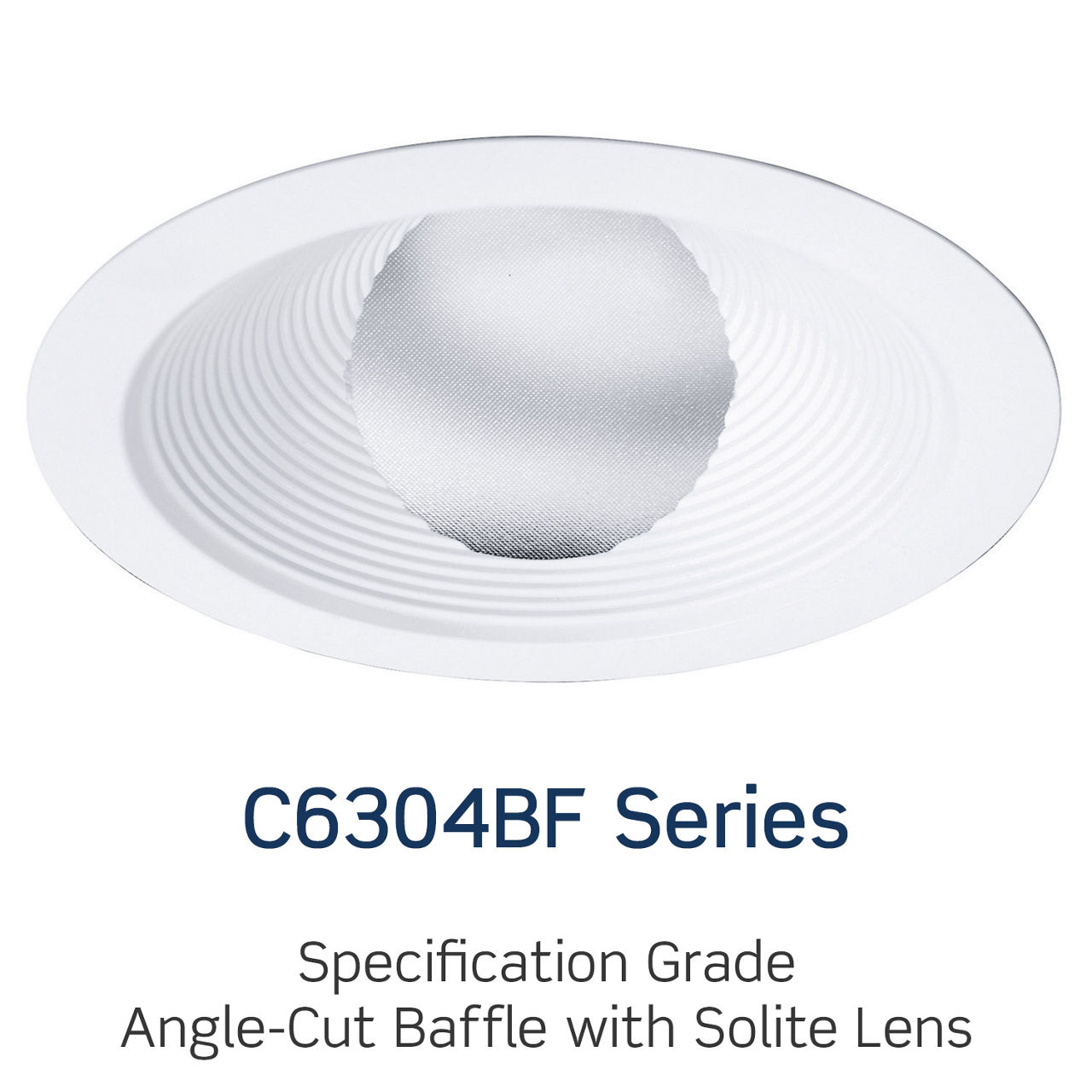

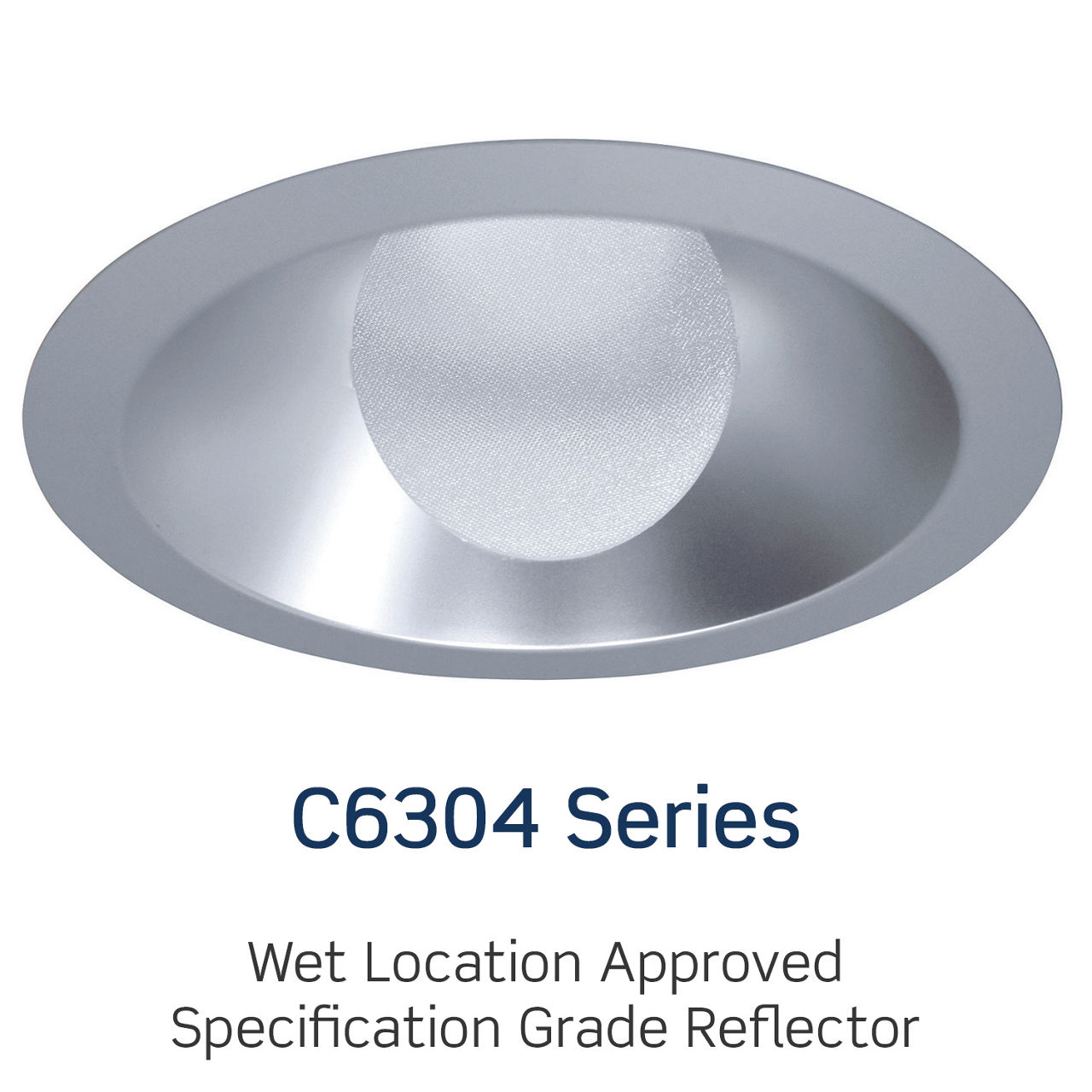

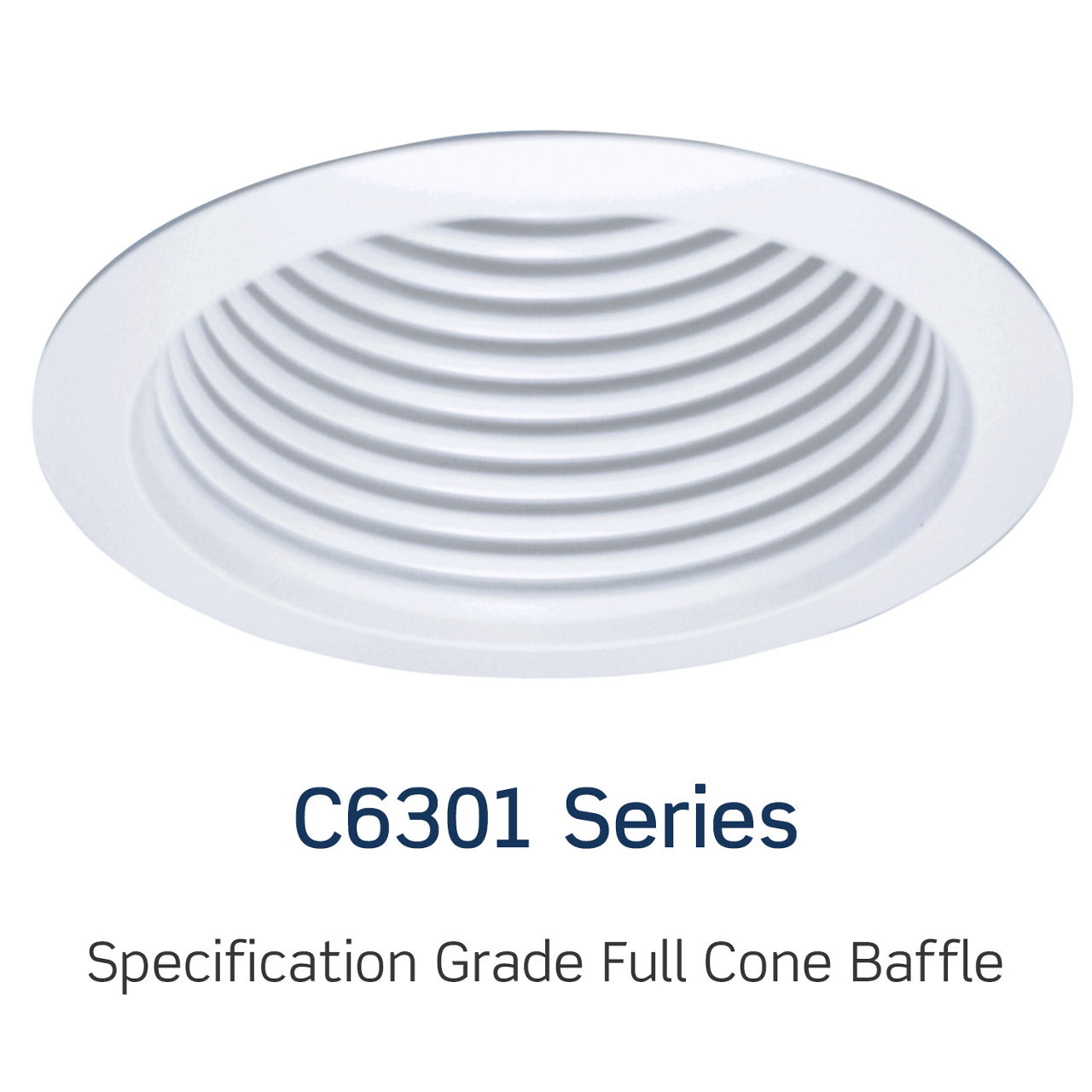

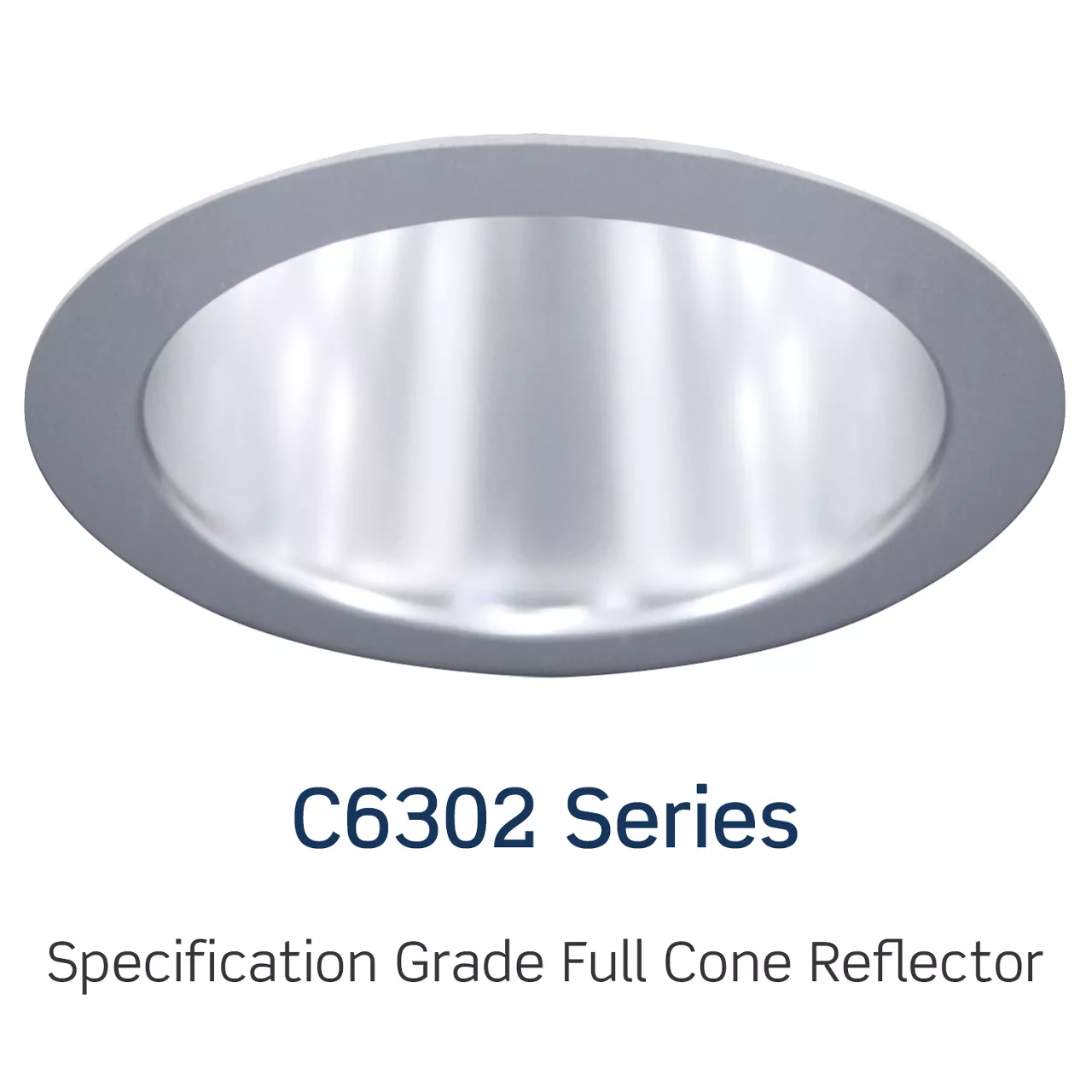

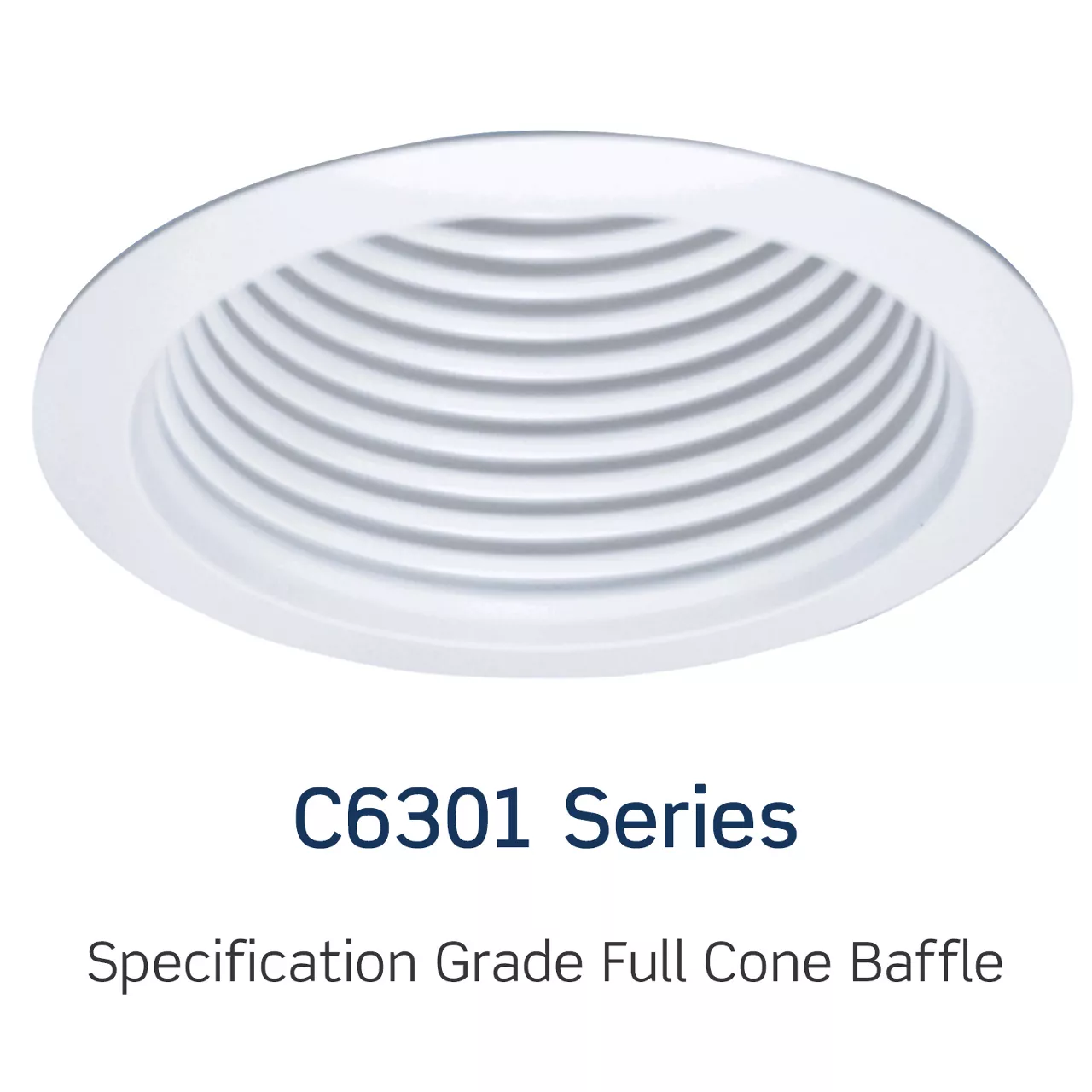

- Specification Grade Trims offered in several different styles and finishes; NOTE: R6A Series and R6 Series Trims are NOT compatible with each other
Product Information
Updated
Product Features
Aperture Size : 6 in
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Light Distribution Detail : Spot,Medium,Flood
Listings : cCSAus,Damp Location,WSEC,UL924,CCEA Chicago Plenum
Lumen Output : 3001-4000
Product Shape : Round
Product Type : Non-IC,StopAire™,Adjustable,Housing
