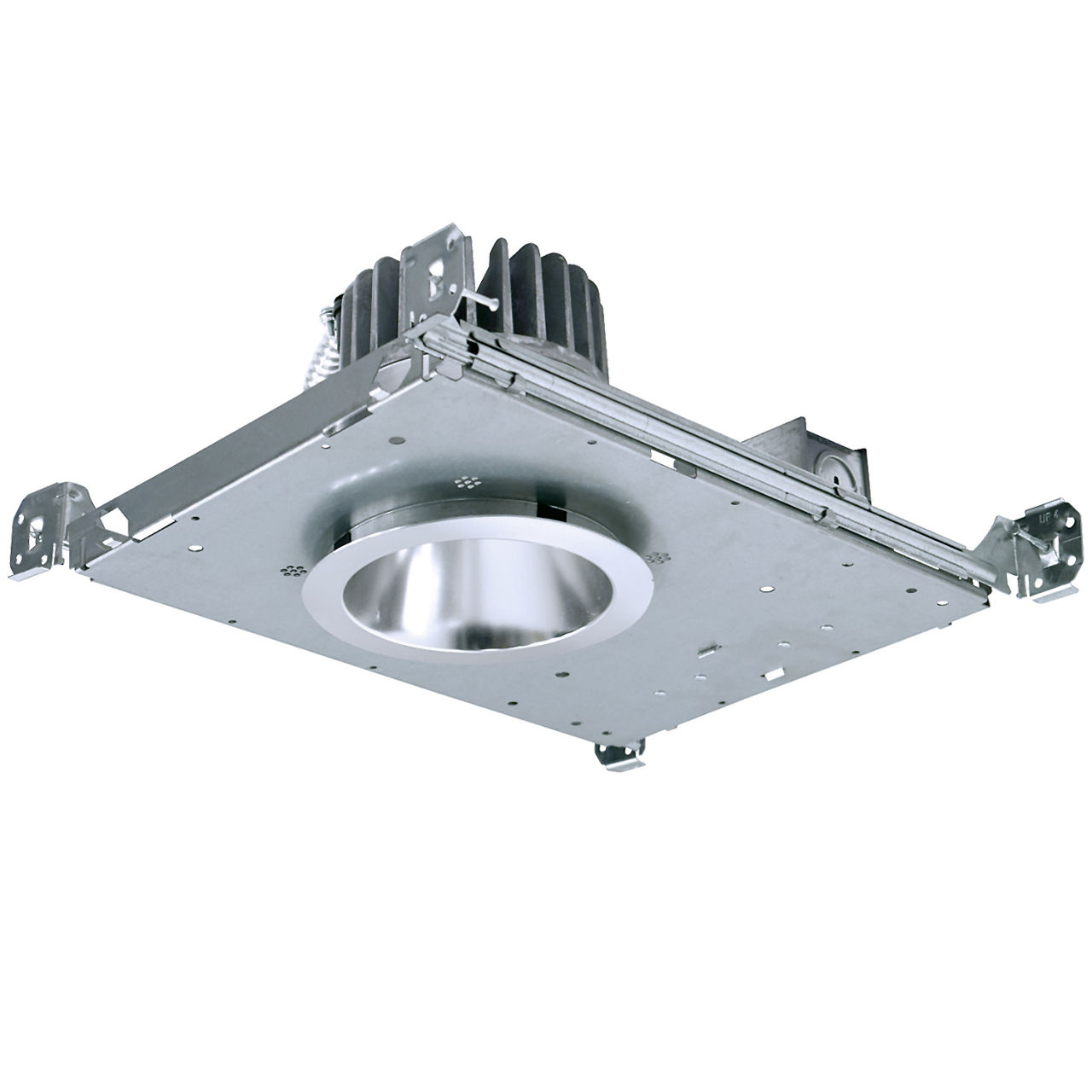

Universal New Construction Downlight
R6NC
- Specification Grade, 6-inch Round, 16 Gauge Galvanized Steel Housing with Die-Cast Aluminum Heat Sink
- New Construction Housing; requires minimum 3−inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Quick-connect Light Engine for easy installation and removal
- Available in 2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; a high CRI of 90+ available
- Excellent fixture-to-fixture color consistency with a 3-step MacAdam Ellipse tolerance
- Dual Nailer Hanger Bars are included; adjustable for 16- and 24-inch center joists, may be extended to rest on T-Bar ceilings. Optional clip-on T-Bar Hangers available.
- Pre-wired Junction Box with eight (8) 1/2- inch Knockouts and four (4) 3/4- inch Knockouts; approved for Through Circuit Wiring
- Output over-voltage, over-current and short circuit protection
- Optional Emergency Battery Pack with Remote Test Switch is available
- All R6 Downlights are available for non-dimming and dimming applications; refer to the Dimming Specification Sheet for compatible Dimmers
- Drivers are fully accessible from below the ceiling and can be easily removed

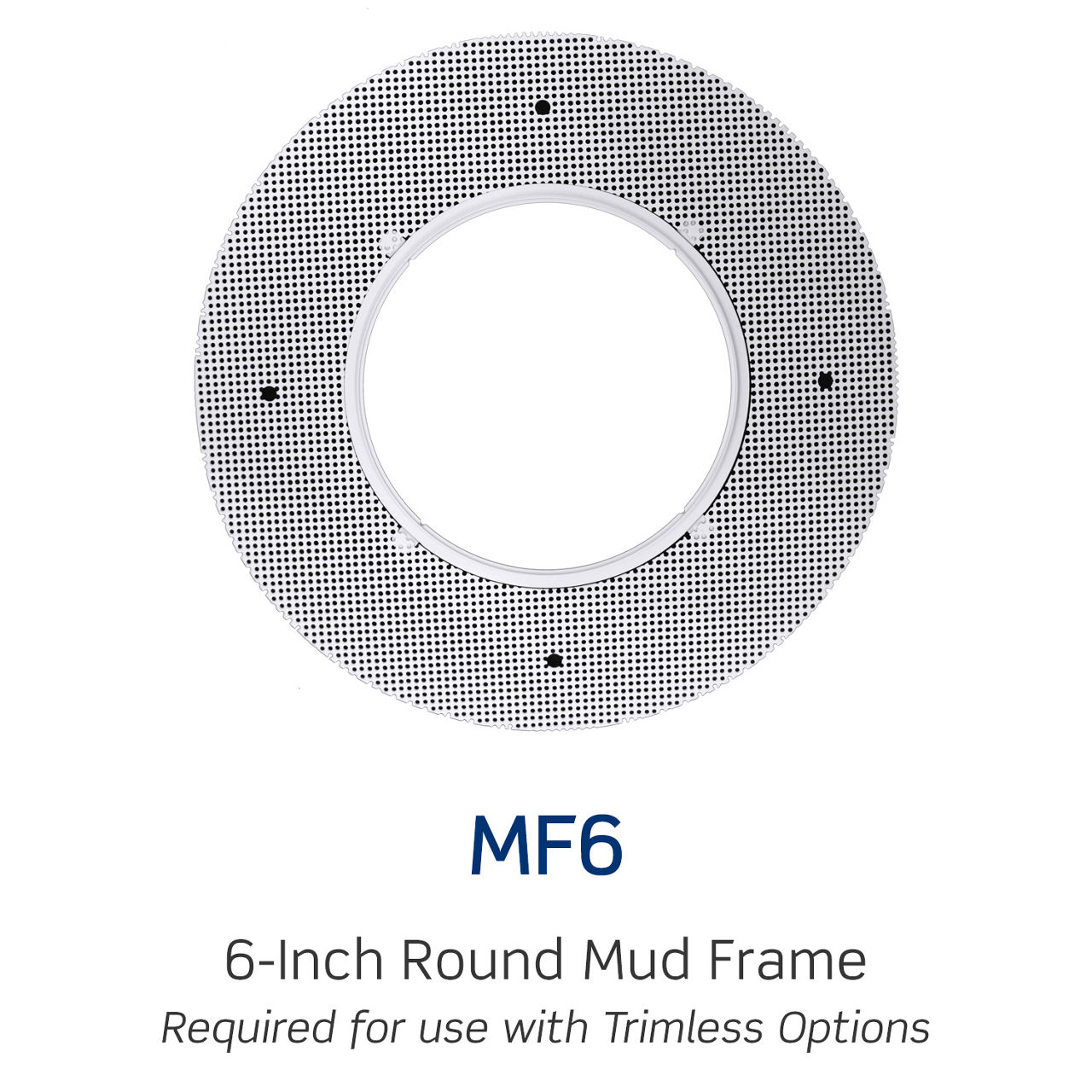

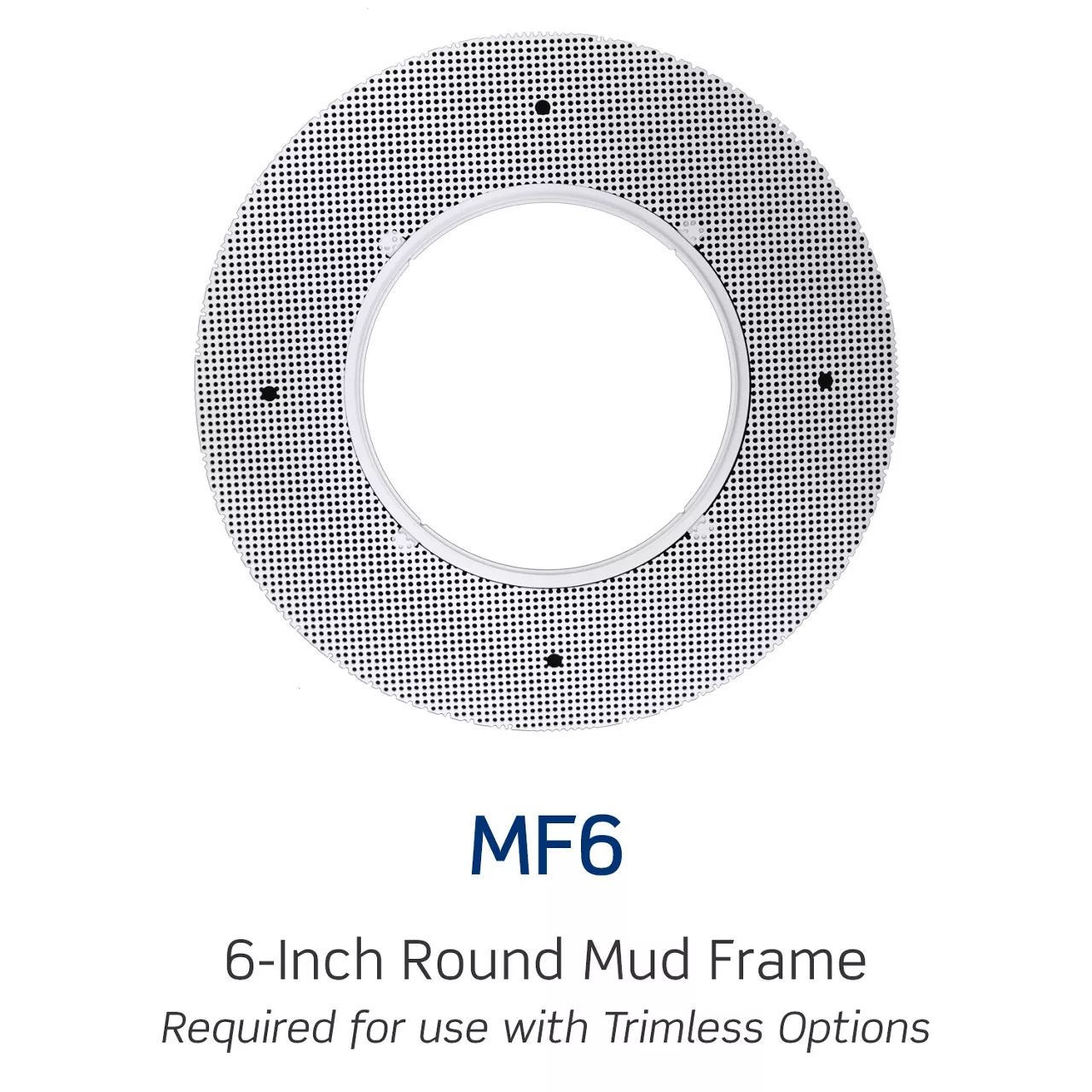

- Flanged or Trimless Specification Grade Trims available in several different styles and finishes; Trimless options require use of a Mud Frame (MF6, ordered separately)
- UL8750 and Class 2 Compliant
Product Information
Product Features
Product Category : 6-Inch Downlight
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Compliance : ENERGY STAR® Certified,Certified to UL924 Standard for Emergency Lighting
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Product Shape : Round
Product Type : Downlight
Environment : Damp Location
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Voltage : 120V,277V,347V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI,DMX
Battery : Factory Installed 7W/200mA Remote Test Switch
Trim Type : Self Flanged,Trimless

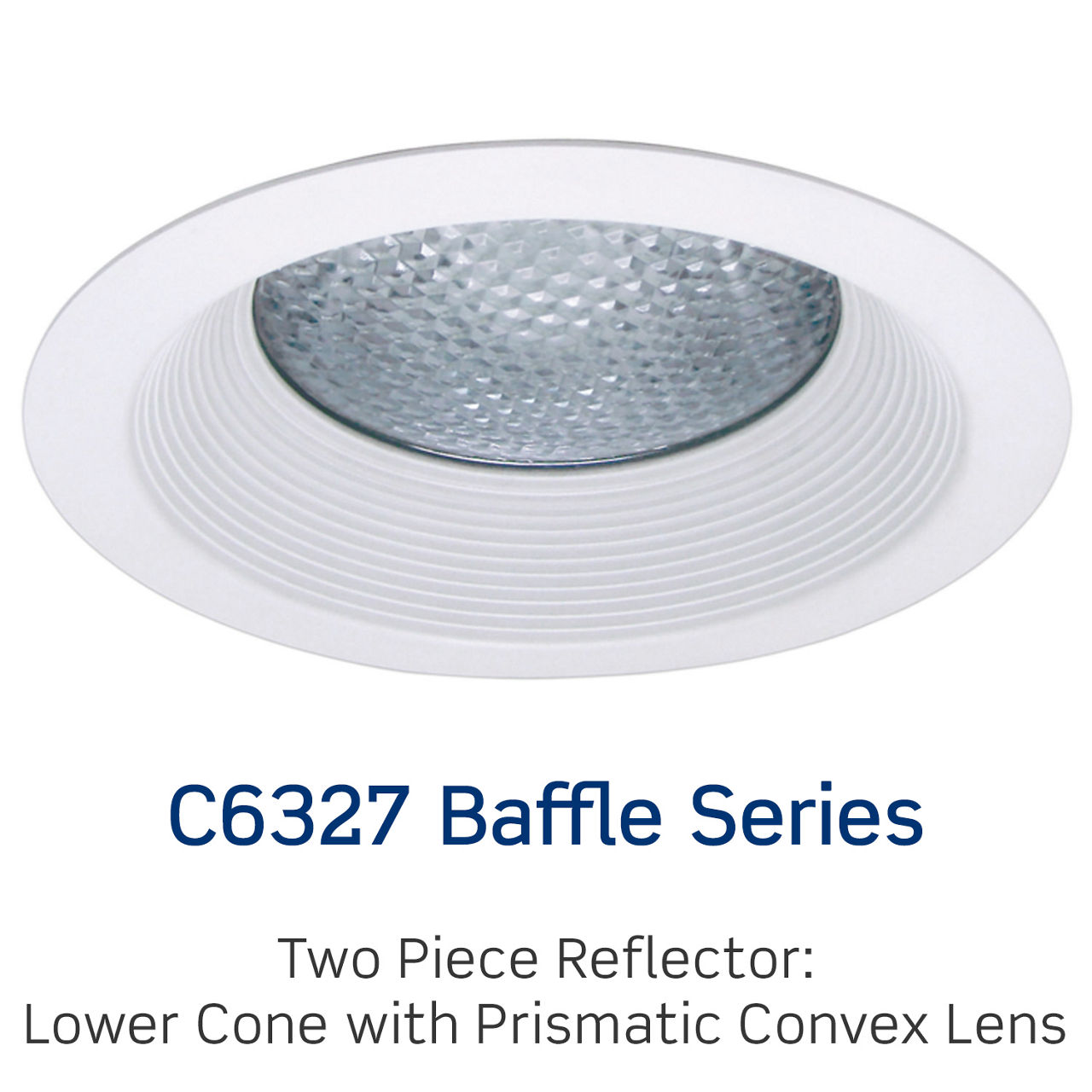

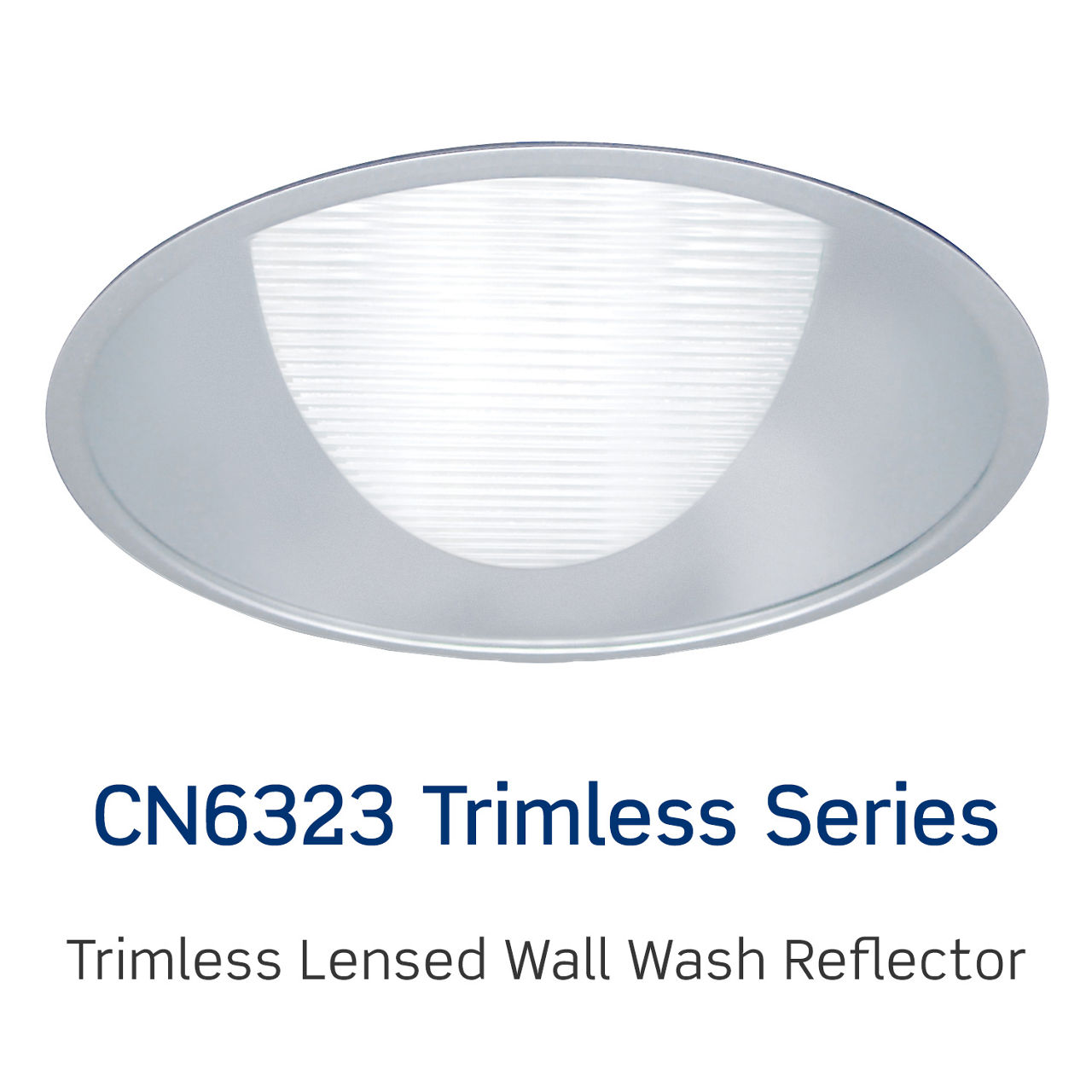

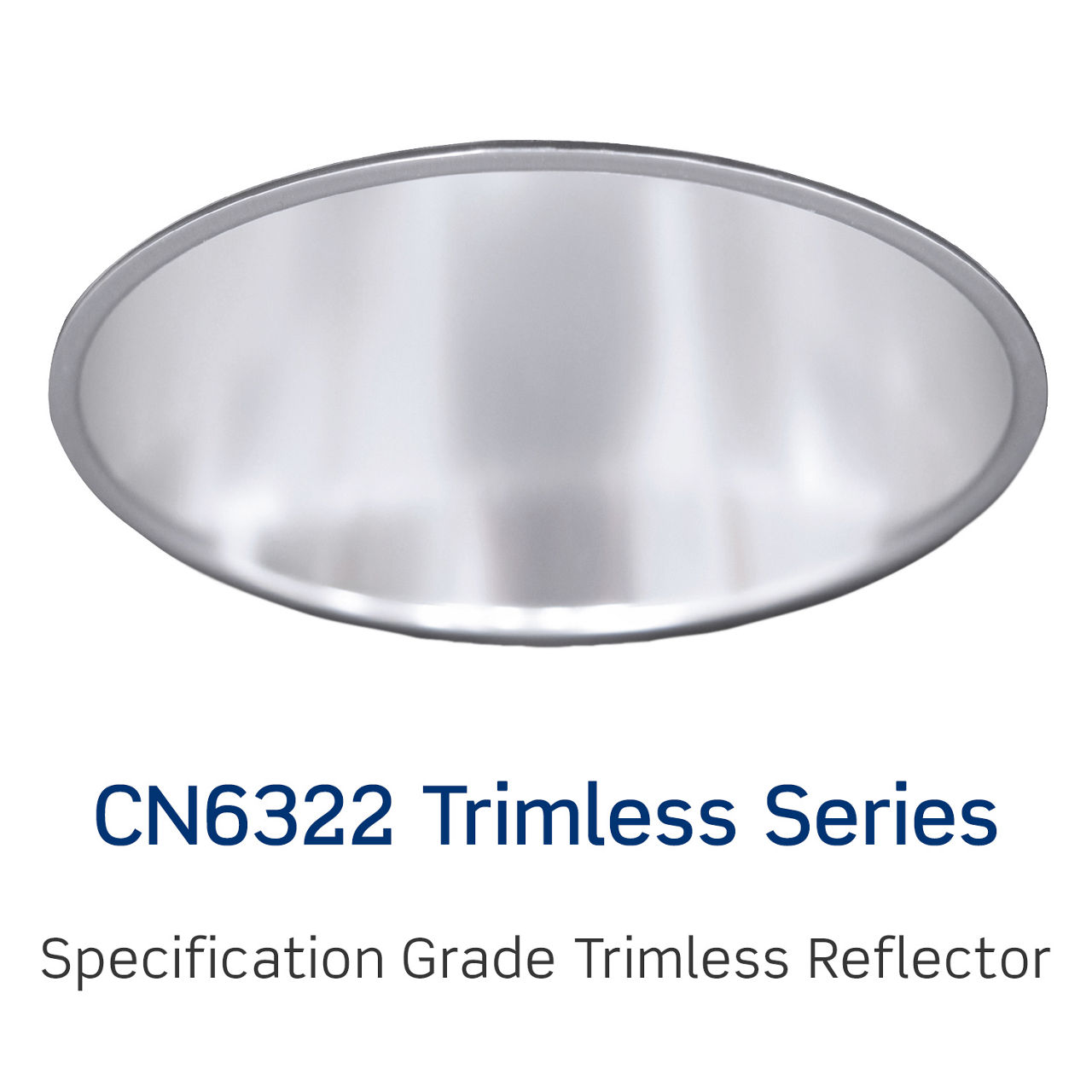

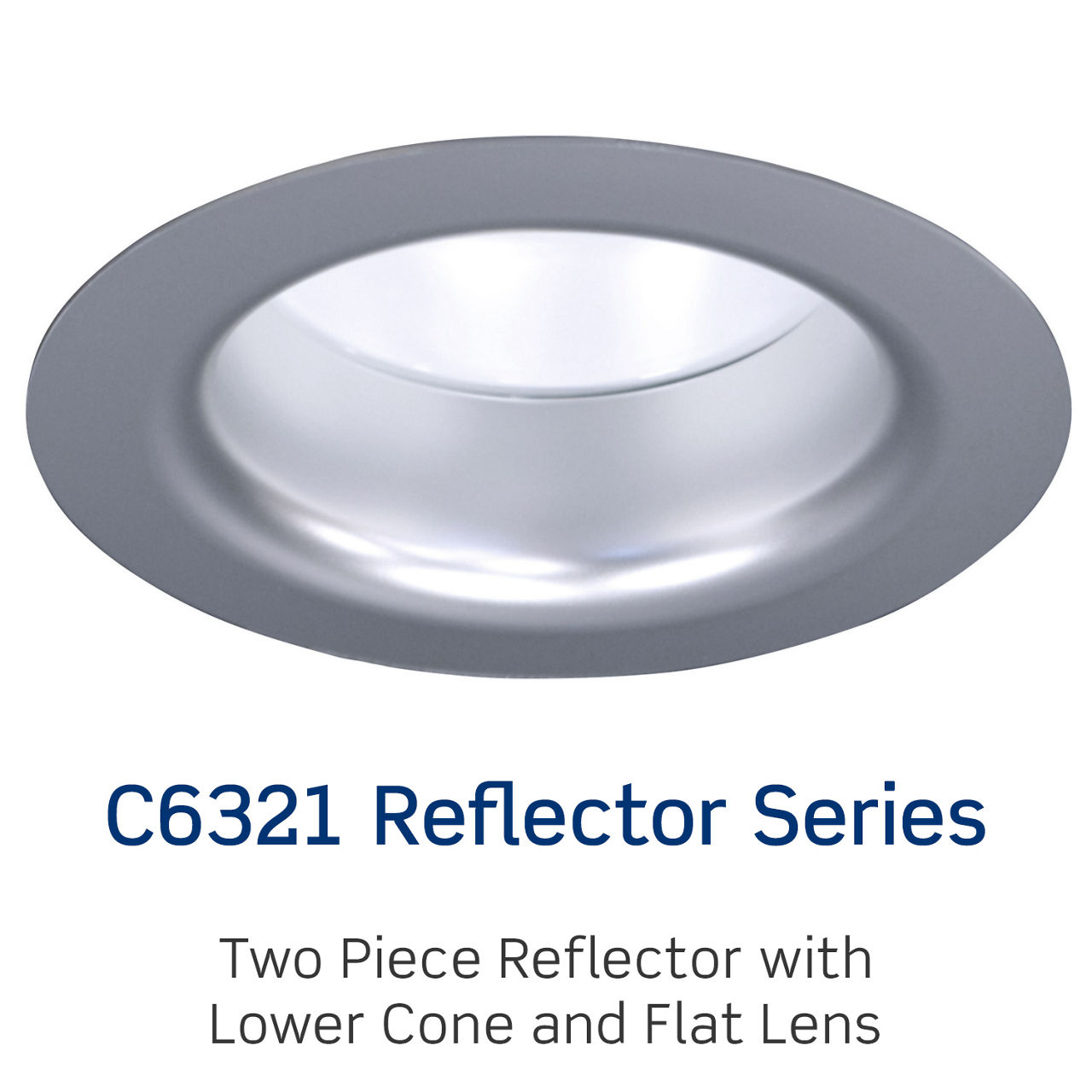

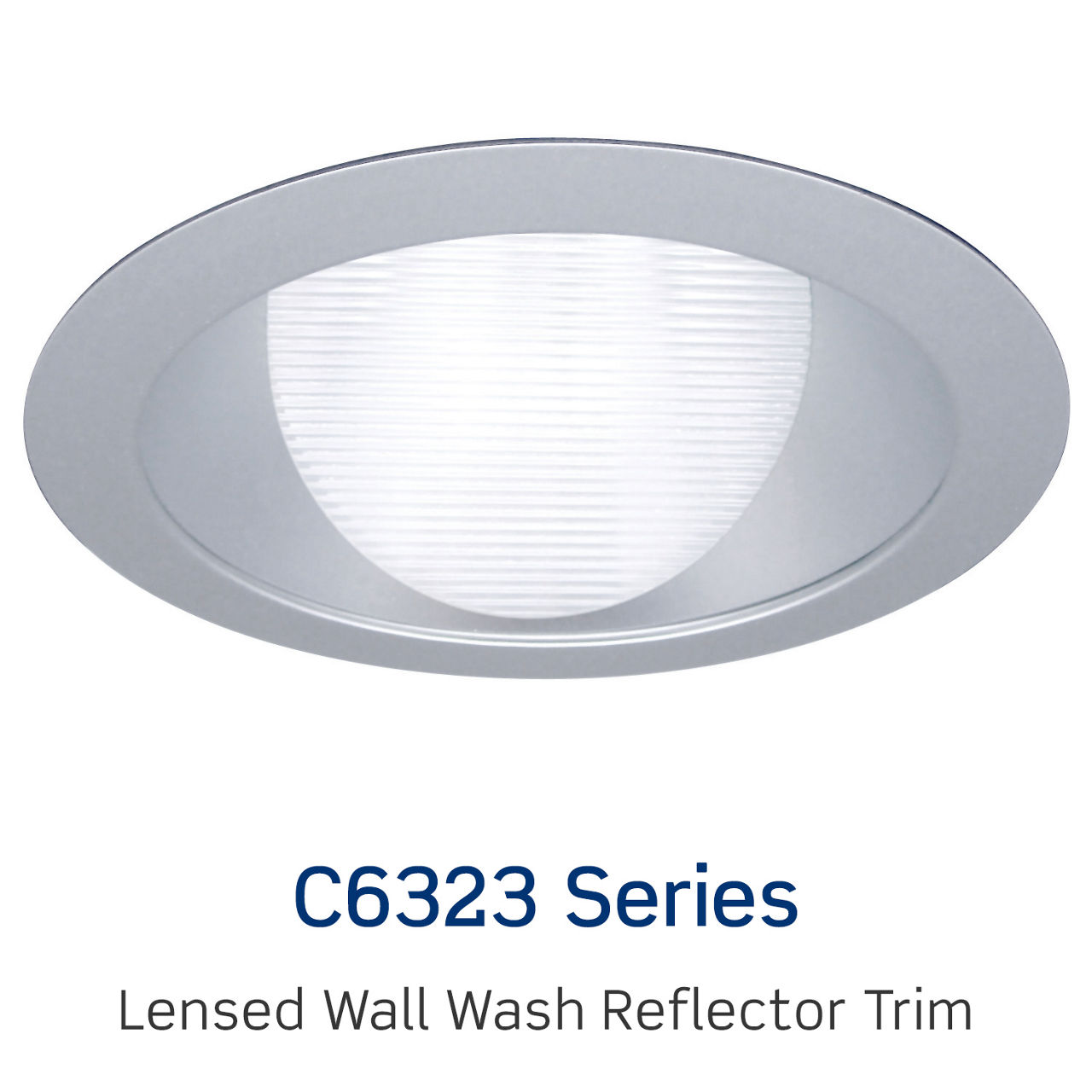

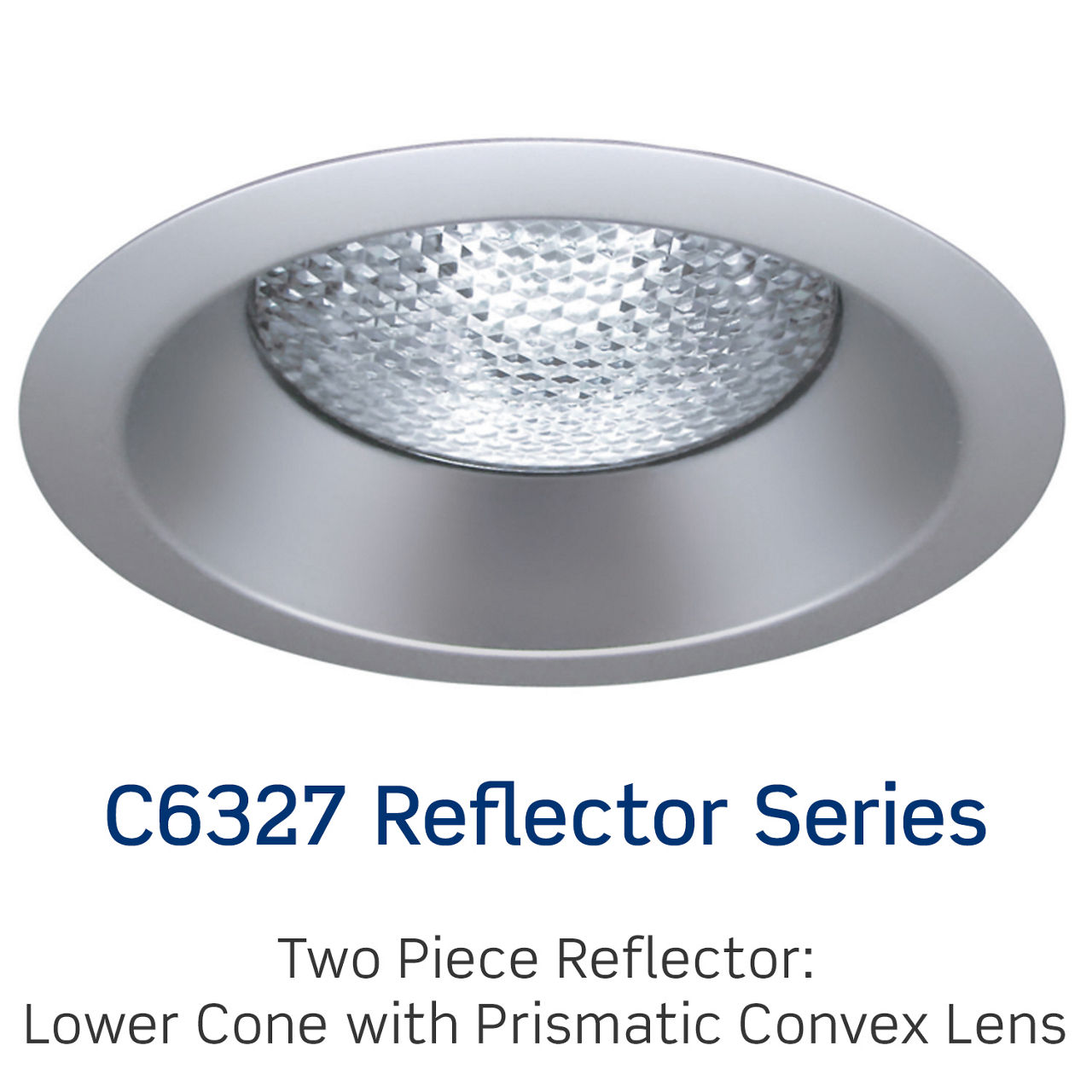

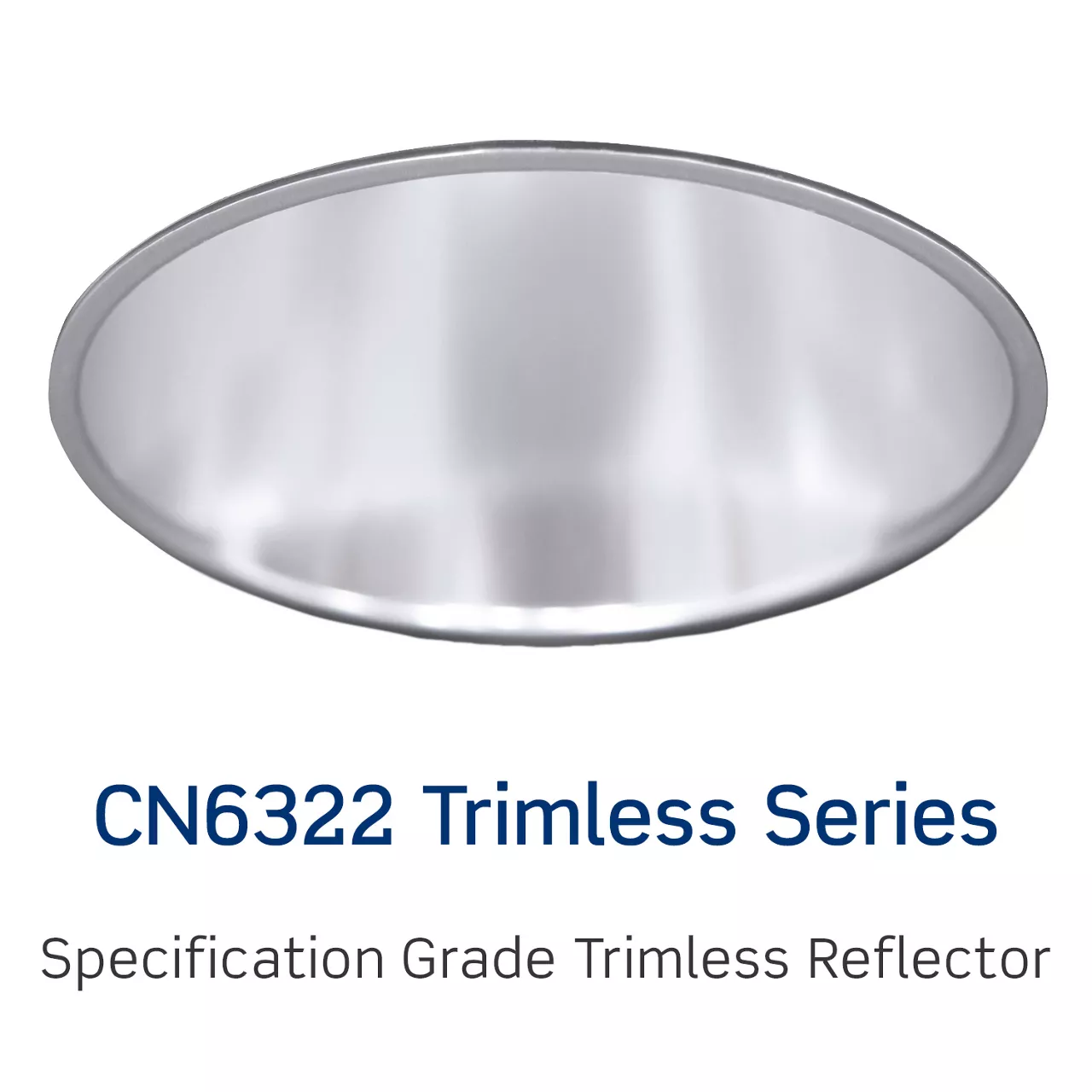

Use With : C6322 Series, C6323 Series, C6321 Cone Series,C6321 Baffle Series,C6327 Cone Series,C6327 Baffle Series,CN6322 Series,CN6323 Series,MF6
