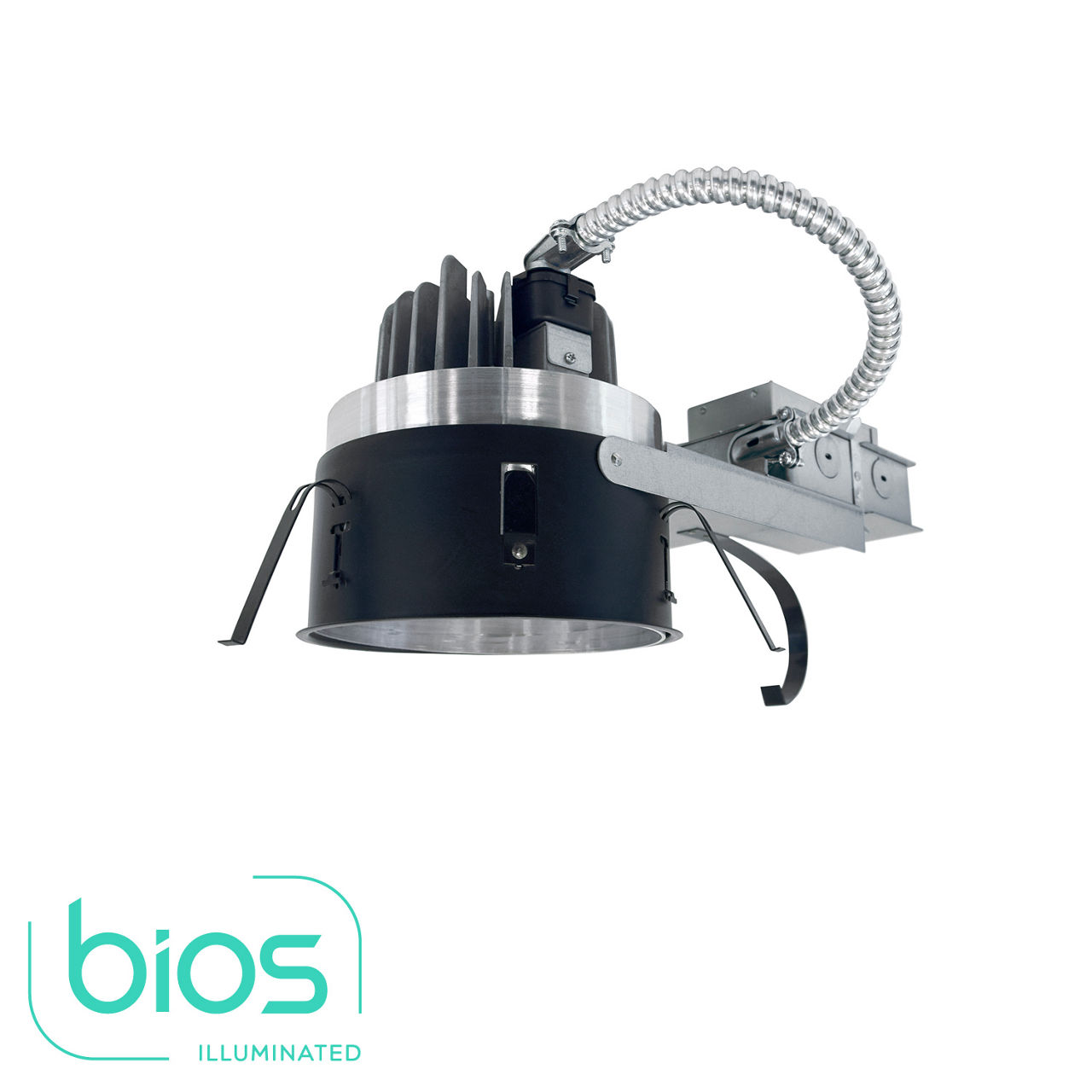

6-Inch Downlight with BIOS SkyBlue™ Technology: Remodel Housing

R6RM

  • BIOS SkyBlue™ Circadian Lighting Technology brings the benefits of blue skies inside by emulating the makeup of nature’s light spectrum
  • Light sends signals to the body that create biological responses, many associated with the body’s internal 24-hour clock, or circadian system. These signals can impact mood, hormone production, energy levels, alertness, fatigue and more.
  • BIOS LEDs are expertly designed to generate psychological and biological responses, offering the most comprehensive approach to wellness lighting. BIOS LEDs provide high daytime stimulus by pin-pointing the peak sensitivity of the ‘sky blue’ visible light spectrum wavelengths, approximately 490nm, needed to effectively communicate and trigger circadian response.
  • Specification Grade, 6-inch Round, 16 Gauge Galvanized Steel, Remodel Housing with Die-Cast Aluminum Heat Sink, 6-3/4-inch O.D. Plaster Ring Flange
  • Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
  • Heavy Duty Steel Plaster Ring is secured to ceiling by three (3) Spring Clamps; LED Module/Trim Assembly held in place with three (3) Trim-lock Dimpled Spring Clips
  • Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
  • Approved for Through Circuit Wiring, output over-voltage, over-current and short circuit protection
  • Select from five (5) wattage/lumen packages: 12W/700Lm, 15W/900Lm, 21W/1300Lm, 30W/1800Lm, and 39W/2200Lm
  • Available in 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical. R9 Value between 90 - 95
  • All R6 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
  • Specification Grade Trims in several different styles and finishes
  • Trimless options cannot be used on Remodel Style Housings (R6RM)
  • UL8750 and Class 2 Compliant
  • Suitable for Damp Locations

Product Information

  • Product Features

    Product Category : 6-Inch Downlight

    Color Rendering Index : 80-89

    Correlated Color Temperature : 3000K,3500K,4000K

    Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000

    Product Shape : Round

    Product Type : Downlight

    Environment : Damp Location

    Wattage : 11W - 20W,21W - 30W,31W - 40W

    Voltage : 120V,277V,347V

    Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI,DMX

    Trim Type : Self Flanged

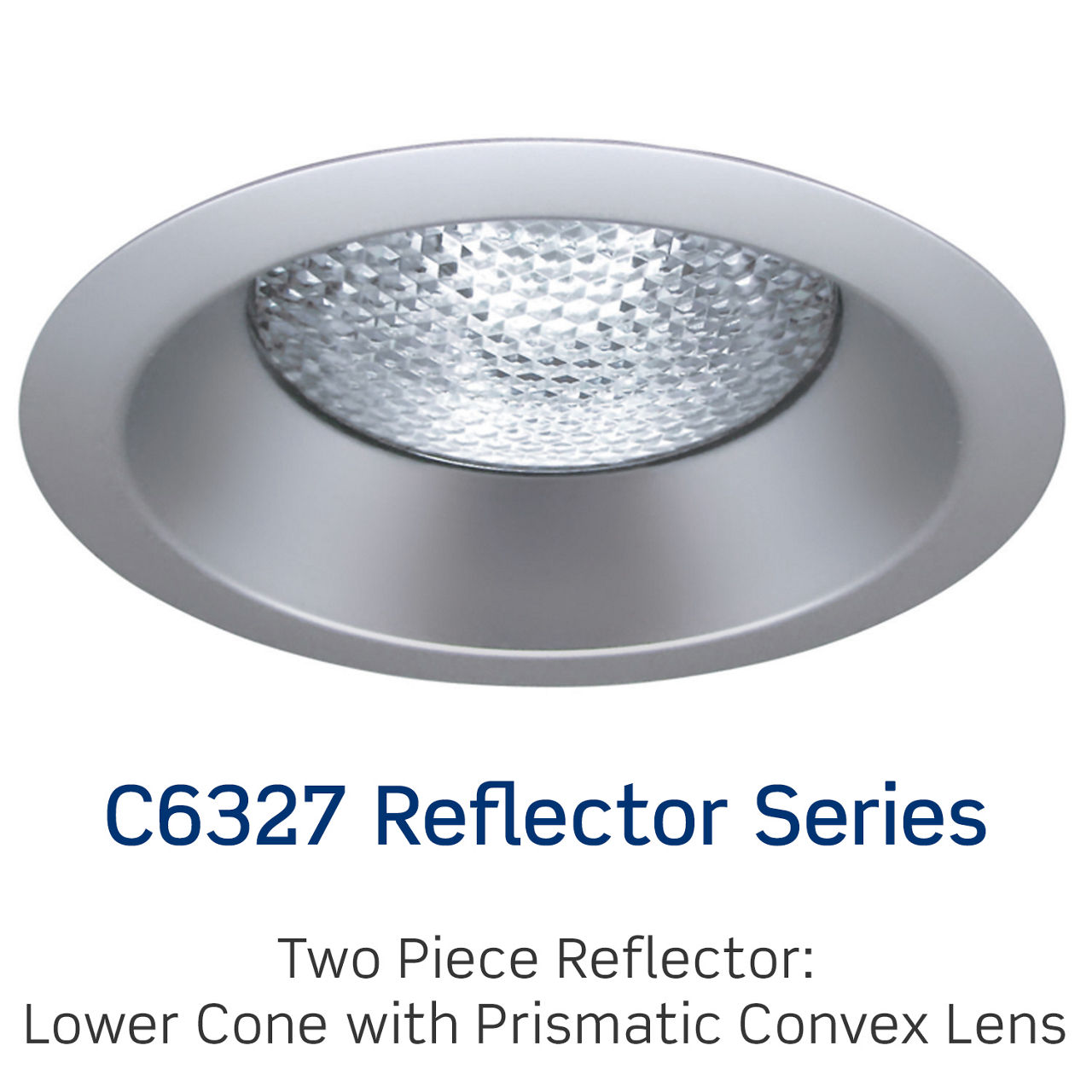

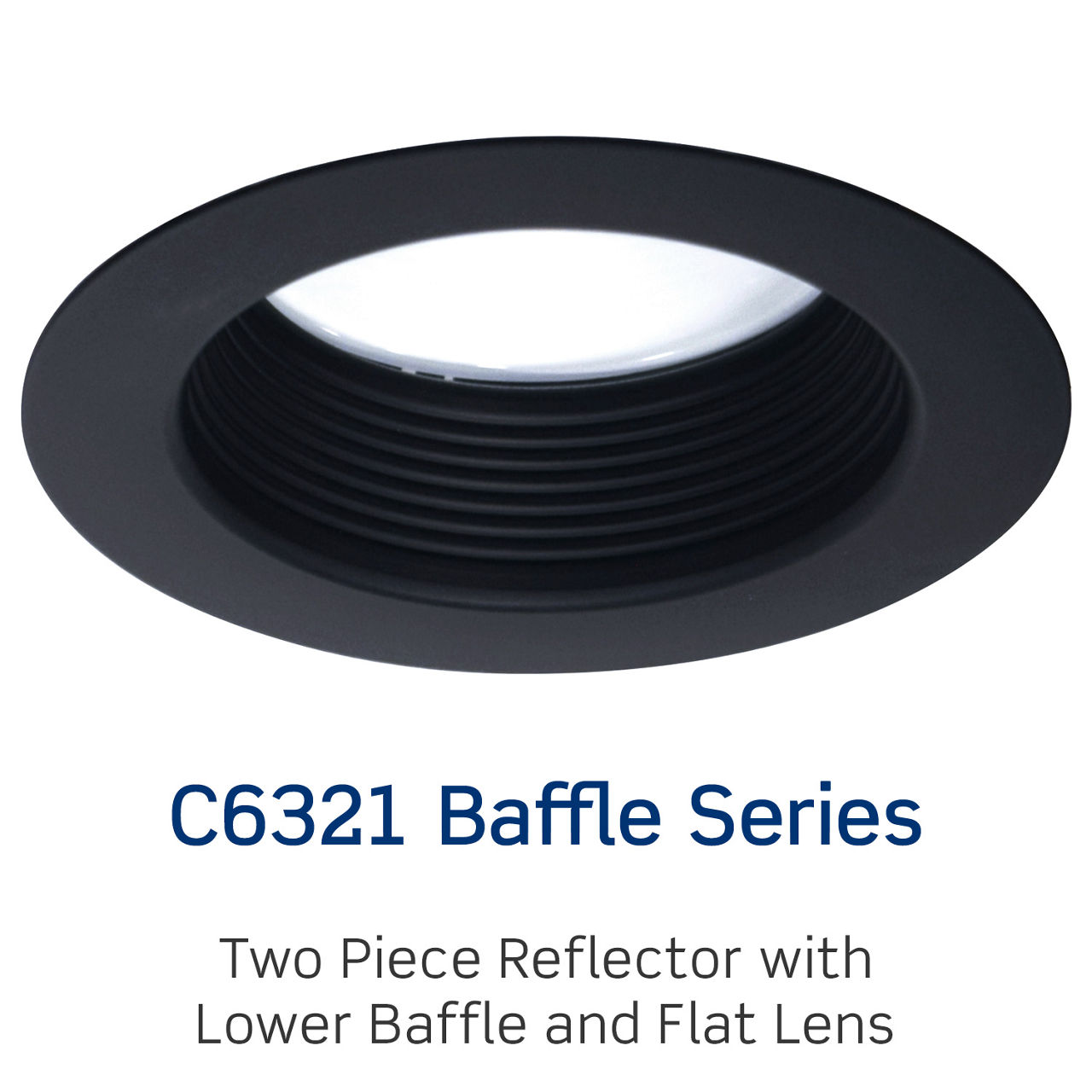

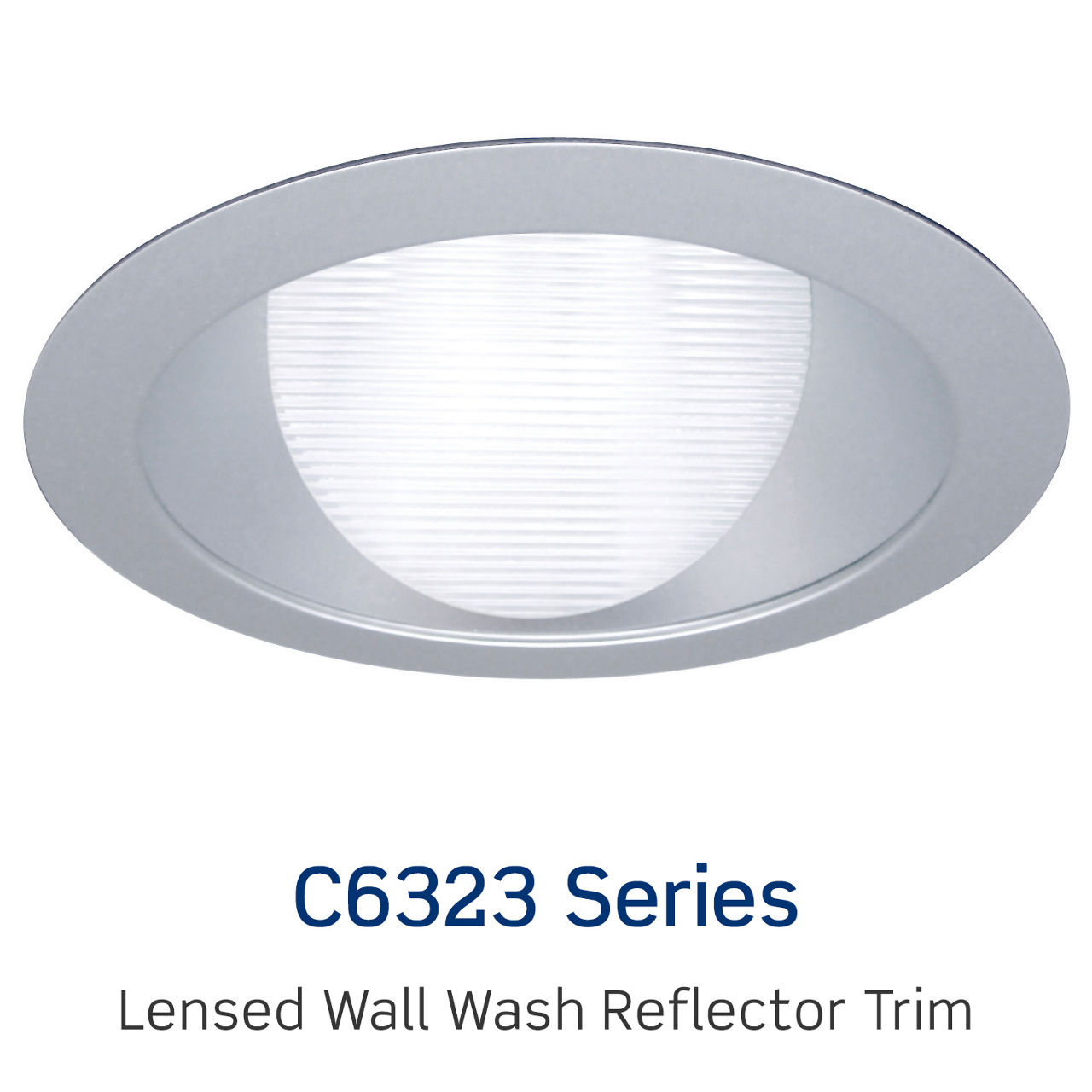

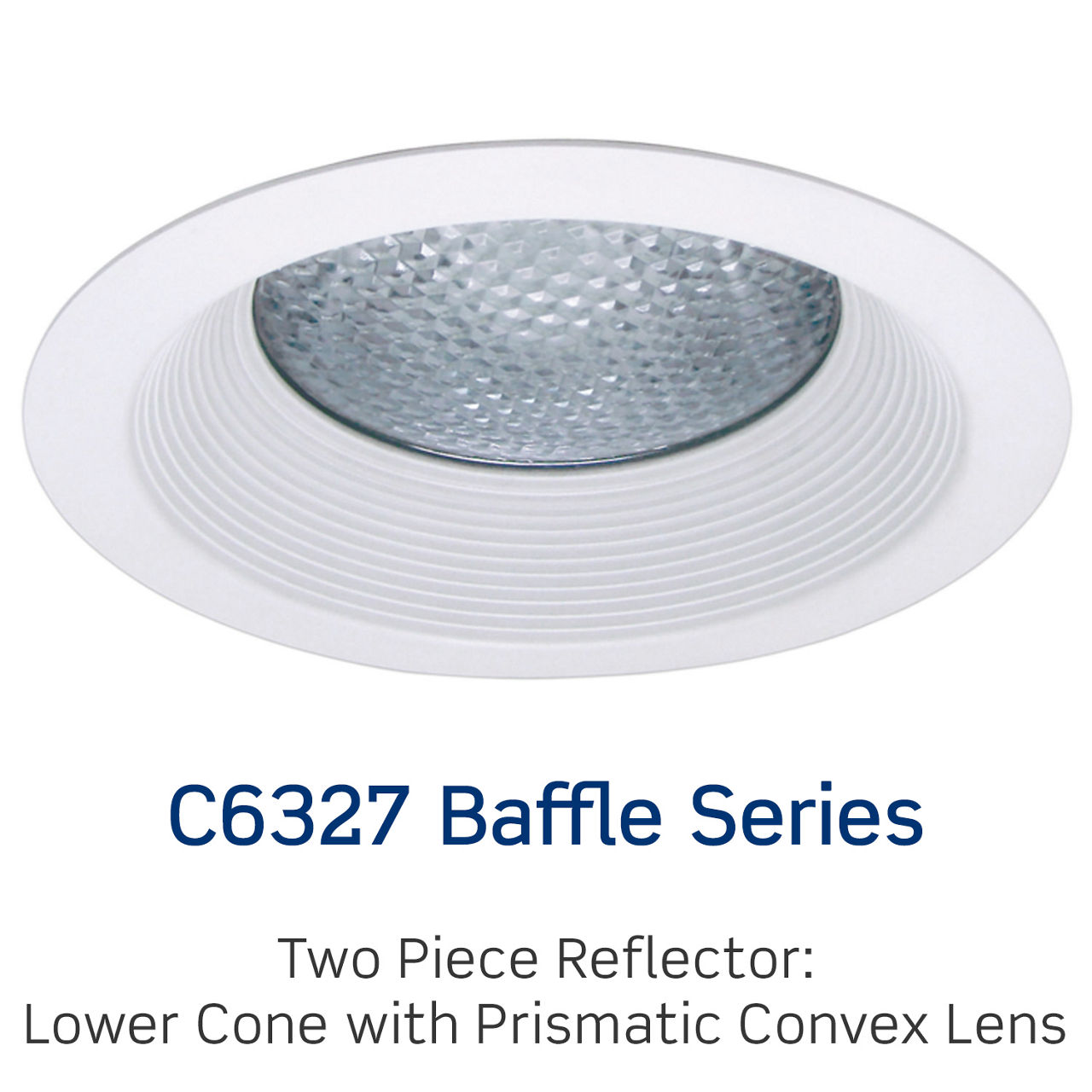

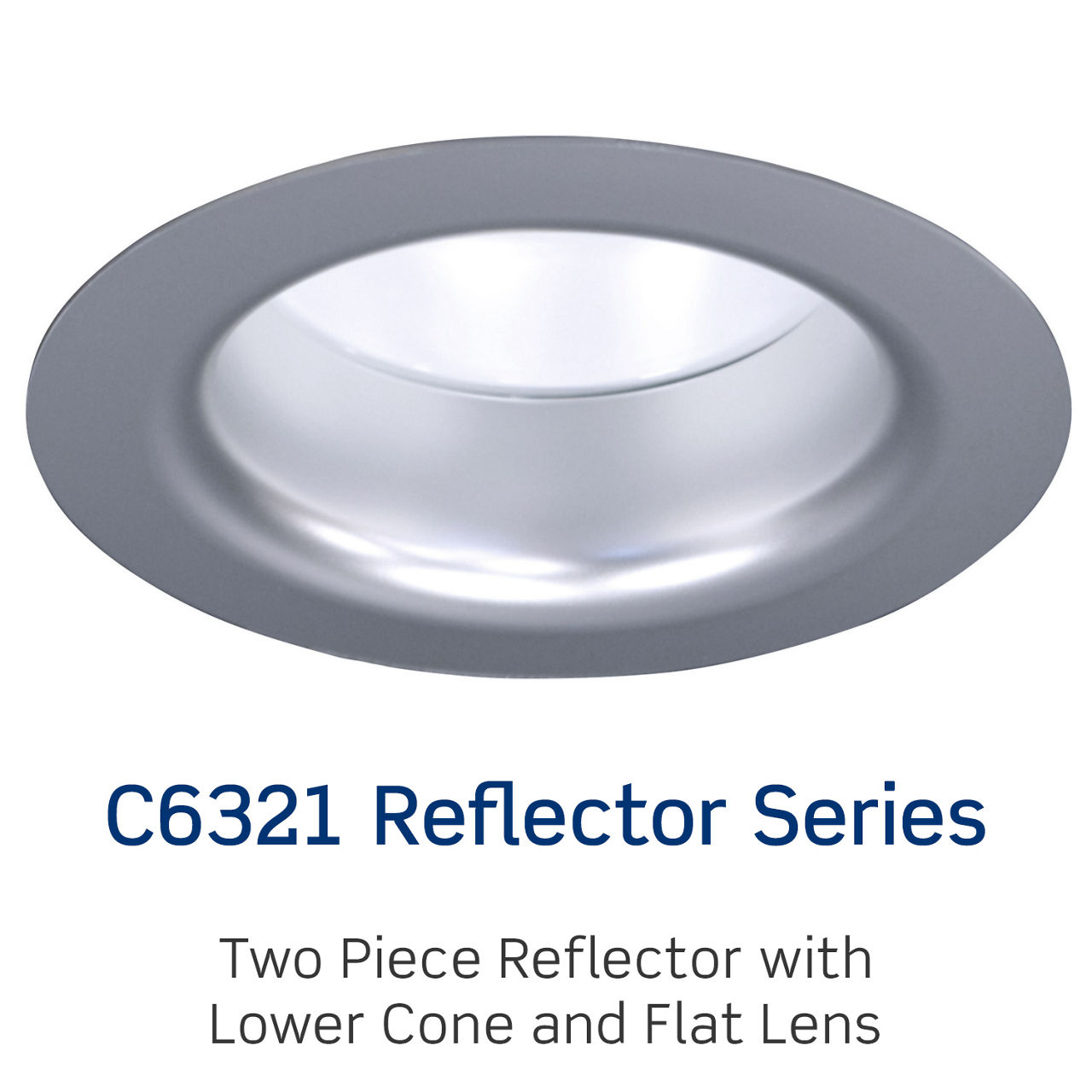

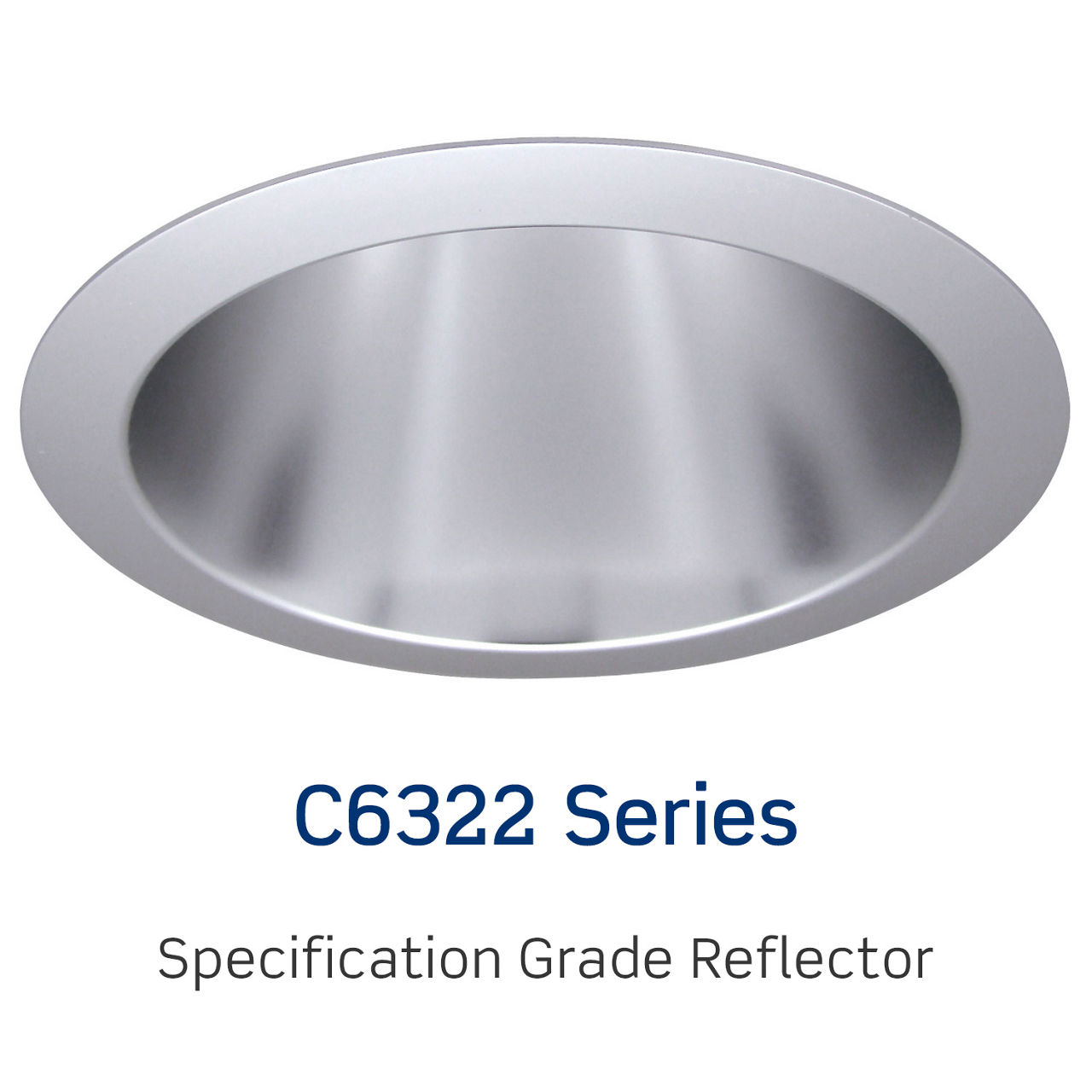

    Use With : C6322 Series, C6323 Series, C6321 Cone Series,C6321 Baffle Series,C6327 Cone Series,C6327 Baffle Series
