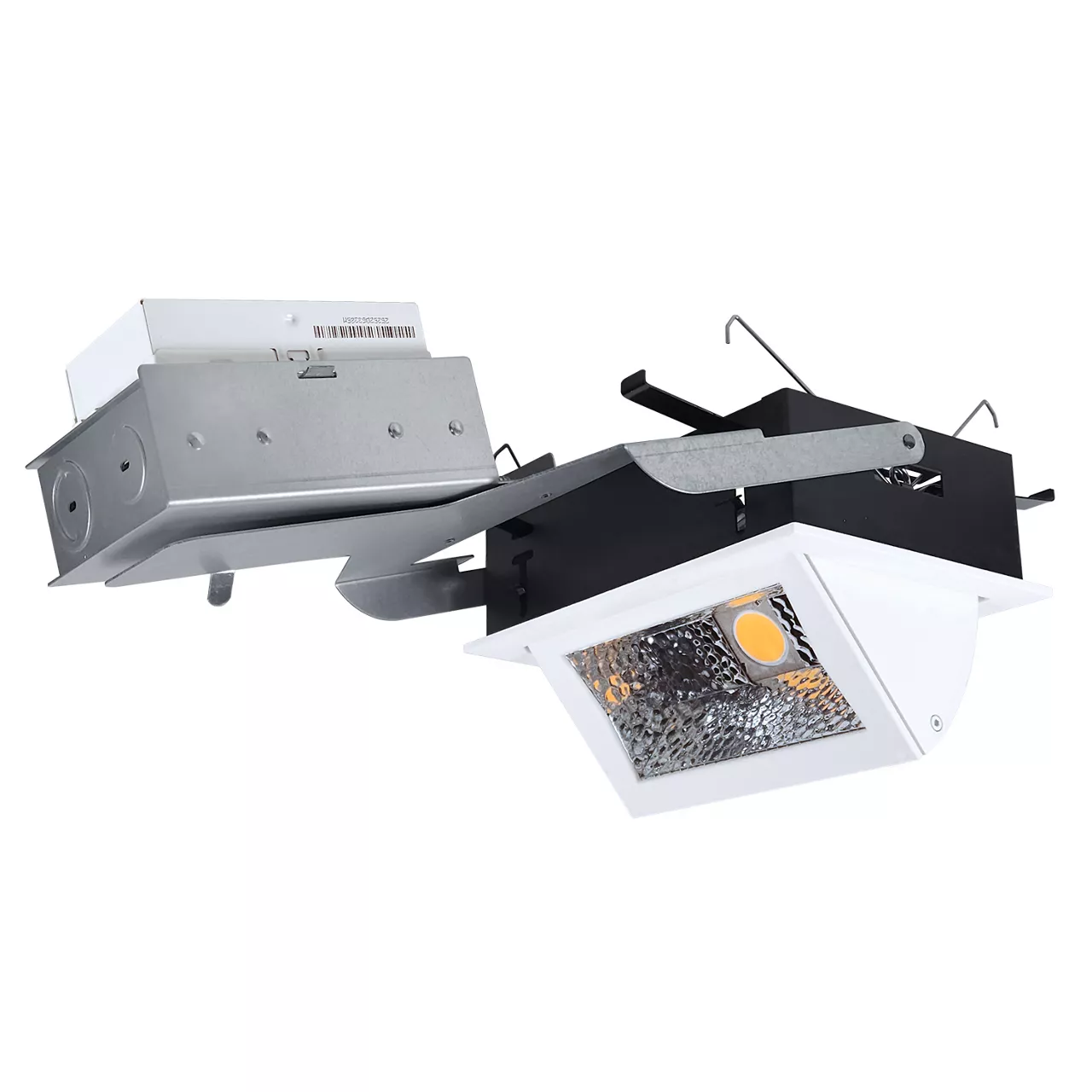

R6WRM Remodel Recessed Pull Down Wall Lighter

R6WRM

  • Specification Grade 6- inch 16 Gauge Galvanized Steel Remodel Housing; Die-Cast Aluminum Pull-down Head and Trim Frame
  • Smooth wide beam; well suited for any wall lighting application
  • Heavy Duty Steel Remodel Mounting Frame is secured to ceiling by four (4) Spring Clamps; minimum plenum clearance required: 7-1/2- inches
  • Requires minimum 3- inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
  • Unique Heat Pipe/Radiator Finned Heat Sink provides exceptional heat dissipation, ensuring long life and consistent performance
  • Constant tension Pull-down Head with vertical adjustment from 0° to 60° for aiming ease
  • Locking mechanism with graduations for consistent fixture-to-fixture aiming
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; 80 CRI min., 83 typical; high CRI of 90+ available
  • Available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
  • Will accept up to two (2) LF49 Lenses, FA-54 Louvers or one (1) FA-53 Snoot by using the FA-19 Accessory Holder

Product Information

  • Product Features

    Aperture Size : 6 in

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Listings : cCSAus|Damp Location|ENERGY STAR®

    Lumen Output : 2001-3000|4001-5000

    Product Shape : Rectangular

    Product Type : Housing|Wall Lighter|Remodel
