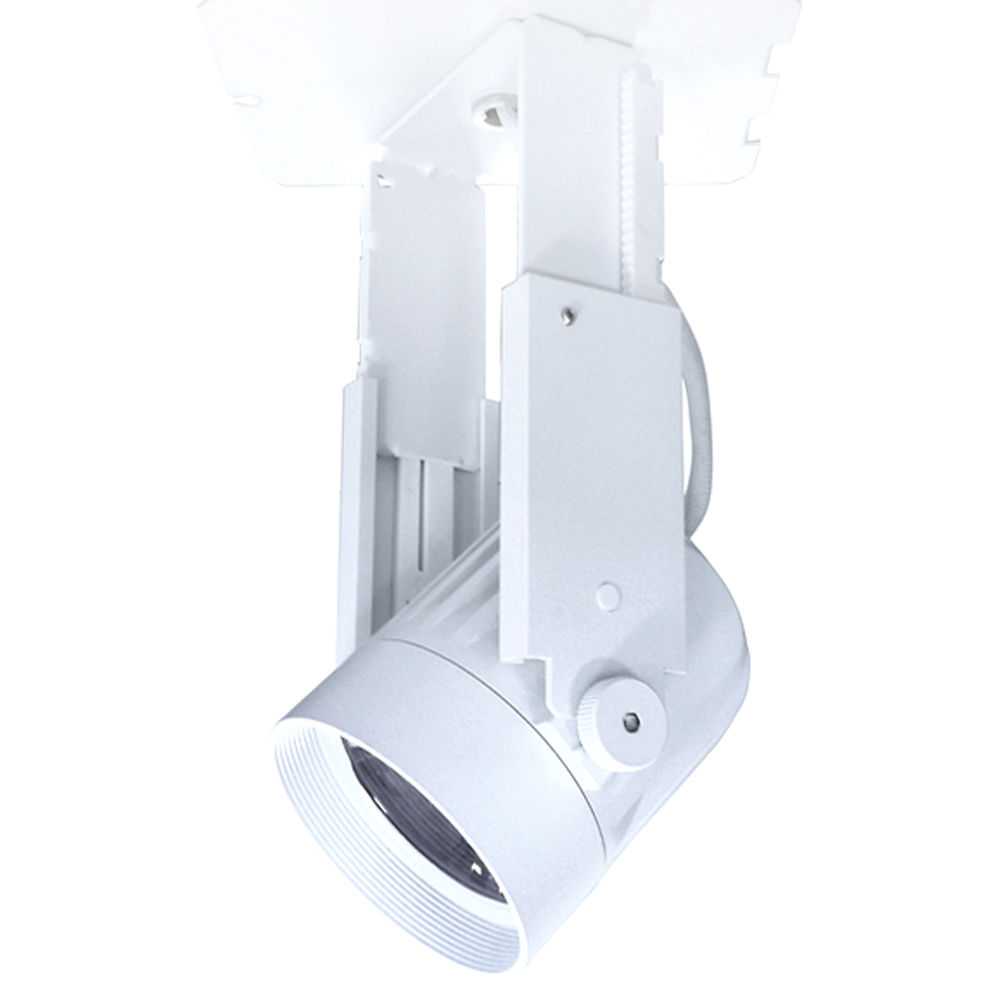

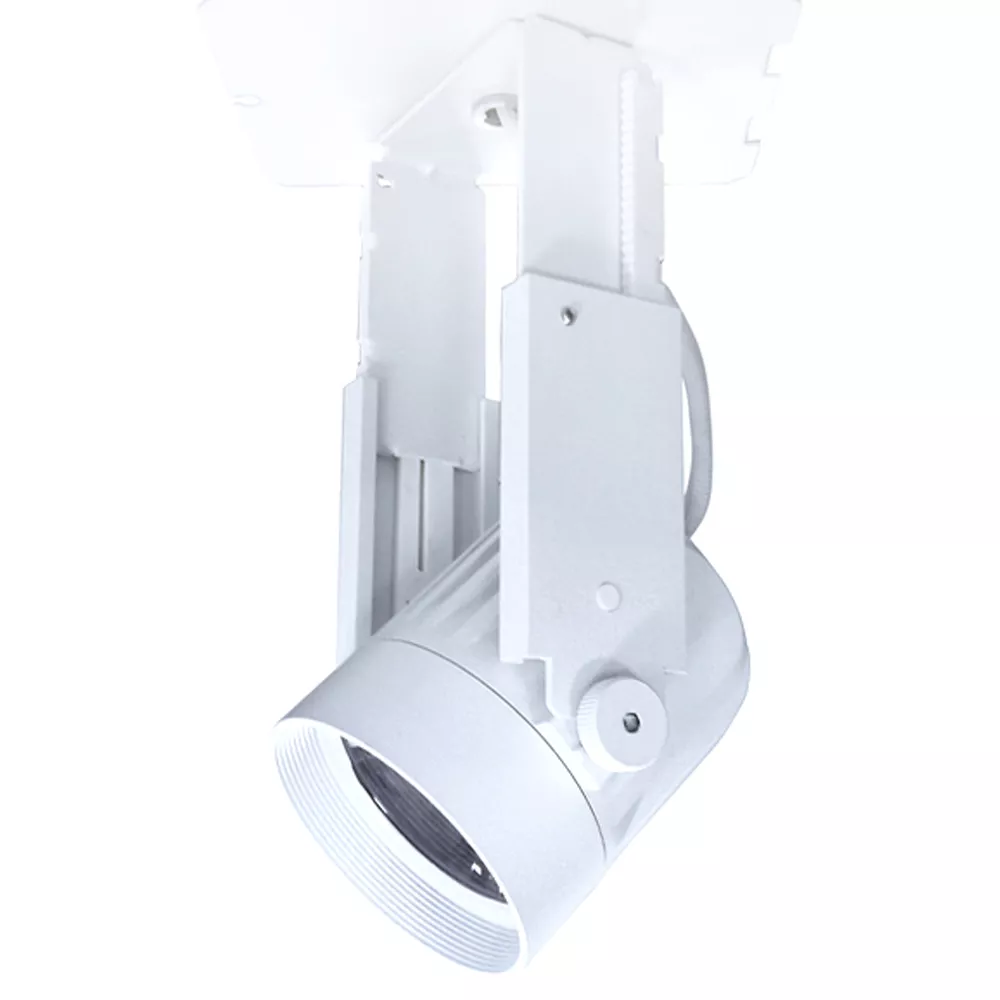

Mini O2 Recessed Multiple Adjustable Downlight

RDA4L

  • Single- to four-head units available
  • Non-IC Housing; requires minimum 3-inch clearance around luminaire from insulation material; thermal protection provided in case of improper insulation use
  • Housing may be used for trimmed or trim-less applications:
    • Trimmed housings are available with a steel powder coat matte black or matte white trim; steel torsion springs provide secure retention in housing
    • Trimless housings allow the ceiling to be finished and painted right to the aperture opening for a clean appearance; trimless frame is steel with a matte white powder coat finish
  • Optics are engineered to provide a smooth uniform beam, maximizing output, minimizing glare, and can easily be changed in the field
  • Optics available in 14° Spot, 29° Medium and 37° Flood
  • Complete luminaire (Heads, Drivers and Junction Box) can be accessed from below the ceiling
  • Lamp heads have a constant tension design for tilt and rotation adjustability and a firm-feel detent, pull-down mechanism (2-inch extension) which allows the head to tilt up to 90°
  • Both can be locked into place with a provided allen wrench
  • Lamp heads provide 370° rotation and 45° tilt adjustability inside the housing
  • Select from 2700K, 3000K, 3500K and 4000K; CRI of 83 (80 min.) or high CRI of 90+ available
  • The 3000K Crisp White LED option delivers 90+ CRI with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse Tolerance
  • Optional FA-44 Snoot/Accessory Holder accepts up to two (2) LF16 60MM Lenses or FA-16 60MM Black Honeycomb Louver
  • All RDA4L Series luminaires are available for dimming and non- dimming applications; for a list of compatible dimmers, refer to the Dimming Specification Sheet
  • Output over voltage, over-current and short circuit protection
  • Approved for through circuit wiring
  • UL8750 and Class 2 Compliant; RoHS Compliant, US only
  • cCSAus Certified to UL924 Standard for Emergency Lighting when specified with the Emergency Battery Backup Option
  • CP Housings are Chicago Plenum CCEA listed
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Light Distribution Detail : Spot,Medium,Flood

    Light Source : LED

    Listings : Damp Location,Chicago Plenum

    Lumen Output : 1001-1500

    Mounting : Recessed

    Product Shape : Rectangular,Square

    Product Type : Recessed Multiples
