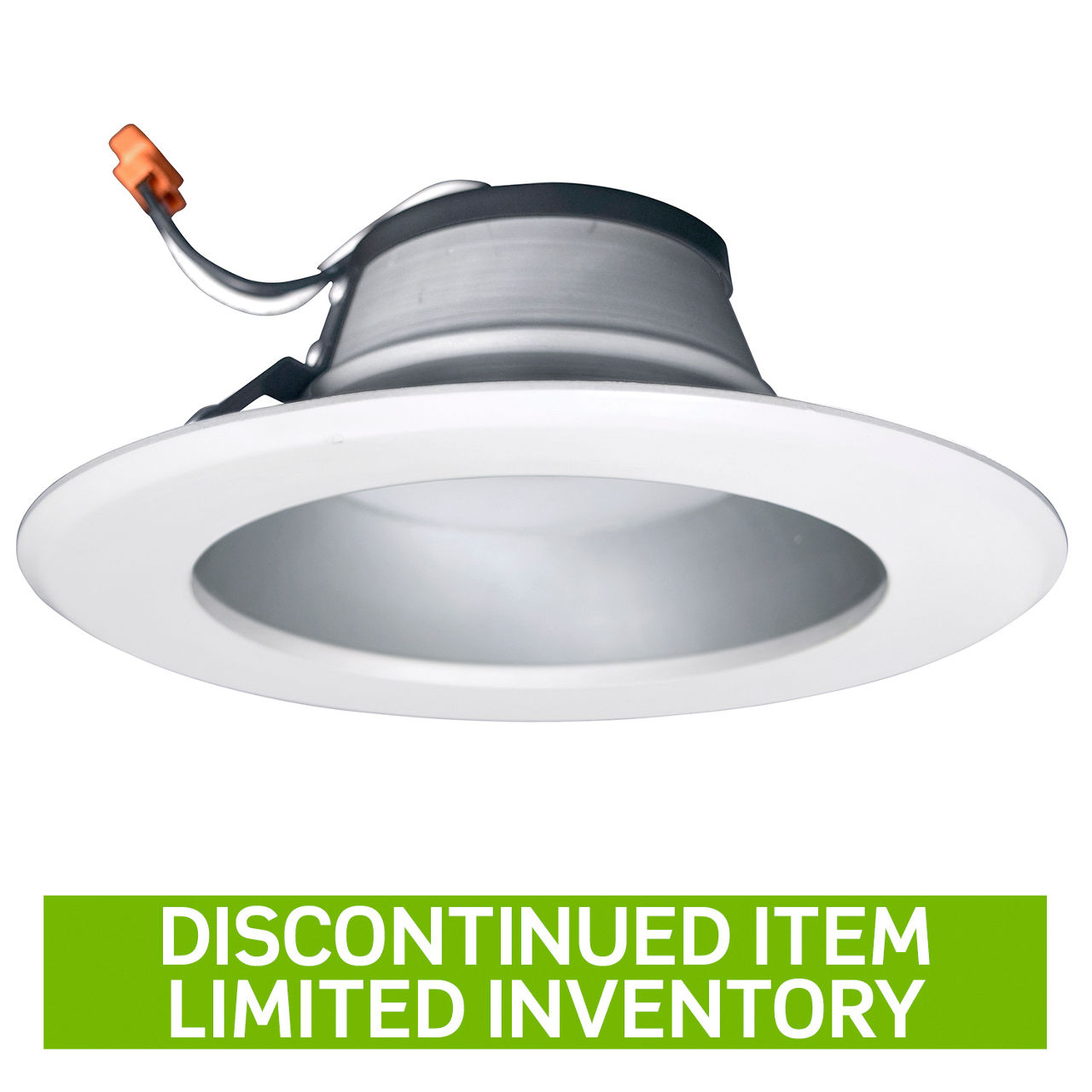

5"/6" LED Retrofit Trim Module

RF6L1 Series

  • For use in new construction and retrofit light commercial and residential applications
  • Compatible with most 5" and 6" recessed downlights
  • Reflector and trim ring are integral and fabricated of heavy gage aluminum
  • The reflector is available in matte white or platinum haze finish. Both reflector options include the trim ring in matte white.
  • E26 medium screw base or GU24 base harness adapters provide easy installation into new constructions or retrofit applications
  • Nickel plated steel torsion springs secure module in housing
  • Optical acrylic diffusion lens produces high lumen transmission and even illumination
  • Multiple LED chips with excellent fixture-to-fixture color consistency
  • 15W, 1000 Delivered Lumen output
  • Available in 2700K and 3000K color temperatures
  • Direct 120VAC design – no driver needed providing for a smaller, lighter design with less components
  • Triac and ELV dimmable
  • cETLus Listed; Suitable for use in wet locations
  • Energy Star listed

Product Information

  • Product Features

    Aperture Size : 5 in|6 in

    Color Rendering Index : 90-100

    Correlated Color Temperature : 2700K|3000K

    Light Distribution Detail : 105-degree

    Listings : Wet Location|Energy Star

    Lumen Output : 1001-1500

    Mounting : Recessed

    Product Shape : Round

    Product Type : Retrofit

    Trim Type : Cone
