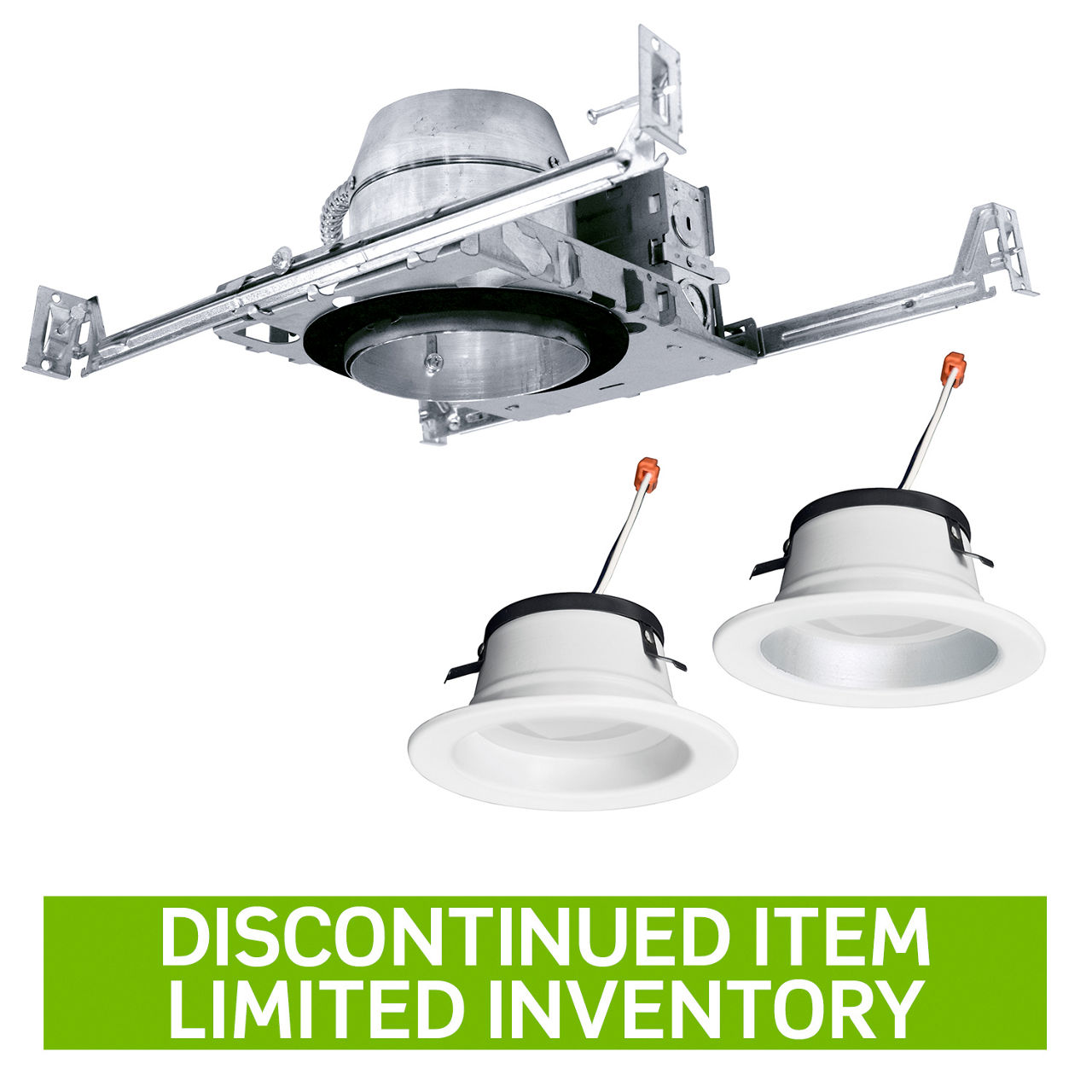

4" Dedicated LED New Construction StopAire IC Rated Housing with LED Trim Module

RL20L-ICSA/RF4L1

  • New construction 4" housing with LED module dedicated luminaire disconnect, air-tight for insulated ceilings
  • Intended for ceiling thickness from 1/2" - 1-1/2"
  • Aluminum and galvanized steel construction
  • Dual Extension bars adjustable for 16" and 24" center joists (14-1/4" to 24-1/2"). Nailer bar hangers are included with housing. Hanger bars may be extended to rest on T-bar ceilings. Optional clip-on T-bar hangers also available.
  • Housing includes male IDEAL Powerplug® model 182 luminaire connector for connection to LED trim module
  • Optical acrylic diffusion lens produces high lumen transmission and even illumination
  • Multiple LED chips with excellent fixture-to-fixture color consistency
  • 13W, 800 Delivered Lumen output
  • Available in 2700K and 3000K color temperatures, 90 CRI
  • Direct 120VAC design – no driver needed providing for a smaller, lighter design with less components
  • Designed and rated for 50,000 hours at 70% lumen maintenance
  • LED module reflector and trim ring are integral and fabricated of heavy gage aluminum. The reflector is available in matte white or platinum haze finish. Both reflector options include the trim ring in matte white.
  • Friction clips secure module in housing
  • Module includes female IDEAL Powerplug® model 182 luminaire connector for connection to housing
  • Triac and ELV Dimming
  • LED Module: cETLus listed to UL standards. Suitable for use in wet locations. EnergyStar certified;
    Housing: cULus listed
  • Conforms to Washington State Energy code (WSEC) for low air infiltration.
  • Tested in accordance with ASTM E283 (2.0CFM or less).

Product Information

  • Product Features

    Aperture Size : 4 in

    Color Rendering Index : 90-100

    Correlated Color Temperature : 2700K,3000K

    Light Distribution Detail : 105-degree

    Listings : Wet Location,Energy Star

    Lumen Output : 501-1000

    Mounting : Recessed

    Product Shape : Round

    Product Type : Downlight

    Trim Type : Cone
