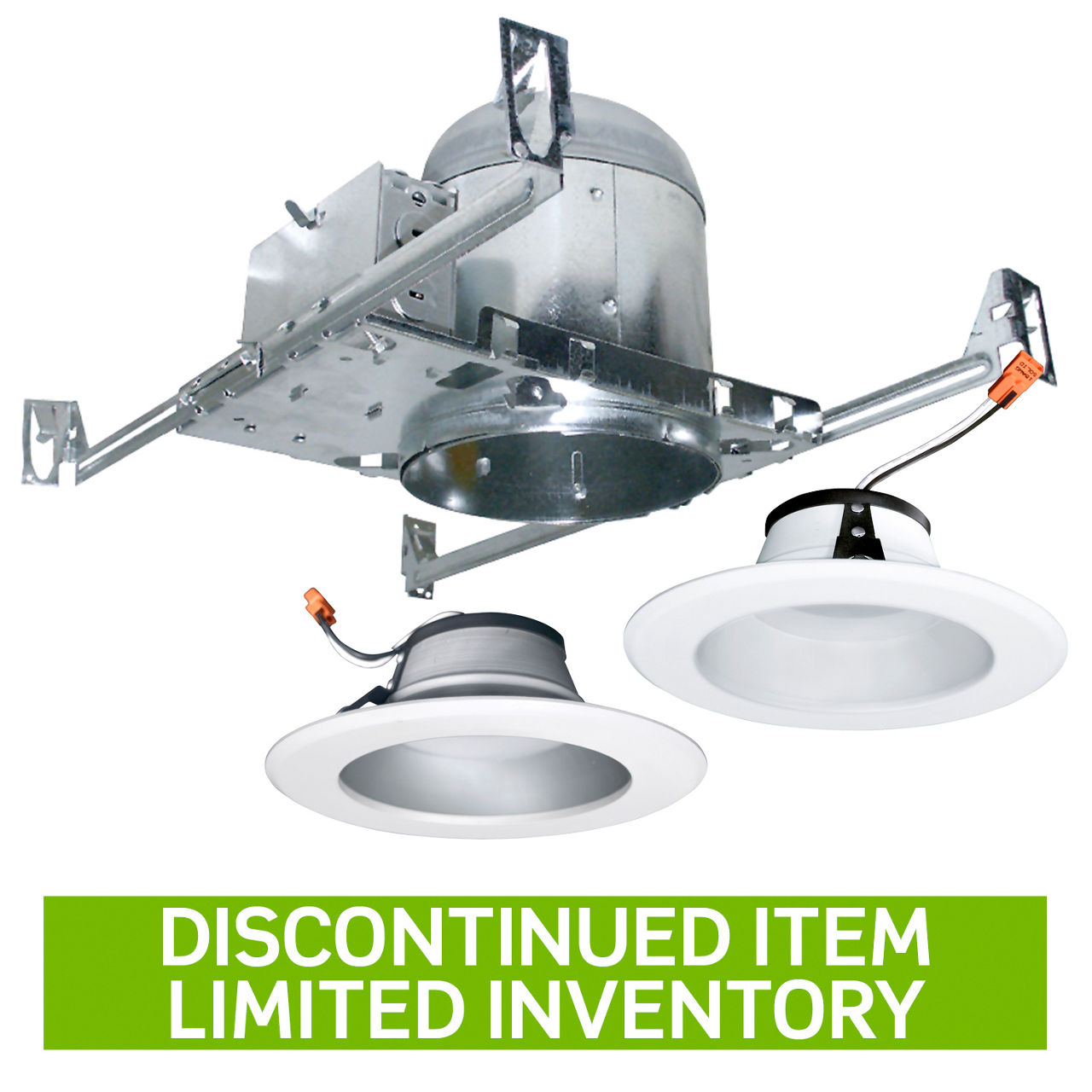

6-Inch Dedicated Insulated Ceiling (IC)/ StopAire™ New Construction Housing with LED Trim Module
RL38L-ICSA/RF6L1
Housing
- Includes male IDEAL Powerplug® Model 182 Luminaire Connector for connection to LED Trim Module
- Air-tight for insulated ceilings; requires min. 3–inch clearance around Housing from insulation material
- Aluminum and galvanized steel construction
- Dual Extension Bars adjustable for 16– and 24– inch center joists (14-1/4–to 24-1/2– inches)
- Nailer Bar Hangers are included with Housing and may be extended to rest on T-bar ceilings; optional clip-on T-bar Hangers also available
- Prewired junction box with convenient screwdriver pry-outs: six (6) 1/2–inch, one (1) 1/2– inch x 3/4– inch concentric and four (4) Romex knockouts
- Spring-latch Access Plates
- Quick-connect Push-in Wire Connectors provided
- Approved for through-circuit wiring; max. eight (8) #12 AWG (4 in/4 out)
Module
- Integral Reflector and Trim Ring are fabricated of heavy gage aluminum; Matte White or Platinum Haze Reflector finish with Matte White Trim Ring
- 15W/1000Lm, available in 2700K or 3000K, 90 CRI
- Includes female IDEAL Powerplug® Model 182 Luminaire Connector for connection to LED Trim Module
- E26 Medium Screw Base Adapter for easy installation
- Nickel Plated Steel Torsion Springs secure module in selected Housing
- Optical Acrylic Diffusion Lens produces high lumen transmission and even illumination
- Multiple LED chips with excellent fixture-to-fixture color consistency
- Direct 120VAC design – no driver needed
- 120V Forward/Reverse Phase Dimming
Product Information
Updated
IES
Product Features
Aperture Size : 6 in
Color Rendering Index : 90-100
Correlated Color Temperature : 2700K,3000K
Light Distribution Detail : 105-degree
Listings : Damp Location
Lumen Output : 1001-1500
Mounting : Recessed
Product Shape : Round
Product Type : Downlight
Trim Type : Cone
