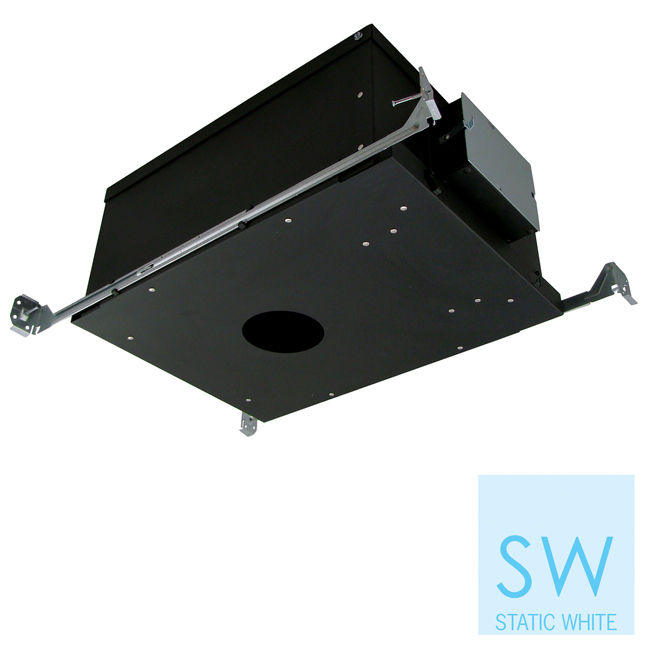

2-In. Static White LED Trimless Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Downlight

RN2ANC

  • Housing rated for use in direct contact with insulation materials
  • 16-Gauge Galvanized Steel Housing, painted matte black inside and out; removable cover for driver access, spring latch tether provides secondary support of the Universal LED Module
  • A metal perforated Mud Frame is required (MF2A ordered separately). When fastened to the ceiling, the Mud Frame utilizes three (3) spring-and-ball detent points to securely support Module
  • Quick-Connect design for easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into housing/ceiling
  • Matte black painted mechanism is constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder; Adjustment feature has white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Four (4) wattage/lumen packages: 8W/800Lm, 10W/1000Lm, 14W/1300Lm, and 21W/1700Lm
  • Available in 2700K, 3000K, 3500K, and 4000K in both 83 (80 min.) and 90+ CRI, a 3000K Crisp White available
  • Crisp White delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
  • Many trim options available; see attached trim sheet for information and details. NOTE: RN2A and RN2RM Series’ trims are NOT compatible with each other
  • All RN2A Adjustable Trimless Downlights are available for non-dimming and dimming applications. For a list of compatible dimmers, refer to the Dimming Specification sheet.

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K,3000K Crisp White

    Light Distribution Detail : Spot,Medium,Flood

    Listings : cCSAus,Damp Location,WSEC ASTM E283,Chicago Plenum CCEA Listed

    Lumen Output : 501-1000,1001-1500,1501-2000

    Product Type : 2-Inch Trimless Adjustable Downlight

    Housing : Trimless,Adjustable,New Construction,Insulated Ceiling (IC),StopAire™

    Rated Wattage : 8W,10W,14W,21W

    Dimmable : Y

    Title 24 Compliant : N
