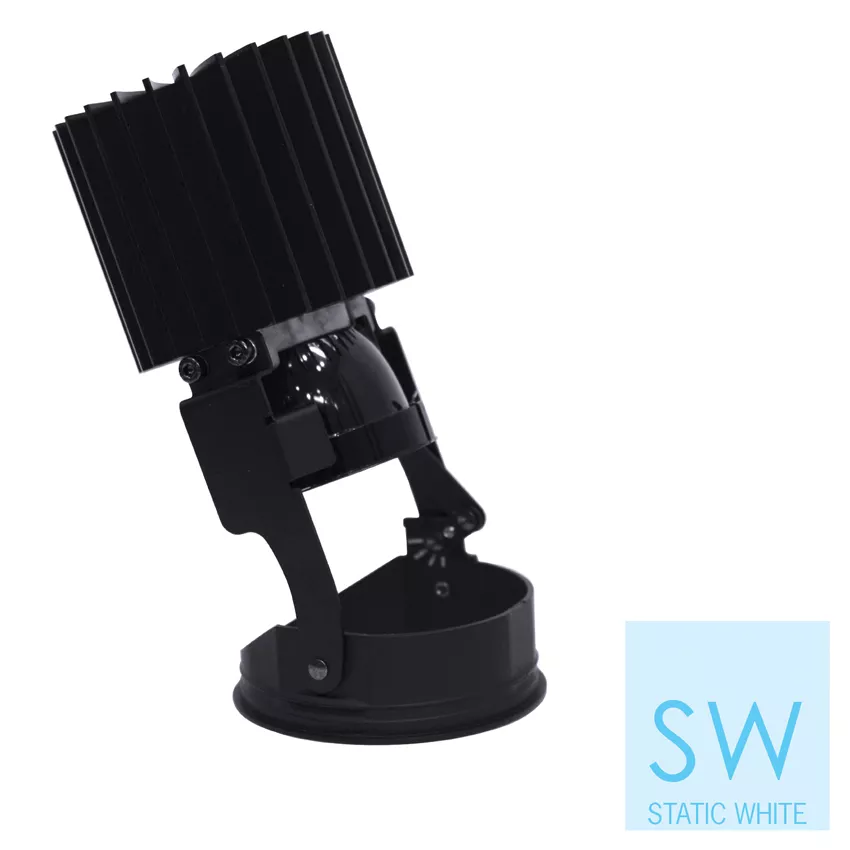

2-In. Static White LED Trimless Adjustable Remodel Downlight

RN2ARM

  • Requires minimum 3-inch clearance around driver kit from insulation material; thermal protection provided in case of improper insulation use
  • Driver Kit Housing utilizes a spring latch tether to provide secondary support of the Universal LED Module
  • A metal perforated Mud Frame is required (MF2A ordered separately); when fastened to the ceiling, mud frame utilizes three spring-and-ball detent points to securely support module
  • Quick-connect design enables easy installation and removal of Universal LED Module; Drivers are fully accessible from below the ceiling ( Class 2 output, RoHS Compliant)
  • Output over voltage, over-current and short circuit protection
  • Matte black painted Mechanism is constructed of 16-gauge sheet metal, an Aluminum Die-cast Heat-sink, an Acrylic Optic, and a Thermoplastic Optic Holder
  • Mechanism adjustment features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Available in four wattage/lumen packages: 8W/800Lm, 10W/1000Lm, 14W/1300Lm, and 21W/1700Lm
  • Available in 2700K, 3000K, 3500K, and 4000K in both 83 and high (90+) CRI; 3000K Crisp White also available
  • Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, and Flood beam distributions; optics are interchangeable and can be field replaced
  • Many trim options available to complement any design style. See ordering information for details. Note: RN2A series and RN2RM series trims are not compatible with each other
  • All RN2A adjustable downlights are available for non-dimming and dimming applications. For a list of compatible dimmers, refer to the Dimming Specification sheet.

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K|3000K Crisp White

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location

    Lumen Output : 501-1000|1001-1500|1501-2000

    Product Shape : Round

    Product Type : 2-Inch Trimless Adjustable Downlight

    Housing : Trimless|Adjustable|Remodel

    Rated Wattage : 8W|10W|14W|21W

    Dimmable : Y

    Title 24 Compliant : N
