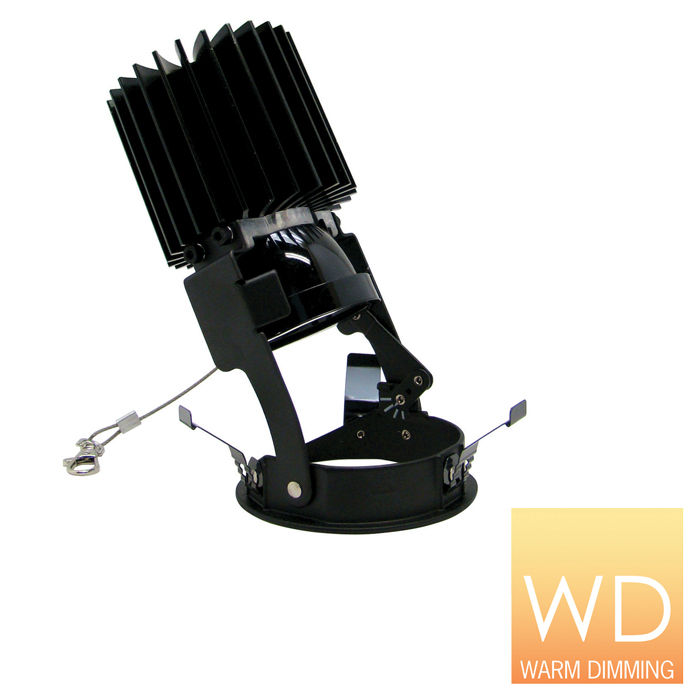

2-In. Warm Dimming LED Trimless Adjustable Remodel Downlight


  • Module and Driver Kit require a minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
  • 16-Gauge galvanized steel Driver Kit that utilizes a spring latch tether to provide secondary support of the Universal LED Module
  • A metal perforated Mud Frame is required (MF2A, ordered separately); when fastened to the ceiling, Mud Frame utilizes three (3) spring-and-ball detent points to securely support module
  • Quick-connect design enables easy installation and removal of Universal LED Module
  • Module is painted matte black; constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder
  • Adjustment mechanism features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Warm Dimiming CCT ranges from 3000K to 1800K, delivering up to 800 lumens (3000K at 100%, 1800K at greater than or equal to 5%)
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce smooth Spot, Medium and Flood beam distributions; optics are interchangeable and can be field replaced
  • Many trim options available, see ordering information for details. Note: RN2A series and RN2RM series trims are not compatible with each other
  • All RN2A Adjustable Downlights are available for non-dimming and dimming applications; for compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : Warm Dim: 3000K - 1800K

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location

    Lumen Output : 501-1000

    Product Shape : Round

    Product Type : 2-Inch Trimless Adjustable Downlight

    Housing : Trimless|Adjustable|Remodel

    Rated Wattage : 13W

    Dimmable : Y

    Title 24 Compliant : N
