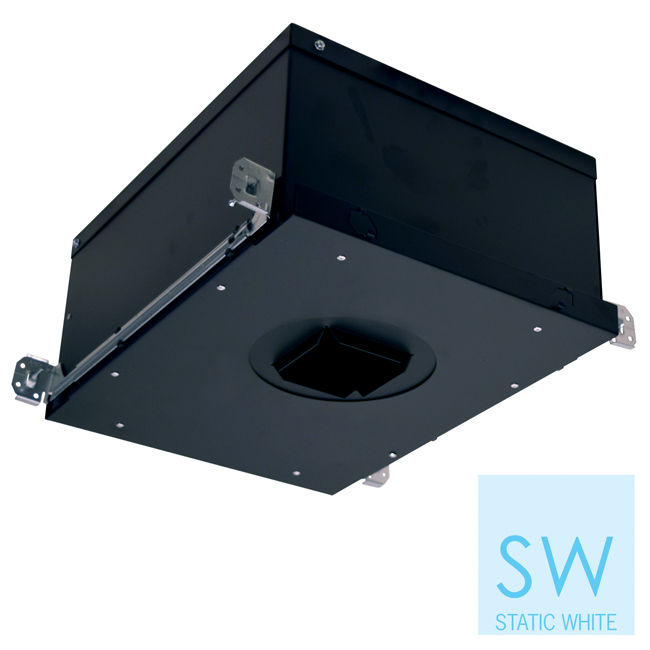

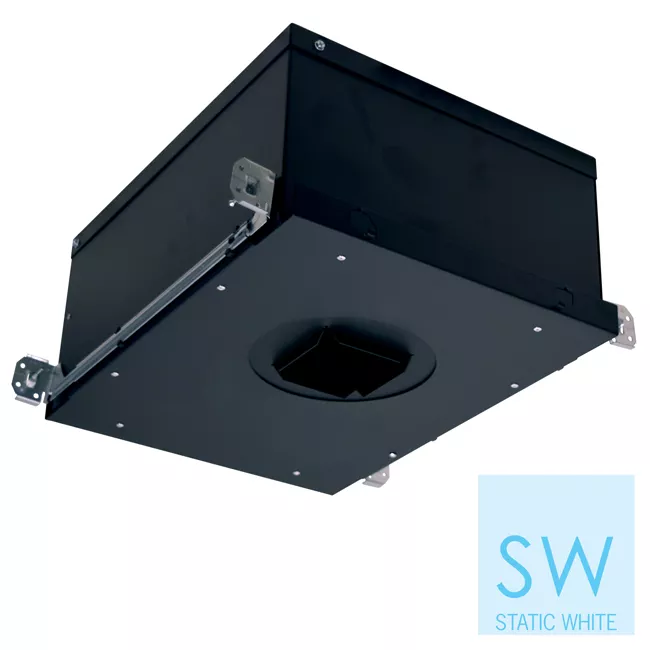

2-In. Square Static White LED Trimless Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Downlight

RN2ASQNC

  • Housing rated for use in direct contact with insulation materials
  • 16-Gauge Galvanized Steel Housing painted Matte Black inside and out
  • Mounting frame features a post installation mechanism that allows 1/4-inch adjustment in all directions, as well as 5-degrees of rotation adjustment to ensure proper alignment
  • Metal perforated mud frame is required (MF2SQ, ordered separately). When fastened to the ceiling, mud frame utilizes three spring and ball detent points to securely support module.
  • Quick-connect design enables easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into housing/ceiling
  • Removable cover for Driver access
  • Matte Black painted Adjustment Mechanism is constructed of 16-gauge Sheet Metal, Aluminum Die-cast Heat Sink, Acrylic Optic and Thermoplastic Optic Holder. White Graduation Marks painted every 15-degrees for consistent aiming plus Set Screw to lock tilt adjustment in place.
  • Module features rotational adjustability of 30° per side (60° total)
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 and 93+ CRI, also available in 3000K 90+ CRI Crisp White
  • Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
  • Many Trim options available to complement any design style. See ordering information for details. Note: RN2ASQ series and RN2RMSQ series trims are not compatible with each other.
  • All RN2ASQ Trimless Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K|3000K Crisp White

    Light Distribution Detail : Spot|Medium|Flood

    Listings : cCSAus|Damp Location|WSEC ASTM E283|Chicago Plenum CCEA Listed

    Lumen Output : 501-1000|1001-1500|1501-2000

    Product Shape : Square

    Product Type : 2-Inch Trimless Adjustable Downlight

    Housing : Trimless|Adjustable|New Construction|Insulated Ceiling (IC)|StopAire™

    Rated Wattage : 8W|10W|14W|21W

    Dimmable : Y

    Title 24 Compliant : N
