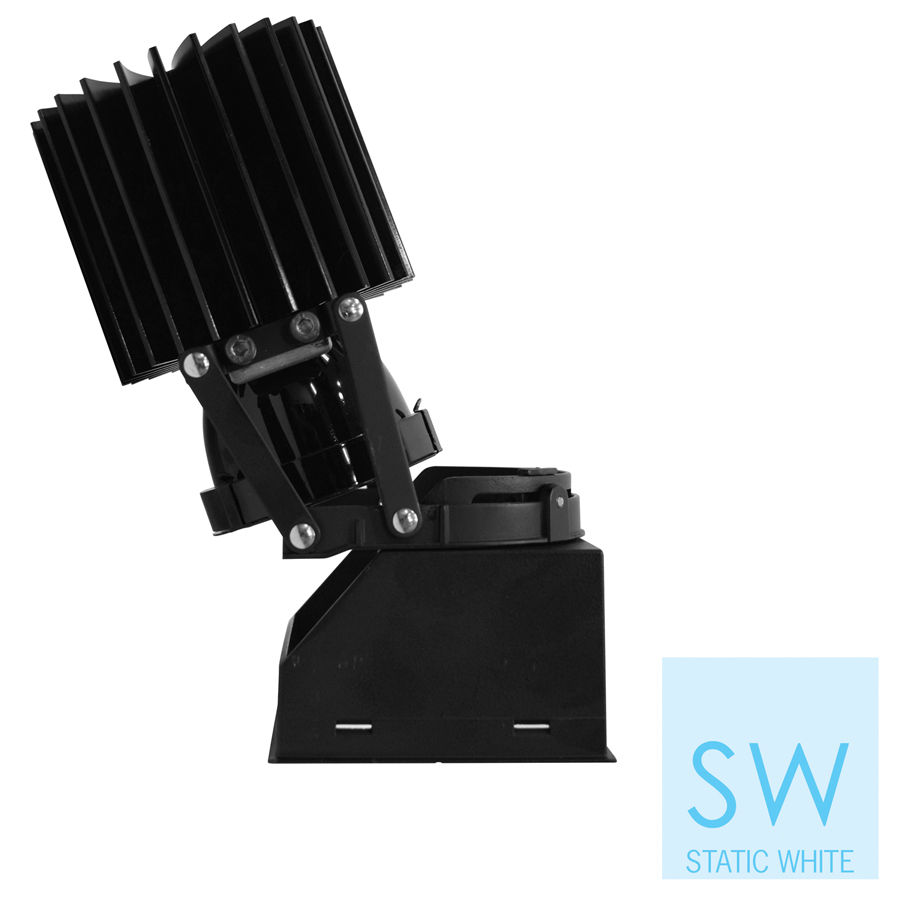

2-In. Square Static White LED Trimless Adjustable Remodel Downlight

RN2ASQRM

  • Module and Driver Kit require a minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
  • A metal perforated Mud Frame is required (MFSQ2A, ordered separately). When fastened to the ceiling, Mud Frame utilizes three (3) spring-and-ball detent points to securely support module.
  • 16-Gauge galvanized steel Driver Kit utilizes a spring latch tether to provide secondary support of the Universal LED Module
  • Quick-connect design enables easy installation and removal of Universal LED Module
  • Module is painted matte black and constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder
  • Adjustment mechanism features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
  • Module features rotational adjustability of 30-degrees per side (60-degrees total)
  • Select from four (4) Wattage/Lumen packages: 8W/700Lm, 10W/1100Lm, 14W/1200Lm,and 21W/1700Lm
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 and 90+ CRI, also available in 3000K Crisp White
  • Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Precision Optics produce Spot, Medium, and Flood beam distributions; Optics are interchangeable and can be field replaced
  • Many Trim options available to complement any design style. See ordering information for details.
  • All RN2ASQ Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K,3000K Crisp White

    Light Distribution Detail : Spot,Medium,Flood

    Listings : cCSAus,Damp Location

    Lumen Output : 501-1000,1001-1500,1501-2000

    Product Shape : Square

    Product Type : 2-Inch Trimless Downlight

    Housing : Trimless,Adjustable,Remodel

    Rated Wattage : 8W,10W,14W,21W

    Dimmable : Y

    Title 24 Compliant : N
