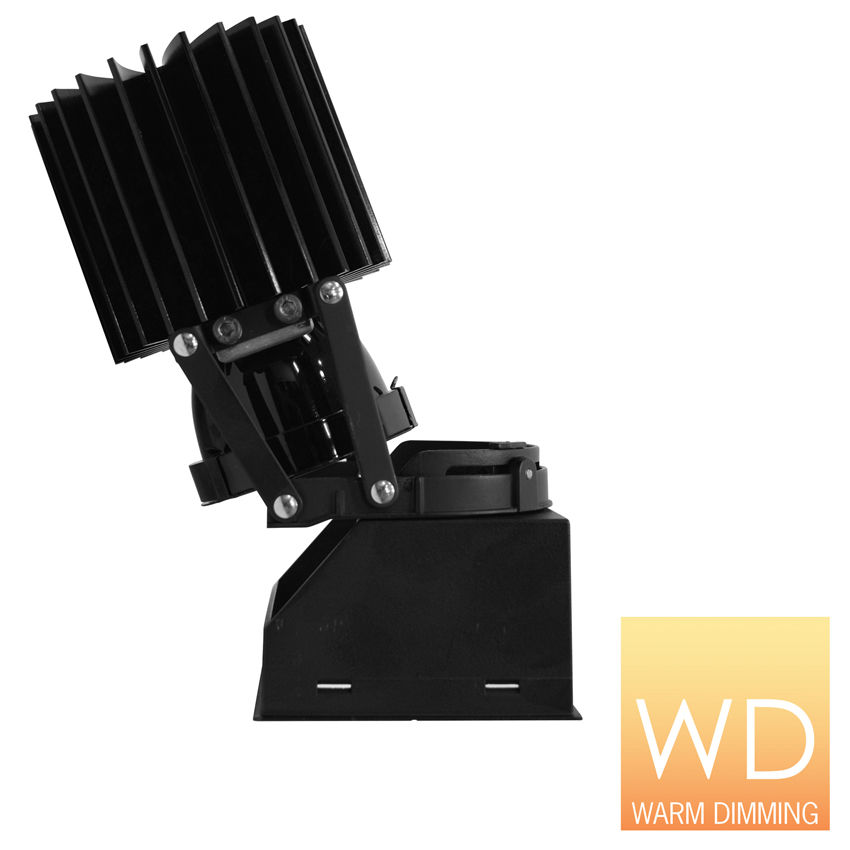

2-In. Square Warm Dimming LED Trimless Adjustable Remodel Downlight
RN2ASQRMWD
- Module and Driver Kit require a minimum 3-inch clearance from insulation material; thermal protection provided in case of improper insulation use
- 16-Gauge galvanized steel Driver Kit utilizes a spring latch tether to provide secondary support of the Universal LED Module
- A metal perforated Mud Frame is required (MFSQ2A, ordered separately); when fastened to the ceiling, Mud Frame utilizes three (3) spring-and-ball detent points to securely support module
- Quick-connect design enables easy installation and removal of Universal LED Module
- Module is painted matte black; constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic optic, and a thermoplastic optic holder
- Module features rotational adjustability of 30-degrees per side (60-degrees total)
- Adjustment mechanism features white graduation marks every 15-degrees for consistent aiming plus set screw to lock tilt adjustment in place
- Warm Dimiming CCT ranges from 3000K to 1800K, delivering up to 700 lumens (3000K at 100%, 1800K at greater than or equal to 5%)
- Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
- Precision TIR Optics produce smooth Spot, Medium and Flood beam distributions; optics are interchangeable and can be field replaced
- Many trim options available, see ordering information for details.
- All RN2ASQ Adjustable Downlights are available for non-dimming and dimming applications; for compatible dimmers, refer to the Dimming Specification sheet
Product Information
Updated
Updated
Product Features
Color Rendering Index : 90-100
Correlated Color Temperature : Warm Dim: 3000K - 1800K
Light Distribution Detail : Spot,Medium,Flood
Listings : cCSAus,Damp Location
Lumen Output : 501-1000
Product Shape : Square
Product Type : 2-Inch Trimless Adjustable Downlight
Housing : Trimless,Adjustable,Remodel
Rated Wattage : 13W
Dimmable : Y
Title 24 Compliant : N
