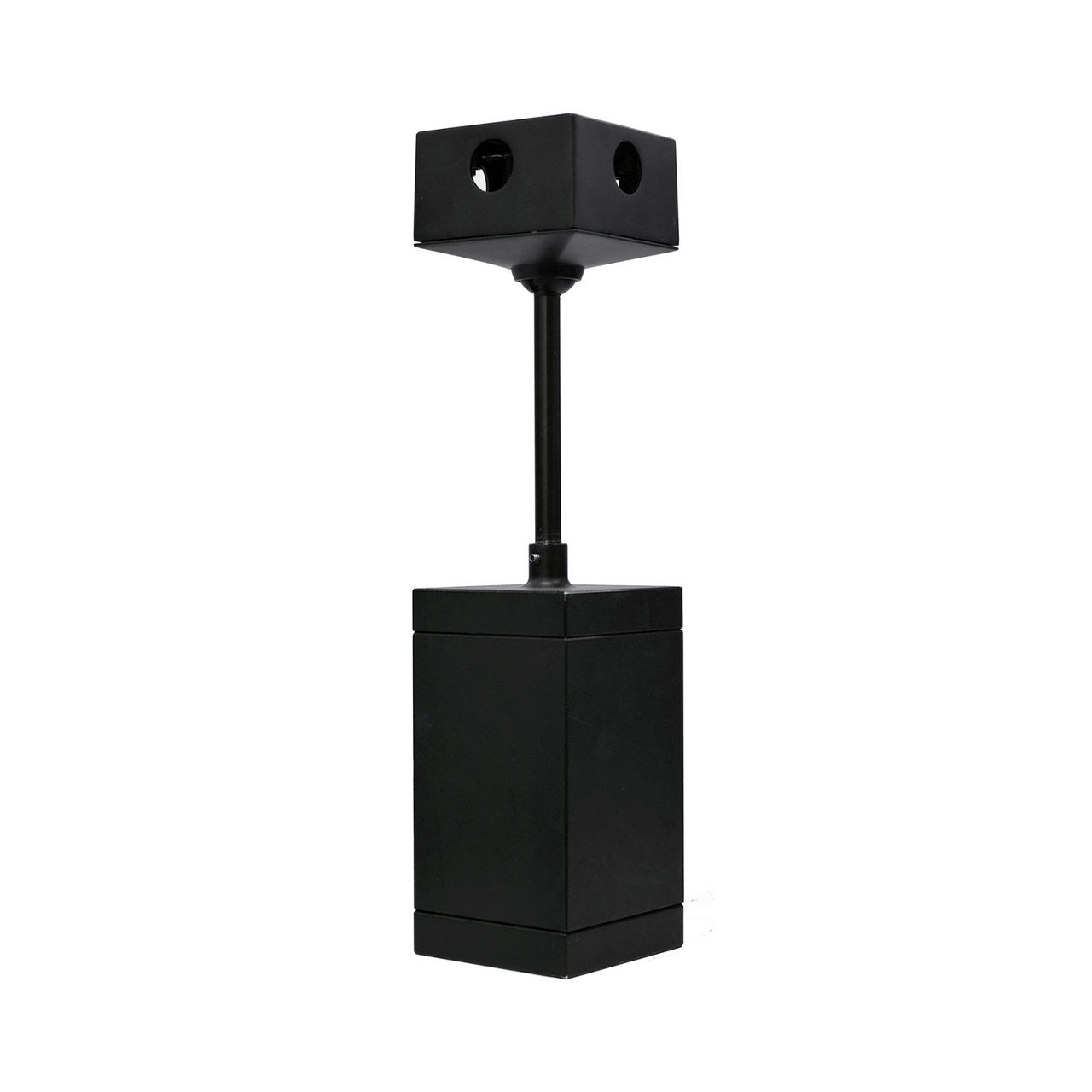

3-1/2-Inch Indoor Square Rigid Stem Pendant Cylinder with Conduit Feed Mounting Box
SQL3 SRC
- Specification Grade 3-1/2-inch square Aluminum Housing with Cast Aluminum Driver Canopy
- Suitable for Dry/Damp (indoor) locations
- Available in 6-1/2- and 10-3/16-inch heights; Matte Black, Satin Bronze, Matte White, and Matte Silver finishes
- Custom Color finishes available; consult factory for pricing, minimum order quantities, and lead time
- Driver Canopy has a four (4) outlet, 3-1/2–inch diameter Junction Box with hardware for 3/4-inch EMT Conduit and Hubs
- Includes Slope Ceiling Canopy (up to 45°) and 6-inch Stem; extra stem lengths must be ordered separately as needed
- Maximum Assembled Stem Length: 120-Inches; Stem thread: 1/4-18NPS
- Optics are optically engineered to provide a smooth, uniform beam, maximizing output, minimizing glare and can be easily changed in the field
- Available in 14° Spot, 28° Medium, 39° Flood, 49° Wide Flood Beam Distributions, and a Wall Wash option
- Wall Wash Optic may be rotated 360° to aim distribution pattern; it is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
- 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of min., 83 typical; high CRI of 90+ available
- Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
- Battery Backup option provides 90 minutes of power
- UL8750 and Class 2 compliant: RoHS compliant, U.S. only
- Output over voltage, over current and short circuit protected
- Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
- Must be installed per specific product installation instructions and all appropriate NEC Codes
- ENERGY STAR® Certified
RoHS Compliant:
Yes – Click Here
Product Information
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Environment : Indoor,Outdoor
Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash
Light Source : LED
Listings : cCSAus,Wet Location,Damp Location,ENERGY STAR® Certified,IP65
Lumen Output : 1001-1500,1501-2000
Mounting : Conduit Feed Mount, Rigid Stem Pendant
Product Type : Cylinder
Size : 3-1/2 in
