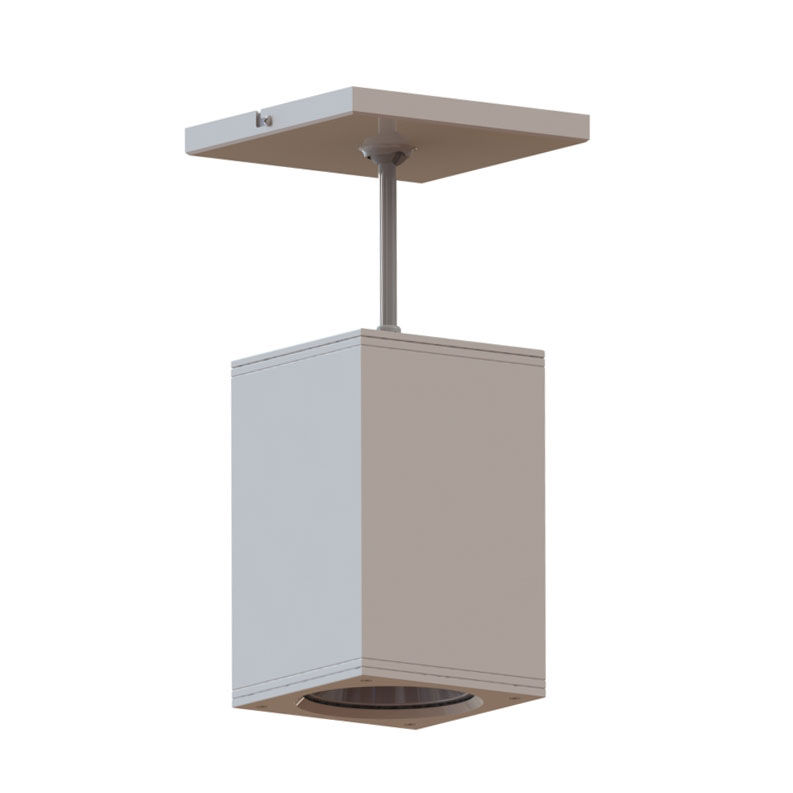

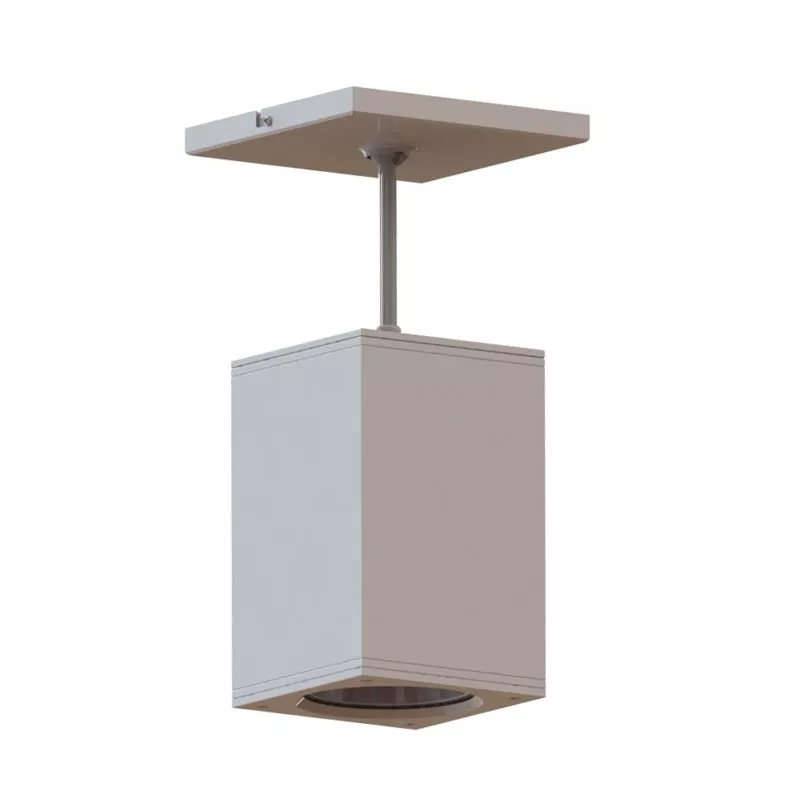

6 Inch Indoor/Outdoor Square Cylinders: Rigid Stem Pendant

SQL6 RS

Specification Grade 6 inch square Aluminum Housing; suitable for Dry/Damp (indoor) or Wet (outdoor) location types
Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
Includes Sloped Ceiling Canopy (up to 45°) and 6 inch Stem; additional stem lengths must be ordered separately as needed
Maximum Pendant Drop: 96 Inches/8 Feet; for longer drops consult factory
Stem Thread: 1/4-18NPS
Clear Alzak Reflector is available in 36° Narrow, 54° Medium and 80° Wide beam distributions
Platinum Reflector is available in a 63° Medium beam distribution
Wall Wash and Pencil Beam Optic accessories are also available
2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
Battery Backup option provides 90 minutes of power
UL8750 and Class 2 compliant: RoHS compliant, U.S. only
Output over voltage, over current and short circuit protected
SQL6 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
Assembled in the U.S.A
