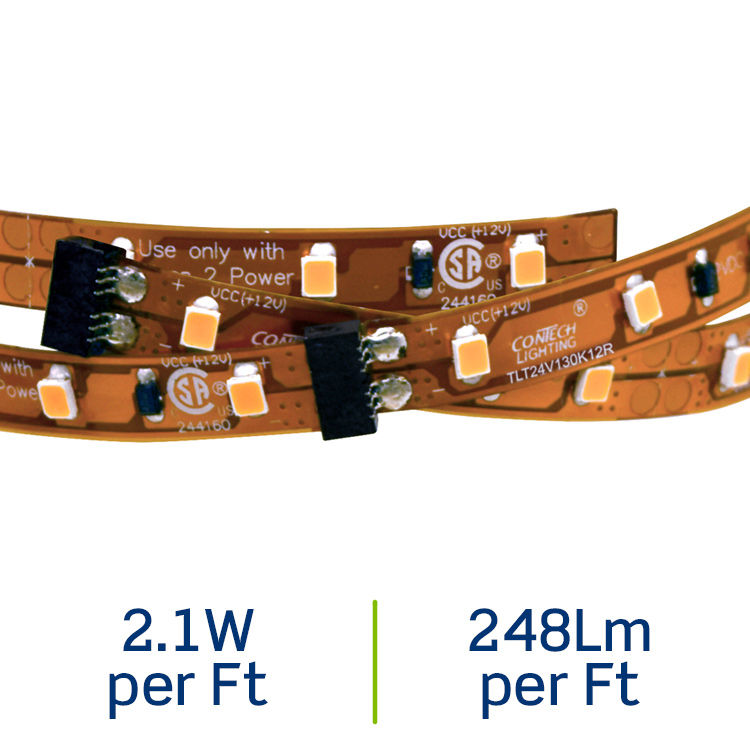

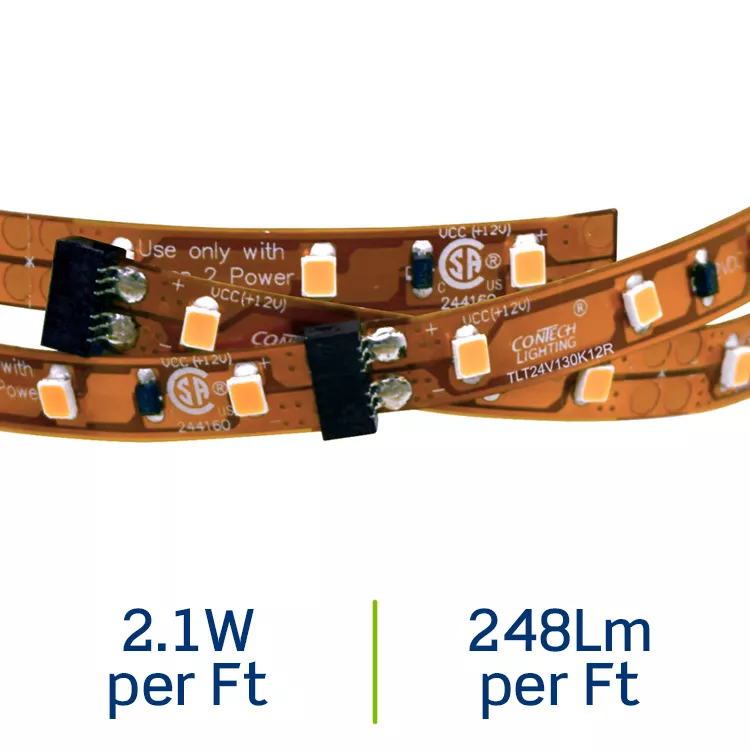

24V Standard Output LED Tapelight

TLT24V1

  • Flexible, low voltage linear LED accent lighting system provides high quality illumination for many indoor applications
  • High output LEDs provide excellent luminous intensities at low
    drive currents
  • Low power consumption and consistent, stable performance
  • Delivers 248 lumens at 2.1W per foot (delivered lumens based
    on 1 foot of 3000K tape)
  • Single run length up to 32 feet on one 96W power supply
  • Available in 2700K, 3000K, 3500K and 4000K
  • Dimmable using Dimmable Power Supplies, Controllers or DMX Interface
  • Available in:
    • Individual 4 inch and 12 inch segments with male and female
      connector ends
    • 20 Foot Reels of connected, individual 4 inch or 12 inch segments
    • 30 Foot Continuous Reels (no mid-connectors); one male and one female connector end
  • Can be cut (on the cut lines) in 4 inch increments
  • Easy to install using the 3M Double Sided Adhesive on each segment; tape can be directly mounted to most surfaces
  • For additional thermal heatsinking, protection of the LEDs and an overall cleaner aesthetic, using the Aluminum Mounting Channel is recommended
  • For added protection of the LEDs and subtle diffusion and glare control, a Clear or Frosted Lens may be used; Lens must be used with the Aluminum Mounting Channel and is easily installed
  • System designed and rated for 50,000 hours at 70% lumen
    maintenance when mounted in ConTech Aluminum Mounting Channel
  • cCSAus Certified to UL standards
  • Suitable for dry or damp locations; not suitable for wet locations
  • Closet Rated

Product Information

  • Product Features

    Environment : Indoor

    Light Source : LED

    Listings : Damp Location

    Product Type : Tapelight

    Voltage : 24
