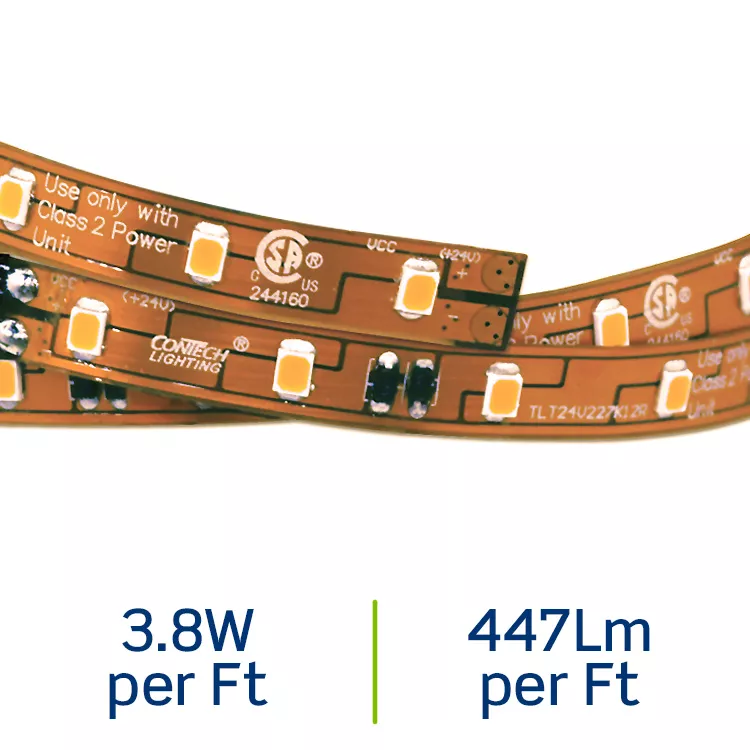

24V High Output LED Tapelight


  • Flexible, low voltage linear LED accent lighting system provides high quality illumination for many indoor applications
  • High quality LEDs provide excellent luminous intensities at low drive currents, resulting in low power consumption and consistant, stable performance, delivering 447 lumens (Delivered lumens based on 1ft. of 3000K tape).
  • 3.8W Per foot of Tapelight
  • Available in 20' reels of connected 12" or 4" segments; can also be purchased in individual segments
  • Available in 30' reels of continuous high output tapelight (without mid-connectors); Includes one female and one male end connector per reel
  • Available in 2700K, 3000K, 3500K, and 4000K
  • Dimmable using any of the TL series dimming controls
  • Modular “plug and play” system features a wide range of power supplies, controllers and connectors; easy installation with no need for field soldering
  • For additional thermal heatsinking, protection of the LEDs, and an overall cleaner aesthetic, using the aluminum mounting channel is recommended
  • System designed and rated for 50,000 hours at 70% lumen maintenance when mounted in ConTech channel
  • cCSAus Certified to UL standards
  • Suitable for damp locations

Product Information

  • Product Features

    Environment : Indoor

    Light Source : LED

    Listings : Damp Location

    Product Type : Tapelight

    Voltage : 24
