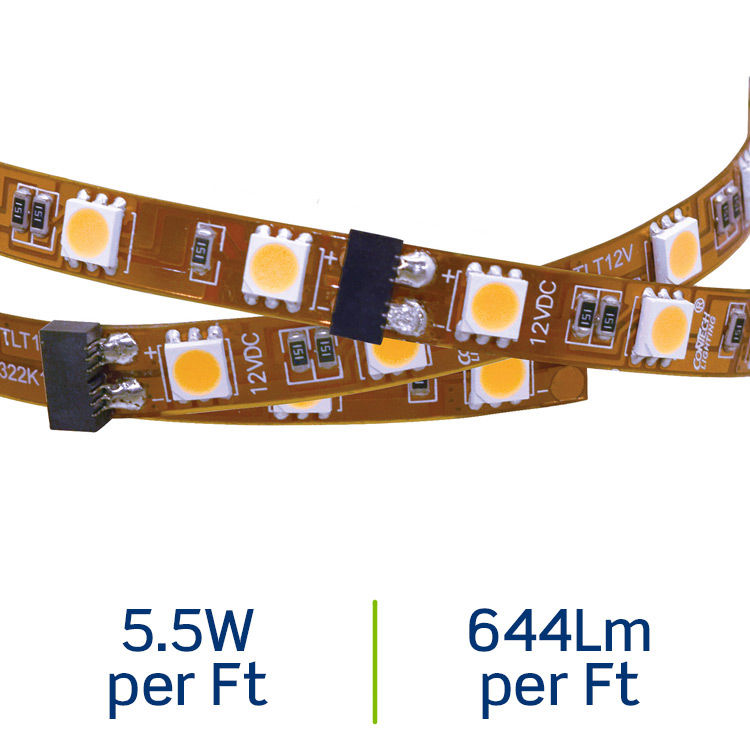

Super High Output Strip Light


  • Delivers 644Lm/Ft at 5.5W/Ft (based on 1 foot of 3000K tape)
  • 21 LEDs/Ft (0.56-inch spacing)
  • Modular plug-and-play system, no need for field soldering
  • Max run length up to 20 feet on one (1) 96W Driver; field cuttable (only on the cut lines) into 4-inch increments
  • Available in 2700K, 3000K, 3500K and 4000K at 80+; Color consistency <3SDCM
  • Select from:
    - Individual 12-inch Segments with one (1) male and one (1) female Connector End
    - 20 Foot Reel of connected, individual 12-inch segments
    - 20 Foot Continuous Reel (no Mid-connectors) with one (1) male and one (1) female Connector End
  • Forward/Reverse Phase or 0-10V Dimming; DMX Dimming Using Optional Interface (TLPINT)
  • Mount using the 3M Double Sided Adhesive Backing or Aluminum Mounting Channel (sold seperately)
  • A Clear or Frosted Lens may be used within the Mounting Channel for added protection of the LEDs and subtle diffusion and glare control
  • Not Suitable for Wet Locations

Product Information

  • Product Features

    Environment : Indoor

    Product Category : Strip Lighting

    Listings : cCSAus|Suitable for Dry or Damp Locations

    Product Type : Super High Output Strip Light

    Voltage : 24

    Series : TLT

    LED Color : Static White

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Color Rendering Index : 80-89

    Max Run Length : 20 Ft.

    Wattage per Foot : 5.5W/Ft.
