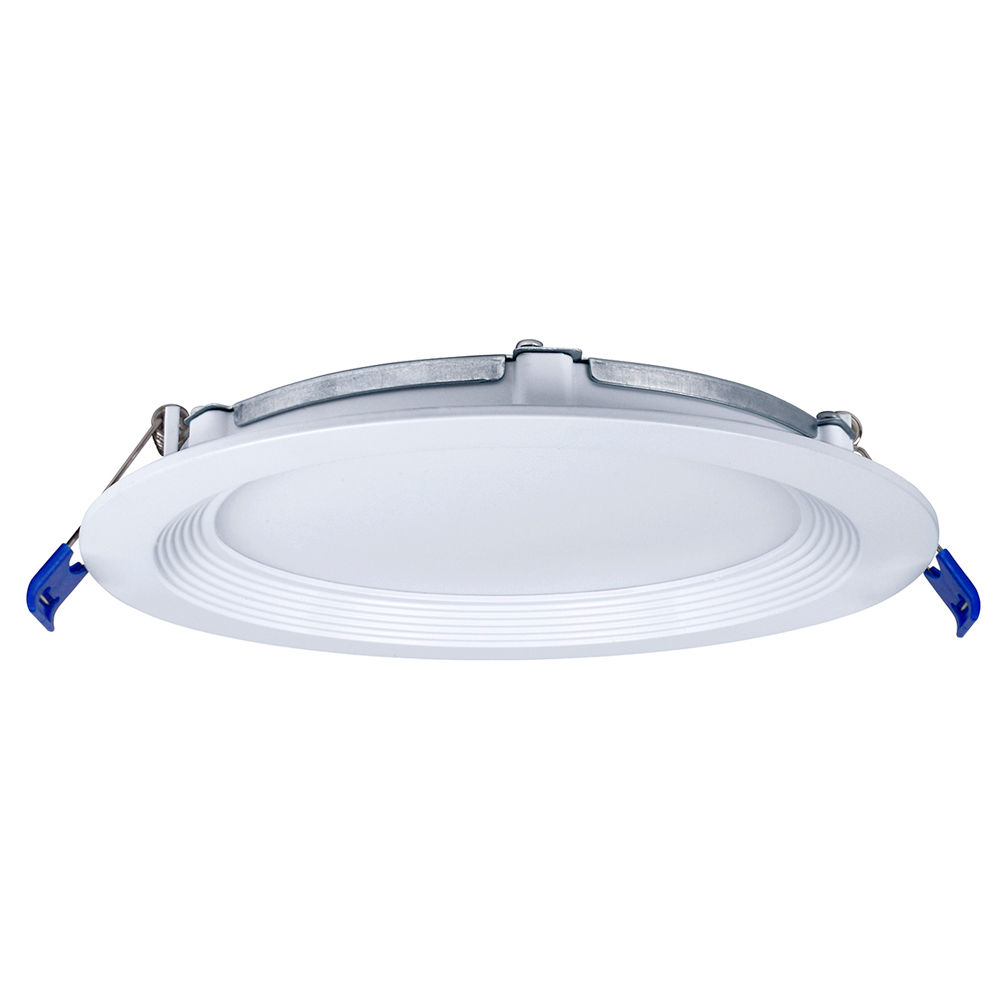

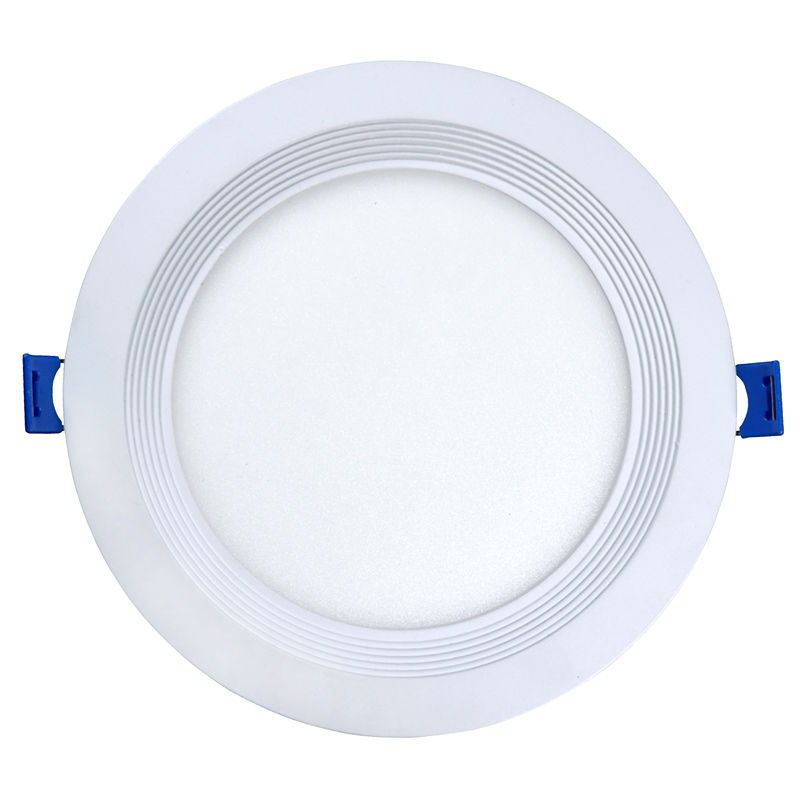

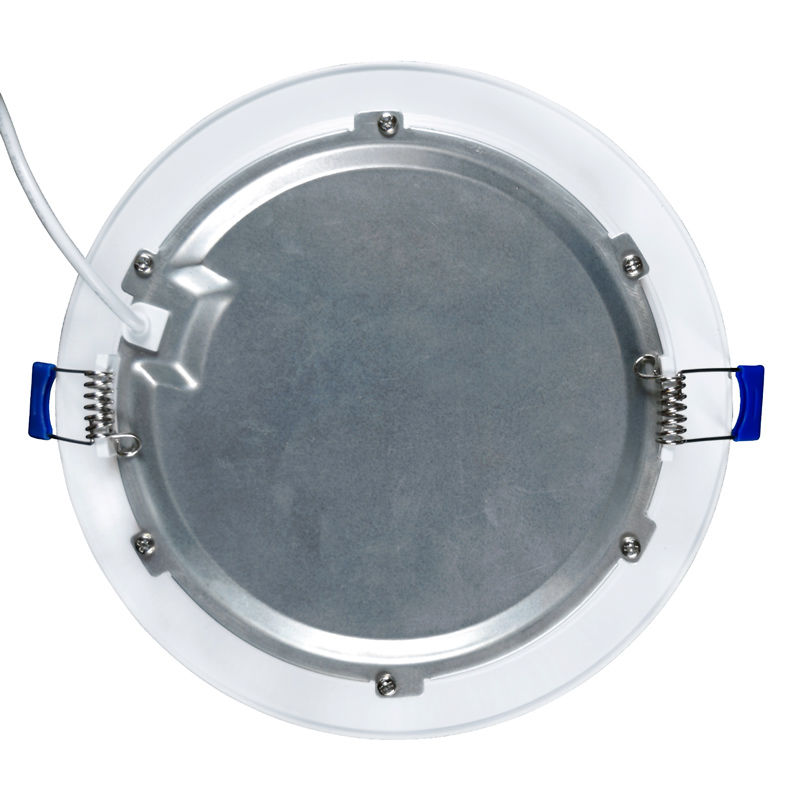

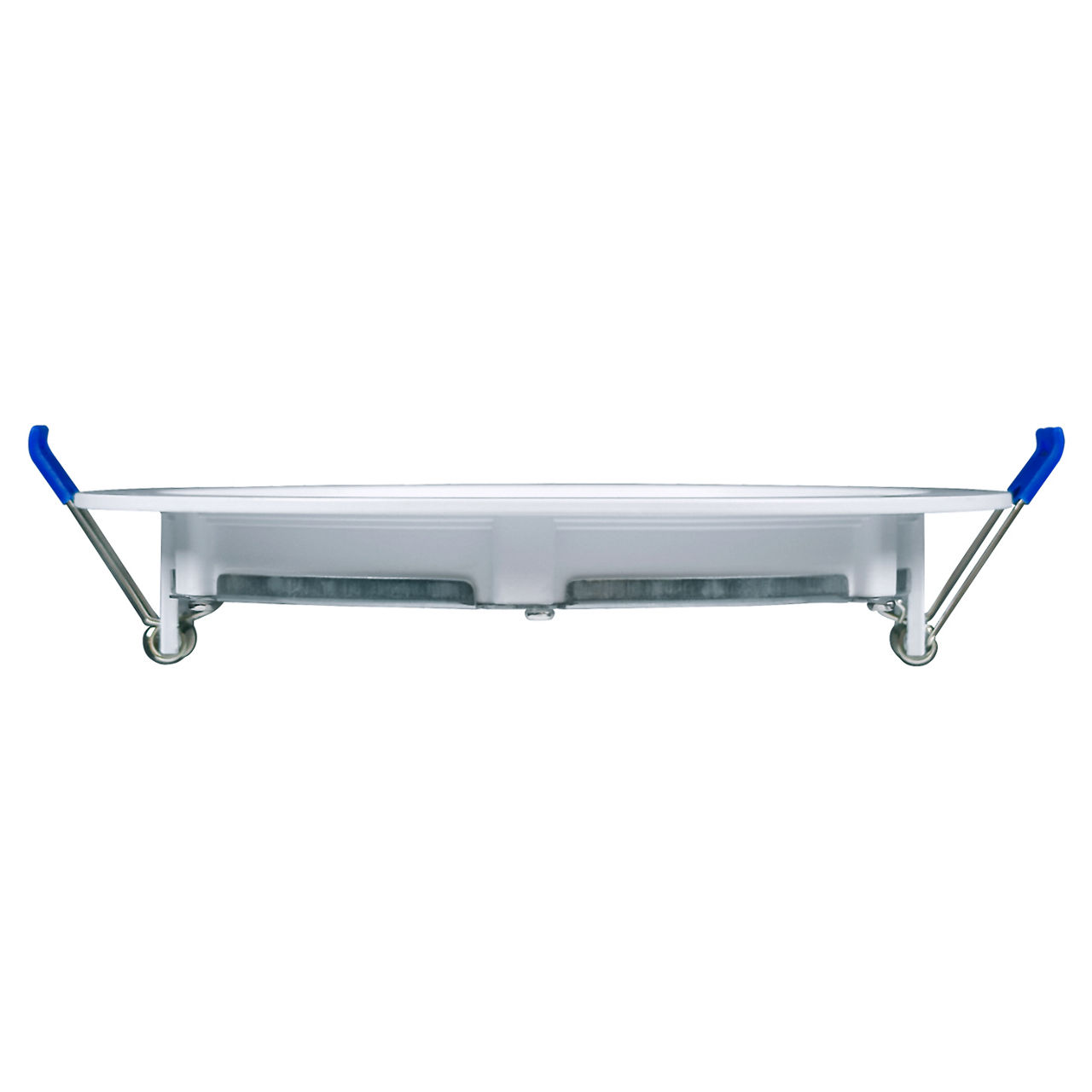

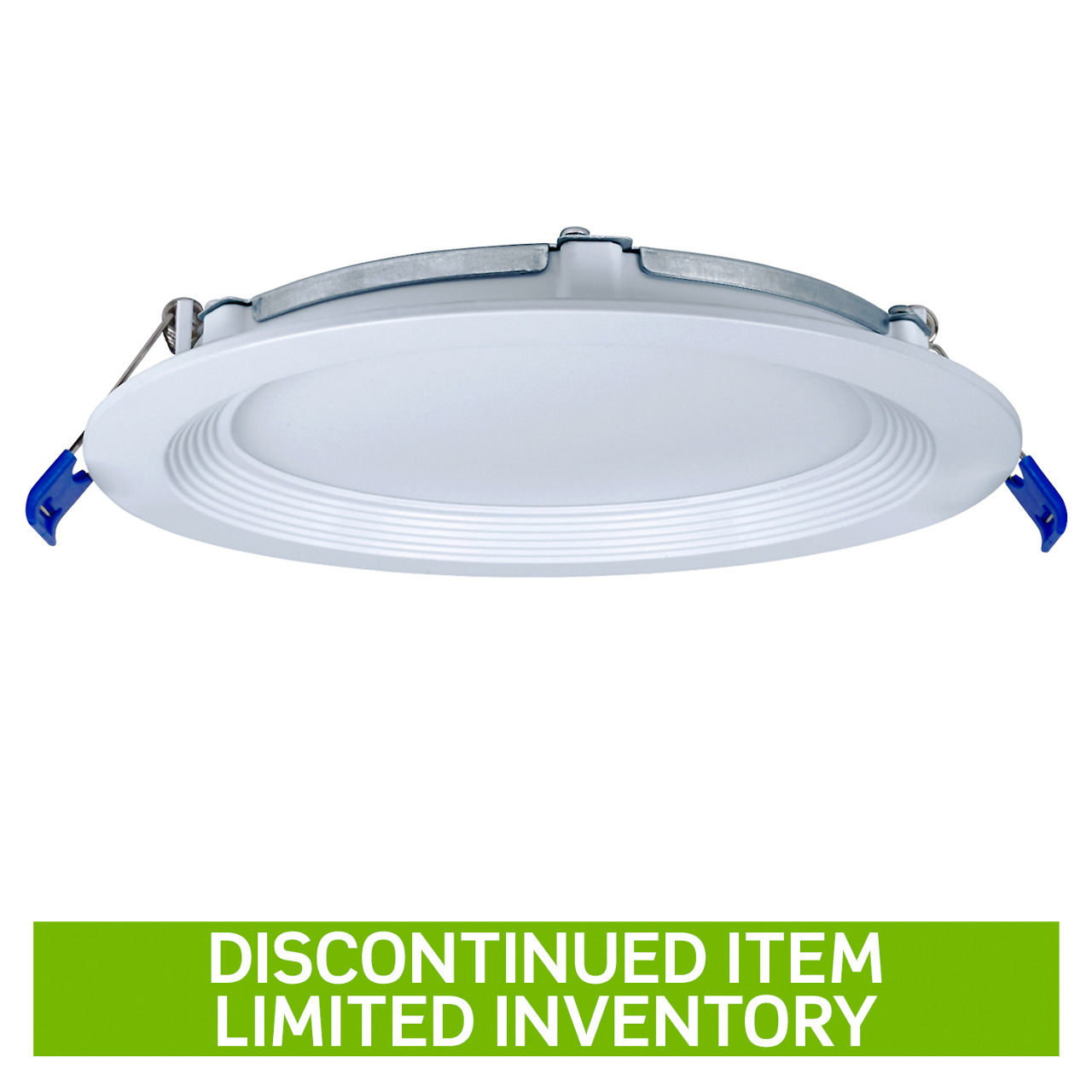

WayFlex Round Baffle Slim Downlights
WFBR
- Available in 4-, 6- and 8-Inch diameters
- Direct mount downlighting solution - does not require an existing housing or junction box
- Delivers 900 to 1400 lumens; values are nominal and vary based on CCT
- Regressed lens with baffle
- Closed cell gasket included for use in wet location environments or when restrictive airflow is needed

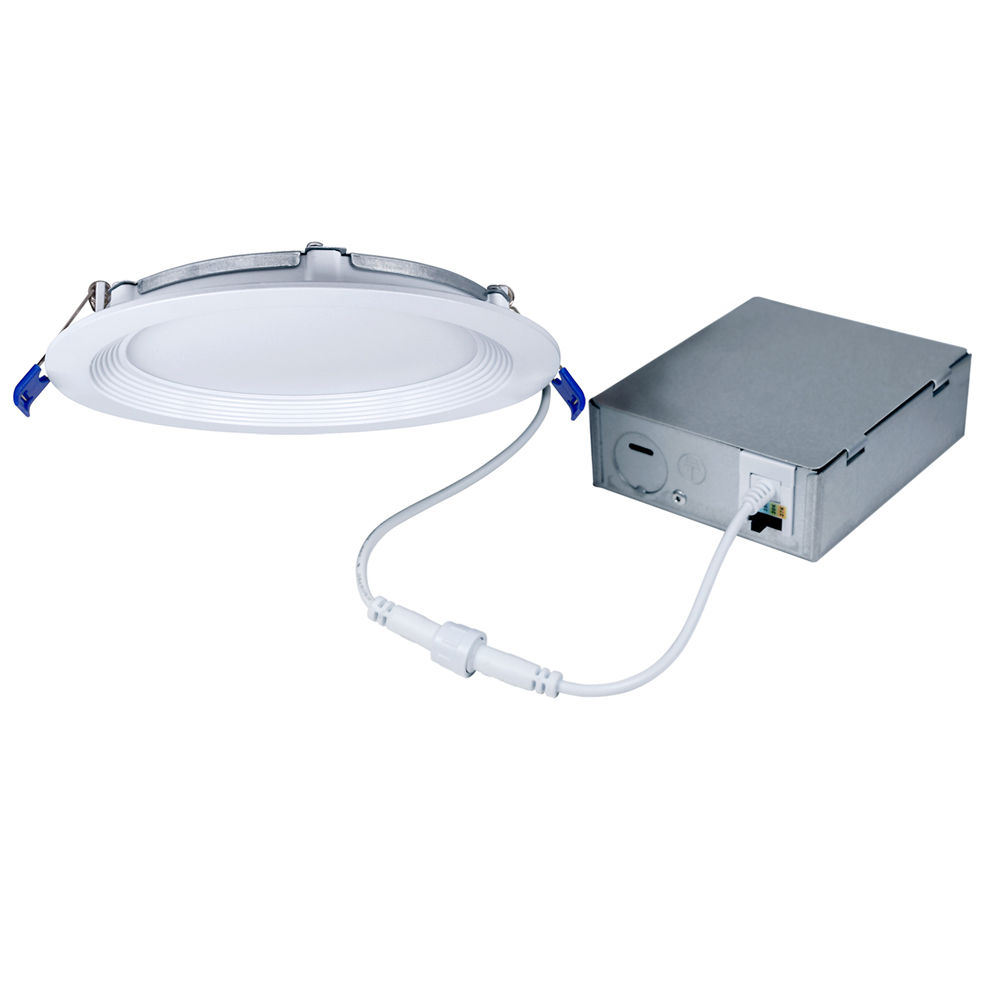

- Field selectable color temperature from 2700K, 3000K, 3500K, 4000K and 5000K; selector switch located on the driver / junction box housing
- Light engine consists of 90+ CRI LEDs with R9>50 and color accuracy within 4 SDCM
- Forward or Reverse Phase Dimming from 100% to 10%
- Edge-Lit Optical System including light guide and diffusion lens provides a smooth, uniform wide beam distribution
- cETLus Listed; Suitable for Wet Locations
- ENERGY STAR® Certified
- Can be used to comply with Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
- Insulated Ceiling (IC) Rated
- Compliant with ASTM E283 (Air Leakage Rate 2.0 CFM or Less)
- Suitable for use in clothes closets when installed in accordance with NEC® 410.16 (A)(1) (C)(3) spacing requirements
Product Information
Updated
Updated
Product Features
Lumen Output : 501-1000,1001-1500
Product Shape : Round
Product Type : Ceiling Mount
Size : 4in,6in,8in
