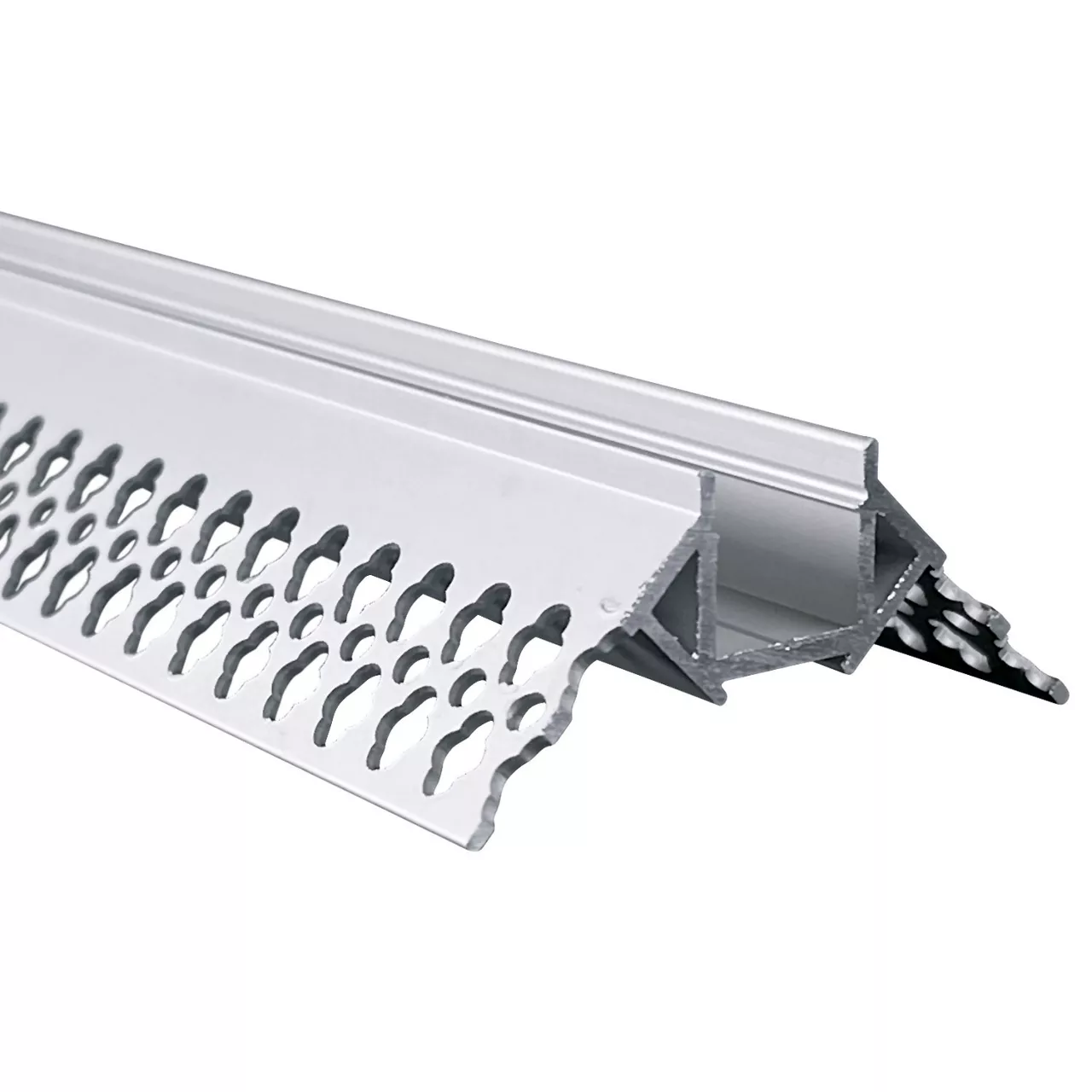

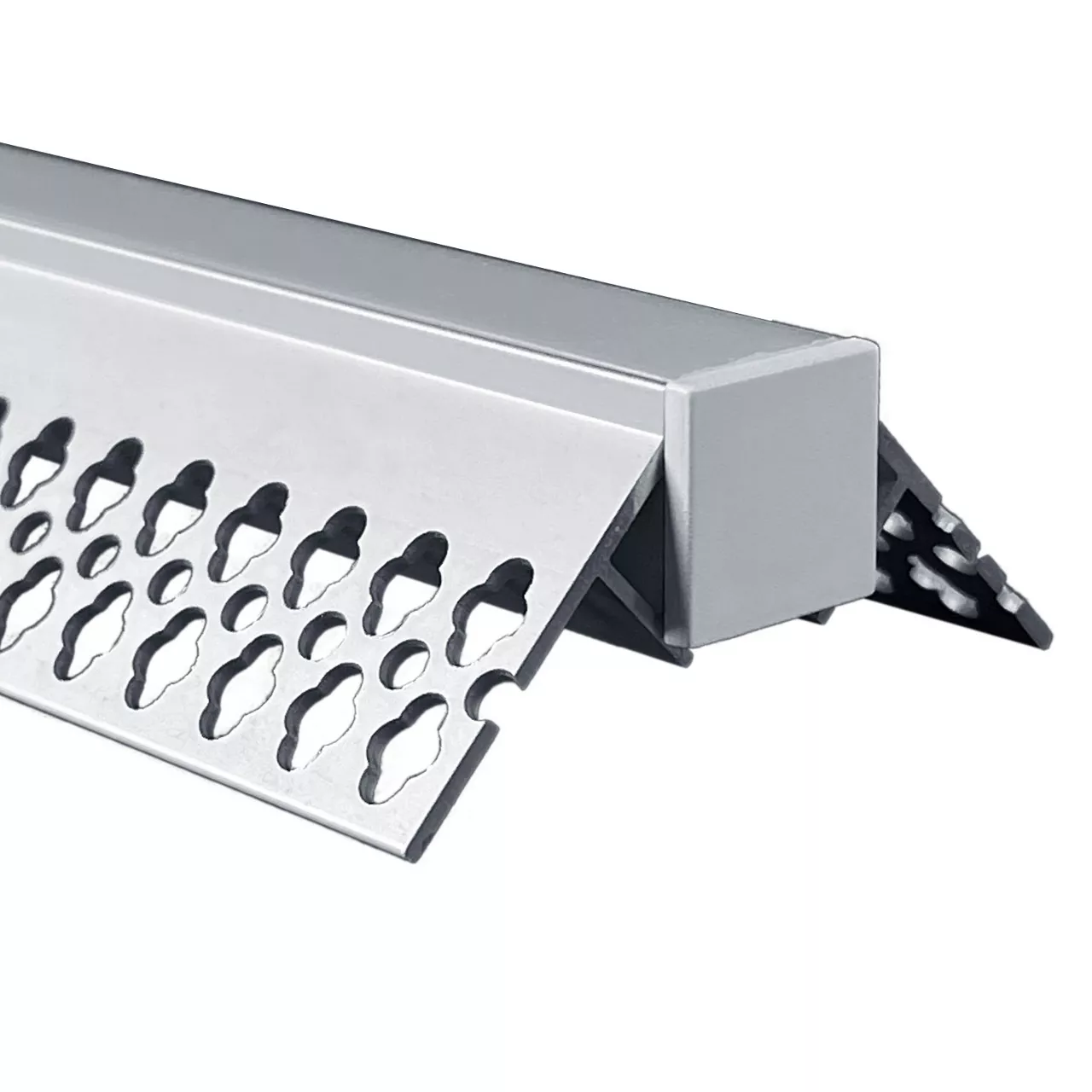

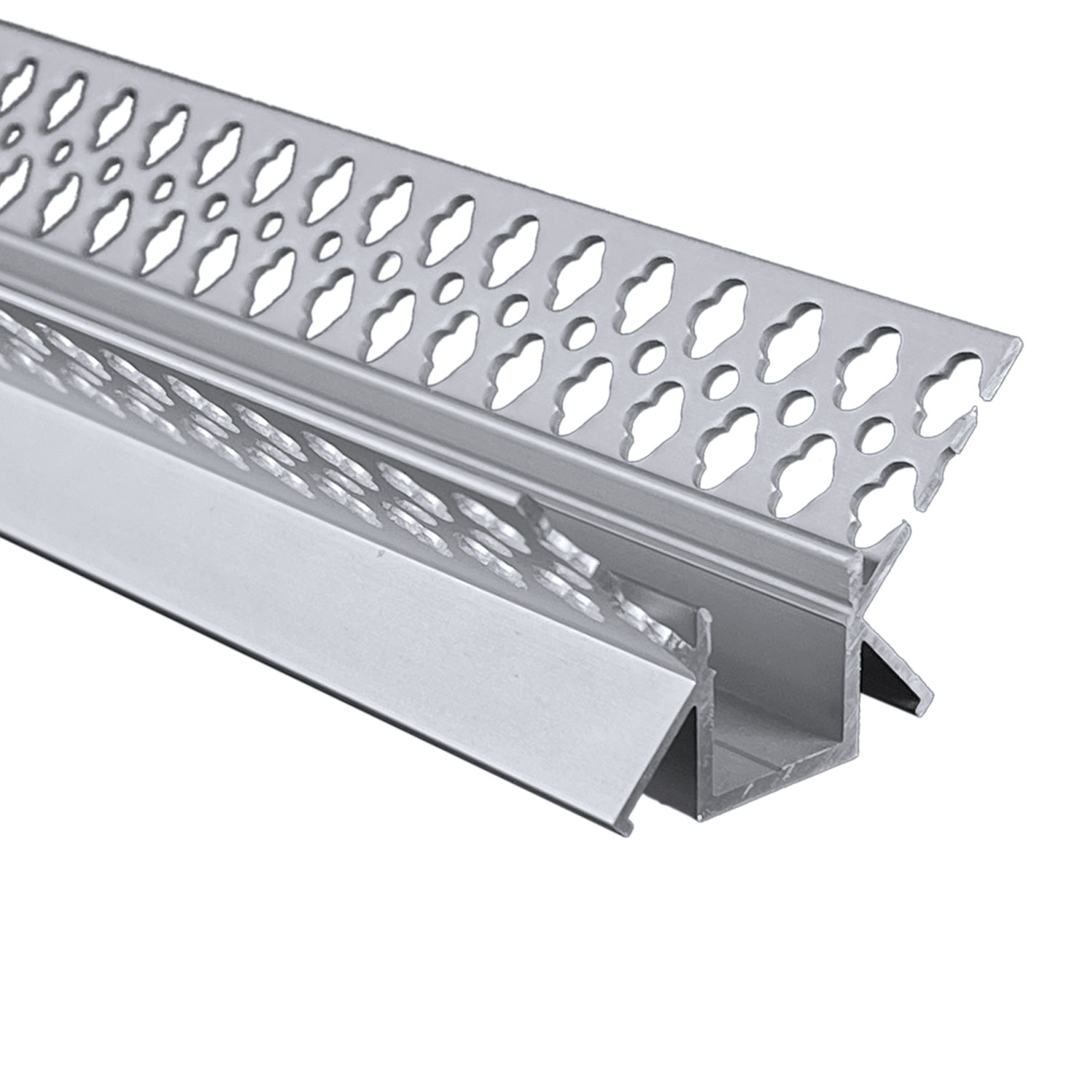

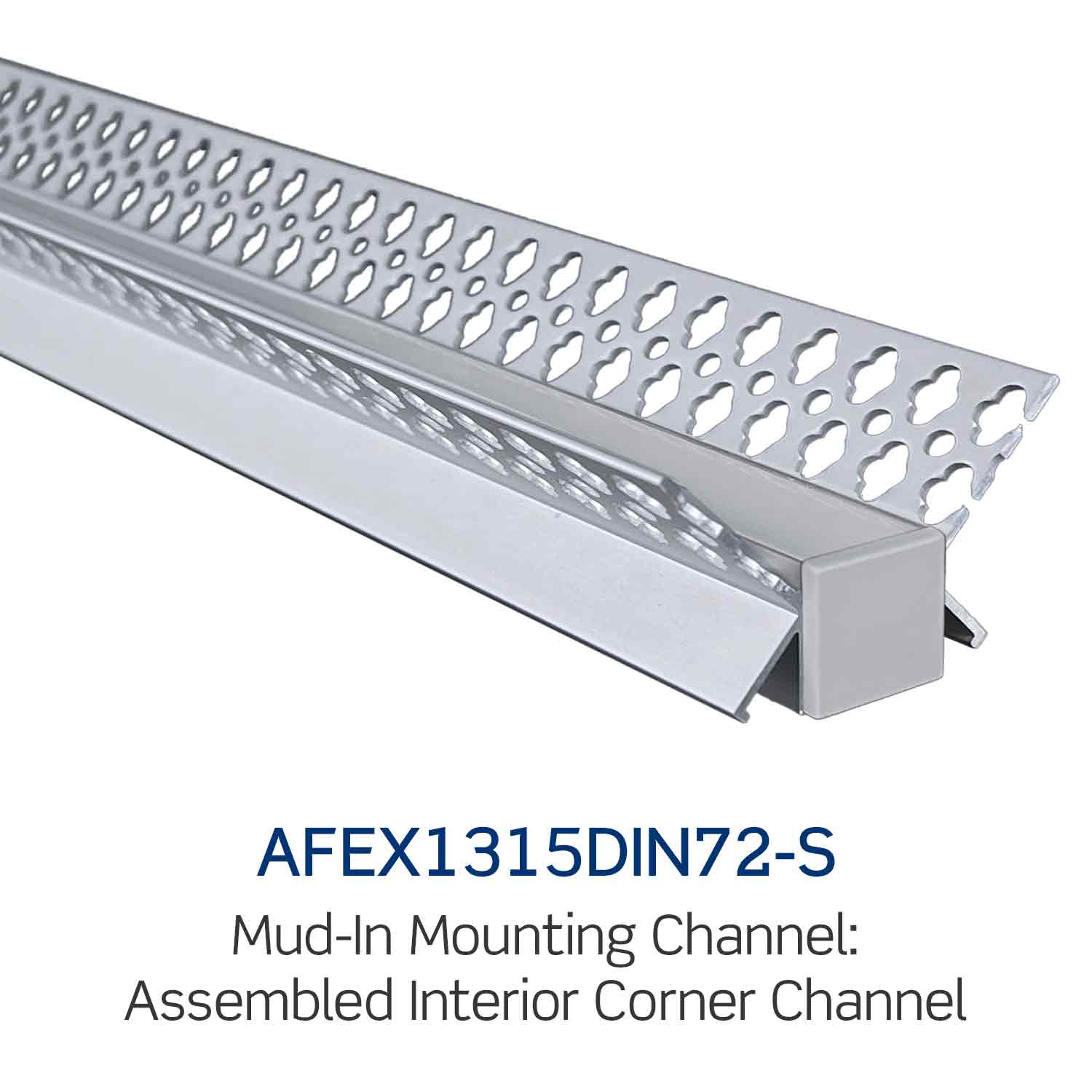

Interior Corner Mud-In Mounting Channel

AFEX11315DIN Series

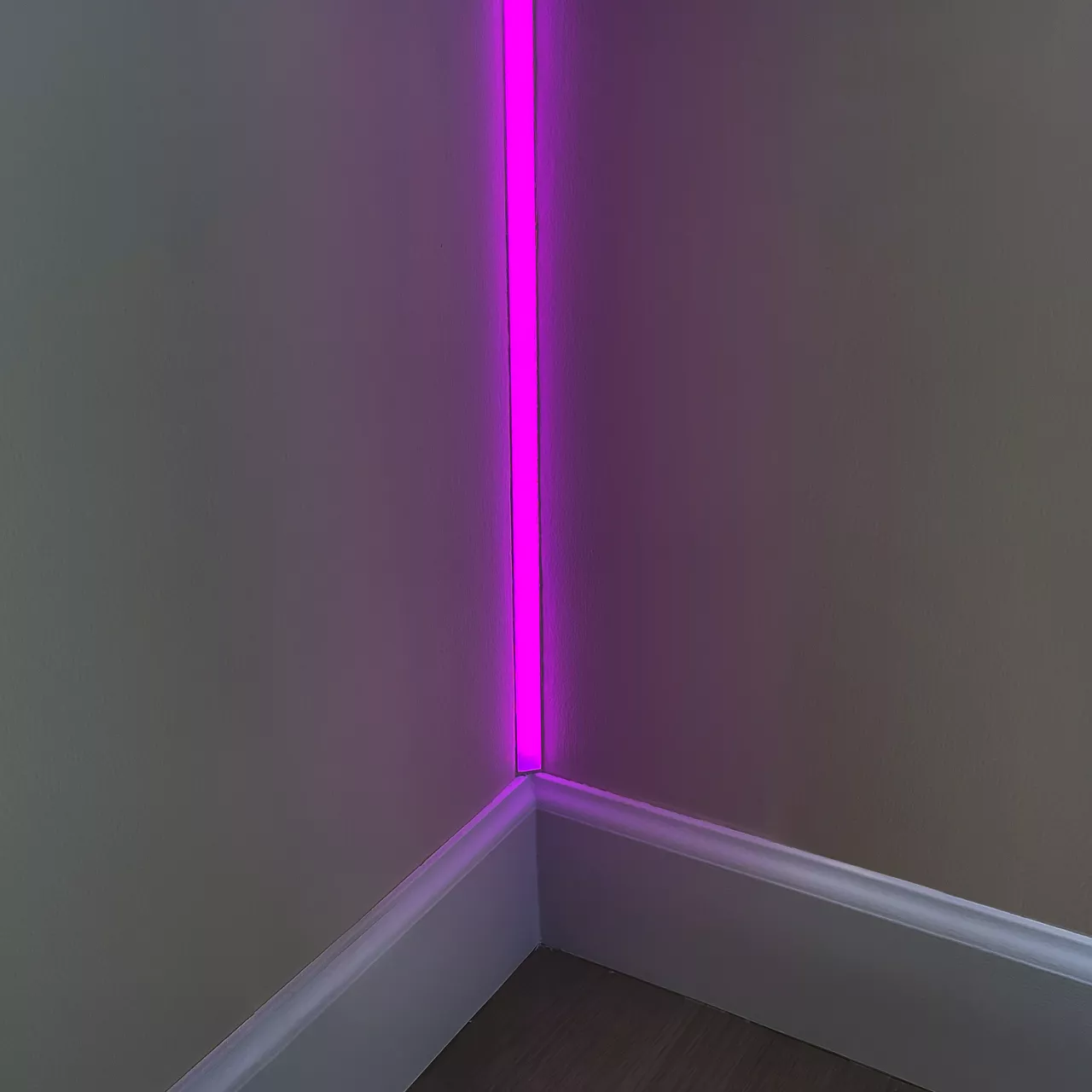

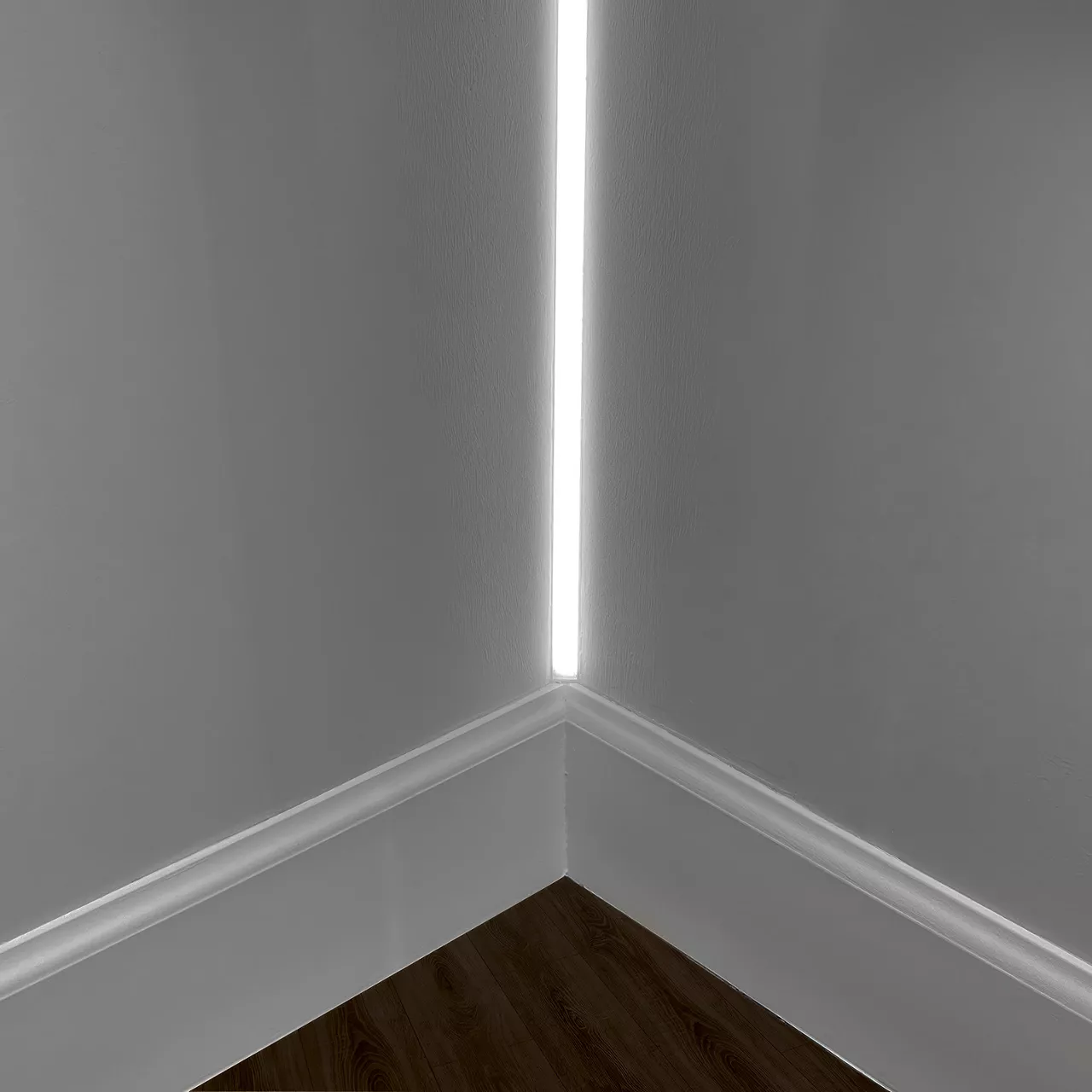

Flanged extrusion for drywall installation to create a seamless recessed accent light

Mud-In Channels are designed to be installed directly into drywall for a seamless, recessed look.
The channel wings are covered with tape and mud for a built-in appearance, nearly flush with the surrounding surface.
Provides excellent thermal management and heat dissipation for the Strip Light while ensuring a clean, straight run.
High-quality, field cuttable Anodized Satin Aluminum Channel available in 48- and 72-inch lengths (4- and 6-foot)

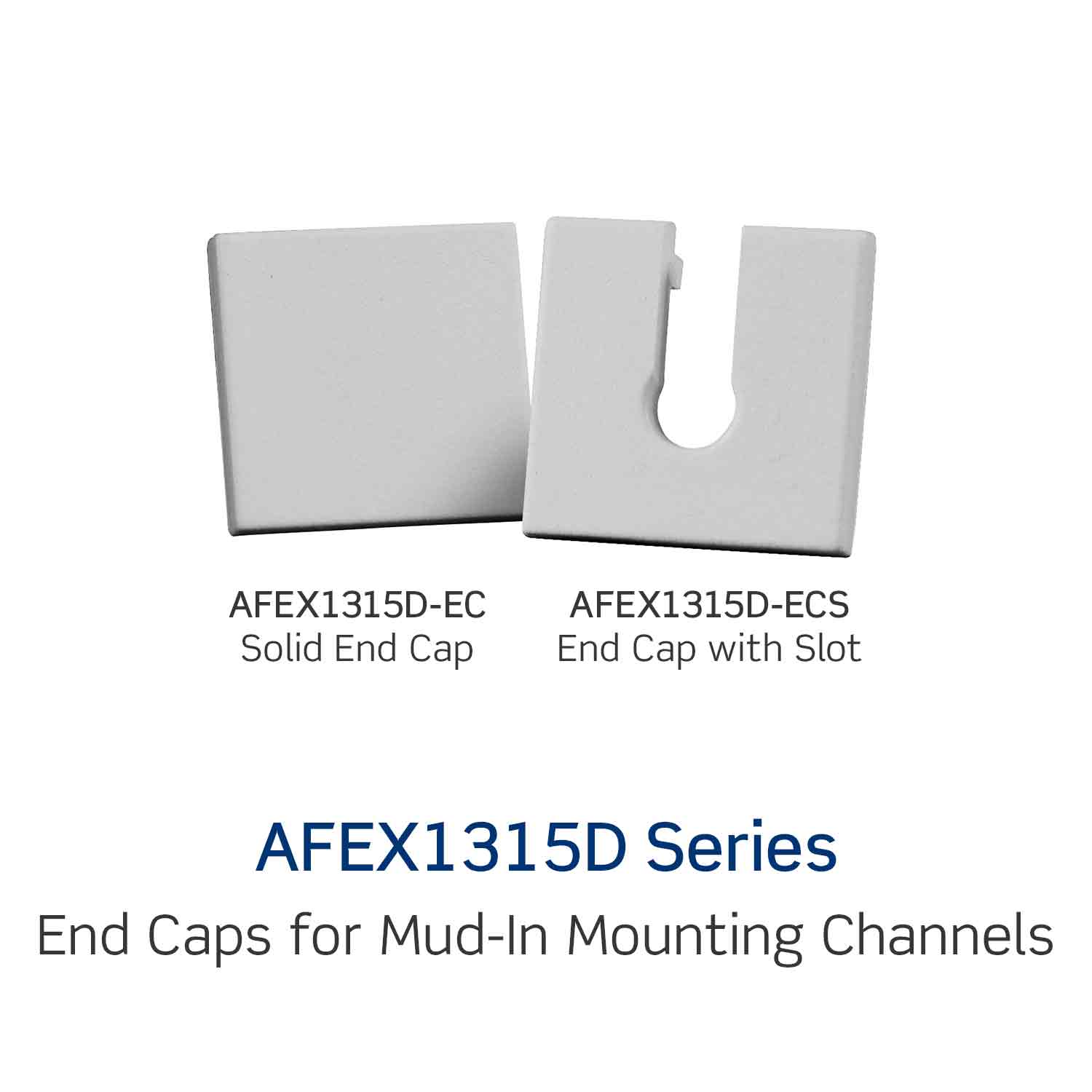

ABS Grey Plastic Endcaps seal out any debris: AFEX1315D-EC (Solid End Cap), AFEX1315D-ECH (End Cap with Hole), AFEX1315D-ECS (End Cap with Slot) Endcaps are ordered individually.

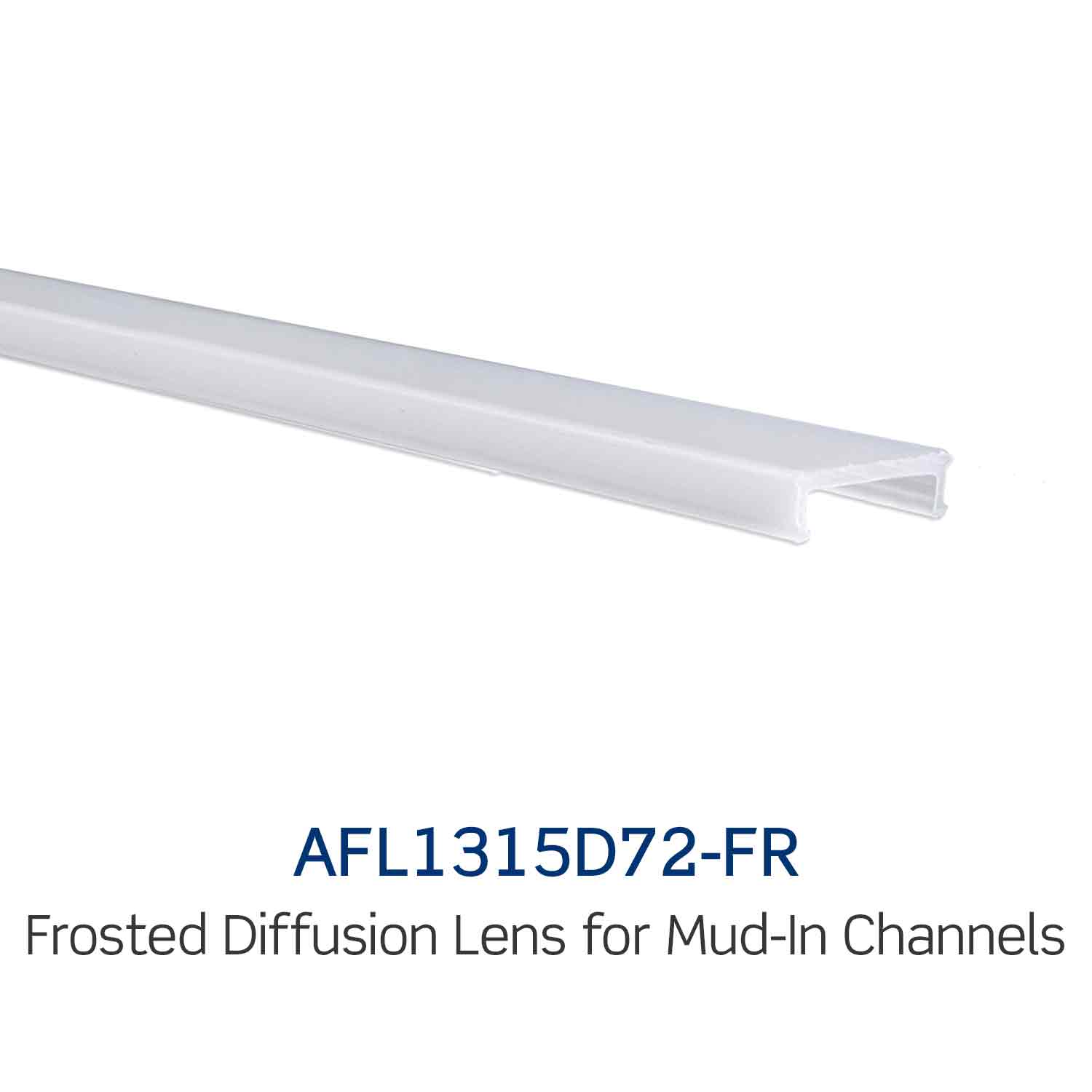

Frosted Diffusion Lens (AFL1315D72-FR) softens glare and removes pixelation
Mud-In Channel Series not compatible with RGB, RGBW, TLT Series, or any Wet Location Tape. Only Universal Screw Tight Connectors are compatible with the Mud-In Channel Series.
Compatible with:
- Static Color AFSS42 Series
- Medium Density AFSS48 Series
- High Efficacy AFSS48-7H Series
- High Density AFSS73 Series
- Continuous COB AFSSCN Series
For 24V SpecFlex Series Strip Lighting only
