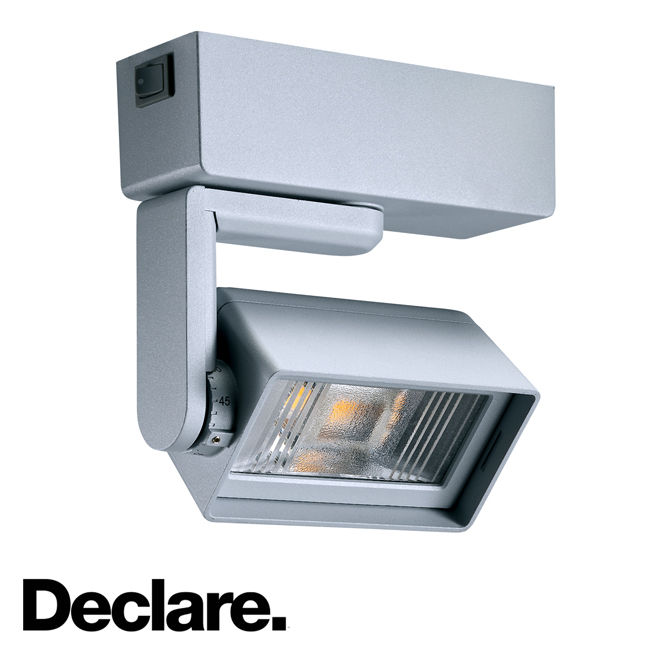

Mini Stealth Horizontal Mount Wall Lighter Track Luminaire

CTL19 H

  • High performance, eco-friendly LED track luminaire
  • Smooth wide beam provides excellent uniformity, well suited for any wall lighting application
  • Cast and finned aluminum heatsink thermally engineered to provide optimal heat dissipation, ensuring long life and consistant performance
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal and 360° vertical rotation
  • Available in four (4) wattage/lumen options
  • Select from 2700K, 3000K, 3500K or 4000K; 80 CRI min., 83 typical; high CRI 90+ available
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • CTL19 Luminaires operate at 120V with ERP drivers dimmable to 5%; for additional information, consult factory
  • For dimmer compatibility of standard “D” driver option, refer to Dimming Specification sheet
  • Integral ON/OFF switch and track polarity indicator are standard
  • Can accept up to two (2) media by using the FA-59 Accessory Holder, FA-60 Snoot, FA-61 Visor or BD19 Barn Doors
  • ENERGY STAR® Certified
  • DLC Listed
  • Declare Certified

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Driver Orientation : Horizontal

    Light Distribution Detail : Wall Lighter

    Light Source : LED

    Lumen Output : 1501-2000,2001-3000,3001-4000

    Product Type : Track Head
