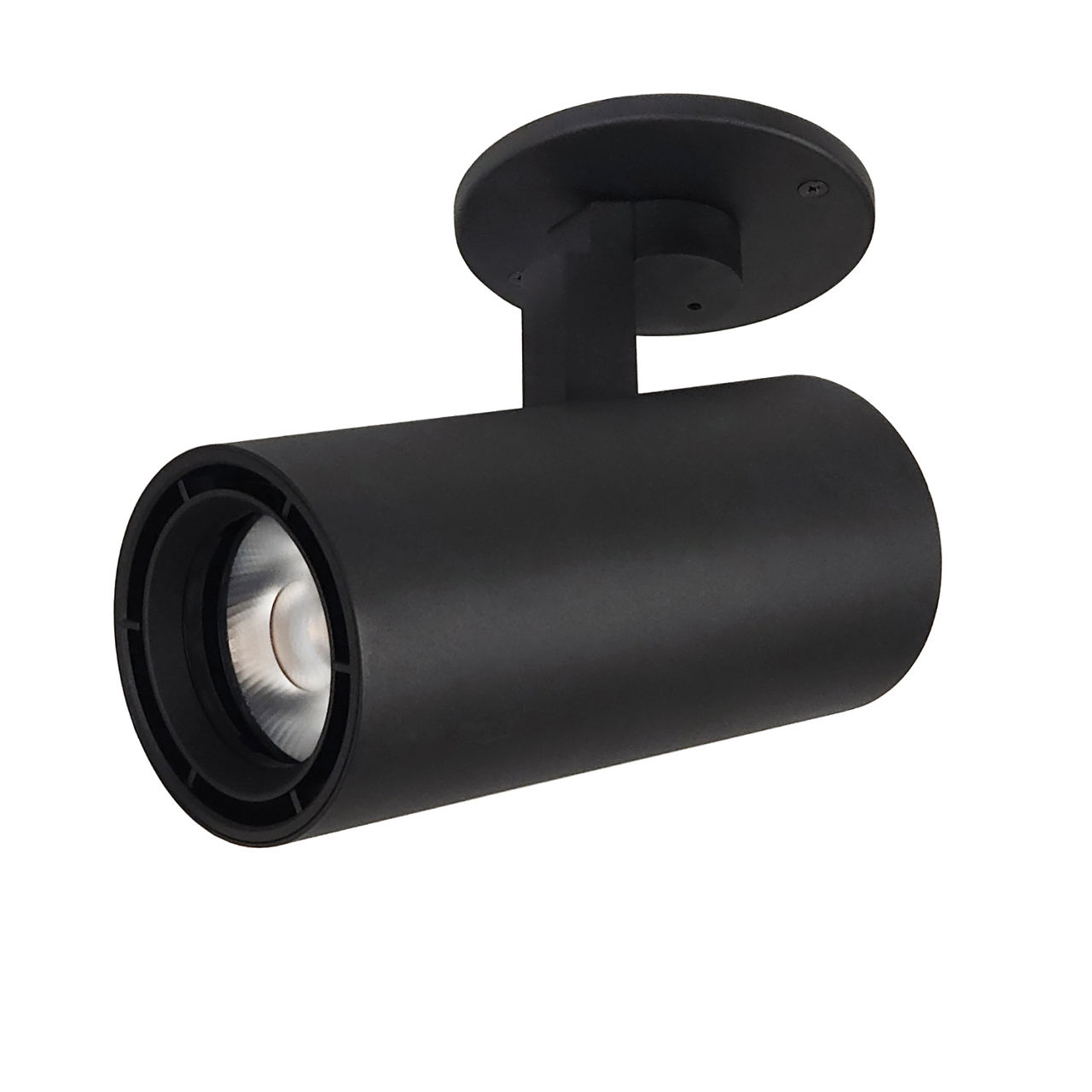

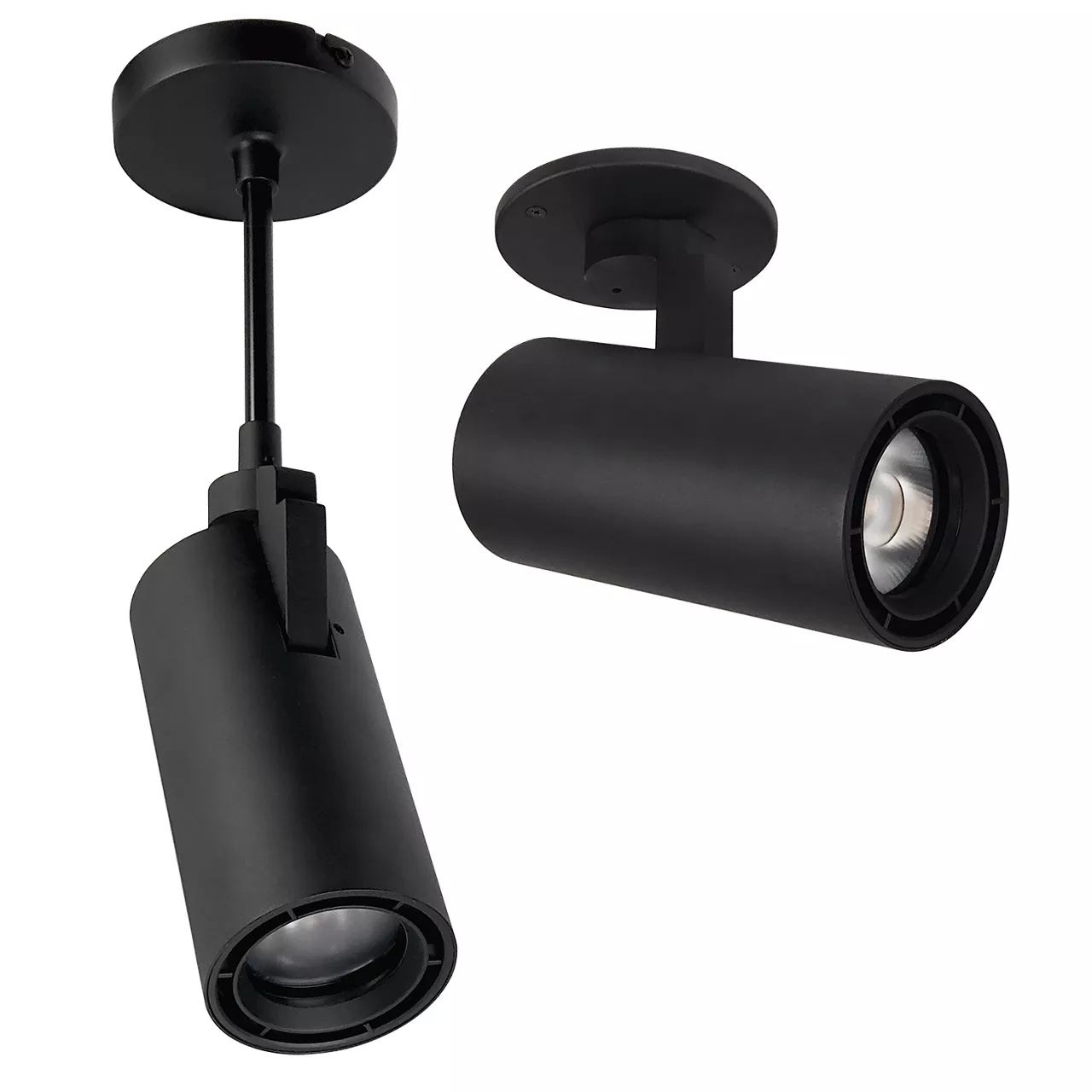

Gallery M Mono-Point Luminaire with Static White LED
CTL93 C
- A revolutionary luminaire with superior optics designed to bring theatre grade beam control to traditional gallery and commercial mono-points
- The 3-1/2-inch diameter flat-back cylinder Mono-Point luminiare is constructed of die-cast aluminum, the cylindrical body providing thermal management
- Flat, cast aluminum, 4-1/2-inch diameter canopy for ceiling or wall junction box mounting
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 11° to 79° with minimal field; Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Static White CCT's available in 2700K, 3000K, 3500K and 4000K; all with 80 CRI min., 83 typical; a high CRI of 90+ is available
- Dimming is standard for all wattage options using compatible 120V Forward or Reverse OR 120V/277V 0-10V Dimming systems. For dimmer compatibility and performance, refer to the Specification Sheet.
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Canopy Mount Luminaire
Mounting : Ceiling Mount,Wall Mount
Environment : Dry Location
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Narrow Spot,Spot,Narrow Flood,Medium Flood,Flood,Wide Flood
Wattage : 1W - 10W,11W - 20W,21W - 30W,31W - 40W
Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000
Voltage : 120V/277V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V/277V 0-10V Dimming
