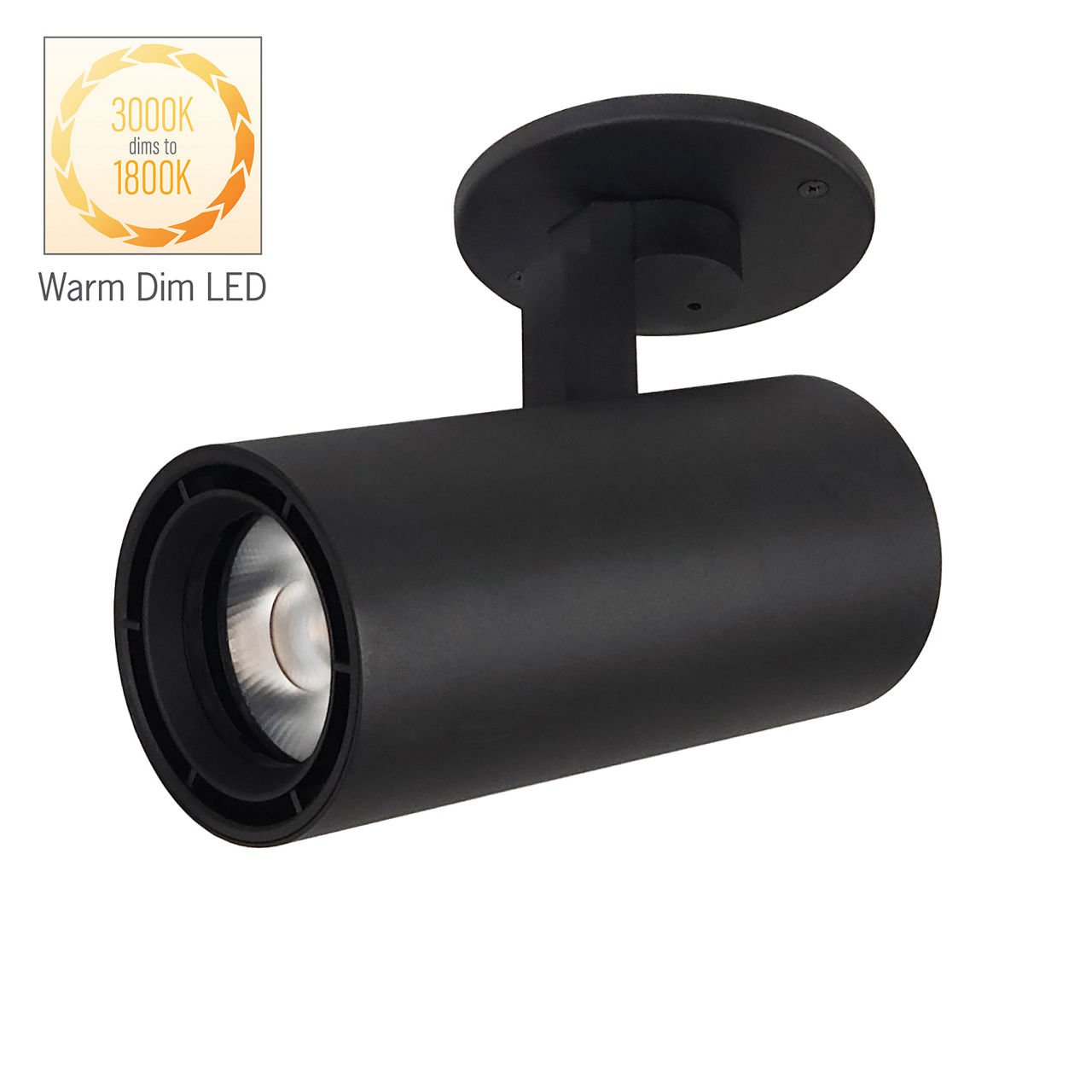

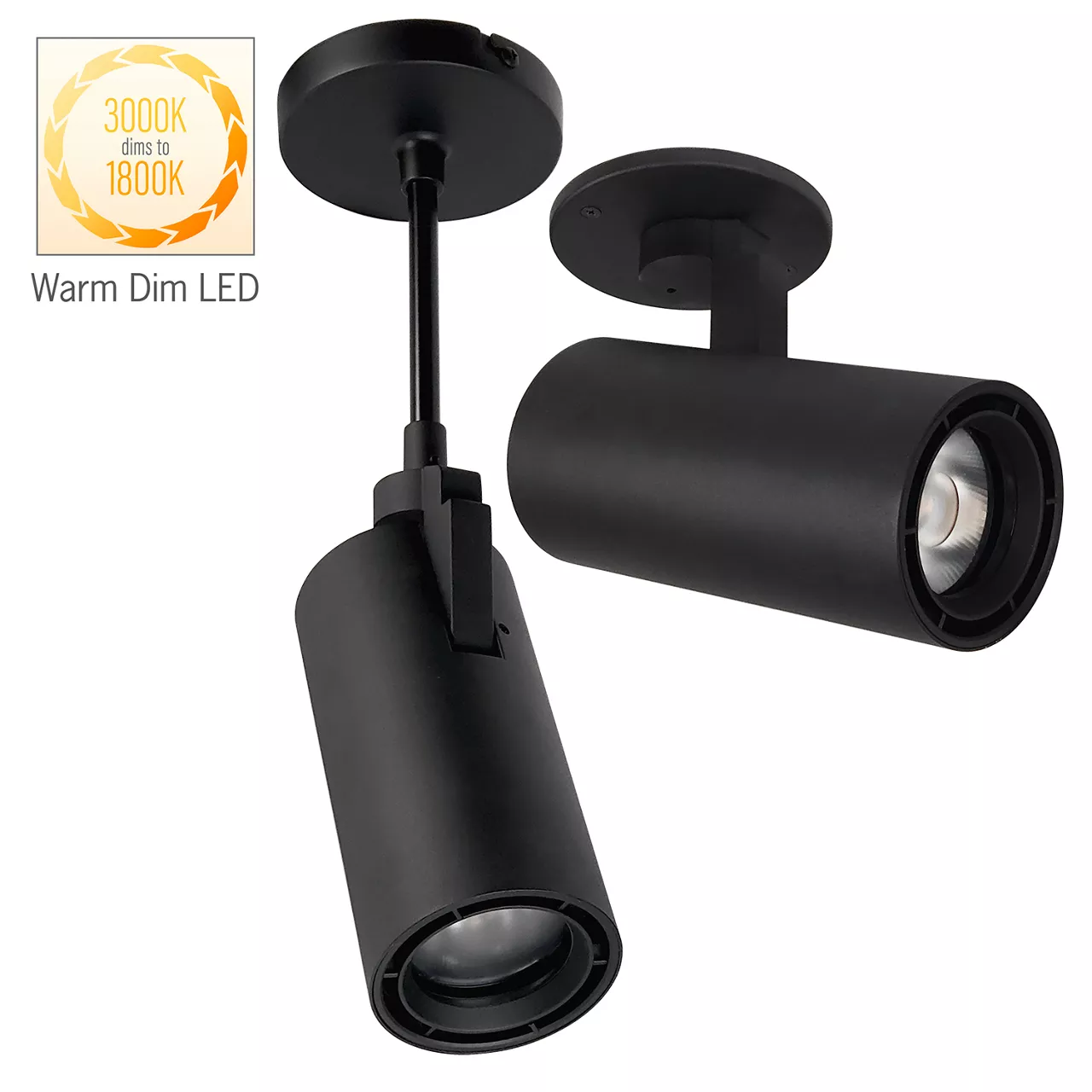

Gallery M Mono-Point Luminaire with Warm Dim LED
CTL93 C WD
- A revolutionary luminaire with superior optics designed to bring theatre grade beam control to traditional gallery and commercial mono-points
- The 3-1/2-inch diameter flat-back cylinder is constructed of die-cast aluminum, the cylindrical body providing thermal management
- Flat, cast aluminum, 4-1/2-inch diameter canopy for ceiling or wall junction box mounting
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 14° to 40° with minimal field; Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Light that Warms as it Dims; Bridgelux Warm Dim LED from 3000K at 100% to 1800K at <3%
- Dimming is standard for all wattage options using compatible 120V Forward or Reverse OR 120V/277V 0-10V Dimming systems. For dimmer compatibility and performance, refer to the Specification Sheet.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Canopy Mount Luminaire
Mounting : Ceiling Mount,Wall Mount
Environment : Dry Location
LED Manufacturer/Type : Warm Dim
Correlated Color Temperature : 3000K to 1800K
Color Rendering Index : 90-100
Light Distribution Detail : Spot,Narrow Flood,Medium Flood
Wattage : 11W - 20W,31W - 40W
Lumen Output : 1001-1500,2001-3000
Voltage : 120V/277V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V/277V 0-10V Dimming
