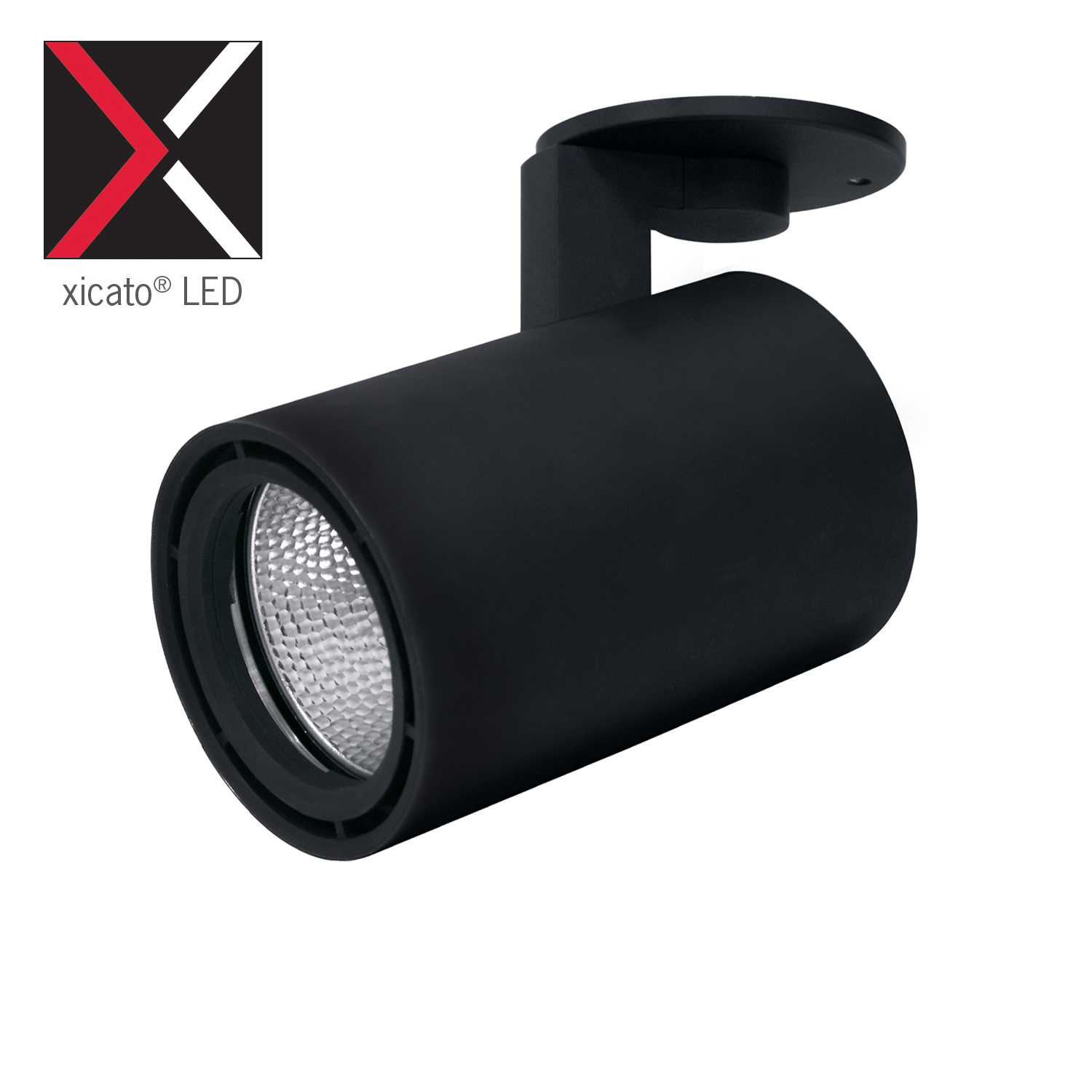

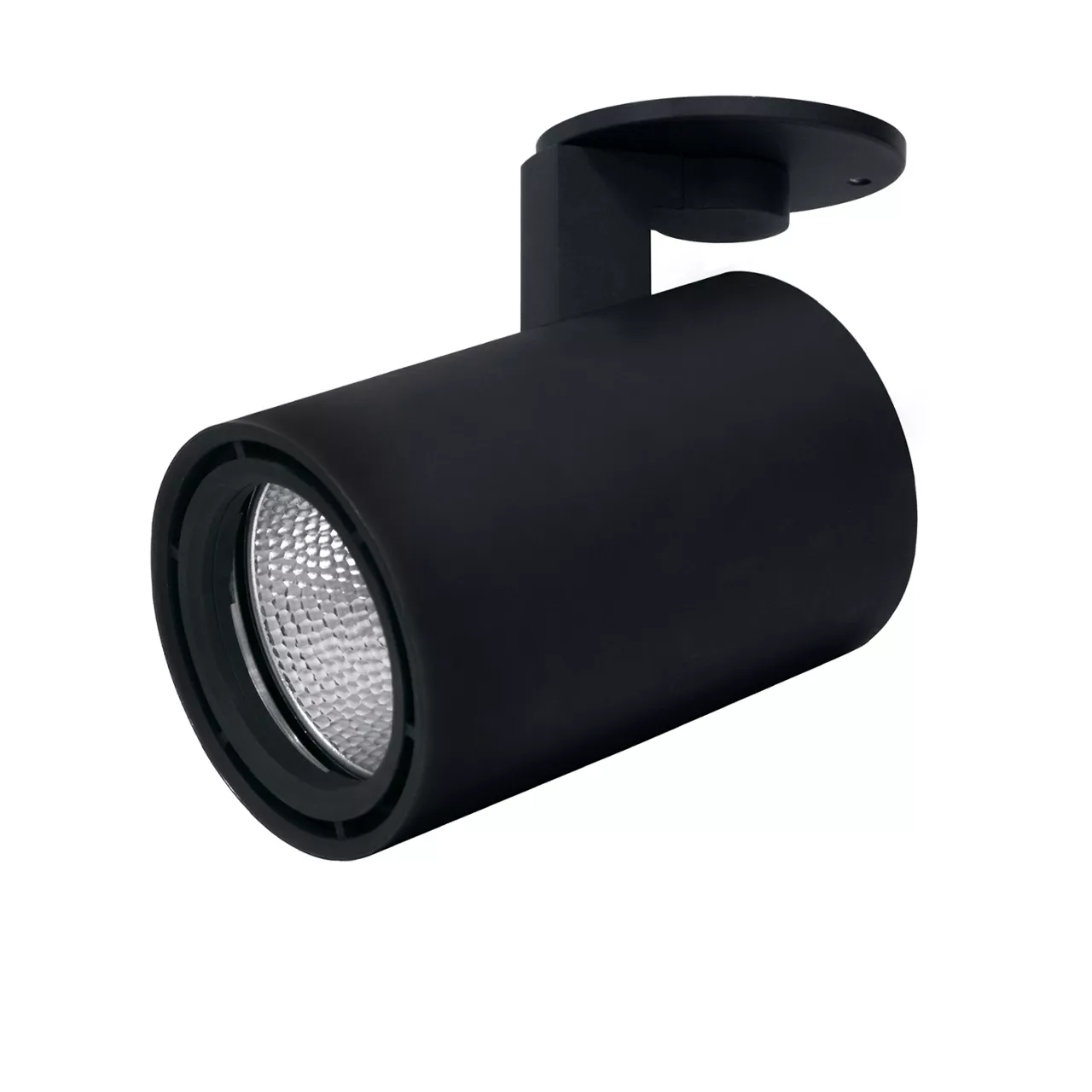

Gallery XL Mono-Point Luminaire with Static White LED
CTL94*C
- A revolutionary luminaire with superior optics designed to bring theatre grade beam control to traditional gallery and commercial mono-points
- Constructed of die-cast aluminum, the cylindrical body provides thermal management
- Flat, cast aluminum, 4-1/2-inch diameter canopy for ceiling or wall junction box mounting
- Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation
- A precision engineered Dual Lens Optic is used for the 8° Very Narrow Spot and 11° Narrow Spot beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors are used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Optics are field changeable
- The Luminaire an accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot, or BD94-B Black Barn Doors; Snoot or Barn Door count as one (1) piece. Accessories are ordered separately.
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- Dimming is standard for all wattage options using compatible 120V Forward or Reverse OR 120V/277V 0-10V Dimming systems. For dimmer compatibility and performance, refer to the Specification Sheet.
- Integrated Rotary Dimmer option available; this option should not be used if luminaire will be controlled by other dimmers
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Canopy Mount Luminaire
Mounting : Ceiling Mount,Wall Mount
Environment : Dry Location
Compliance : cCSAus Certified,DesignLights Consortium (DLC) Certified
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Voltage : 120V/277V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V/277V 0-10V Dimming,120V Integrated Rotary Dimming Option
