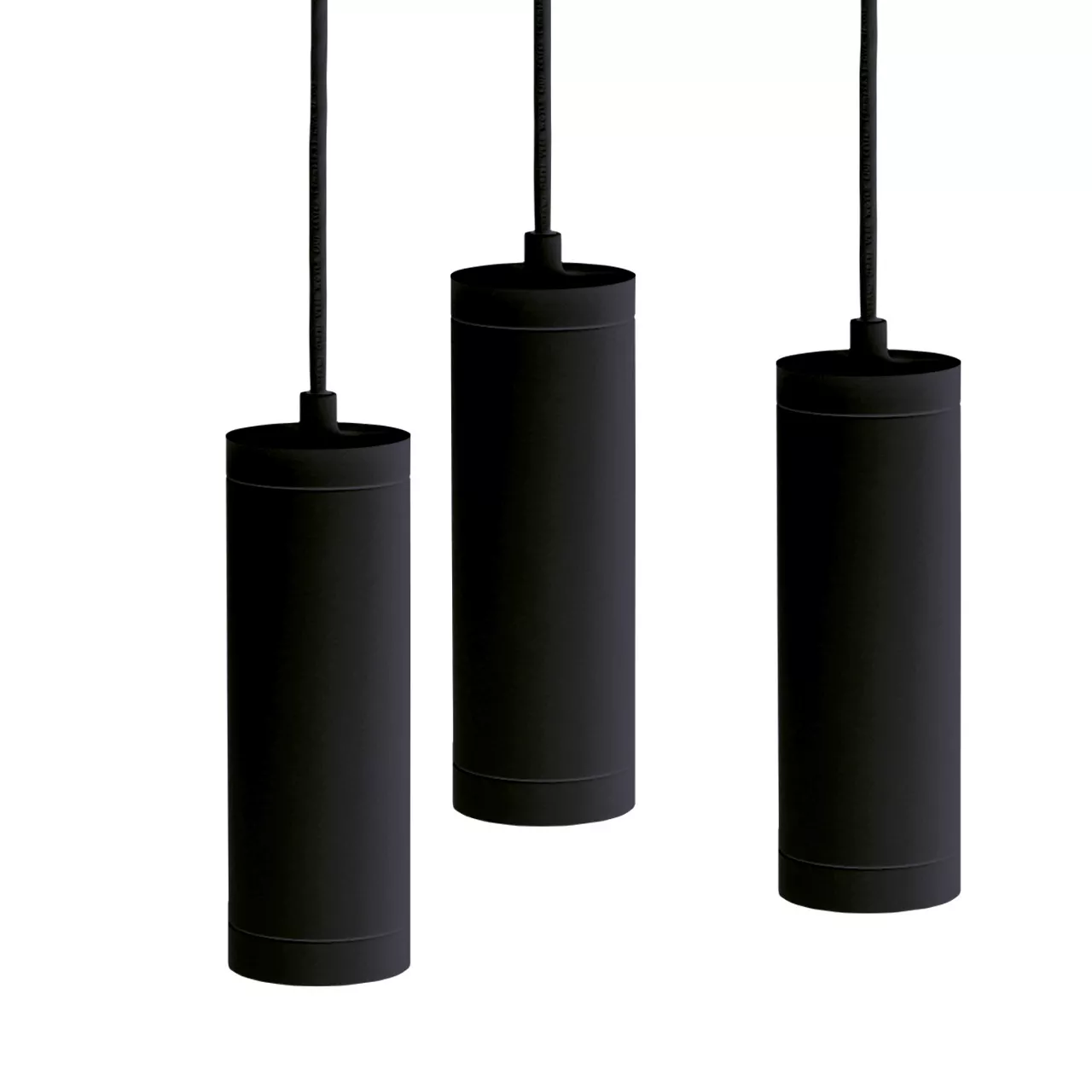

3-1/2-Inch Indoor Conduit Feed Mounting Box Round Flex Cable Pendant Cylinder

CY3 SFC

  • Specification Grade 3-1/2-inch diameter Aluminum Housing with Cast Aluminum Driver Canopy
  • Driver Canopy with a four (4) outlet, 3-1/2–inch diameter Junction Box with hardware for 3/4–inch EMT Conduit and Hubs
  • Suitable for Dry/Damp (Indoor) location types
  • Available in 6-1/2- and 10-3/16-inch heights; Matte Black, Satin Bronze, Matte White, and Matte Silver finishes
  • Custom Color finishes available; consult factory for pricing, minimum order quantities, and lead time
  • Includes 120-inches (10 ft.) of field adjustable 18/3 or 18/5 SJT Cable
  • Black Flexible Cable with Black or Bronze Cylinders, White Cable with White Cylinders, and Gray Cable with Silver Cylinders
  • Optics are optically engineered to provide a smooth, uniform beam, maximizing output, minimizing glare and can be easily changed in the field
  • Available in 13° Spot, 29° Medium, 44° Flood, 60° Wide Flood Beam Distributions, and a Wall Wash option
  • Wall Wash Optic may be rotated 360° to aim distribution pattern; it is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of min., 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • Battery Backup option provides 90 minutes of power
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
  • Cylinders must be installed per specific product installation instructions and all appropriate NEC Codes
  • ENERGY STAR® Certified
RoHS Compliant: Yes – Click Here

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Environment : Indoor

    Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash

    Light Source : LED

    Listings : cCSAus,Damp Location,ENERGY STAR® Certified

    Lumen Output : 1001-1500,1501-2000

    Mounting : Conduit Feed Mount, Flexible Cable Pendant

    Product Type : Cylinder

    Size : 3-1/2 in
