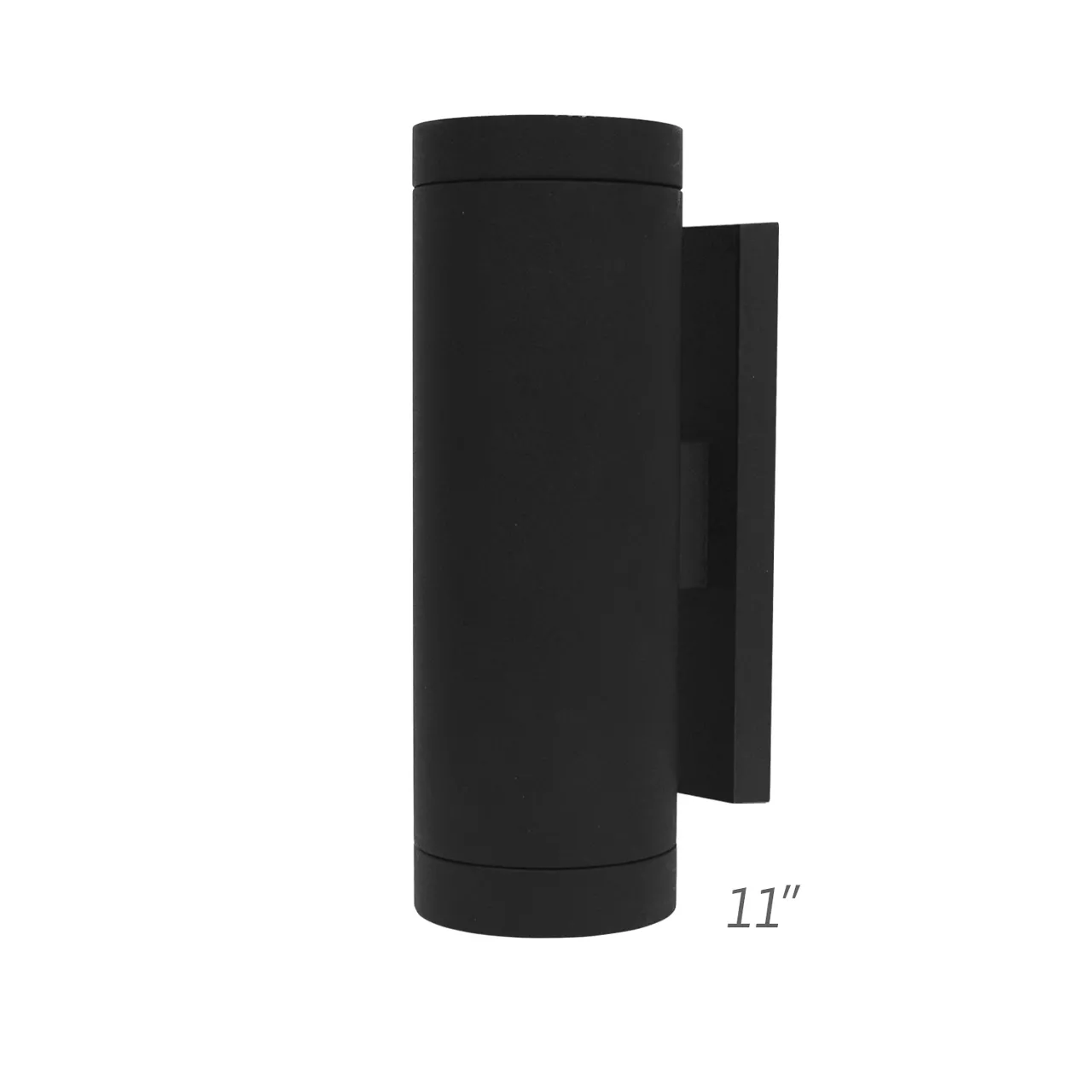

3-1/2-Inch Indoor/Outdoor Round ADA Compliant Up/Down Wall Mount Cylinders
CY3 AUD
Specification Grade 3-1/2-inch diameter Aluminum Housing for ADA Compliant applications
Available in 11-inch height only, 4-inches deep
Consists of dual Light Engines: one oriented down and one oriented up
Standard construction uses identical Light Engines, Color Temperatures, and Beam Distributions in both the Up and Down direction; consult factory if different Light Engines, Color Temperatures or Beam Distributions are required
Suitable for Dry/Damp (indoor) or Wet (outdoor) location types
Includes...
Specification Grade 3-1/2-inch diameter Aluminum Housing for ADA Compliant applications
Available in 11-inch height only, 4-inches deep
Consists of dual Light Engines: one oriented down and one oriented up
Standard construction uses identical Light Engines, Color Temperatures, and Beam Distributions in both the Up and Down direction; consult factory if different Light Engines, Color Temperatures or Beam Distributions are required
Suitable for Dry/Damp (indoor) or Wet (outdoor) location types
Includes a 4-3/4-inch W x 5-1/8-inch H optional Mounting Plate for use with larger Junction Boxes
Optics are optically engineered to provide a smooth, uniform beam; maximizing output, minimizing glare, and can be easily changed in the field
Available in 13° Spot, 29° Medium, 44° Flood and 60° Wide Flood Beam Distributions, as well as a Wall Wash option
Wall Wash Optic may be rotated 360° to aim distribution pattern and is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of min., 83 typical; high CRI of 90+ available
Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
The FA-47 Snoot/Accessory Holder can accept up to two (2) LF16 60MM lenses or FA-16 60MM Black Honeycomb Louvers
Battery Backup option powers only the down Light Engine and provides 90 minutes of power; consult factory for alternate options
UL8750 and Class 2 compliant: RoHS compliant, U.S. only
Output over voltage, over current and short circuit protected
Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight, IP65 Rated
Cylinders must be installed per specific product installation instructions and all appropriate NEC Codes
