3-1/2- Inch Indoor/Outdoor Round ADA Compliant Wall Mount Cylinder
CY3 AW
- Specification Grade 3-1/2-inch diameter Aluminum Housing for ADA Compliant applications

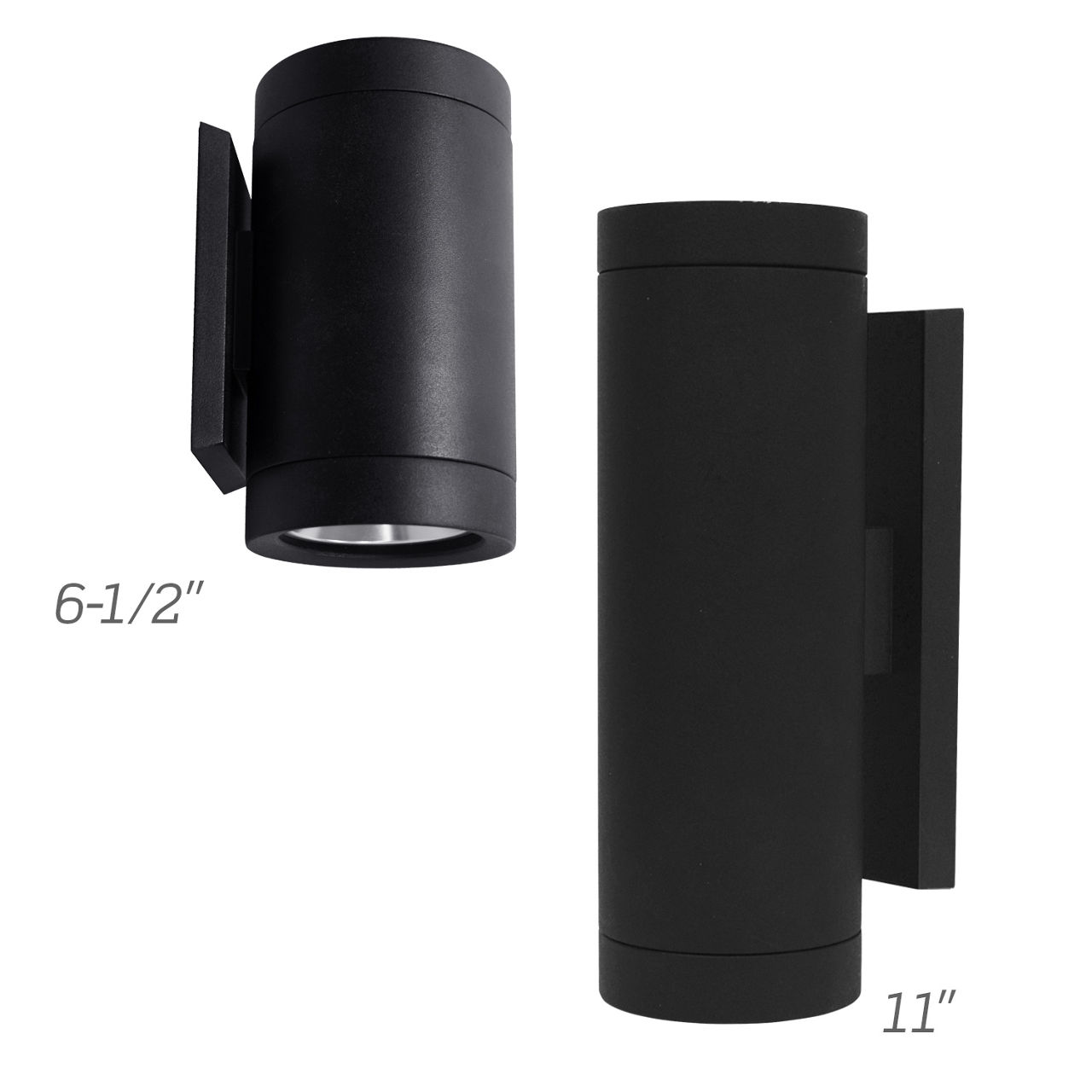

- Available in 6-9/16- and 11-inch heights; both are 4-inches deep
- May be installed in the Up or Down orientation
- Suitable for Dry/Damp (indoor) or Wet (outdoor) location types
- Includes a 4-3/4-inch W x 5-1/8-inch H optional Mounting Plate for use with larger Junction Boxes
- Optics are optically engineered to provide a smooth, uniform beam; maximizing output, minimizing glare, and can be easily changed in the field
- Available in 13° Spot, 29° Medium, 44° Flood and 60° Wide Flood Beam Distributions, as well as a Wall Wash option
- Wall Wash Optic may be rotated 360° to aim distribution pattern and is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
- 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI 80 of min., 83 typical; high CRI of 90+ available
- Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
- The FA-47 Snoot/Accessory Holder can accept up to two (2) LF16 60MM lenses or FA-16 60MM Black Honeycomb Louvers
- Battery Backup option provides 90 minutes of power
- UL8750 and Class 2 compliant: RoHS compliant, U.S. only
- Output over voltage, over current and short circuit protected
- Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification sheet
- Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight, IP65 Rated
- Cylinders must be installed per specific product installation instructions and all appropriate NEC Codes
RoHS Compliant:
Yes – Click Here
Product Information
Product Features
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Environment : Indoor,Outdoor
Light Distribution Detail : Spot,Medium,Flood,Wide Flood,Wall Wash
Light Source : LED
Lumen Output : 1001-1500,1501-2000
Mounting : Wall
Product Type : Cylinder
Size : 3-1/2 in
