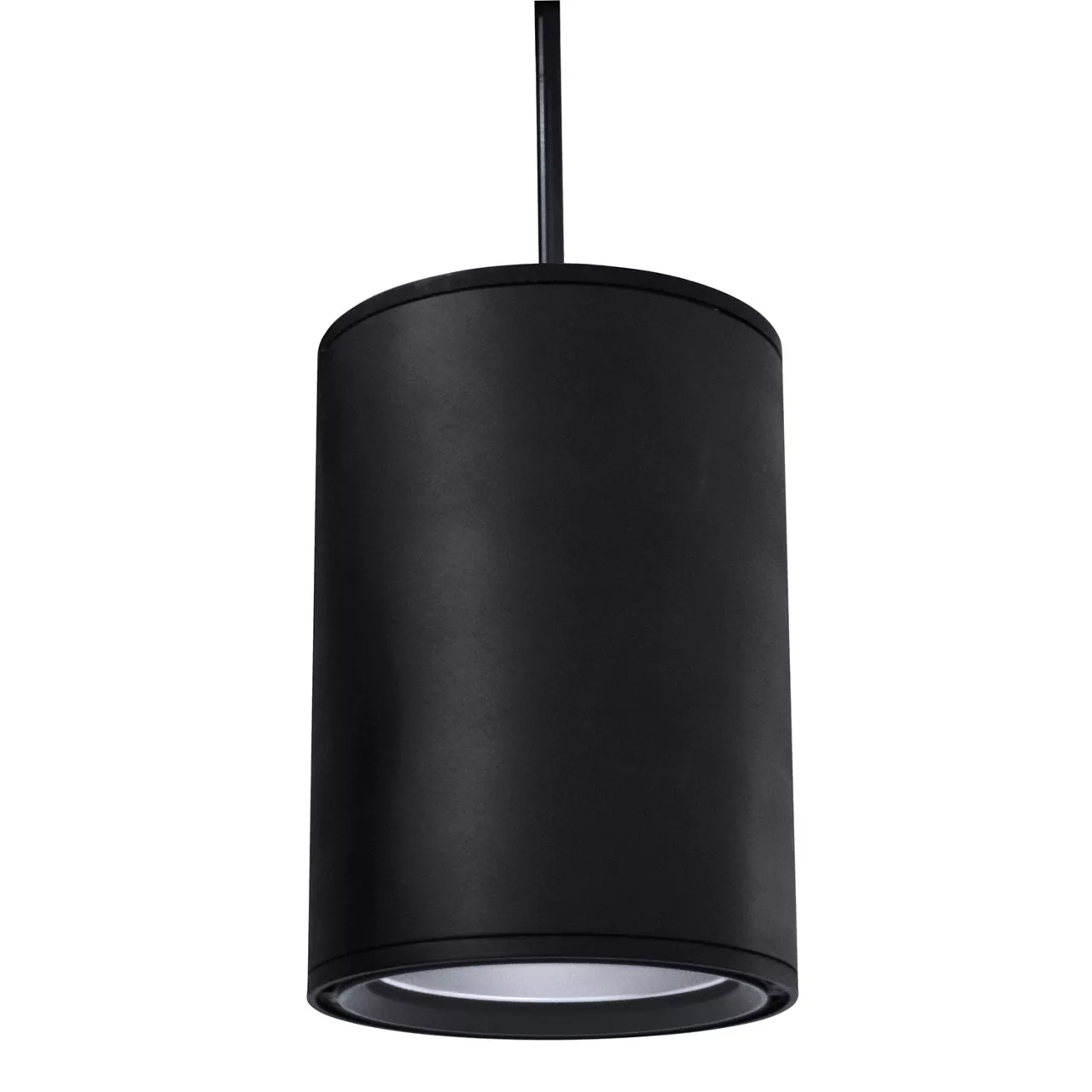

9-Inch Rigid Stem Pendant Mount Cylinder

CY9 RS

  • Specification Grade 9-inch diameter Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
  • Hang support for hands-free wiring
  • Includes Slope Ceiling Canopy (up to 45°) and one (1) 6-inch Stem; extra stem lengths must be ordered separately as needed
  • Maximum Assembled Stem Length: 120-Inches / 10 Feet
  • Stem Thread: 1/4−18NPS
  • Clear Alzak Reflector is available in 22° Spot, 42° Narrow and 69° Medium beam distributions
  • Platinum Reflector is available in a 69° Medium and 77° Wide beam distributions
  • Select from five (5) wattages delivering up to 8300 lumens
  • Optics have been engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Available in 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • Battery Backup option provides 90-minutes of power
  • UL8750 and Class 2 compliant; RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • Available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet

Product Information

  • Product Features

    Product Category : Cylinders

    Product Shape : Round

    Size : 9-Inch Diameter

    Height : 12-3/4-Inches

    Mounting Type : Rigid Stem Pendant Mount

    Environment : Indoor,Outdoor

    Lumen Output : 3001-4000,4001-5000,5001-6000,6001-7000,8001-9000

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Color Rendering Index : 80-89,90-100

    Dimming Technology : 120V Forward Phase,120V Reverse Phase,120V-277V 0−10V

    Light Distribution Detail : Spot,Narrow,Medium,Wide

    Listings : cCSAus Certified,Suitable for Damp/Dry or Wet locations,ENERGY STAR® Certified
