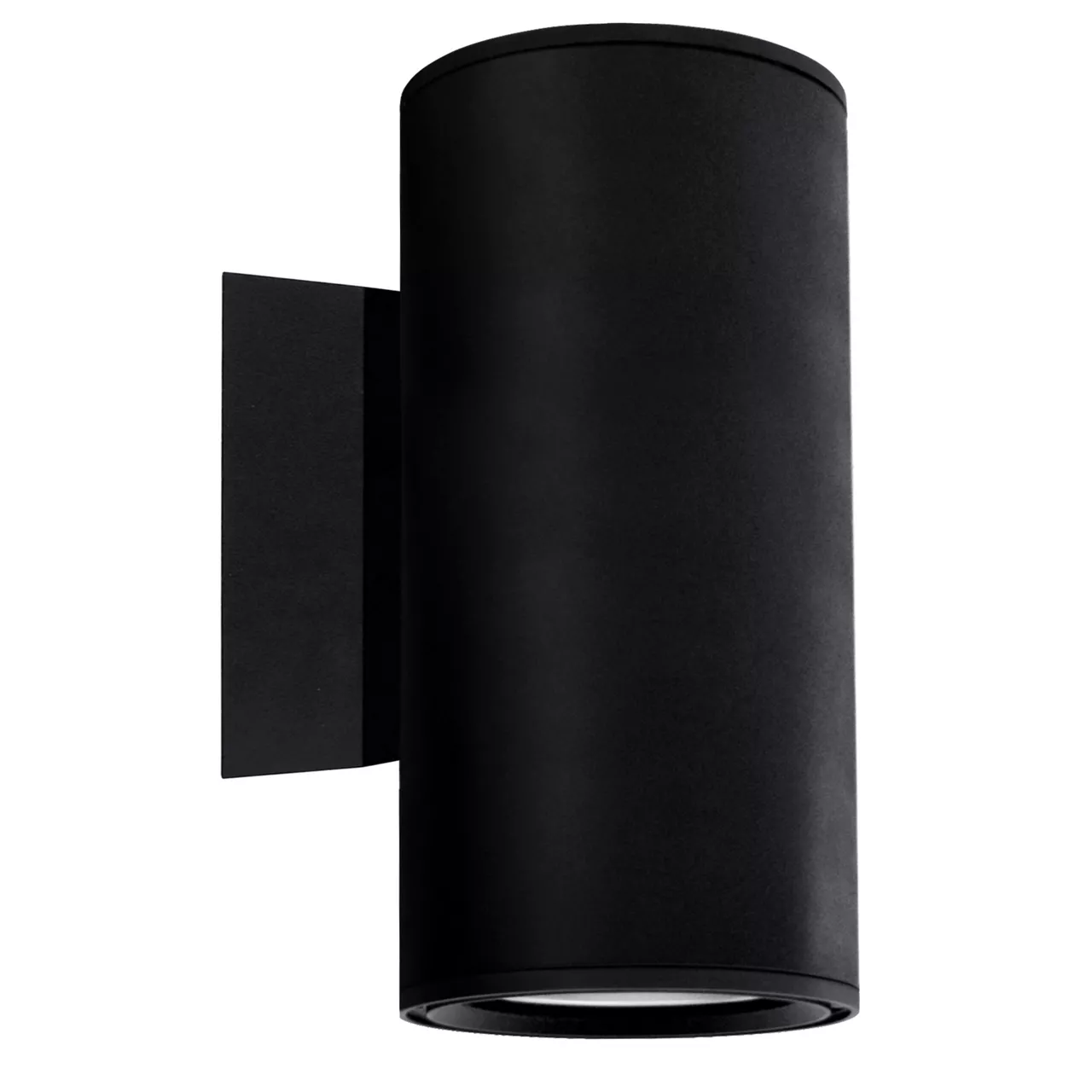

9 Inch Indoor/Outdoor Round Cylinders: Up/Down Wall Mount

CY9 UD WM

  • Specification Grade 9 inch diameter Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
  • Bracket support for hands-free wiring
  • Standard Up/Down luminaire construction uses identical LED Light Engines, Color Temperatures and Beams in both the Up and Down direction; consult factory if different Light Engines,
    Color Temperatures or Beam Spreads are required in each directions of an Up/Down luminaire
  • Clear Alzak Reflector is available in 22° Spot, 42° Narrow and 69° Medium beam distributions
  • Platinum Reflector is available in a 69° Medium and 77° Wide beam distributions
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Battery Backup option provides 90 minutes of power to the down light engine; consult factory for alternate options
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • CY9 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
  • Assembled in the U.S.A.
Country of Origin: Please Contact Customer Service
