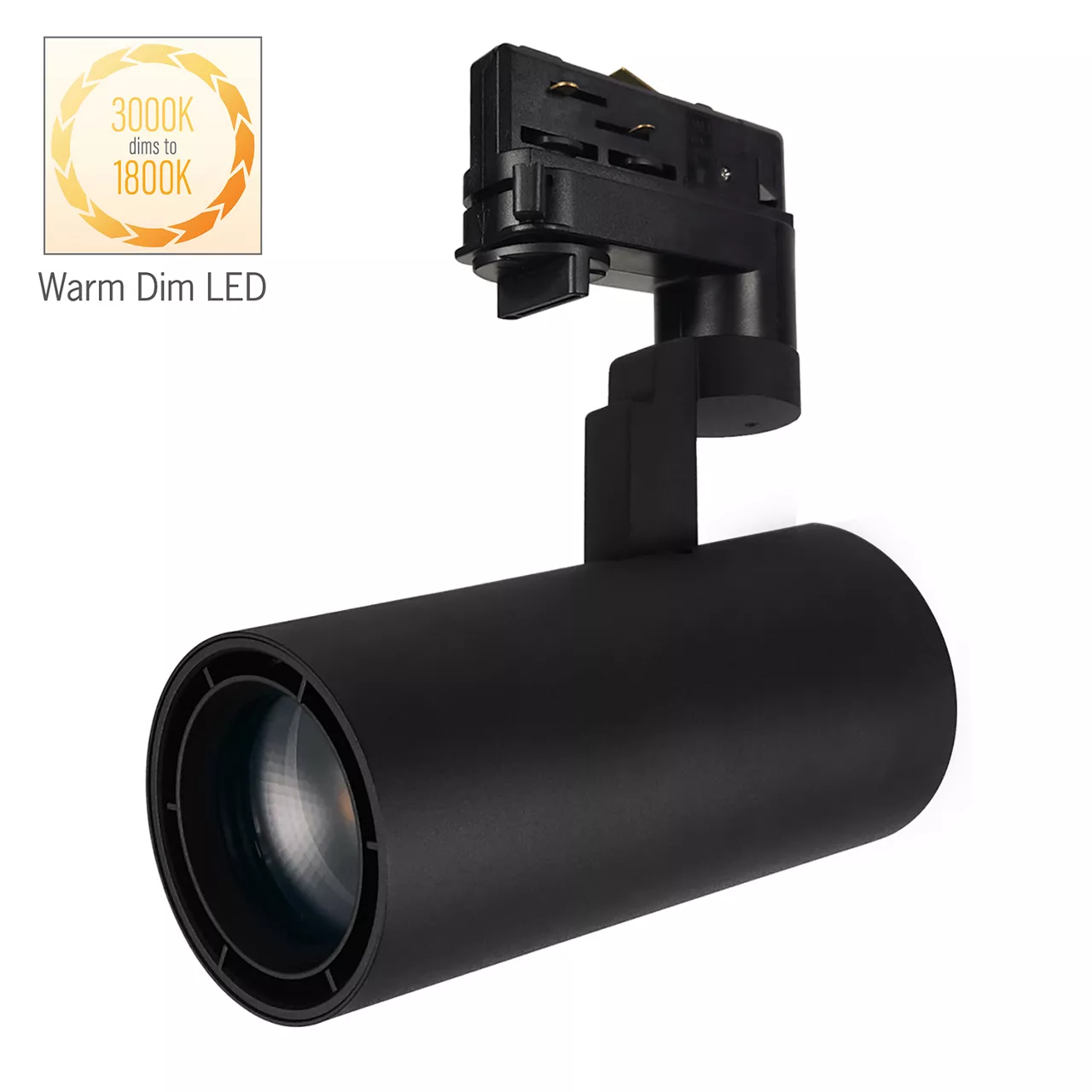

Gallery M Nordic/Global Track Luminaire with Warm Dim LED
NCTL93 WD
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- The 3-1/2-inch diameter flat-back cylinde is constructed of die-cast aluminum, the cylindrical body providing thermal management
- Full 360°+ rotation and 90° tilt with locking mechanisms for precision aiming
- Engineered TIR Optic options delivering tight beam and glare control from 14° to 40° with minimal field; Optics are field changeable
- Luminaire may accept up to two (2) pieces of media (Lens or Louver), one (1) Snoot / Barn Door Assembly plus one (1) piece of media (Lens or Louver)
- Bridgelux Warm Dim LED from 3000K at 100% to 1800K at <3% : Light that Warms as it Dims
- 90CRI
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- 277V Units are non-dimable
- Compatible with Nordic Aluminum Inc. TEK100 Track Systems; ConTech can switch out this adapter with others for compatibility with other Nordic Aluminum Inc. Track Systems. For more information, consult factory.
Specifications
Instruction Sheet
Resources
IES
Technical Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Compatible with : 2C/2N Nordic Aluminum Inc. TEK100 Track System (NTEK/NHTEK)
Mounting : Track Mount
LED Manufacturer/Type : Warm Dim
Environment : Dry Location
Correlated Color Temperature : 3000K to 1800K
Color Rendering Index : 90-100
Light Distribution Detail : Spot,Narrow Flood,Medium Flood
Wattage : 11W - 20W,31W - 40W
Lumen Output : 1001-1500,2001-3000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming
