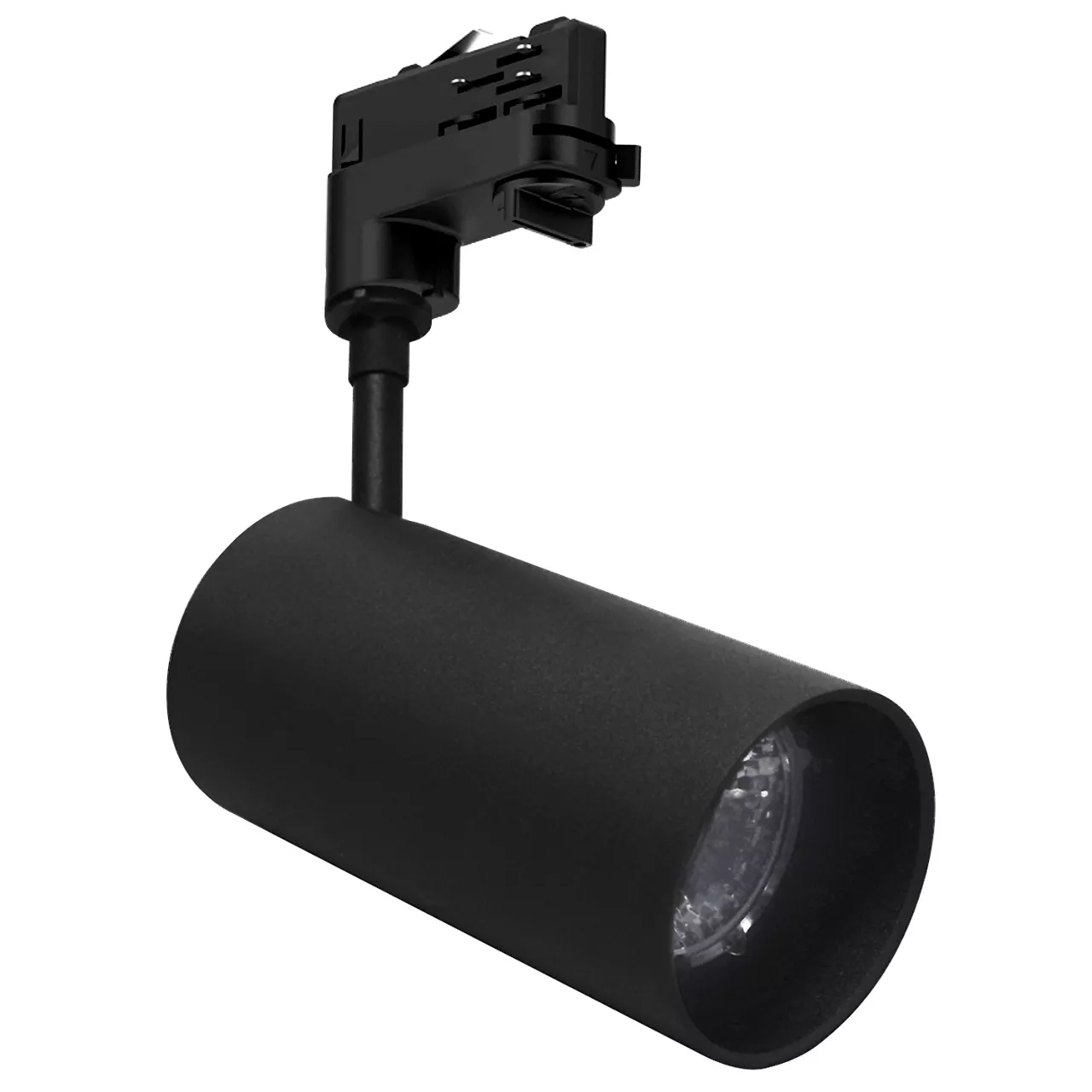

Gallery Cylinder Luminaire with 0-10V Dimming Track System Adapter


  • Designed for gallery, museum or retail applications
  • Luminaires have an integrated adapter for use on the ConTech O2CD 0-10V Dimming Track System
  • Constructed of die-cast aluminum, the cylindrical body provides thermal management
  • Lockable, precision aiming adjustment: 360°+ aiming horizontal rotation, 90° vertical rotation
  • Can accept up to (2) LF16 60MM Lenses or FA-16 60MM Black Honeycomb Louvers ith the FA-84 Accessory Holder, FA-85 Snoot, or BD84 Black Barn Doors, ordered separately
  • Light engine consists of a single, high lumen output CREE multi-chip LED array in 2700K, 3000K, 3500K and 4000K color temperatures; CRI 80 min., 83 typical; high CRI 90+ available
  • The 3000K Crisp White LED delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Excellent fixture-to-fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • 12° Spot, 28° Medium and 44° Flood beam distributions; optics have been optically engineered to provide a smooth uniform beam, maximizing output and minimizing glare
  • Optics can be easily changed in the field
  • Also available in a Wall Wash configuration that provides smooth  even illumination on vertical surfaces
  • Dimming options allow smooth illumination down to 5%

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Driver Orientation : Vertical

    Light Distribution Detail : Flood|Medium|Spot|Wall Wash

    Light Source : LED

    Light Source Features : Crisp White

    Lumen Output : 1001-1500|1501-2000|501-1000

    Product Type : Track Head
