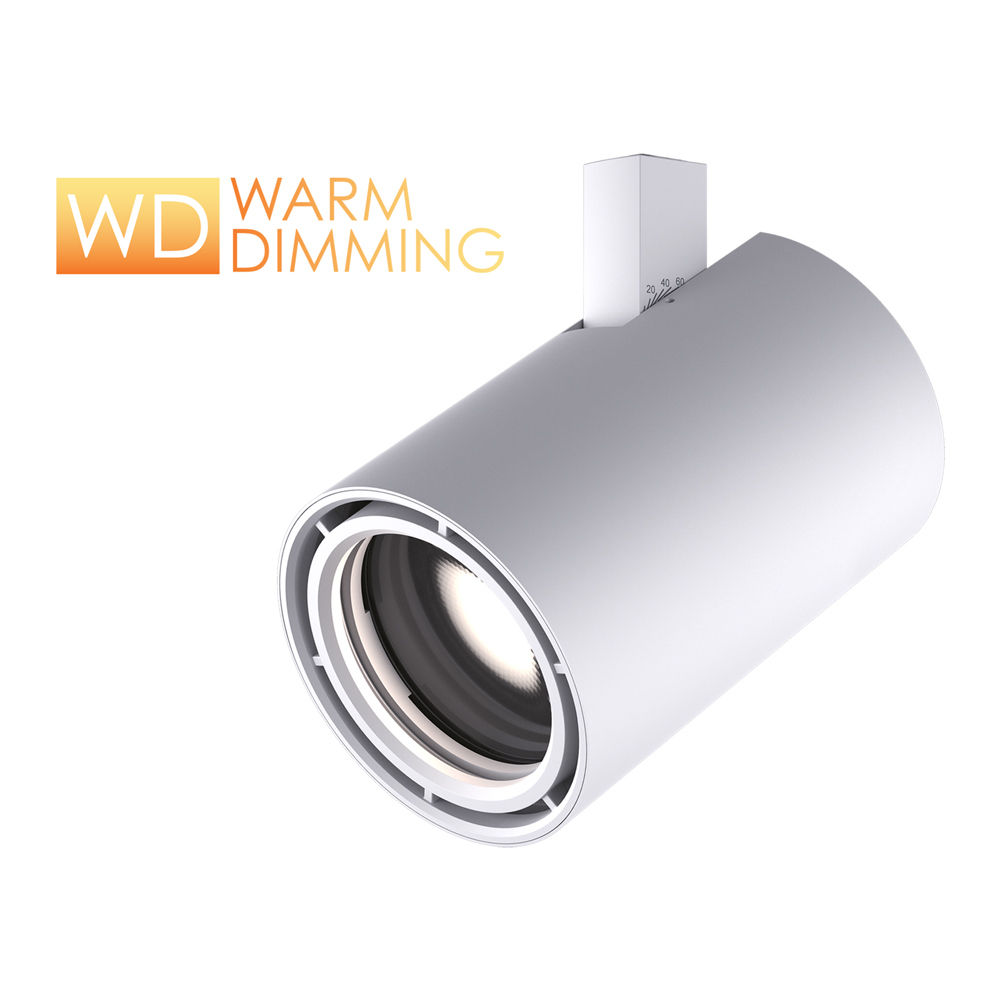

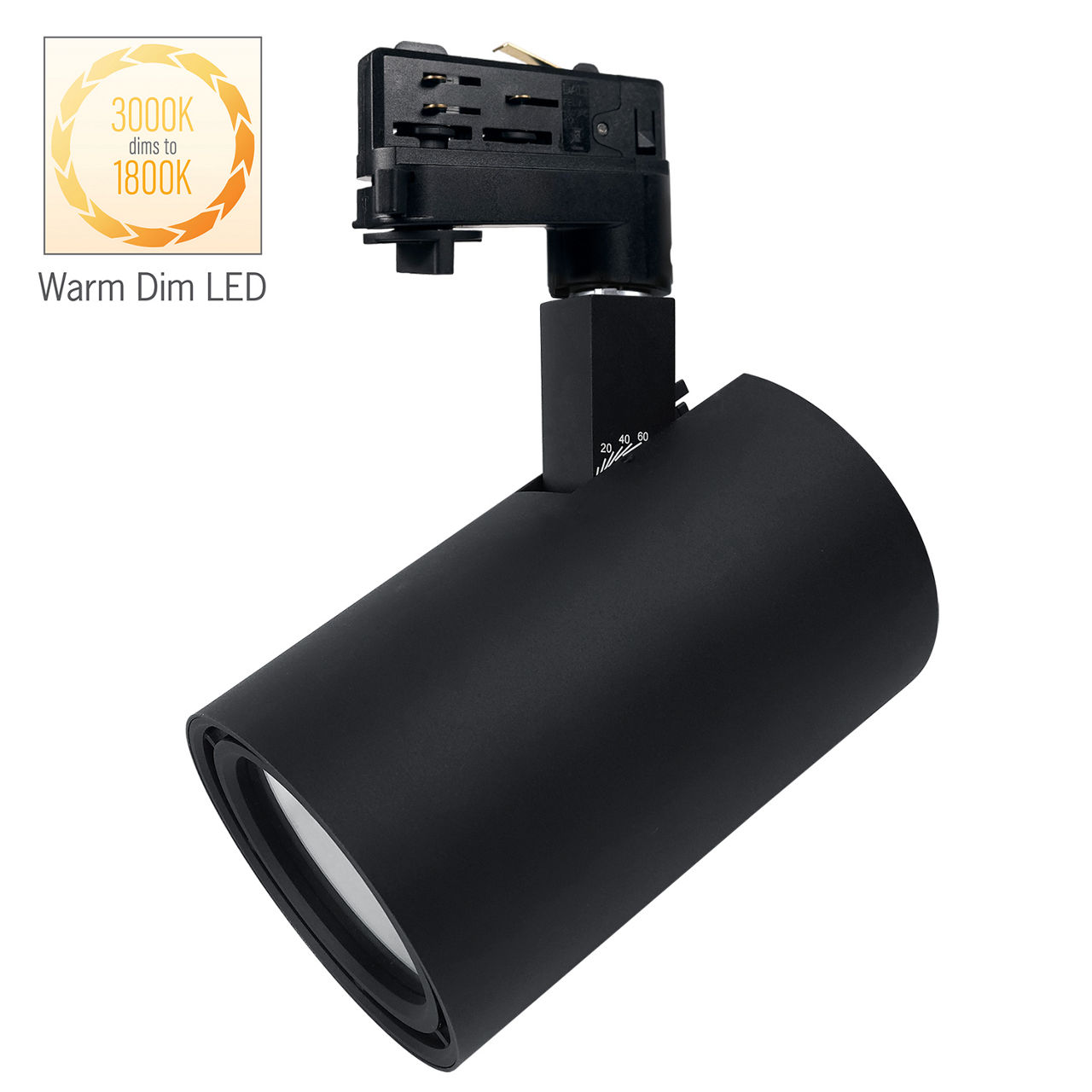

Gallery XL OneTrack 0-10V Dimming Track Luminaire with Warm Dim LED
OTL94 WD
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- Constructed of die-cast aluminum, the cylindrical body provides thermal management
- Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation
- A precision engineered Dual Lens Optic is used for the 8° Very Narrow Spot and 11° Narrow Spot beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors are used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Optics are field changeable
- The Luminaire an accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot, or BD94-B Black Barn Doors; Snoot or Barn Door count as one (1) piece. Accessories are ordered separately.
- Light that Warms as it Dims
- CCT Range from 3000K to 1800K (3000K at full brightness to 1800K when dimmed), CRI of 90
- 120V or 277V 0-10V Dimming. For dimmer compatibility and performance, refer to the Specification Sheet
- ConTech OTL Track Luminaires are compatible with the ConTech Lighting O2CD 0-10V Dimming Track System
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Compatible with : ConTech Lighting O2CD 0-10V Dimming Track System
Mounting : Track Mount
Environment : Dry Location
LED Manufacturer/Type : Warm Dim
Correlated Color Temperature : 3000K to 1800K
Color Rendering Index : 90-100
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Wattage : 11W - 20W,31W - 40W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000
Voltage : 120V,277V
Dimming Technology : 0-10V Dimming
