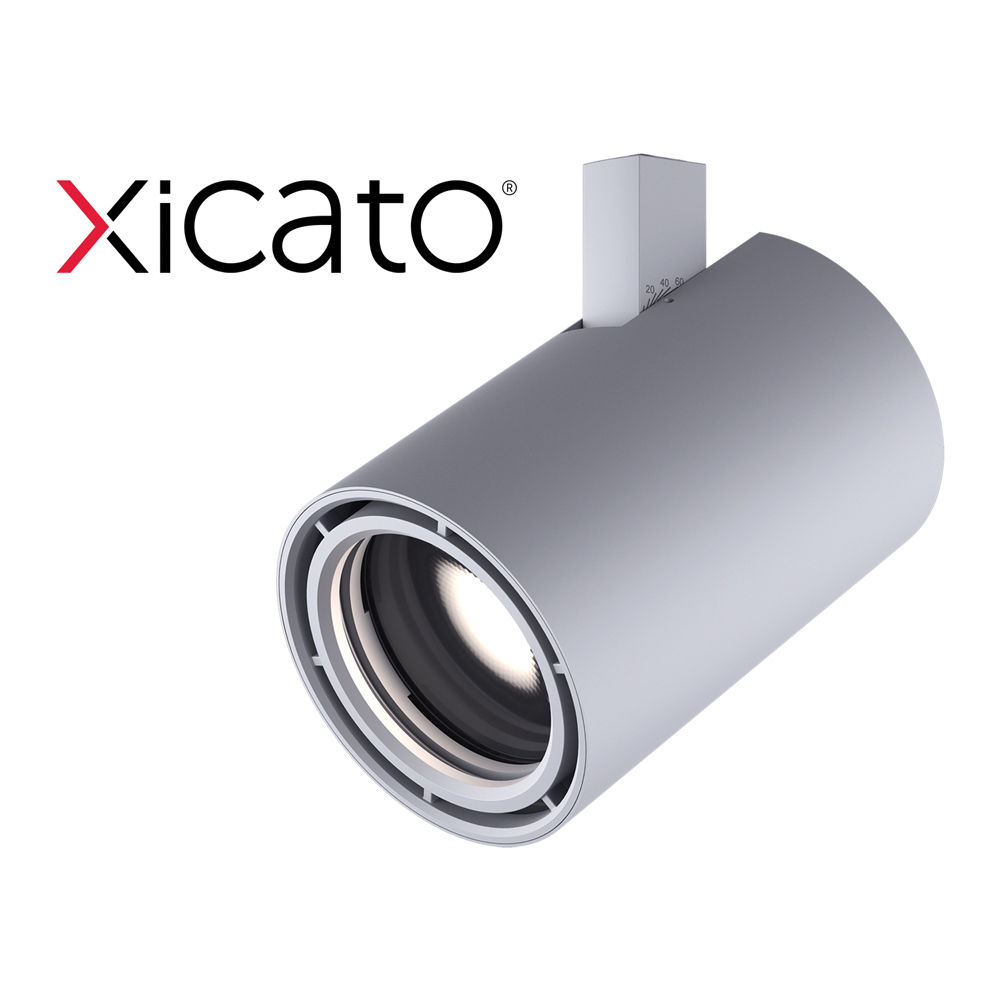

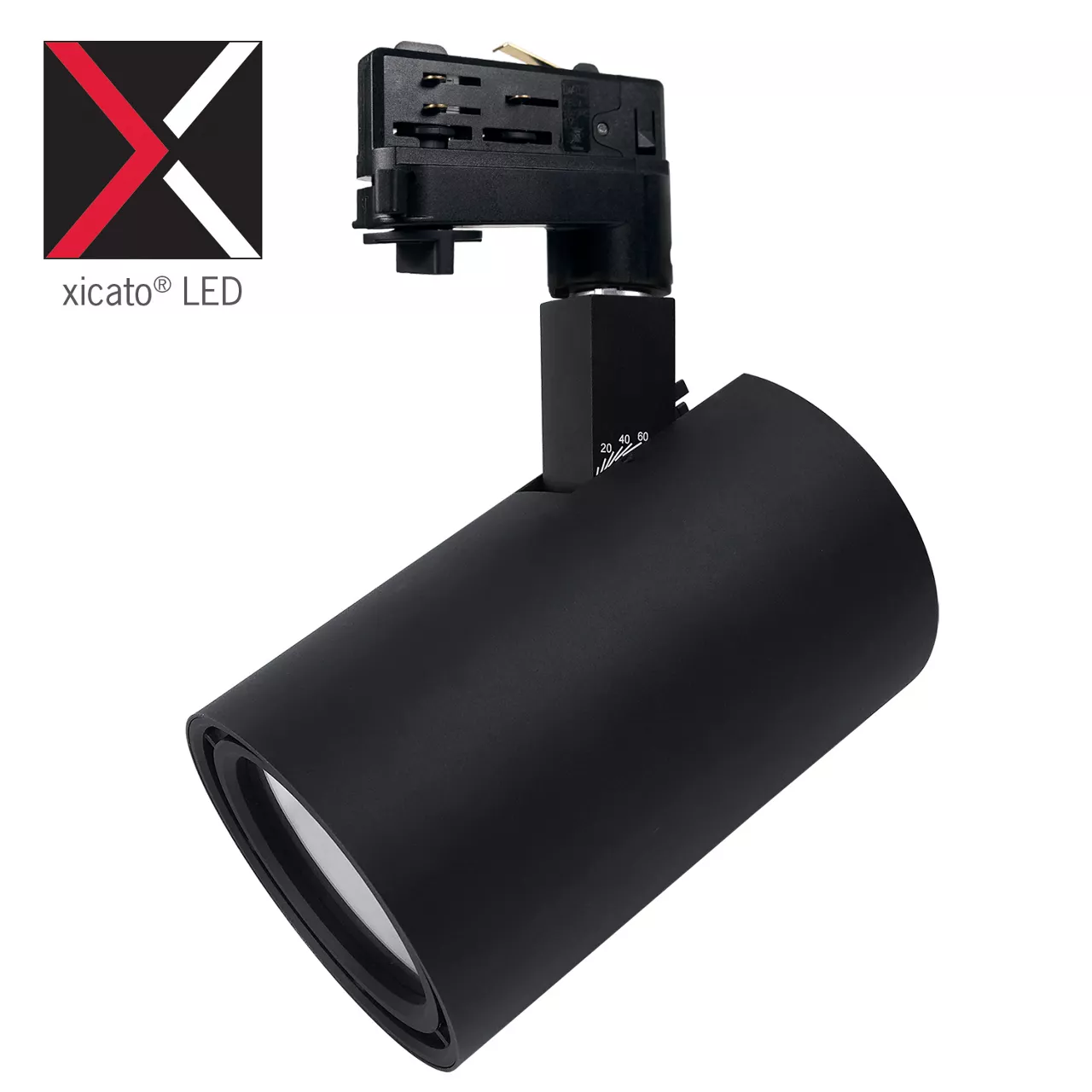

Gallery XL Xicato LED Luminaire with 0-10V Dimming Track System Adapter

OTL94 X

  • A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads and mono-point luminaries
  • Luminaires are constructed with an integrated adapter for use on the ConTech O2CD 0-10V Dimming Track System
  • The die-cast aluminum cylindrical body provides thermal management
  • Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation
  • Precision engineered Dual Lens Optic used for Very Narrow Spot (VN) and Narrow Spot (NS) beam distributions. Design provides a tight beam angle and field to highlight target objects with minimal stray illumination.
  • Specular Aluminum Reflectors used for 24° Medium, 42° Flood, and 51° Wide Flood beam distributions. Optically engineered for even illumination and glare control.
  • Can accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot or BD94-B Black Barn Doors, ordered separately. Snoot or Barn Door count as one (1) piece.
  • The Xicato 95 CRI Series COBs are designed to perfectly emulate natural light sources, with precise color rendering by CIE or IES standards, for the most exacting illumination of art, architecture, or other surfaces
  • 2700K, 3000K, 3500K and 4000K Color temperatures; Vibrant Series only available in 3000K
  • Xicato Modules feature extraordinary color consistency within 1x2-step MacAdam ellipse
  • Precise beam control ensures that even at lower aiming angles, the luminaire is glare free and quiet in the ceiling
  • Full collection of accessories to produce a myriad of filtering and framing effects
  • Dimming allows smooth illumination down to 1%

Product Information

  • Product Features

    Color Rendering Index : 90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Driver Orientation : Integrated

    Light Distribution Detail : Very Narrow Spot Optic,Narrow Spot Optic,Medium Reflector,Flood Reflector,Wide Flood Reflector

    Light Source : LED

    Light Source Features : Xicato

    Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000

    Product Type : Track Head
