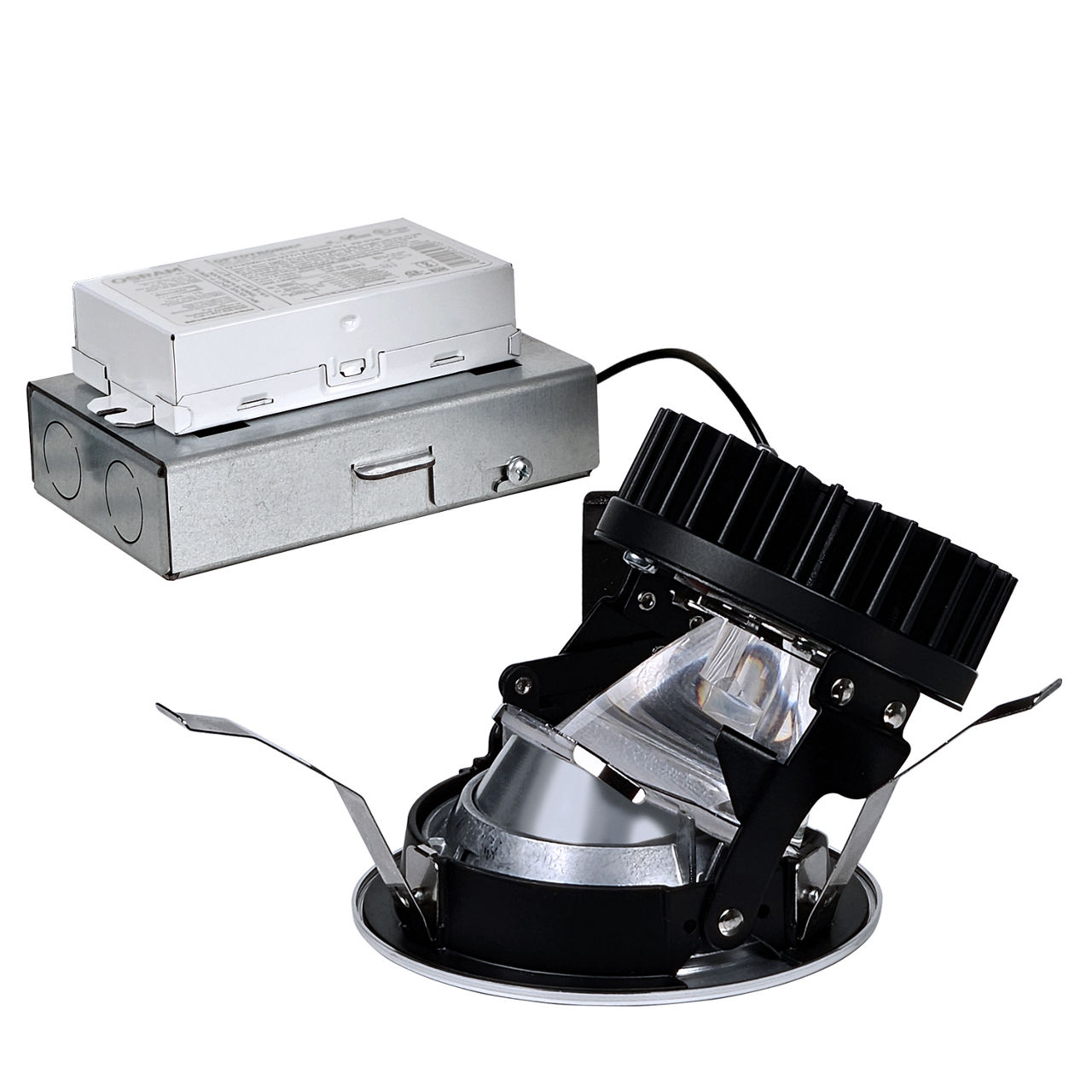

3-Inch Wall Wash Downlight

P3RW

  • 2700K, 3000K, 3500K and 4000K; 80 or 90 CRI with a color consistency within 2 SDCM
  • Wall Wash TIR Optic provides smooth, uniform light distribution
  • Driver Options include Universal Voltage 120–277V; 347V optional
  • Flicker free Dimming Options include 0–10V, Phase (Forward/Reverse), EldoLED (0-10V and DALI), and Lutron EcoSystem
  • 6W Emergency Battery Backup option provides illumination for a minumum duration of 90 minutes; certified to UL924 Standard for Emergency Lighting

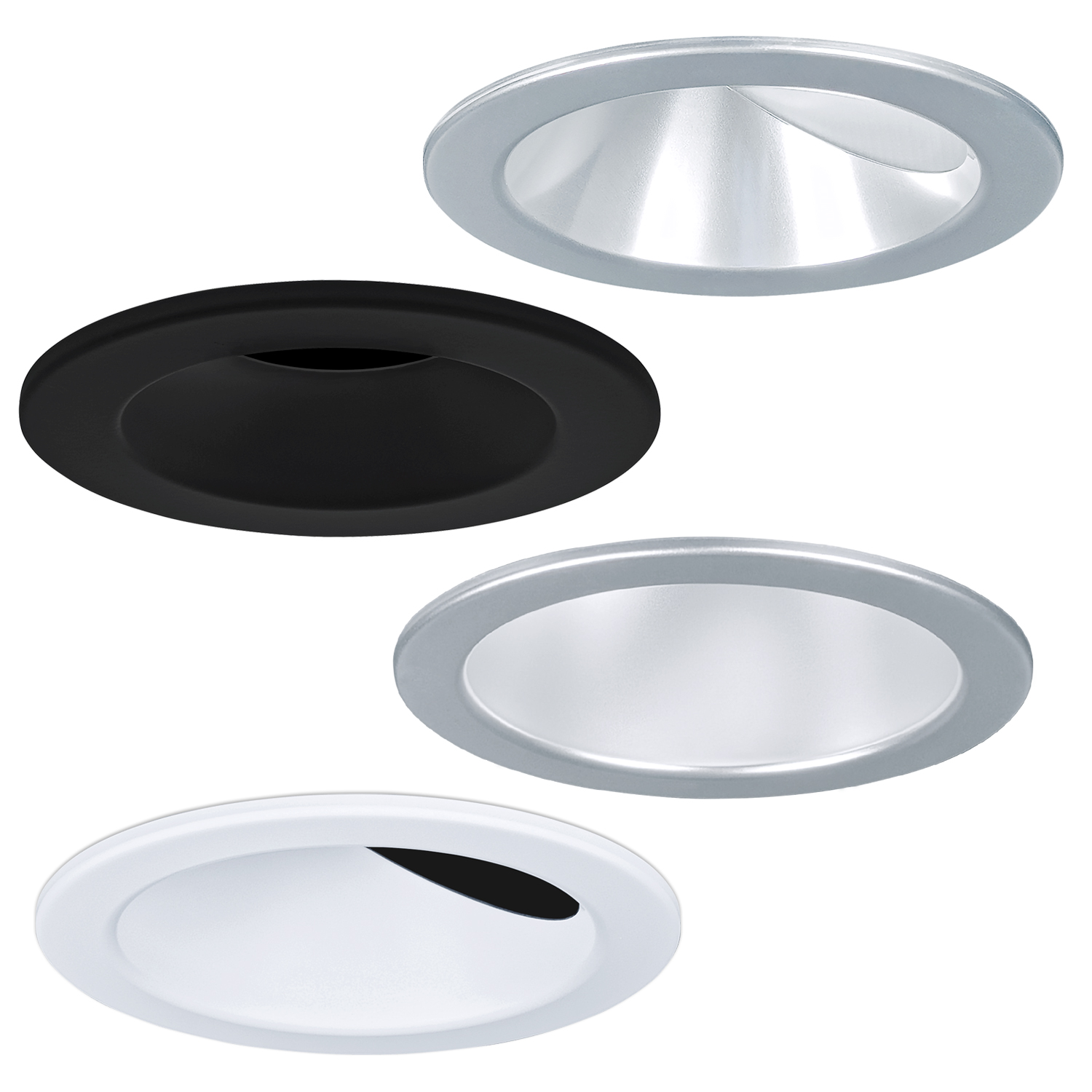

  • Self-flanged, Spun Aluminum Angle-Cut Wall Wash Reflectors are available in various finishes: Specular and Semi-specular with and without White Painted Flanges and White and Black Painted finishes
  • General Fixture construction is designed for quick, direct install into Non-IC applications
  • Downlight Module Quick-connect design enables easy installation and removal of Universal LED Module; three (3) Spring Steel Supports secure Module into Housing/ceiling
  • Optional Non-IC Mounting Frame and Insulated Ceiling / StopAire™ (ICSA) Housing available

Product Information

  • Product Features

    Lumen Output : 750Lm|1000Lm1400Lm|1800Lm

    Input Voltage : 120V-277V|347V

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Color Rendering Index : 80|90+

    Light Distribution Detail : Wall Wash

    Dimming Technology : Phase (Forward / Reverse)|0-10V|Lutron EcoSystem|DALI

    Mounting : Direct Mount Remodel|Non-IC New Construction Frame|Insulated Ceiling (IC)/StopAire™/Chicago Plenum Housing

    Product Type : Wall Wash

    Product Shape : Round

    Listings : cCSAus Certified|Suitable for Damp Locations|CCEA Listed|ICSA Housing conforms to Washington State Energy Code (WSEC)
