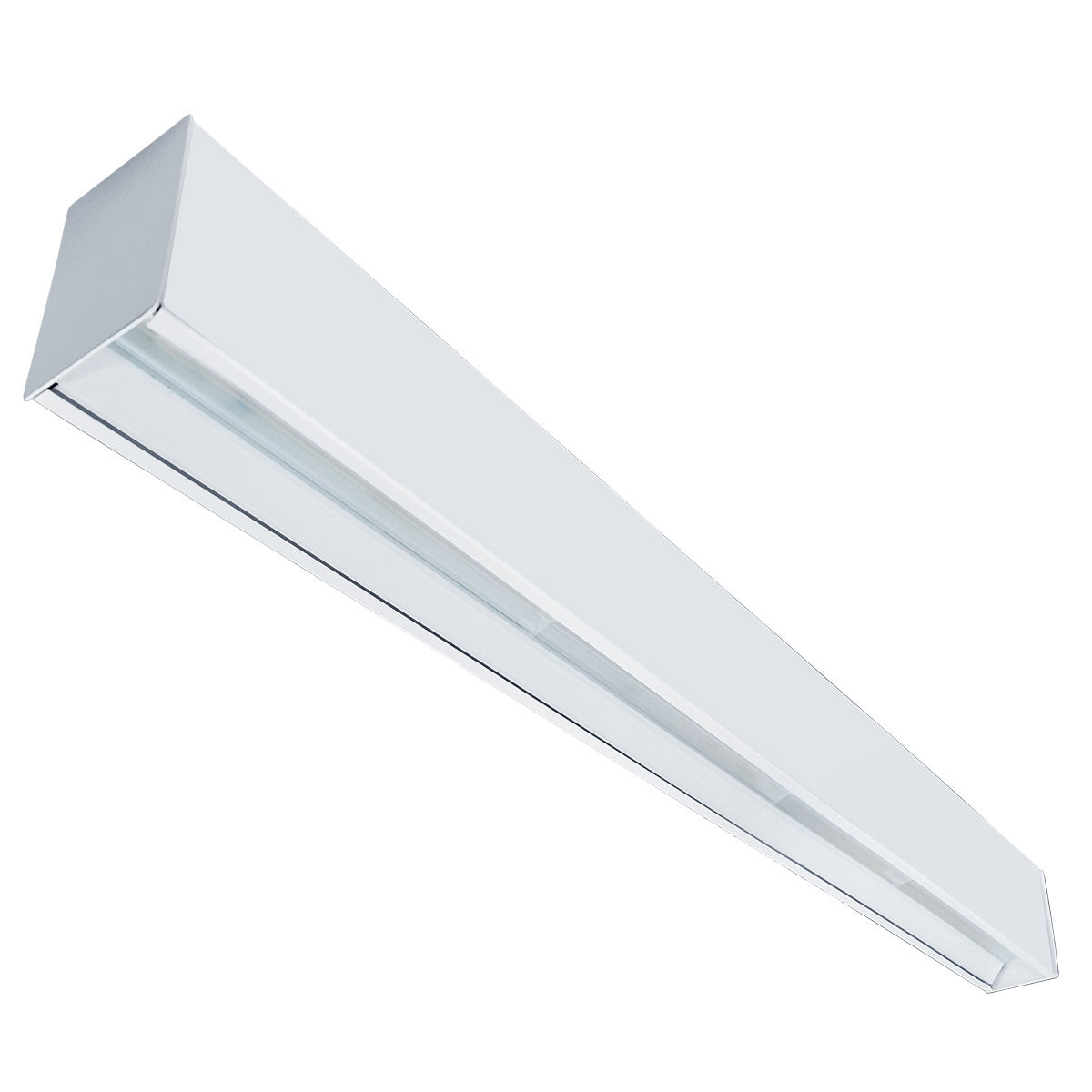

Precedent Pro Modular Linear Lighting

Precedent Pro Series

  • Available in stand-alone or continuous run configurations in 44-1/4-inches (PPRO4) and 88-1/2-inches (PPRO8) lengths
  • Three optic options: Stack, Asymmetric and Flood deliver uniformity and intensity on both horizontal and vertical target planes
  • Quick-connect Wiring Harness can support continuous runs up to 80 feet
  • Mechanical overlapping luminaire connections ensure a seamless line of illumination without light leaks
  • Delivers up to 1700 lumens/linear foot
  • Three (3) optional up-light outputs deliver up to 600 lumens/linear foot
  • Optional factory installed Horizontal Louver
  • 3000K, 3500K and 4000K CCT with a CRI 80+ or 90+
  • L80 Performance > 50,000 hours
  • Die Formed and Spot Welded Cold Rolled Steel Construction
  • Powder Coat Paint Finish in White, Black or Silver
  • Aircraft Cable Suspension Kits and Power Feeds allow up to 20-foot suspension
  • 120-277V 50/60Hz 0-10V Dimming down to 1%
  • Single- or Two-Circuit wiring options to allow independent control of the optional up light
  • An integrated 7W, 90-minute Battery Back-up Module with Test Switch is an available option
  • Suitable for Damp Locations
  • Manufactured in North America

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 3000K|3500K|4000K

    Light Distribution Detail : Flood|Stack|Asymmetric

    Light Source : LED

    Listings : Damp Location|ETL

    Lumen Output : 3001-4000|4001-5000|5001-10000|10001-20000

    Mounting : Suspended

    Product Type : Linear
