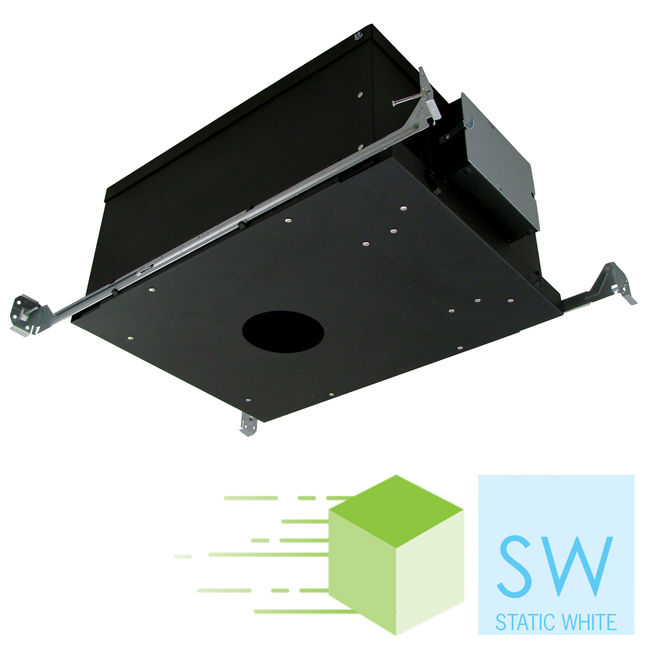

2-In. Static White LED Adjustable New Construction Insulated Ceiling (IC)/StopAire™ Housing

R2ANC

  • 16-Gauge Galvanized Steel Housing painted Matte Black inside and out, rated for use in direct contact with insulation materials. Removable cover for Driver access.
  • Quick-connect design enables easy installation and removal of Universal LED Module; three (3) Steel Spring Supports secure Module into Housing/Ceiling
  • Spring Latch Tether provides secondary support of the Universal Module
  • Output over voltage, over-current and short circuit protection.
  • Pre-wired Junction Box with knockouts; a duplex electrical connector is provided to simplify daisy-chain wiring
  • Matte Black painted mechanism constructed of 16-gauge sheet metal, an aluminum die-cast heat-sink, an acrylic Optic, and a Thermoplastic Optic Holder
  • Adjustment mechanism features white graduation marks every 15-degrees for consistent aiming, plus set screw to lock tilt adjustment in place
  • Available in four (4) Wattage/Lumen packages: 8W/800Lm, 10W/1000Lm, 14W/1300Lm, and 21W/1700Lm
  • Select from 2700K, 3000K, 3500K and 4000K color temperatures; with a CRI of 80 min., 83 typical; high CRI of 90+ available
  • A 3000K Crisp White LED option delivers 90+ CRI with additional violet wavelengths that enhance white visibility
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision Optics produce Spot, Medium, and Flood beam distributions; optics are interchangeable and can be field replaced
  • Many trim options available to complement any design style. See ordering information and details. Note: R2A series and R2RM series trims are not compatible with each other
  • All R2A Adjustable Downlights are available for non-dimming and dimming applications; for a list of compatible dimmers, refer to the Dimming Specifications sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K,3000K Crisp White

    Light Distribution Detail : Spot,Medium,Flood

    Listings : cCSAus,Damp Location,,ENERGY STAR® Certified,WSEC ASTM E283,Chicago Plenum CCEA Listed

    Lumen Output : 501-1000,1001-1500,1501-2000

    Product Shape : Round

    Product Type : 2-Inch Adjustable Downlight

    Housing : Adjustable,New Construction,Insulated Ceiling (IC),StopAire™

    Rated Wattage : 8W,10W,14W,21W

    Dimmable : Y

    Title 24 Compliant : Y
