Insulated Ceiling (IC)/StopAire™ Downlight
R6IC

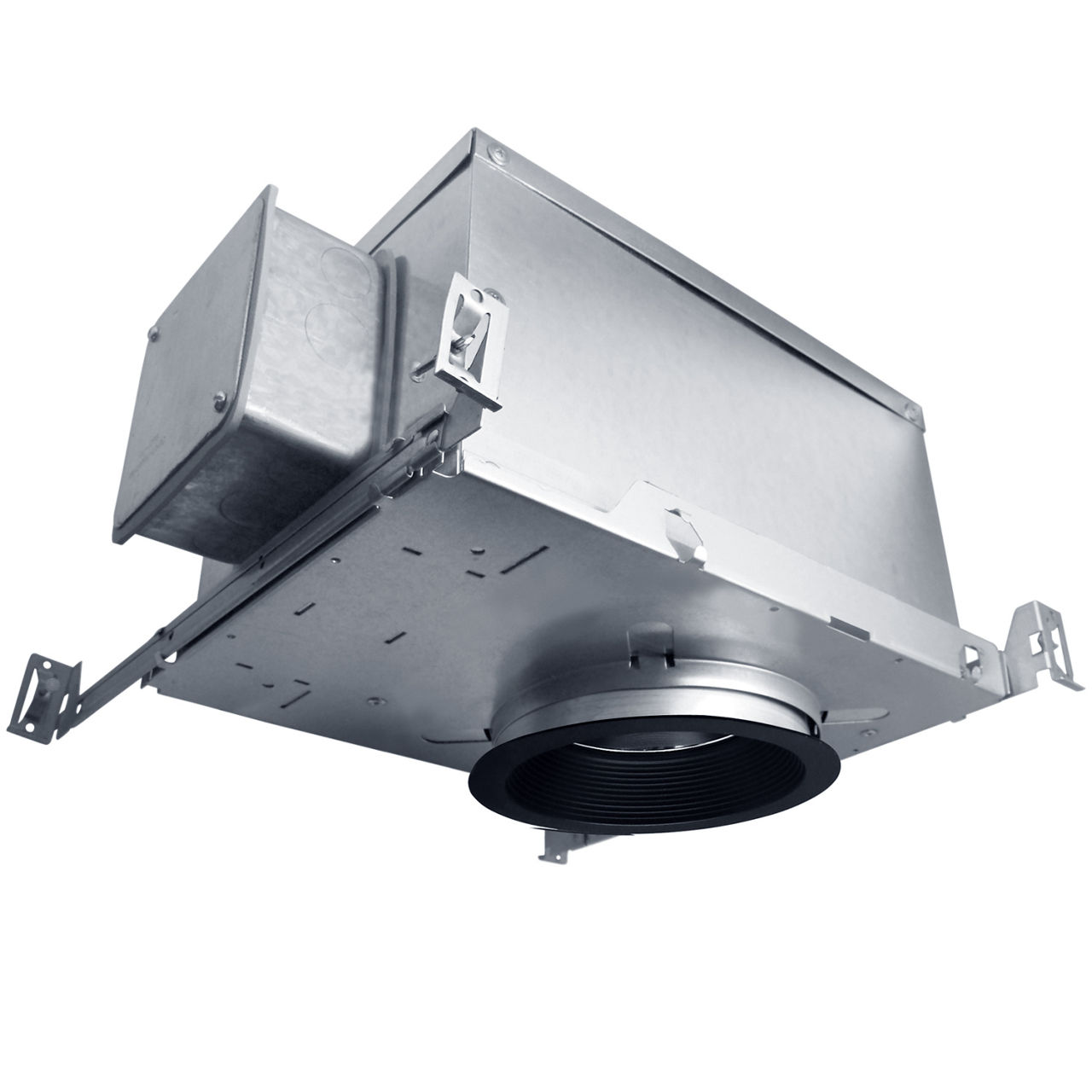

- Specification Grade, 6-inch Round, 16 Gauge Galvanized Steel, Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink for use in applications with direct contact with insulation materials
- Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
- Approved for Through Circuit Wiring, output over-voltage, over-current and short circuit protection
- Select from four (4) wattage/lumen packages: 12W/1100Lm, 16W/1600Lm, 21W/2200Lm, and 30W/3000Lm
- Available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+available
- All R6 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
- Flanged or Trimless Specification Grade Trims in several different styles and finishes
- Trimless options require use of a Mud Frame (MF6, ordered separately)
- Trimless options cannot be used on Remodel Style Housings (R6RM) or with RSA6L Slope Ceiling Adapters
- UL8750 and Class 2 Compliant
- Suitable for Damp Locations
- All wattage/lumen options are ENERGY STAR® Certified; see Specification Sheet for Certified Trim and Dimming options
- Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)
Product Information
Updated
Product Features
Product Category : 6-Inch Downlight
Color Rendering Index : 80-89,90-100
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Compliance : ENERGY STAR® Certified,WSEC ASTM E283
Lumen Output : 1001-1500,1501-2000,2001-3000
Product Shape : Round
Product Type : Downlight
Environment : Damp Location
Wattage : 11W - 20W,21W - 30W
Voltage : 120V,277V,347V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI
Trim Type : Self Flanged,Trimless
Use With : C6322 Series, C6323 Series, C6321 Cone Series,C6321 Baffle Series,C6327 Cone Series,C6327 Baffle Series,CN6322 Series,CN6323 Series,MF6
