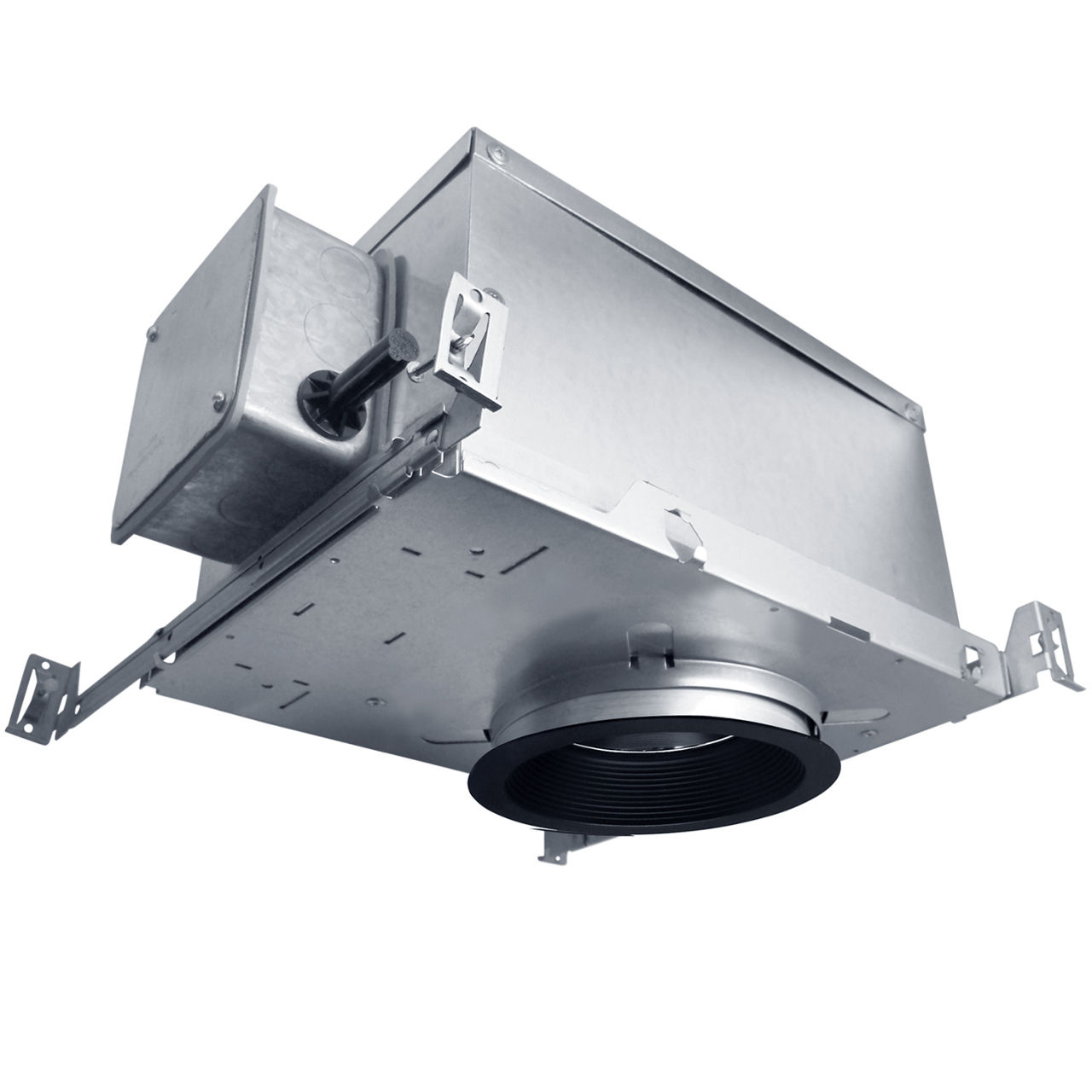

StopAire™ Downlight

R6SA

  • Specification Grade, 6-inch Round, 16 Gauge Galvanized Steel, StopAire™ Housing with Die-Cast Aluminum Heat Sink
  • Requires minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
  • Quick-connect Light Engine; Drivers are fully accessible from below the ceiling and can be easily removed
  • Approved for Through Circuit Wiring, output over-voltage, over-current and short circuit protection
  • Select from six (6) wattage/lumen packages: 12W/1100Lm, 16W/1600Lm, 21W/2200Lm, 30W/3000Lm, 38W/3700Lm, and 45W/4100Lm
  • Available in 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; high CRI of 90+available
  • All R6 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
  • Flanged or Trimless Specification Grade Trims in several different styles and finishes
  • Trimless options require use of a Mud Frame (MF6, ordered separately)
  • Trimless options cannot be used on Remodel Style Housings (R6RM) or with RSA6L Slope Ceiling Adapters
  • UL8750 and Class 2 Compliant
  • Suitable for Damp Locations
  • All wattage/lumen options are ENERGY STAR® Certified; see Specification Sheet for Certified Trim and Dimming options
  • Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CRM or less)
  • Chicago Plenum Housings are CCEA Listed

Product Information

  • Product Features

    Product Category : 6-Inch Downlight

    Color Rendering Index : 80-89,90-100

    Correlated Color Temperature : 2700K,3000K,3500K,4000K

    Compliance : ENERGY STAR® Certified,WSEC ASTM E283,CCEA Chicago Plenum Rated

    Lumen Output : 1001-1500,1501-2000,2001-3000,3001-4000,4001-5000

    Product Shape : Round

    Product Type : Downlight

    Environment : Damp Location

    Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W

    Voltage : 120V,277V,347V

    Dimming Technology : Forward Phase,Reverse Phase,0-10V,Hi-lume,DALI

    Trim Type : Self Flanged,Trimless

    Use With : C6322 Series, C6323 Series, C6321 Cone Series,C6321 Baffle Series,C6327 Cone Series,C6327 Baffle Series,CN6322 Series,CN6323 Series,MF6
