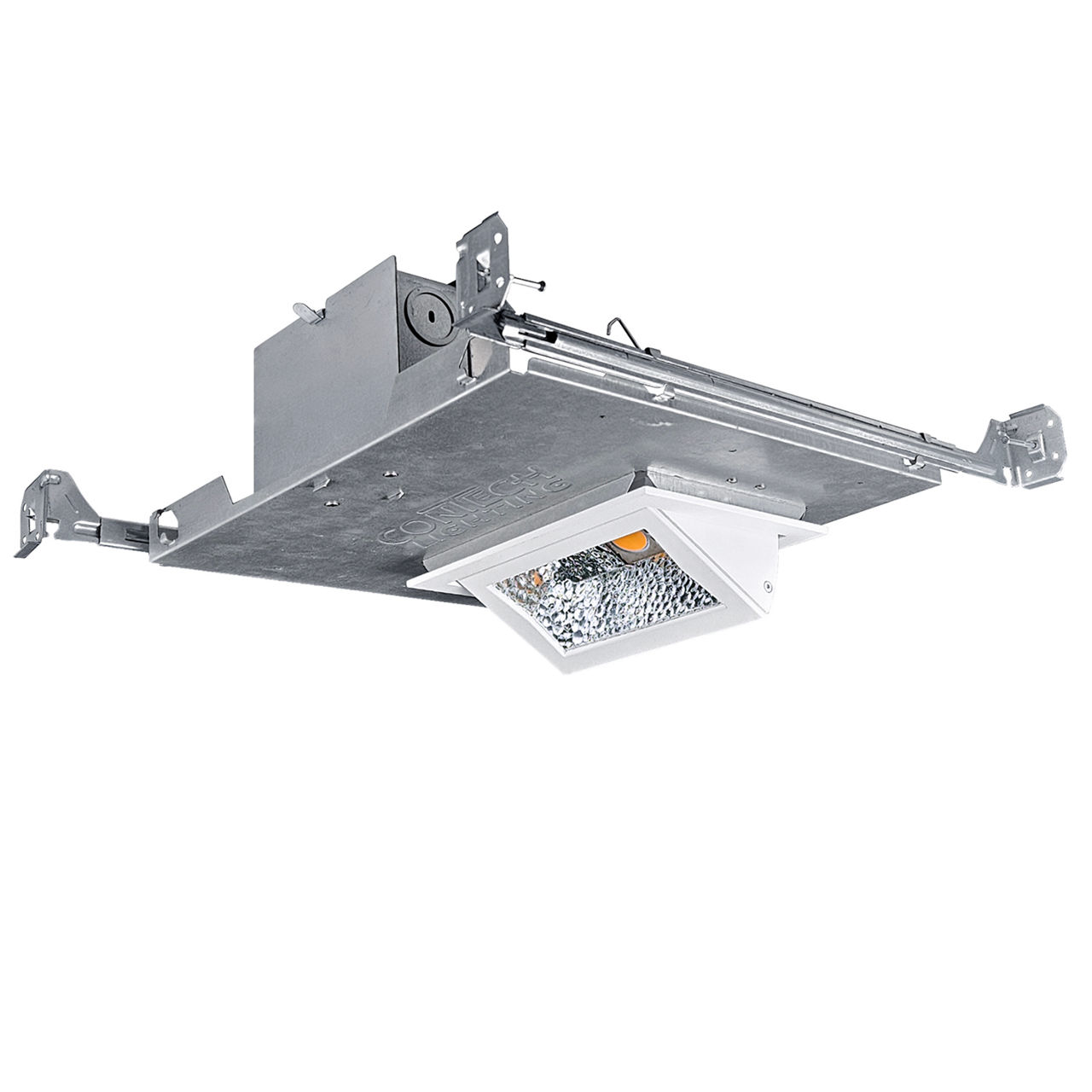

Stealth Pull Down Wall Lighter: New Construction
R6WNC
- High performance LED luminaire with a smooth wide beam; well suited for any wall lighting application
- Specification Grade Galvanized Steel New Construction Housing; Die-Cast Aluminum Pull-down Head and Trim Frame
- Requires a minimum 3-inch clearance around Housing from insulation material; thermal protection provided in case of improper insulation use
- Constant tension pull-down head with vertical adjustment from 0° to 60° for aiming ease; locking mechanism with graduations for consistent fixture-to-fixture aiming
- Available in 2700K, 3000K, 3500K and 4000K Color Temperatures; with a CRI of 80 min., 83 typical; high CRI of 90+ is also available
- Will accept up to two (2) LF49 Lenses, FA-54 Louvers or one (1) FA-53 Snoot by using the FA-19 Accessory Holder; see Accessories Specification Sheet for details
- Quick Connect Light Engine enables easy installation and removal
- Drivers are fully accessible from below the ceiling and can be easily removed
- All R6W Wall Lighter Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
Product Information
Product Features
Product Category : Downlight
Product Type : Wall Lighter
Product Shape : Rectangular
Housing : New Construction
Environment : Damp Location
Compliance : UL924 Emergency,ENERGY STAR® Certified
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Lumen Output : 2001-3000,4001-5000,5001-10000
Wattage : 11W-20W,21W-30W,31W-40W,41W-50W
Voltage : 120V - 277V
Dimming Technology : Forward Phase,Reverse Phase,0-10V,Lutron,DALI,DMX
Aperture Size : 6-Inch
Product Family : 6-Inch Rectangular Wall Lighter
