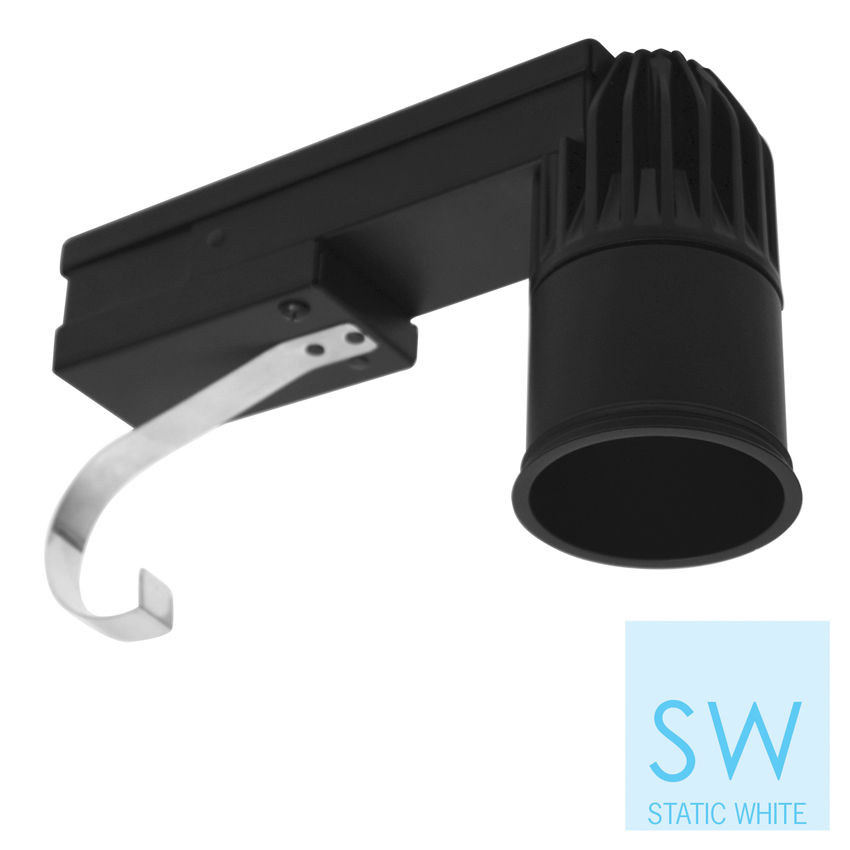

2-In. Static White LED Trimless New Construction and Remodel Downlight

RN2RM

  • RN2RM05 (8W/800lm) and RN2RM1 (10W/1100lm) are Insulated Ceiling (IC)/StopAire™ Housings thermally protected for direct contact with insulation materials
  • RN2RM2 (14W/1400lm) is a Non-Insulated Ceiling (Non-IC)/StopAire™ Housing, requiring a minimum 3-inch clearance from insulation material. Thermal protection provided in case of improper insulation use.
  • A metal perforated Mud Frame is required (MF2, ordered separately). When fastened to the ceiling, the Mud Frame utilizes three (3) spring-and-ball detent points to securely support housing
  • Die-cast aluminum collar and heat sink, driver compartment and junction box made from 16-gauge steel. Housing has a black painted finish.
  • Drivers are fully accessible from below the ceiling
  • NOTE: Certain regions require the use of a housing mounting frame in conjunction with the R2RM housing. The NCF1 new construction mounting frame should be specified when required (ordered separately). Mounting frame features a post installation mechanism that allows 1/4-inch adjustment in all directions, as well as 5-degrees of rotation adjustment to ensure proper alignment
  • Minimum plenum clearance required: 6-inches
  • Three (3) Wattage/Lumen packages: 8W/900Lm, 10W/1100Lm, and 14W/1400Lm
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 (80 min.) and 90+ CRI
  • Excellent fixture to fixture color consistency within a 2-step MacAdam Ellipse tolerance
  • Precision TIR Optics produce Spot, Medium, Flood, and Wide Flood beam distributions; optics are interchangeable and can be field replaced
  • Wall Wash also available; Wall Wash housing is dedicated for use only with Wall Wash trim. There is no interchangeability with other housings or optics.
  • Many trim options available; see ordering information for details
  • All RN2RM Downlights are available for non-dimming and dimming applications, for a list of compatible dimmers, refer to the Dimming Specification sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Light Distribution Detail : Spot|Medium|Flood|Wide Flood|Wall Wash

    Listings : cCSAus|Damp Location|Wet Location|WSEC ASTM E283|Chicago Plenum CCEA Listed

    Lumen Output : 501-1000|1001-1500

    Product Shape : Round

    Product Type : 2-Inch Trimless Downlight

    Housing : Trimless|New Construction|Remodel

    Rated Wattage : 8W|10W|14W

    Dimmable : Y

    Title 24 Compliant : N
