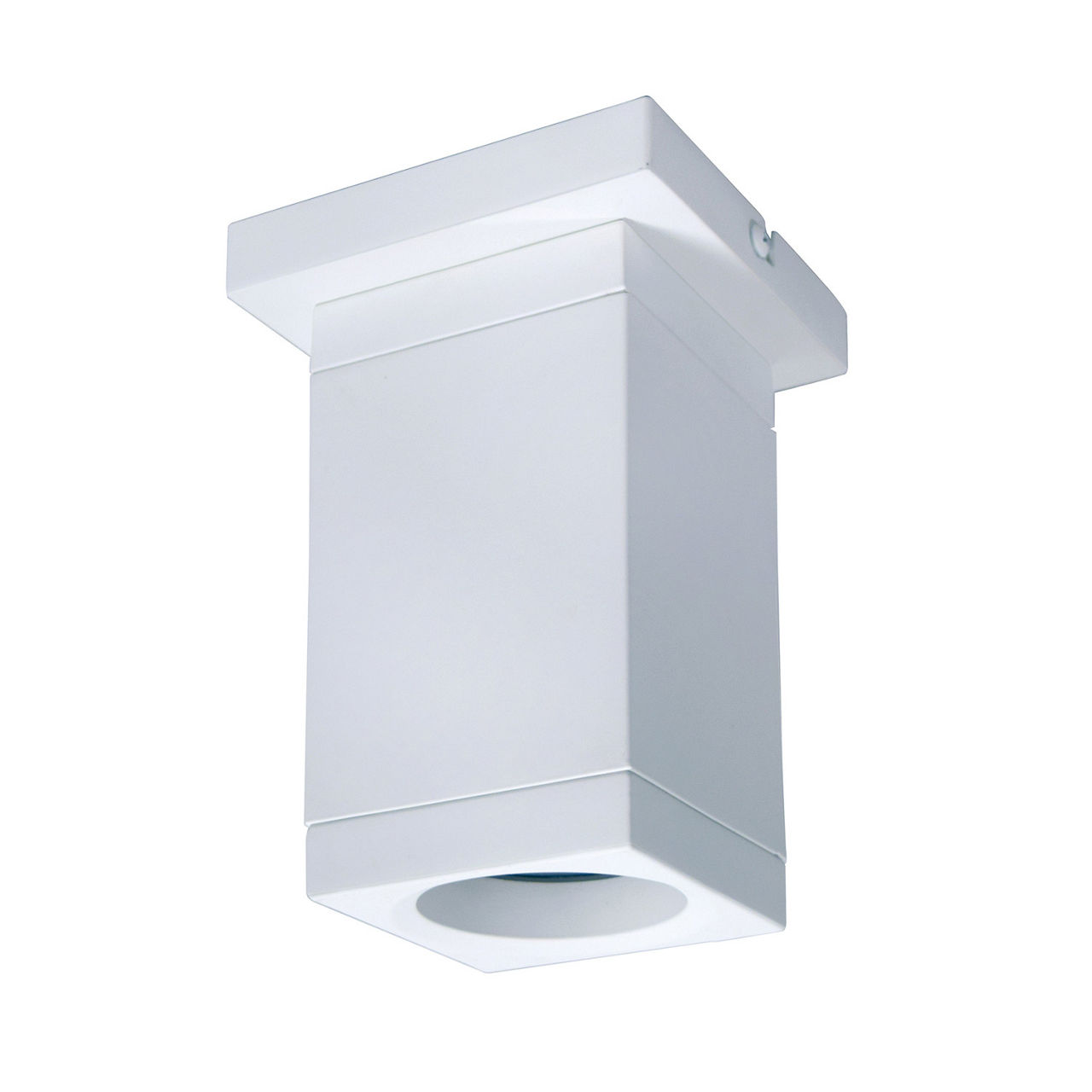

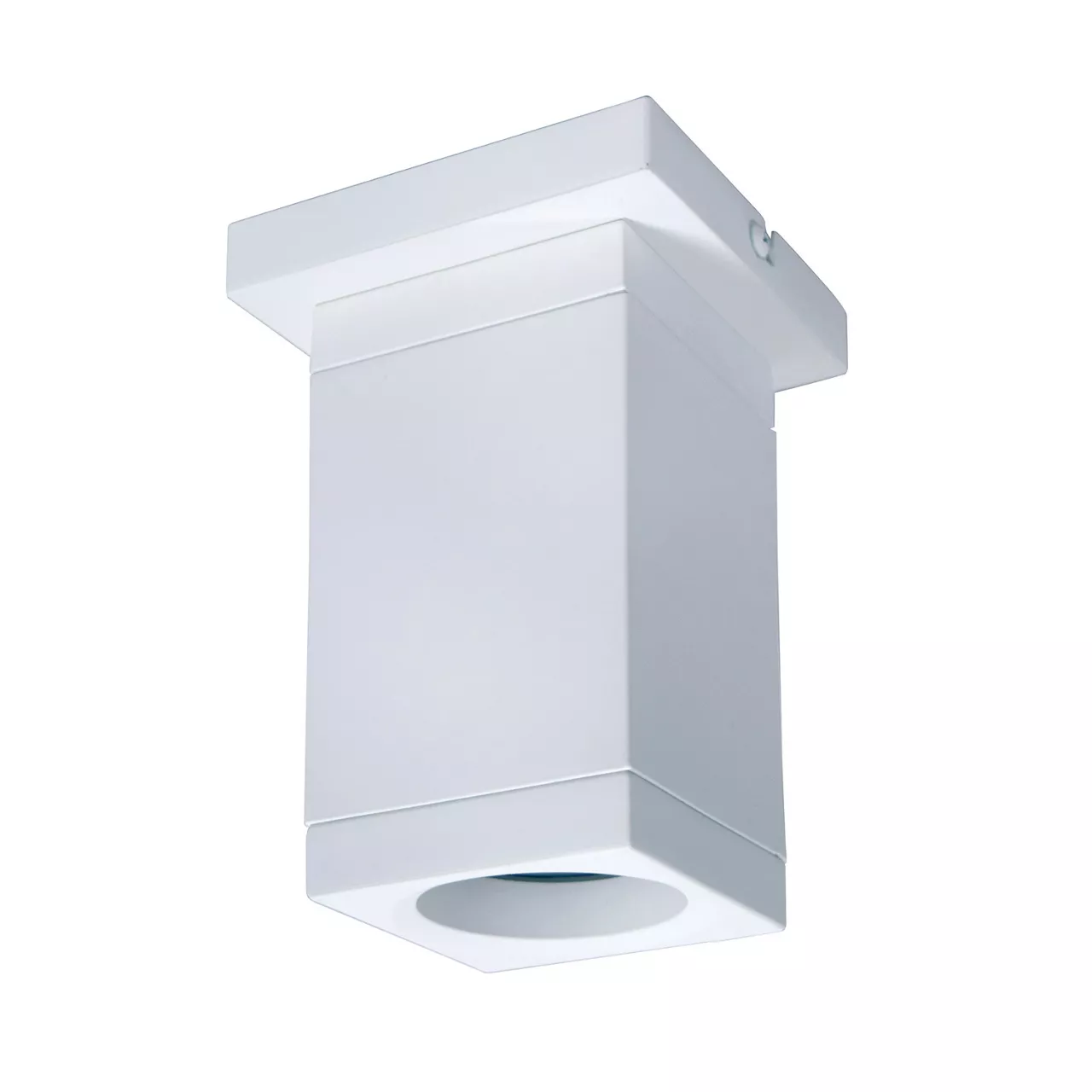

3-1/2 Inch Indoor/Outdoor Square Cylinders: Ceiling Mount


  • Specification Grade 3-1/2 inch square Aluminum Housing suitable for Dry/Damp (indoor) or Wet (outdoor) location types
  • Wet Location Cylinders feature a Silicone Sealed Clear Glass Lens in a Gasketed Die-Cast Trim Ring to ensure unit is watertight
  • Available in 6-1/2 and 10-3/16 inch heights with a 4-3/4 inch square Mounting Canopy
  • Hang support for hands-free wiring
  • 12° Spot, 28° Medium, 39° Flood and 65° Wide Flood Optic Beam Distributions, plus a Wall Wash Optic option
  • Wall Wash Optic may be rotated 360° to aim distribution pattern
  • Optics can be easily changed in the field for optimal flexibility; Wall Wash Optic (WW) is not field interchangeable with Spot, Medium, Flood or Wide Flood Optics
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Battery Backup option provides 90 minutes of power
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • SQL3 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Environment : Indoor|Outdoor

    Light Distribution Detail : Spot|Medium|Flood|Wide Flood|Wall Wash

    Light Source : LED

    Listings : cCSAus|Wet Location|Damp Location|ENERGY STAR® Certified|IP65

    Lumen Output : 1001-1500|1501-2000

    Mounting : Ceiling

    Product Type : Cylinder

    Size : 3-1/2 in
