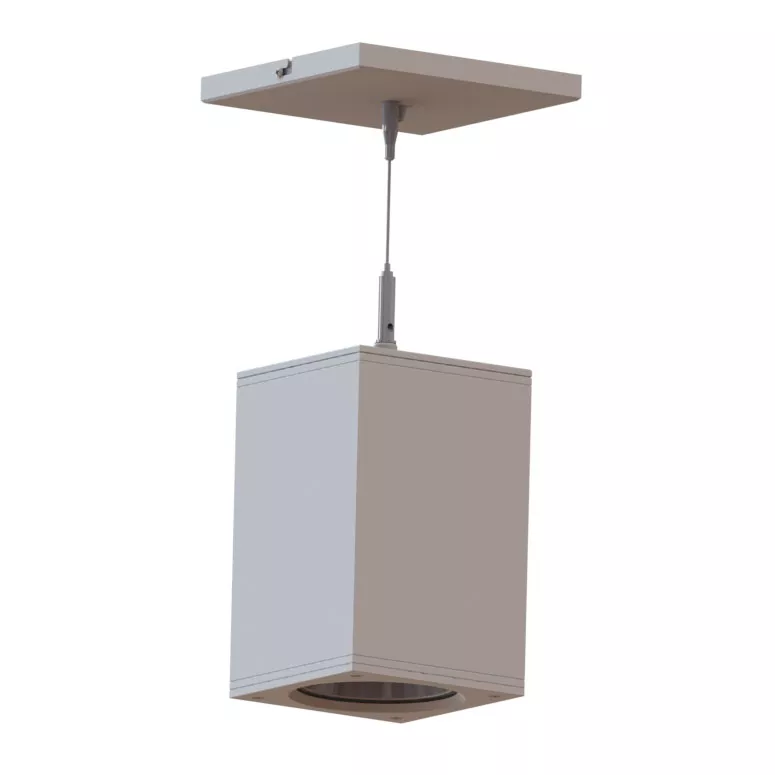

6 Inch Indoor Square Cylinders: Flexible Cable Pendant

SQL6 FC

  • Specification Grade 6 inch square Aluminum Housing; suitable for Dry/Damp (indoor) location types
  • Includes 120 inches of Field Adjustable Cable and Steel Aircraft Cable for support
  • Black Flexible Cable with Black or Bronze Cylinders, White Flexible Cable with White Cylinders and Gray Flexible Cable with Silver Cylinders
  • Clear Alzak Reflector is available in 36° Narrow, 54° Medium and 80° Wide beam distributions
  • Platinum Reflector is available in a 63° Medium beam distribution
  • Wall Wash Optic also available
  • 2700K, 3000K, 3500K and 4000K Color Temperatures; CRI of 80 min., 83 typical; high CRI of 90+ available
  • Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
  • Battery Backup option provides 90 minutes of power
  • UL8750 and Class 2 compliant: RoHS compliant, U.S. only
  • Output over voltage, over current and short circuit protected
  • SQL6 Cylinders are available for non-dimming and dimming applications; for dimmer compatibility, refer to Dimming Specification Sheet
  • Assembled in the U.S.A

Product Information

  • Product Features

    Color Rendering Index : 80-89|90-100

    Correlated Color Temperature : 2700K|3000K|3500K|4000K

    Environment : Indoor

    Light Distribution Detail : Narrow|Medium|Wide|Wall Wash|Pencil Beam

    Light Source : LED

    Listings : cCSAus|Energy Star

    Lumen Output : 501-1000|1001-1500|1501-2000|2001-3000|3001-4000

    Mounting : Flexible Cable Pendant, Canopy Mount

    Product Type : Cylinder

    Size : 6 in
