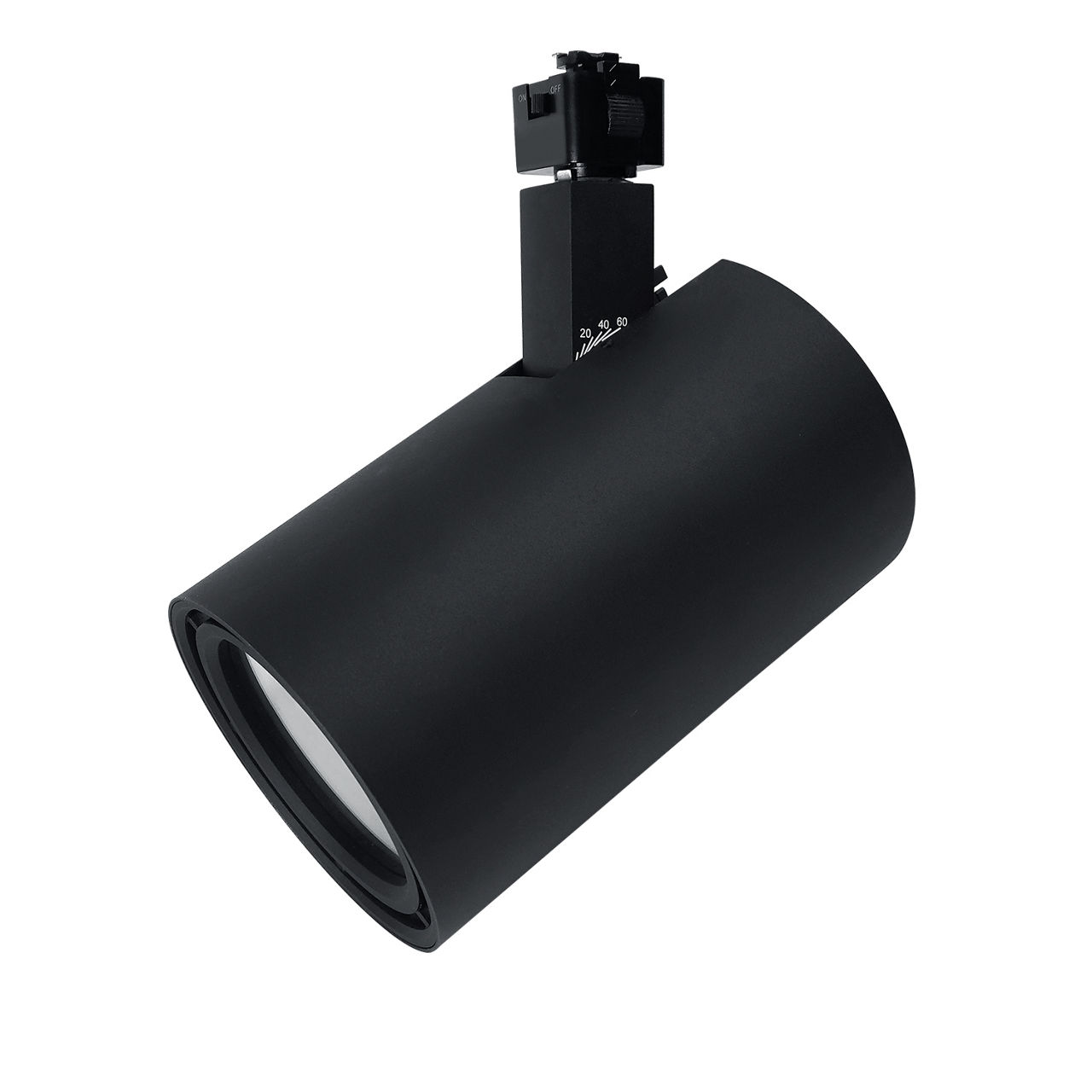

Gallery XL Track Luminaire with Standard Luminous LED
CTL94
- A revolutionary track head with superior optics designed to bring theatre grade beam control to traditional gallery and commercial track heads
- Constructed of die-cast aluminum, the cylindrical body provides thermal management
- Adjustable, lockable aiming arm with 0° to 100° tilt for precision aiming; 365° horizontal rotation

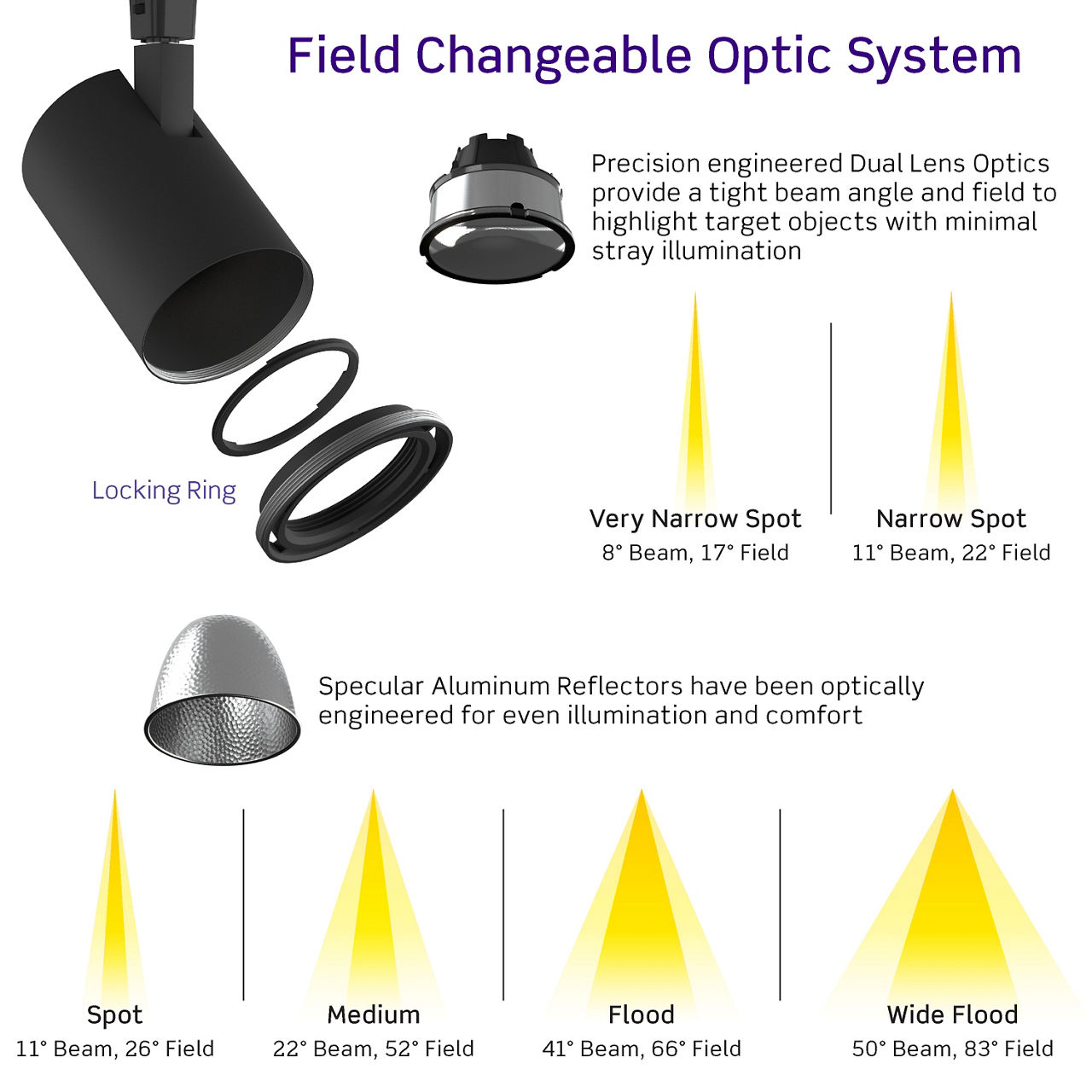

- A precision engineered Dual Lens Optic is used for the 8° Very Narrow Spot and 11° Narrow Spot beam distributions, providing a tight beam angle and field to highlight target objects with minimal stray illumination
- Specular Aluminum Reflectors are used for 11° Spot, 22° Medium, 41° Flood, and 50° Wide Flood beam distributions; optically engineered for even illumination and glare control
- Optics are field changeable
- The Luminaire an accept up to two (2) LF20 Lenses/Filters, LA-45 Honeycomb Louver, FA-94 Snoot, or BD94-B Black Barn Doors; Snoot or Barn Door count as one (1) piece. Accessories are ordered separately.
- Select from 2700K, 3000K, 3500K and 4000K color temperatures; CRI of 80 min., 83 typical; a high CRI of 90+ is available
- 120V Forward Phase or Reverse Phase Dimming is standard for all wattage options, for dimmer compatibility and performance, refer to Specification sheet
- Integrated Rotary Dimmer option available; this option should not be used if Track System will be controlled by other dimmers
- Standard ConTech “CTL” track luminaires are cCSAus certified as-is for use with ConTech Lighting’s LT/LT2 Single Circuit/Two Circuit Track and Luxbeam Systems as well as Juno® Lighting Trac-Master™ Systems
- By changing the prefix of the part number, ConTech can install inserts which make our fixtures compatible with other track manufacturers' systems, consult factory for details
Product Information
Product Features
Product Category : Track Lighting
Product Type : LED Track Luminaire
Mounting : Track Mount
Compatible with : ConTech LT Single Circuit Track,ConTech LT2 Two Circuit Track,ConTech Luxbeam Track System,Juno® Lighting Trac-Master™ Systems,Halo® Power-Trac System,Halo® Lazer Track,Lightolier® Lytespan® System
Environment : Dry Location
Compliance : cCSAus Certified,DesignLights Consortium (DLC) Certified
Correlated Color Temperature : 2700K,3000K,3500K,4000K
Color Rendering Index : 80-89,90-100
Light Distribution Detail : Very Narrow Spot,Narrow Spot,Spot,Medium,Flood,Wide Flood
Wattage : 11W - 20W,21W - 30W,31W - 40W,41W - 50W
Lumen Output : 500-1000,1001-1500,1501-2000,2001-3000,3001-4000,4001-5000
Voltage : 120V
Dimming Technology : 120V Forward Phase Dimming,120V Reverse Phase Dimming,120V Integrated Rotary Dimming Option
